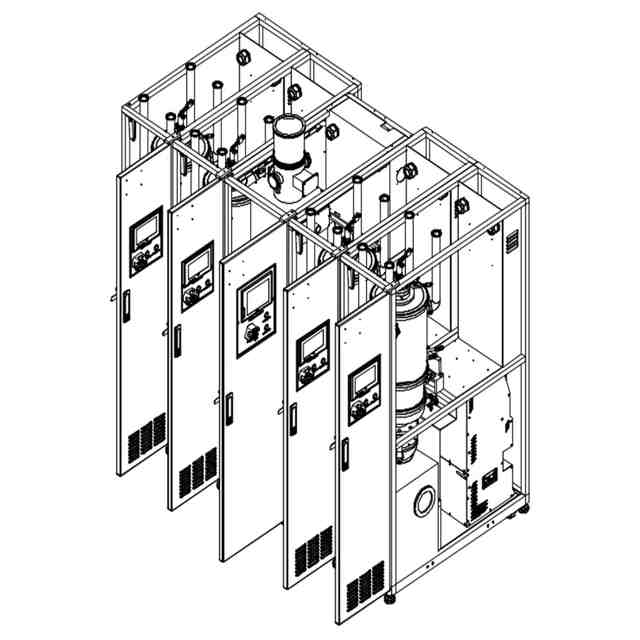

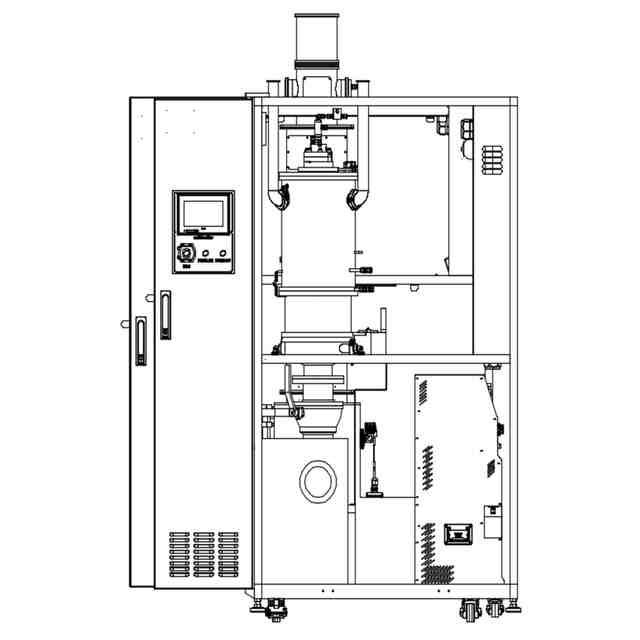

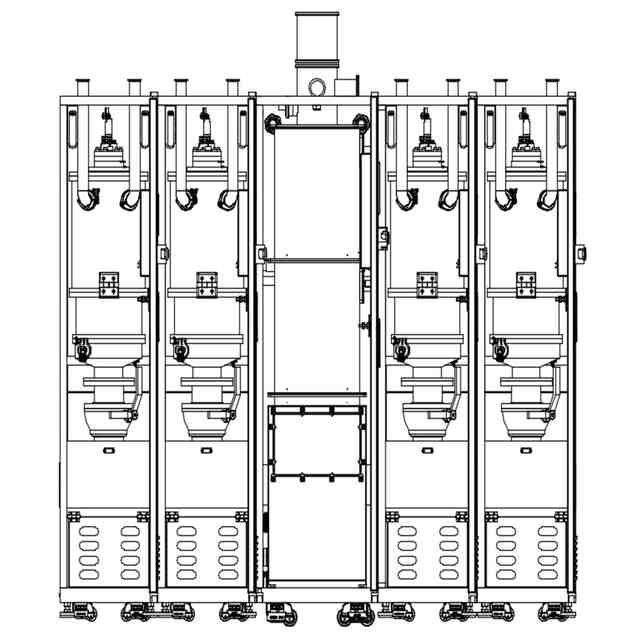

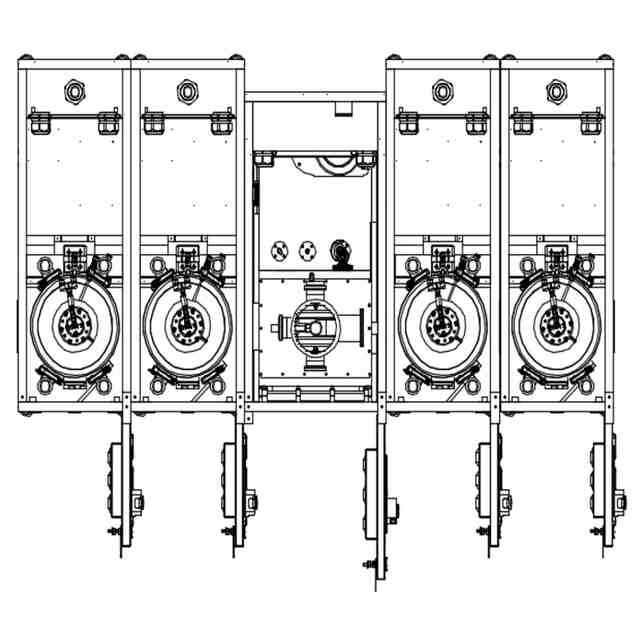

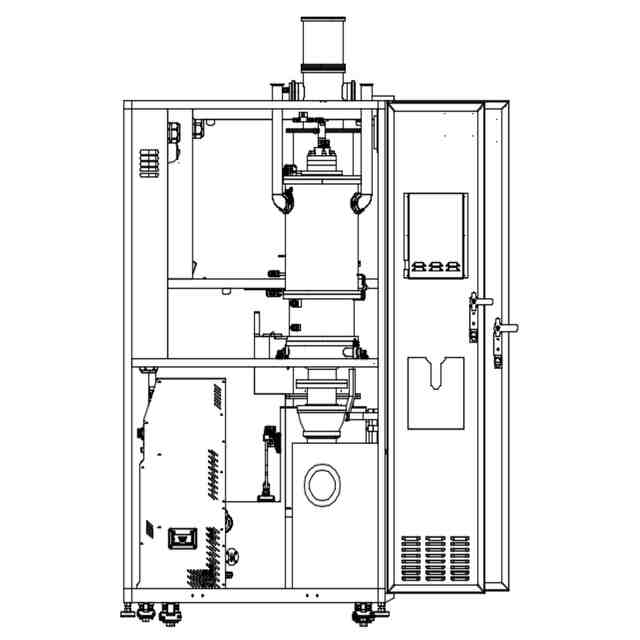

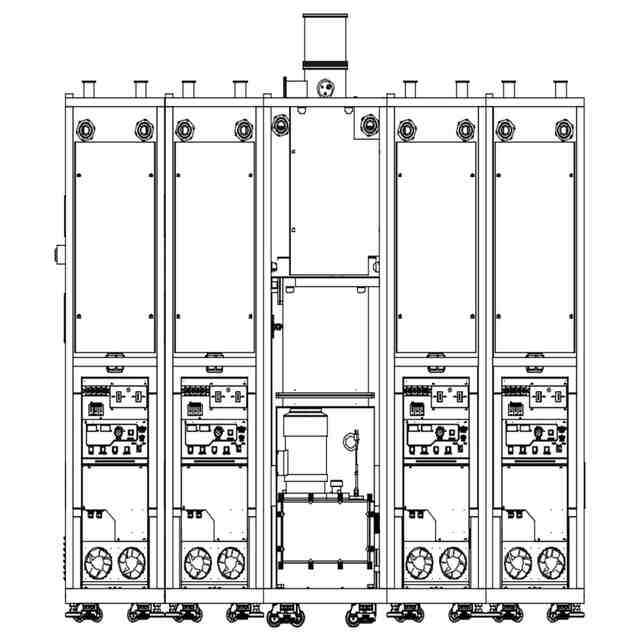

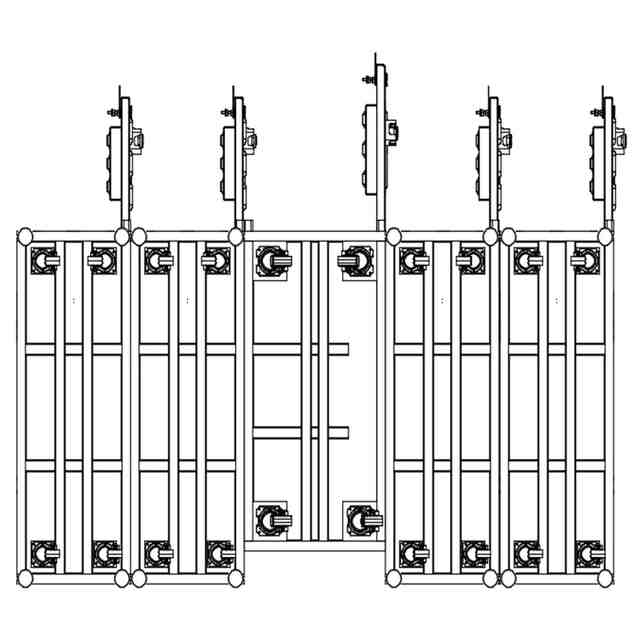

発行日2024-08-27 公報種別意匠公報(S) 登録番号1778559 登録日2024-08-19 意匠に係る物品Waste gas reduction device 意匠分類K0-70(K1～K9に属さないその他の産業用機械器具) 出願番号2023503509,30-2023-0011719 出願日 意匠権者TRIPLE CORES TECHNOLOGY CO., LTD. 代理人個人,個人 意匠に係る物品の説明 意匠の説明This design relates to a waste gas reduction device for removing pollutants by contacting a liquid with exhaust gas containing pollutants discharged from a semiconductor process; a water treatment module that purifies the burned waste gas using water is placed in the center; and a plurality of reaction modules that burn the waste gas are arranged on both sides of the water treatment module in the center; this design is used in the process where a lot of powder is generated during the waste gas treatment process. 1.1)Perspective; 1.2)Front; 1.3)Back; 1.4)Top; 1.5)Bottom; 1.6)Left; 1.7)Right この意匠をJ-PlatPatで参照する
