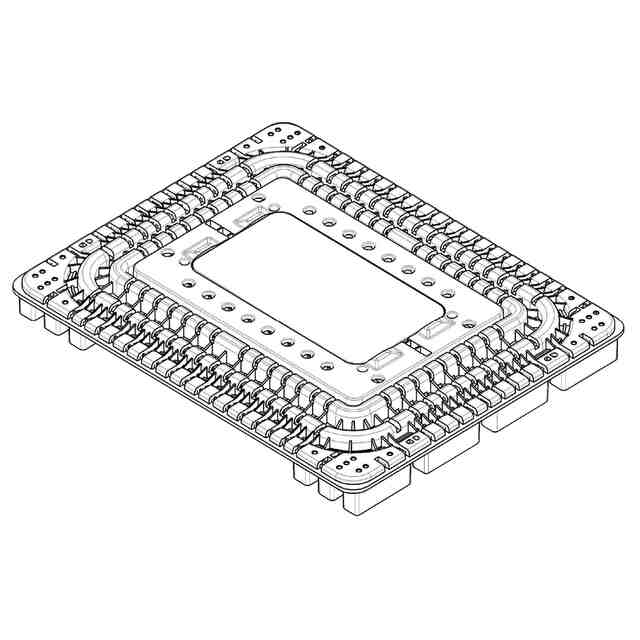

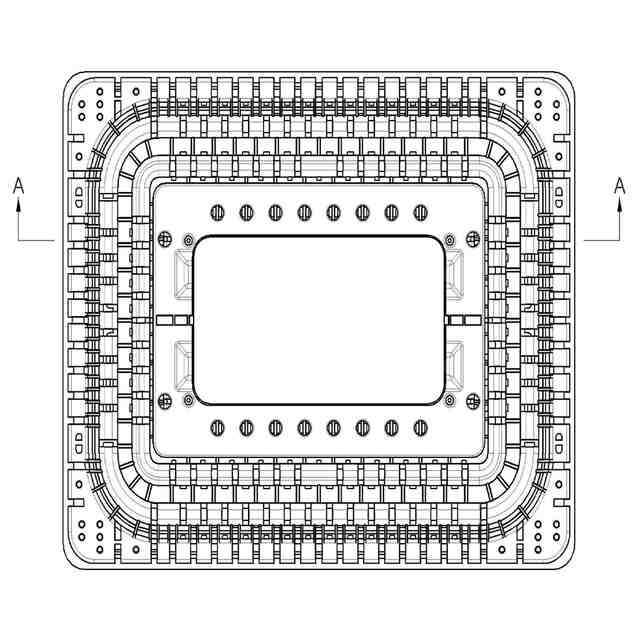

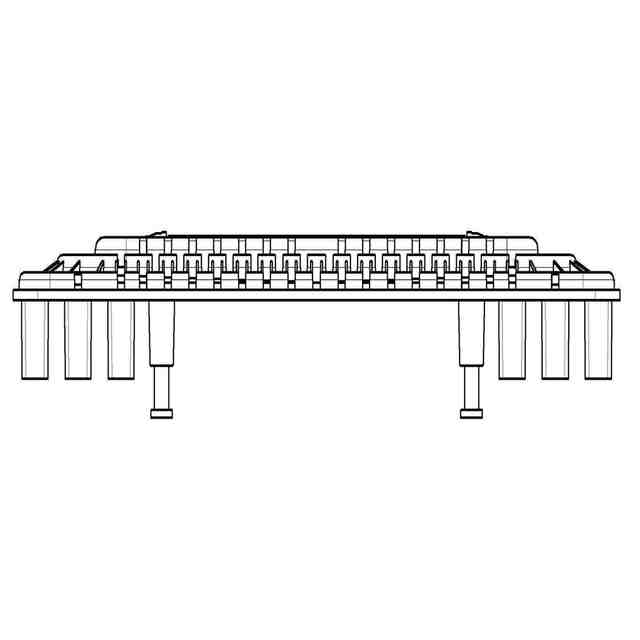

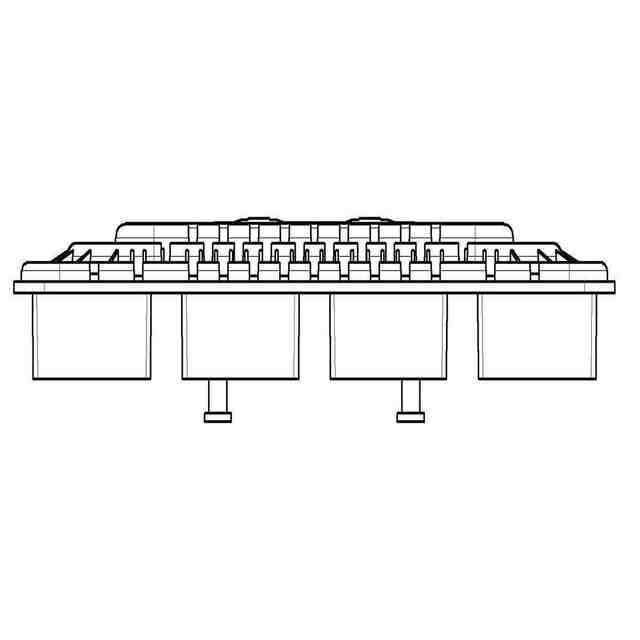

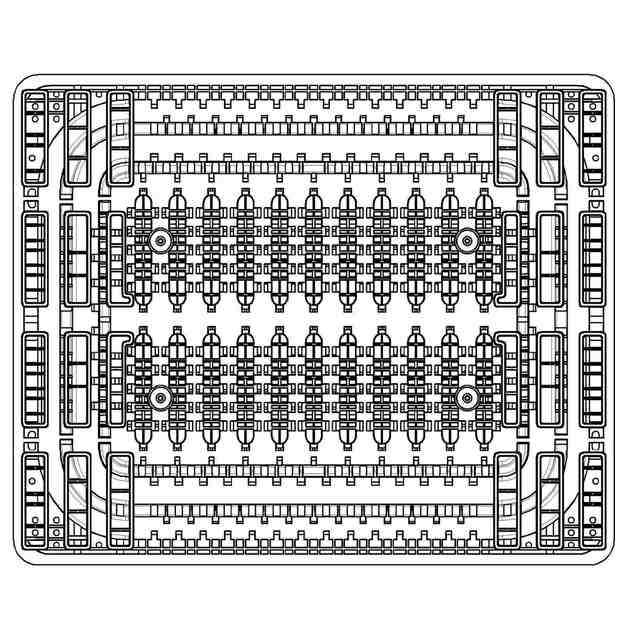

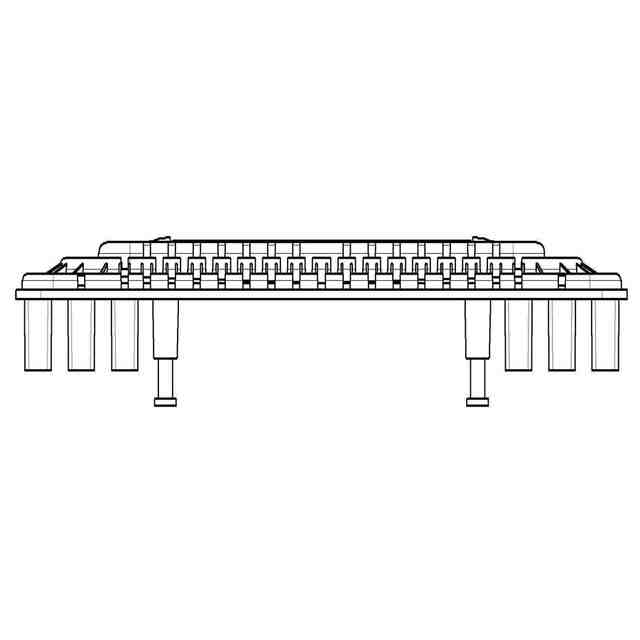

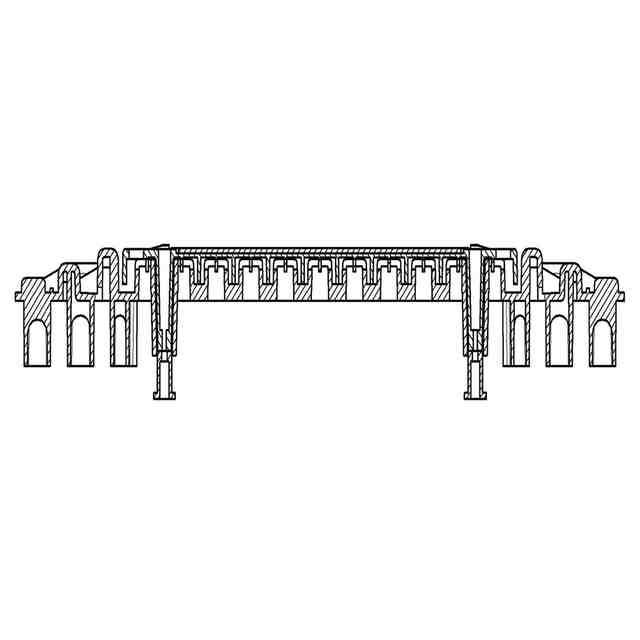

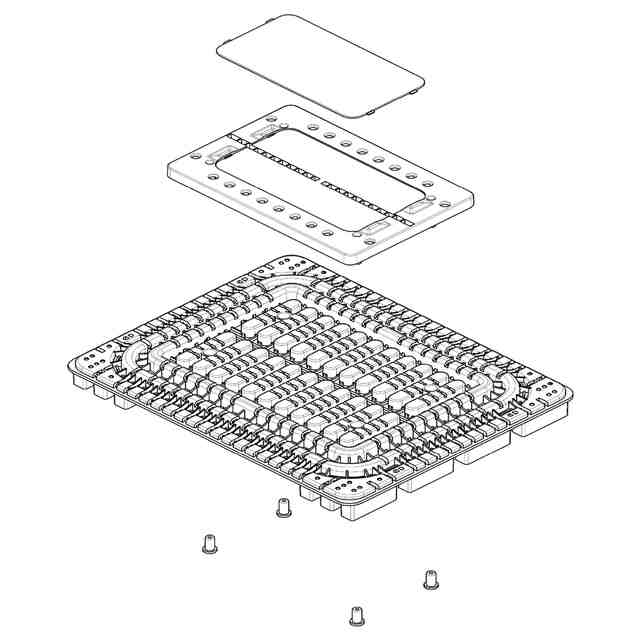

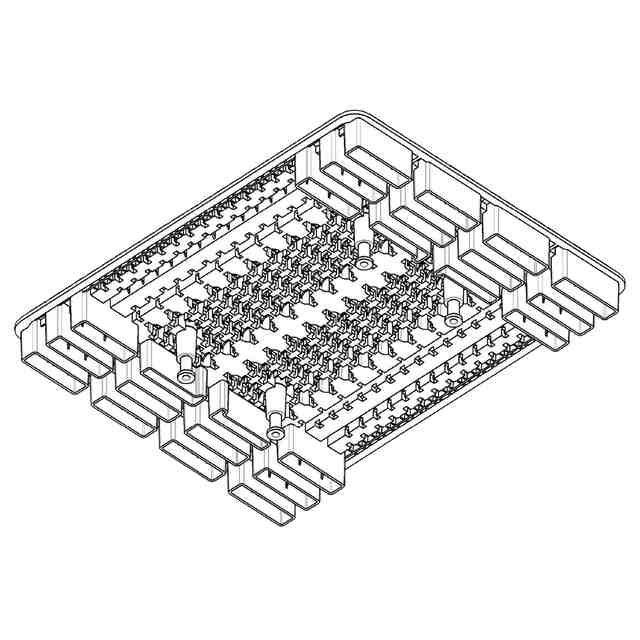

発行日2025-07-01 公報種別意匠公報(S) 登録番号1802547 登録日2025-06-23 意匠に係る物品Safety device for drain gratings 意匠分類M2-80(配線・配管用管、管継ぎ手、バルブ等) 出願番号2023504147,3020230004289 出願日 意匠権者DRAIN FILTER CO., LTD. 代理人 意匠に係る物品の説明 意匠の説明1. The material is synthetic resin; 2. As shown in reference drawing 1.11, the present design is installed on the upper surface of the drainage grating, preventing garbage such as fallen leaves and cigarette butts from entering the drainage channel and at the same time ensuring smooth drainage on the upper surface of the drainage grating; cover to be installed. 1.1)Perspective; 1.2)Bottom; 1.3)Front; 1.4)Back; 1.5)Left; 1.6)Right; 1.7)Top; 1.8)Bottom; 1.9)Cross-sectional taken along line A-A in 1.7; 1.10)Exploded; 1.11)Reference この意匠をJ-PlatPatで参照する
