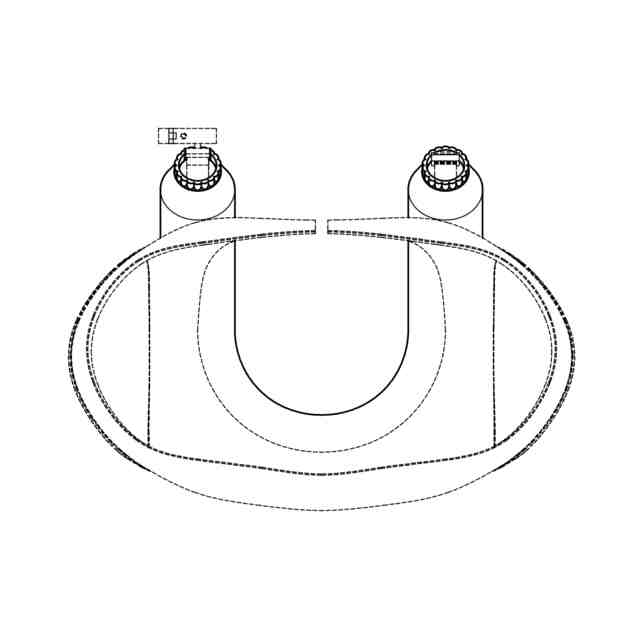

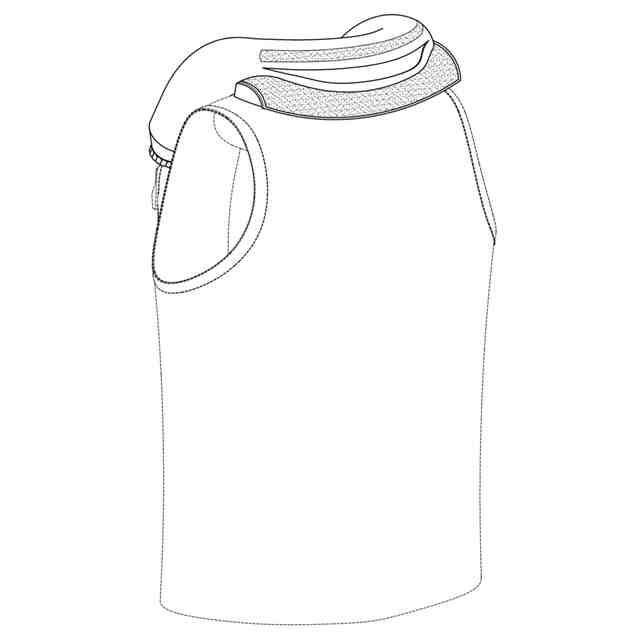

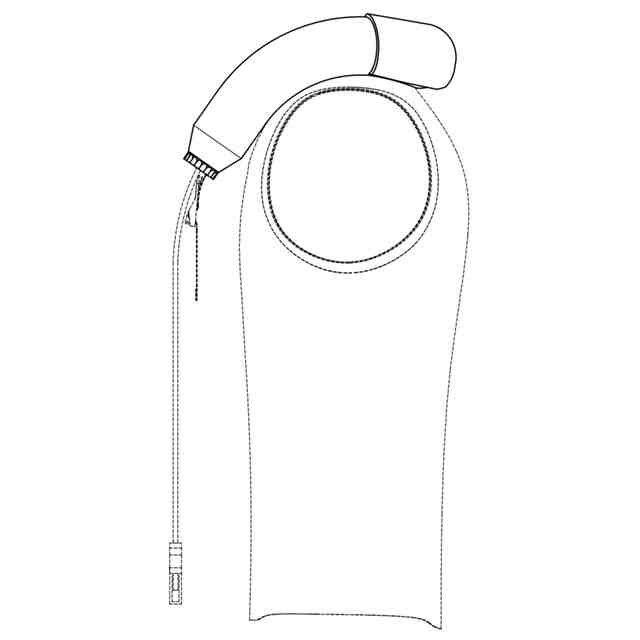

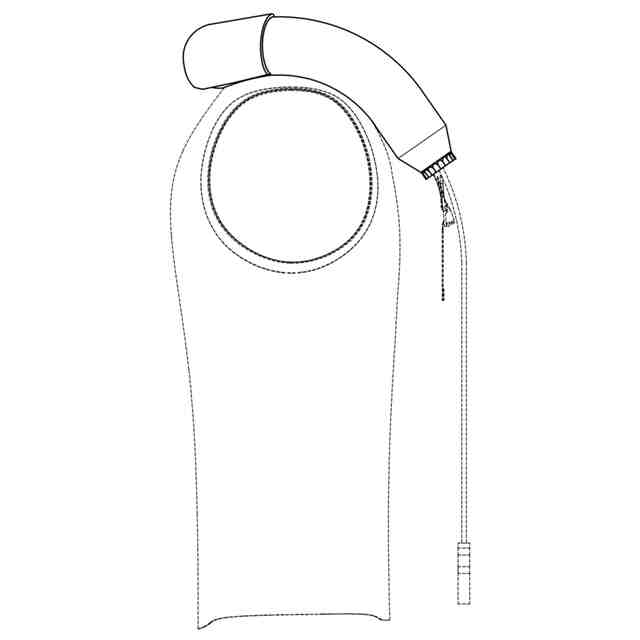

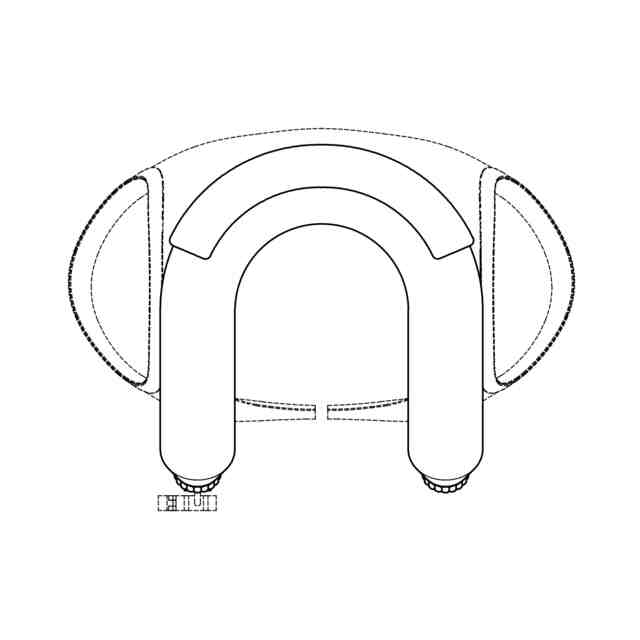

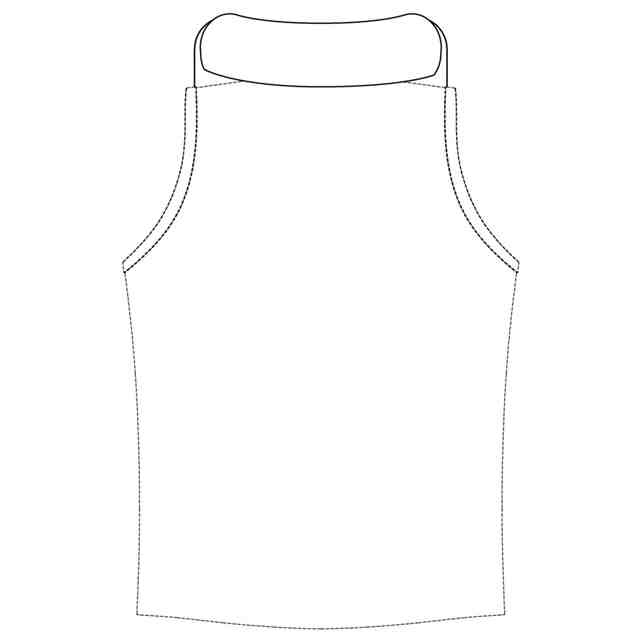

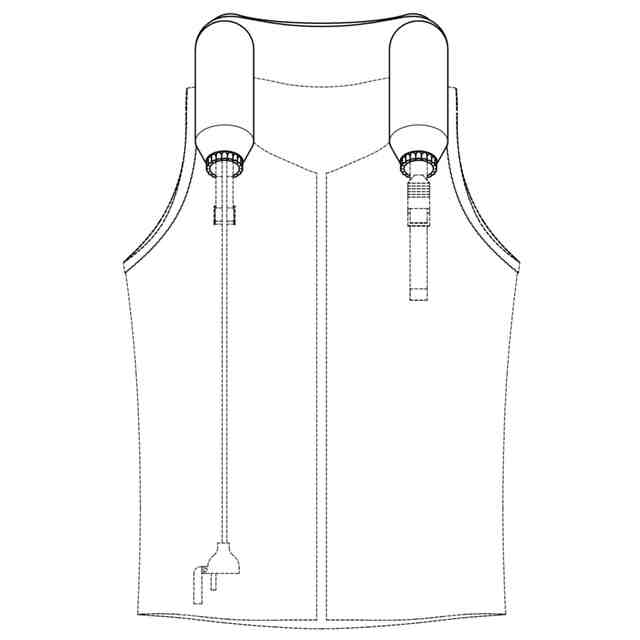

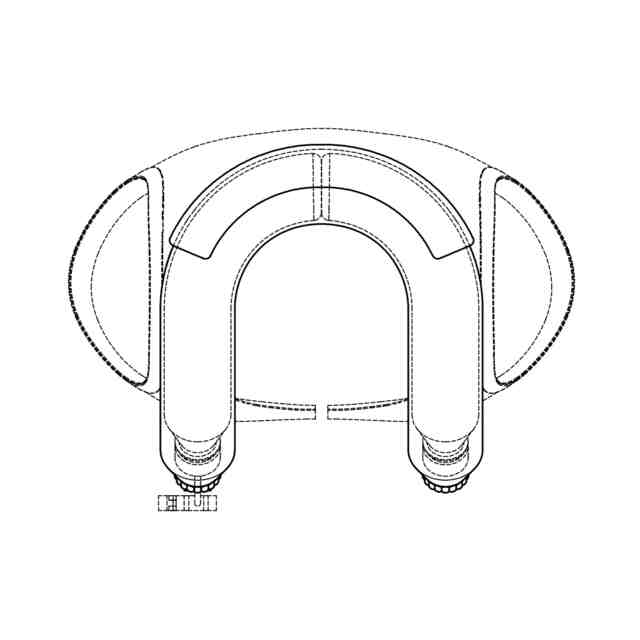

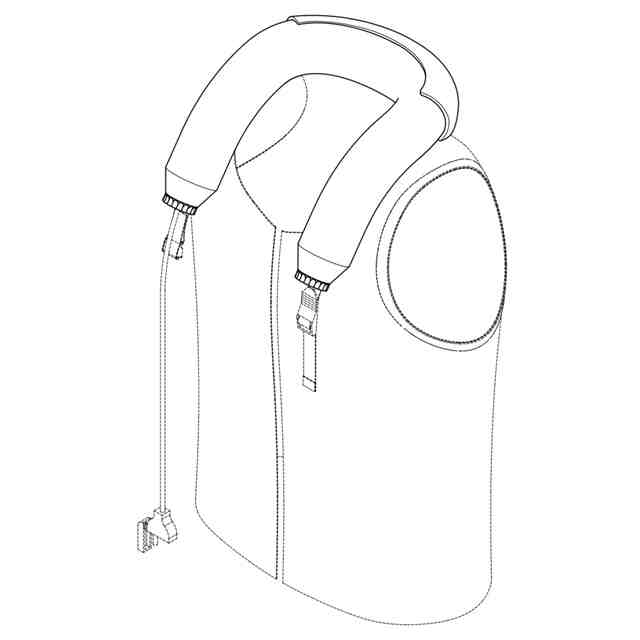

発行日2025-04-23 公報種別意匠公報(S) 登録番号1796929 登録日2025-04-14 意匠に係る物品Workwear top 意匠分類B1-1130(衣服) 出願番号2024501413,30-2023-0052592 出願日 意匠権者SOO WAN HONG 代理人 意匠に係る物品の説明 意匠の説明This design is the workwear top with a lapel in form of storage neckband, which the collar formed around the neck can accommodate the portable bottle, providing a cool feeling and convenient drinking water or beverage through the intake pipe connected to the portable bottle to improve the work efficiency; on both ends of the collar, the openings with the elastic band to allow the intake pipe etc., connected to the portable bottle to be pulled out, and buckles etc. to fasten the collar are provided; the opening with a straight cut and an opening cover to be combined with velcro are formed on one side of the cylindrical collar in design 2; reproduction 2.1 is a perspective view, reproduction 2.8 is a reference view of perspective view showing the insertion of the portable bottle into the lapel of the present design and reproduction 2.9 is reference view of the opening formed in the collar and the state in which the cover is opened; the part shown by means of solid line in the reproductions is the part to be registered as a partial design but the parts in broken lines are not part of the claimed design. 2.1)Perspective; 2.2)Front; 2.3)Back; 2.4)Left; 2.5)Right; 2.6)Top; 2.7)Bottom; 2.8)Reference; 2.9)Reference この意匠をJ-PlatPatで参照する
