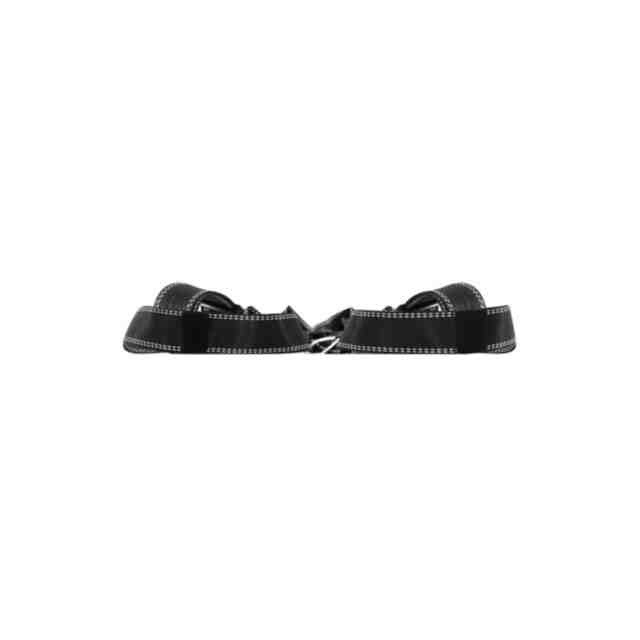

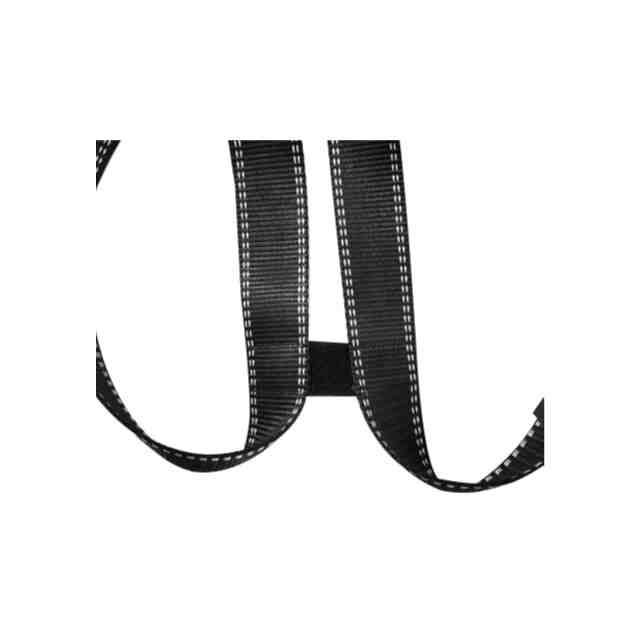

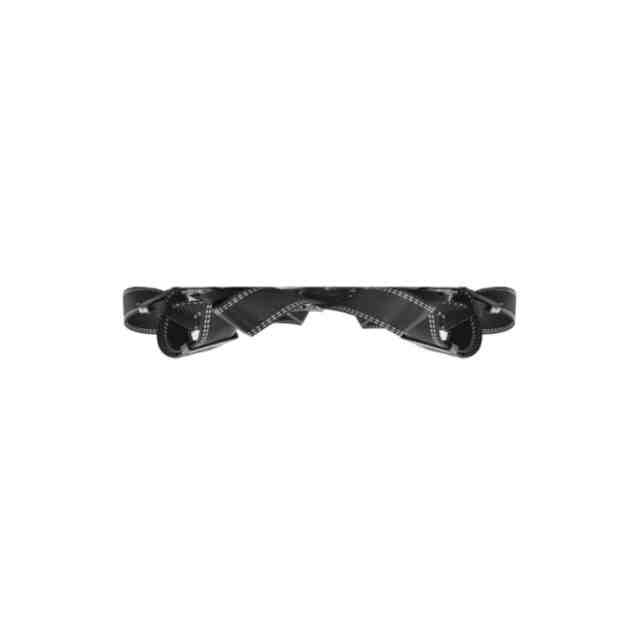

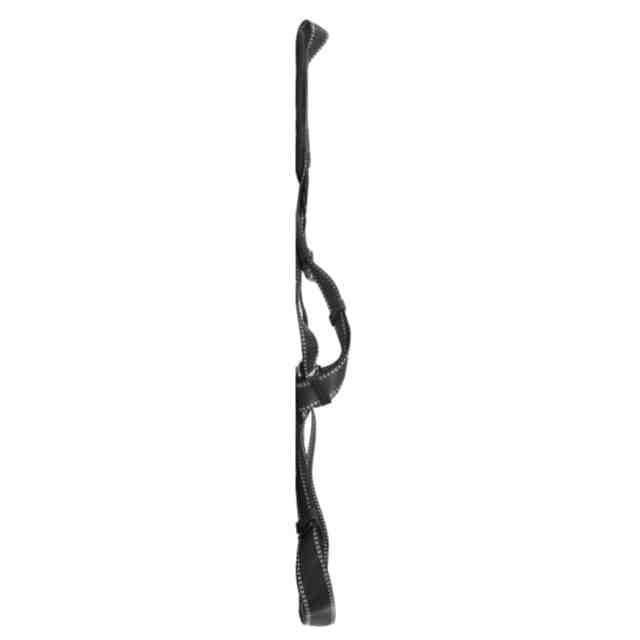

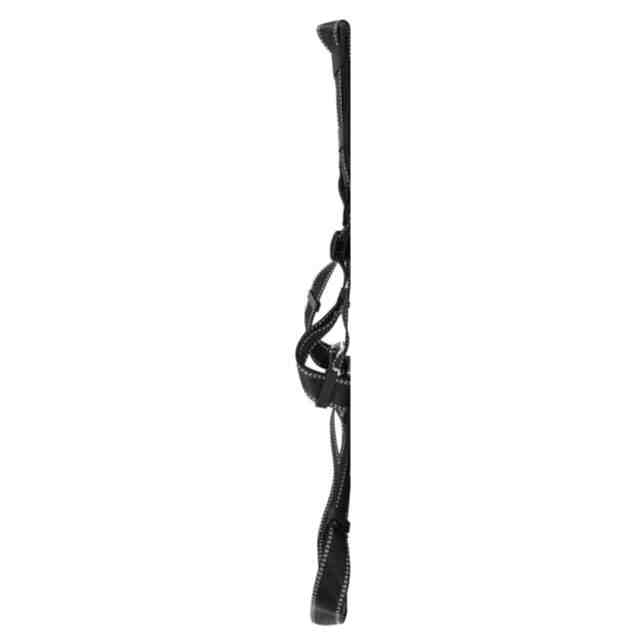

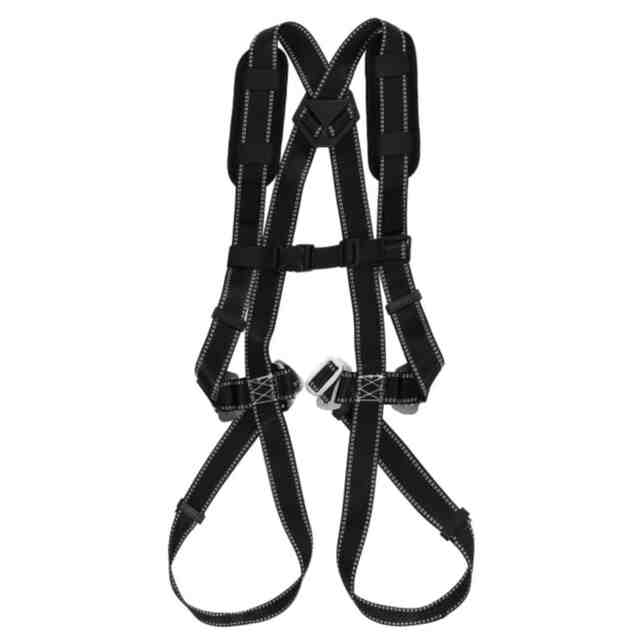

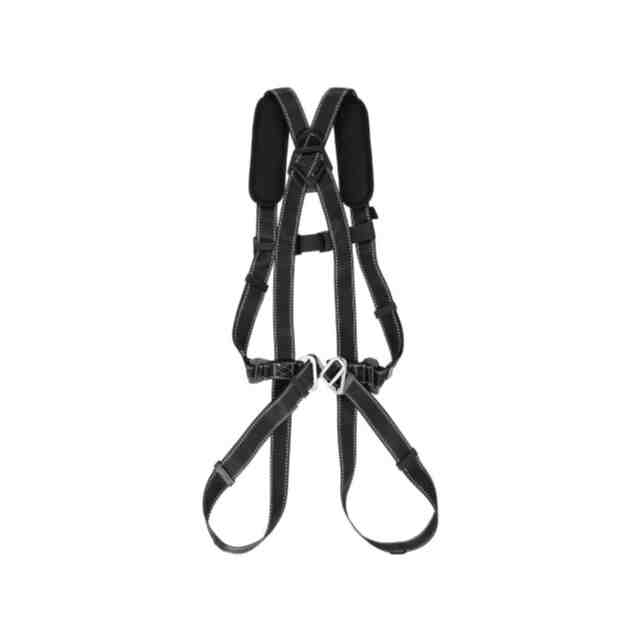

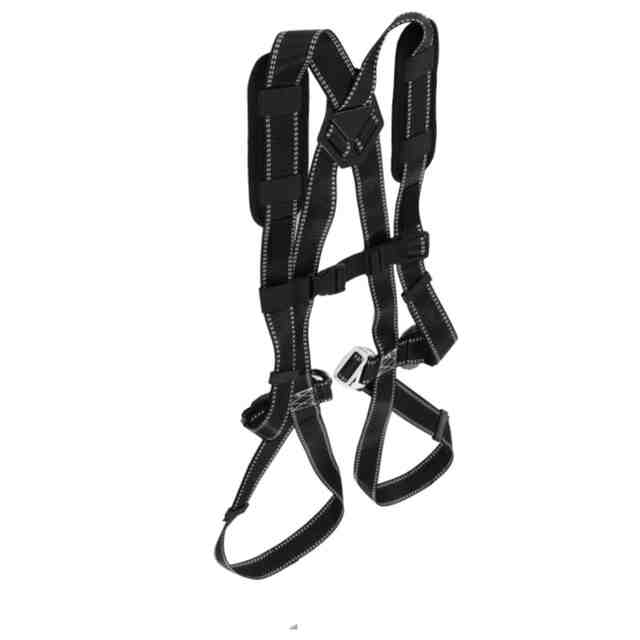

発行日2025-04-23 公報種別意匠公報(S) 登録番号1796808 登録日2025-04-14 意匠に係る物品Safety belt for work 意匠分類J6-12(保安機械器具等) 出願番号2023502376,3020220041297 出願日 意匠権者Tae Soo KIM 代理人個人,個人 意匠に係る物品の説明 意匠の説明A fastening band fixture into which two belts are inserted in an X-shape is positioned on the back; The belts hung on the shoulders of a worker are positioned on a chest part in a shape of letter ‘11’, and the two belts positioned on the chest part are coupled not to be spaced apart from each other by using a fixing clip; The belts, which are drawn from the fastening band fixture positioned on the back, are fitted inside the thighs of the worker, wrapped around the buttocks, and then fastened to a fastening device fixed to the belt positioned on a waist part, and the belt coupled at the chest part by the fixing clip is fixedly inserted into a fixing clip that is fixed to the belt positioned at the waist part; The fastening device is installed on one side of the belt positioned at the waist part of the worker to fasten the belts of the fastening band fixture positioned on the back, and the belt at the chest part is fixedly inserted into a fixing clip that is fixed in a direction opposite to the fastening device; A fastening band fixing ring, into which a karabiner of a fastening band is inserted, is fixed to the fastening band fixture positioned on the back so that the fastening band can be hung on either side of the fastening band fixture; The safety belt has an upper body portion that is integrated like clothes so that the safety belt can be customized to a worker’s body by adjusting the length of the belt even if a body type is large or small and can be easily worn because it can be easily put on or taken off like a vest; To prevent a phenomenon in which trousers are shifted up while being wrapped by the belts wound around the inner thighs when the worker repeatedly sits down and stands up while wearing the safety belt, a hook and loop fastener is installed so as to couple the two belts so that the two belts are coupled not to be spaced apart from each other at the inner thighs with the hook and loop fastener after wearing the safety belt. 1.1)Perspective; 1.2)Front; 1.3)Back; 1.4)Left; 1.5)Right; 1.6)Top; 1.7)Bottom; 1.8)Reference この意匠をJ-PlatPatで参照する
