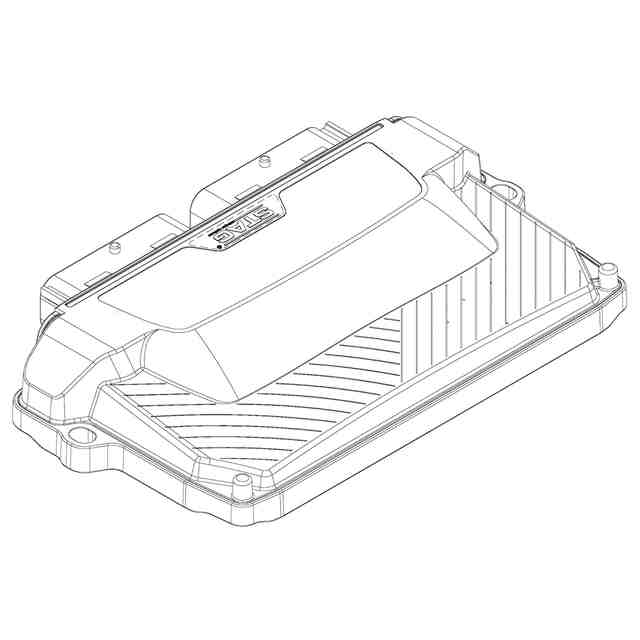

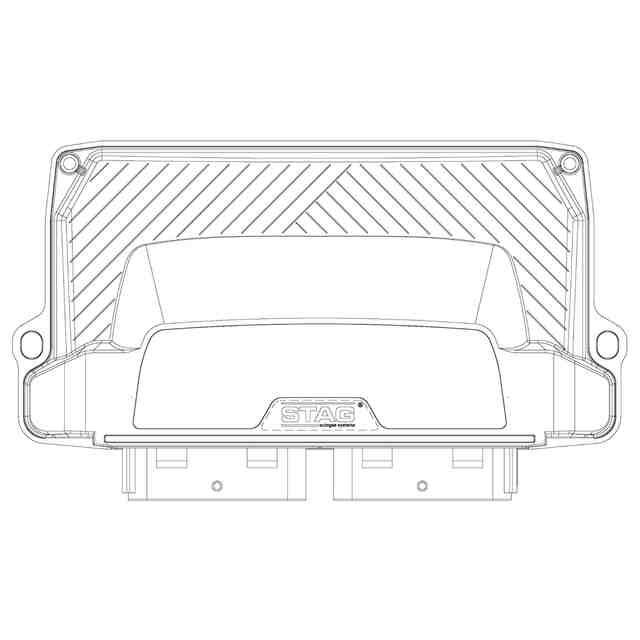

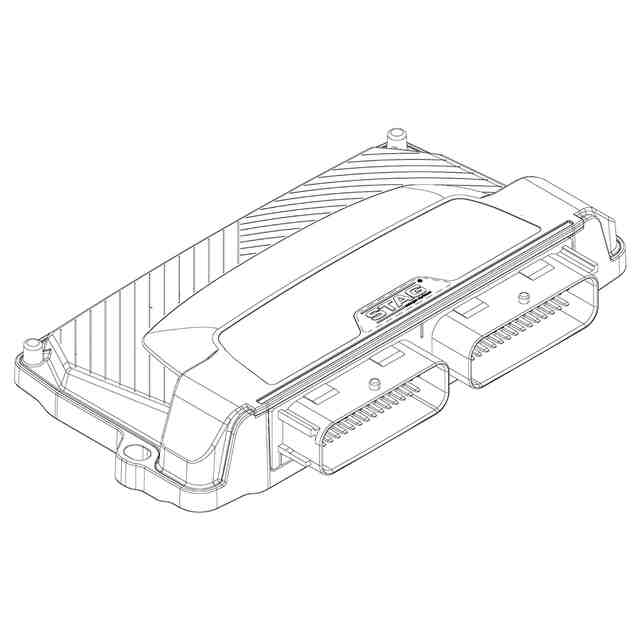

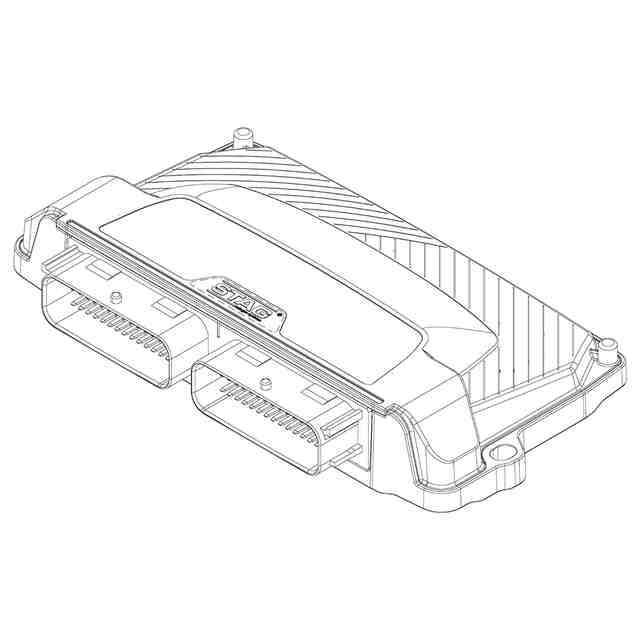

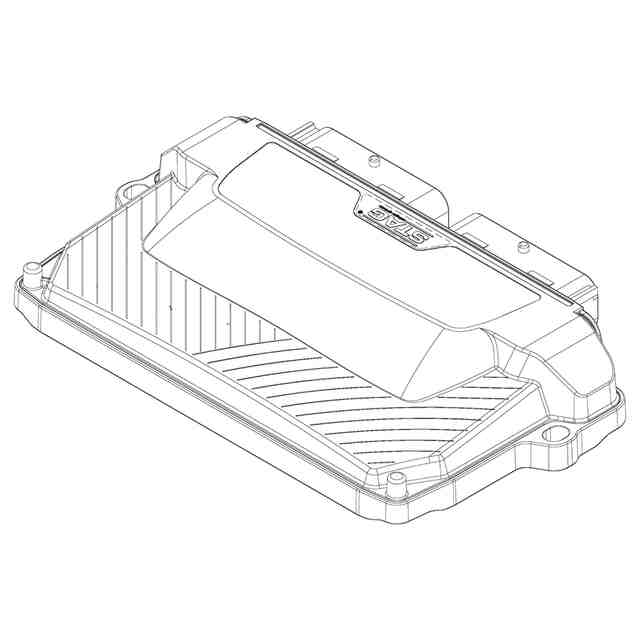

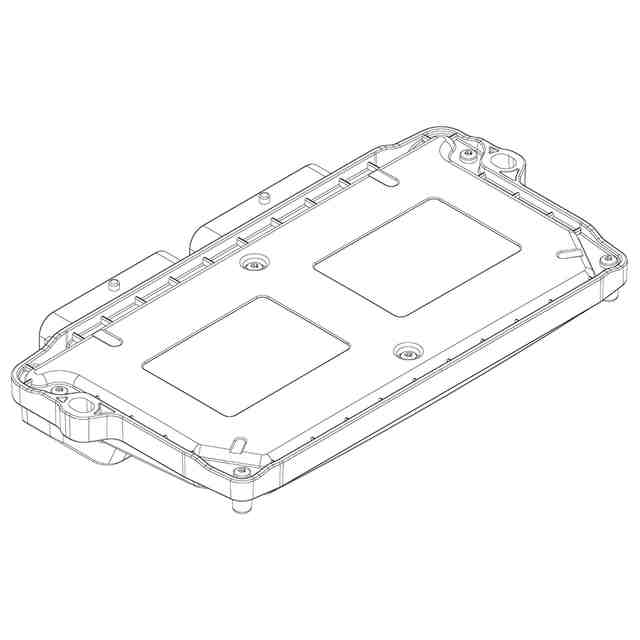

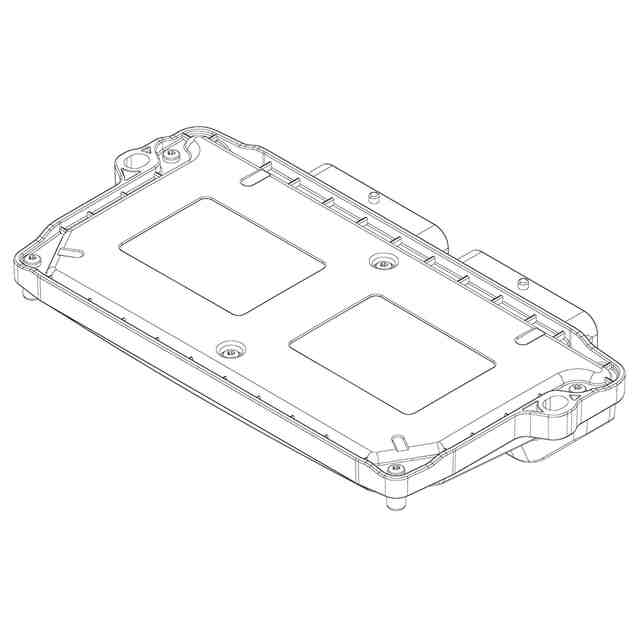

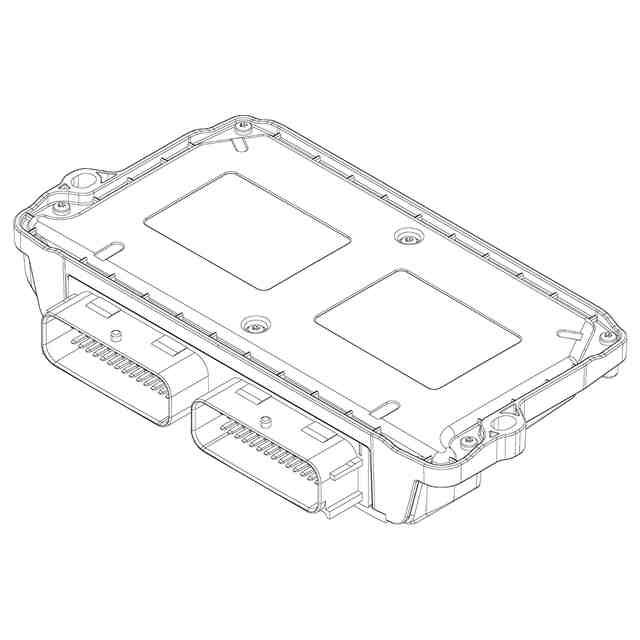

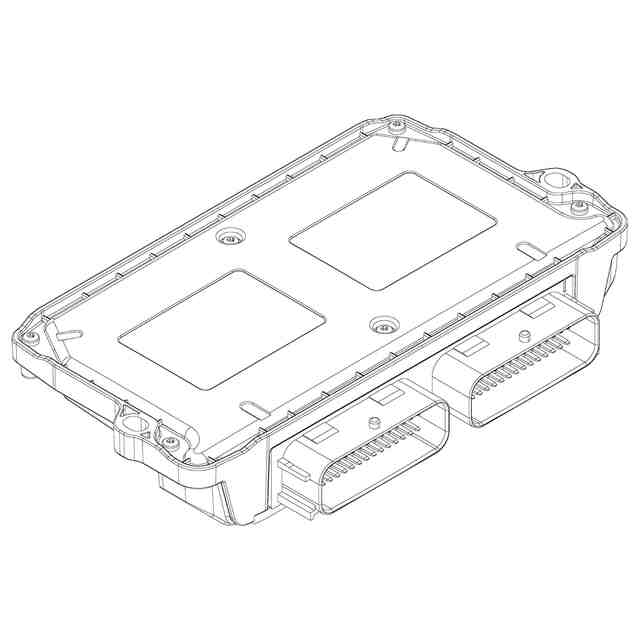

発行日2025-07-01 公報種別意匠公報(S) 登録番号1802651 登録日2025-06-23 意匠に係る物品Gas injector controller casing for internal combustion engines 意匠分類K8-290(動力機械器具、ポンプ、圧縮機、送風機等) 出願番号2024504240 出願日 意匠権者AC SPOLKA AKCYJNA 代理人 意匠に係る物品の説明 意匠の説明The cover of the controller casing has a protrusion at the top of the casing together with a recess and an indentation. This space accommodates information about the device and trademarks, the indented area, marked with a dotted line is excluded from the claim. At the front, there is a double connection socket of rectangular shape with rounded corners and mounting lugs. The cover is fixed to the base by six screws. The contours of the side surface of the bottom controller form a reinforcing rib at the base. Mounting ears are located on both sides of the base. Cylindrical protrusions are visible at the corners of the rear section. 1.1)Back; 1.2)Back; 1.3)Bottom; 1.4)Bottom; 1.5)Bottom; 1.6)Front; 1.7)Front; 1.8)Top; 1.9)Top; 1.10)Top この意匠をJ-PlatPatで参照する
