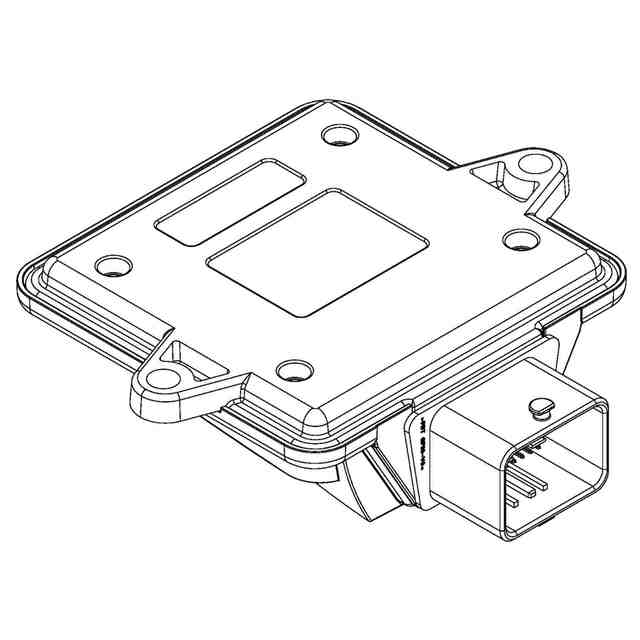

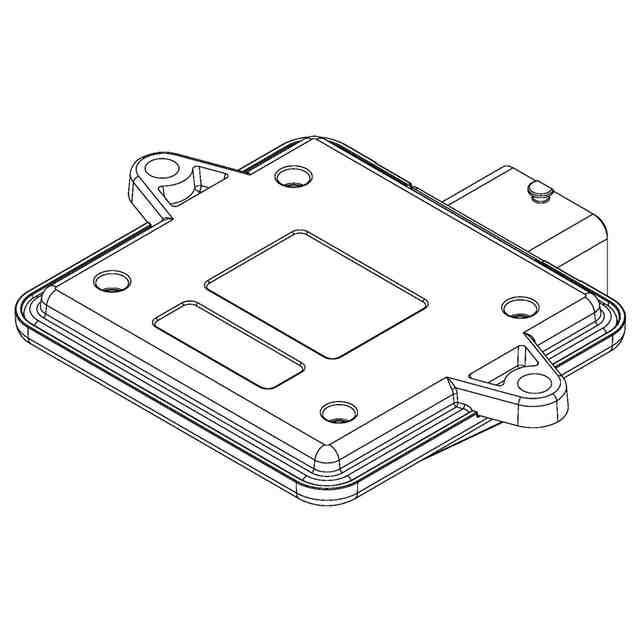

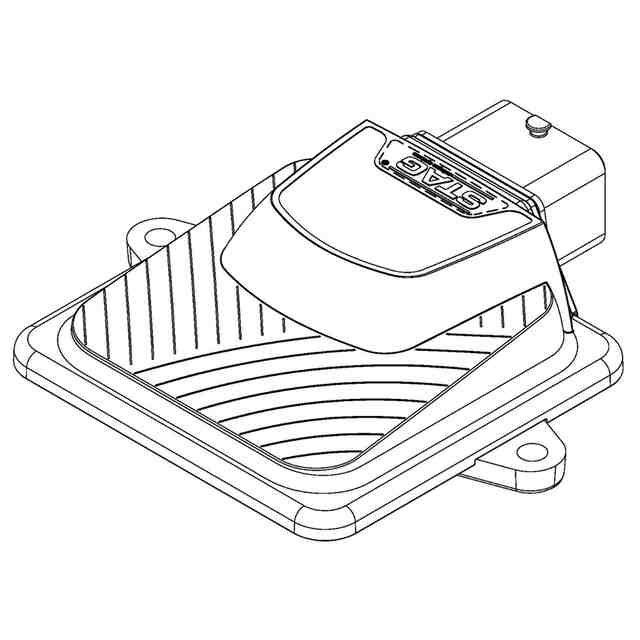

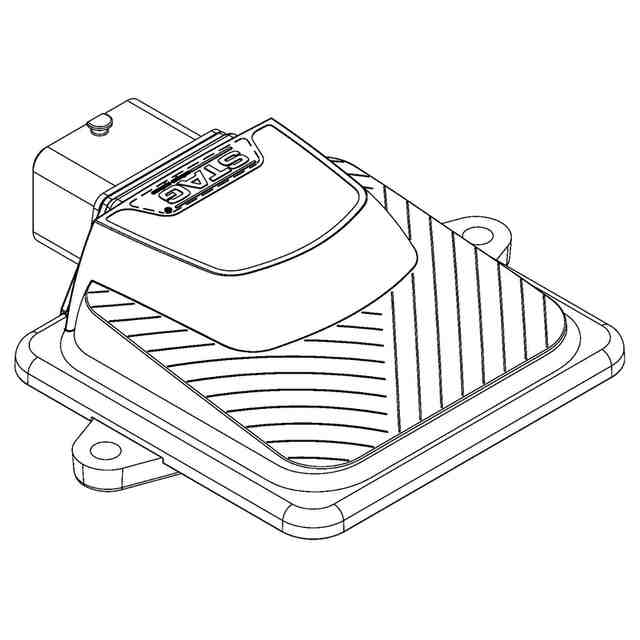

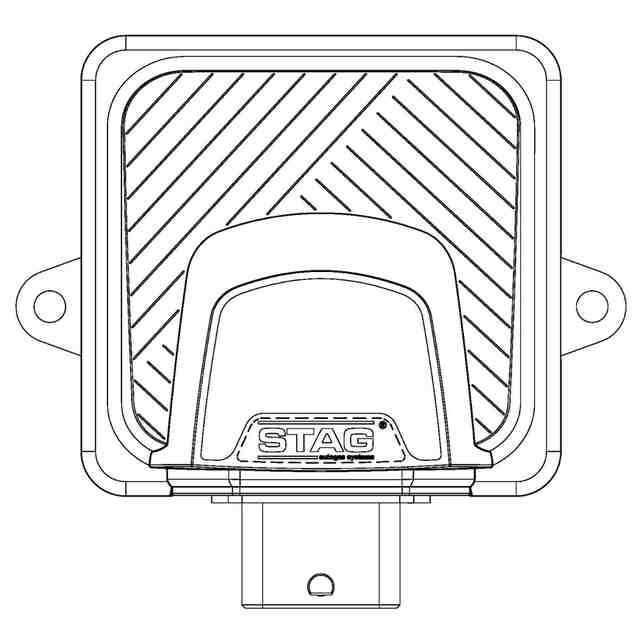

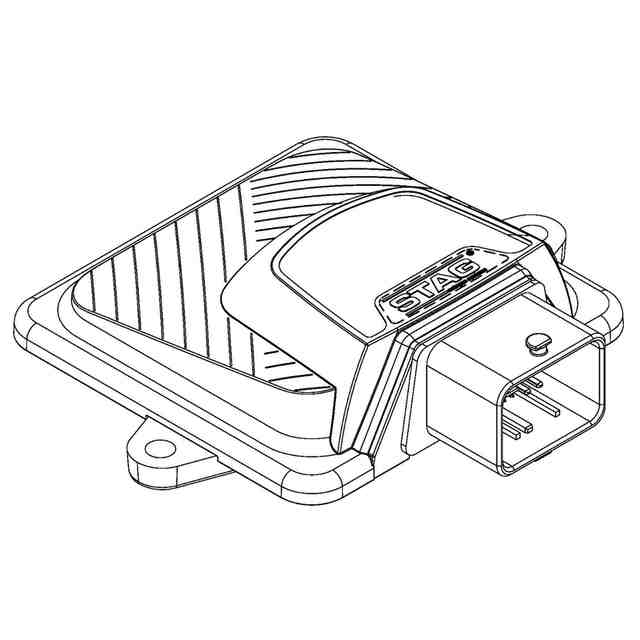

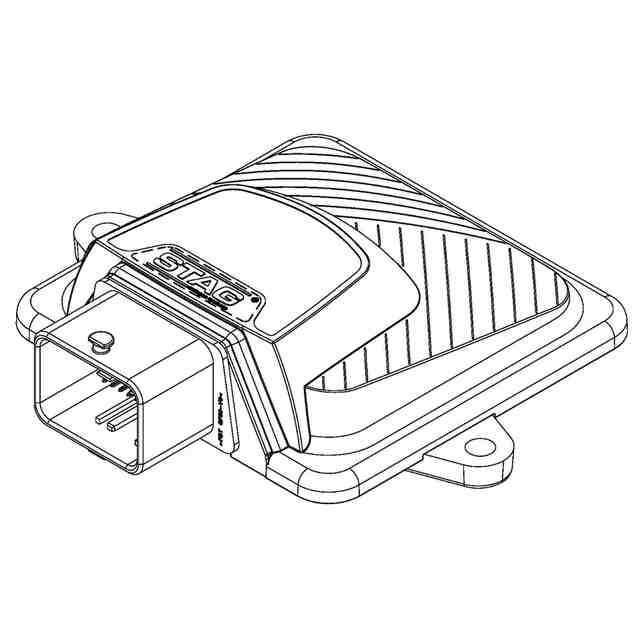

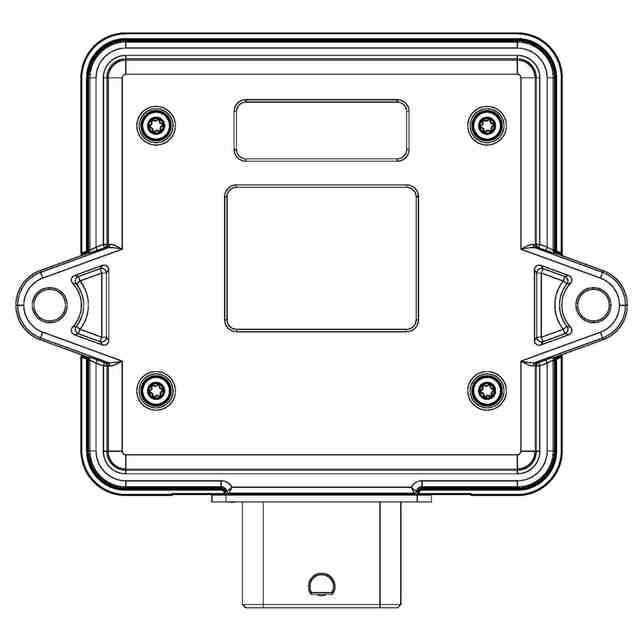

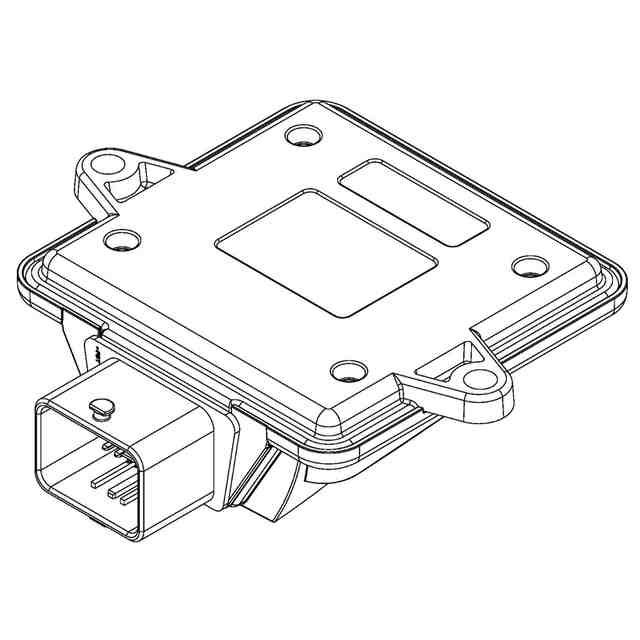

発行日2025-07-01 公報種別意匠公報(S) 登録番号1802614 登録日2025-06-23 意匠に係る物品Gas injector controller casing for internal combustion engines 意匠分類K8-290(動力機械器具、ポンプ、圧縮機、送風機等) 出願番号2024503813 出願日 意匠権者AC SPOLKA AKCYJNA 代理人 意匠に係る物品の説明 意匠の説明The cover of the controller casing has a convexity with a recess and a characteristic indentation in the upper part. The area of the recess serves to accommodate device information and trademarks. This area indicated by the dotted line is excluded from the claim. A rectangular connection socket with mounting lugs is provided on the front side of the casing. The cover is fixed to the base by four screws. The outer contours of the side surfaces at the base form a reinforcing rib extending upwards on the three sides of the cover. Mounting ears are provided on both sides of the base. The base is rectangular in shape, with an embossment/curve on the underside for information on the appliance. 1.1)Bottom; 1.2)Top; 1.3)Bottom; 1.4)Bottom; 1.5)Bottom; 1.6)Bottom; 1.7)Front; 1.8)Top; 1.9)Top; 1.10)Top この意匠をJ-PlatPat（特許庁公式サイト）で参照する
