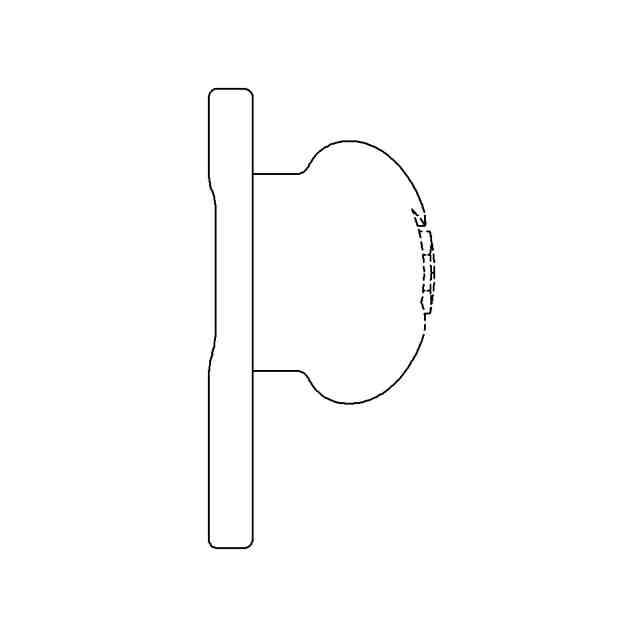

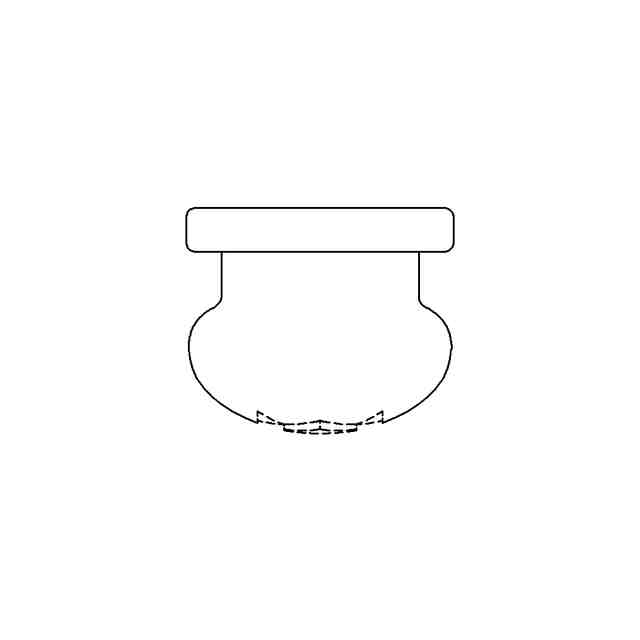

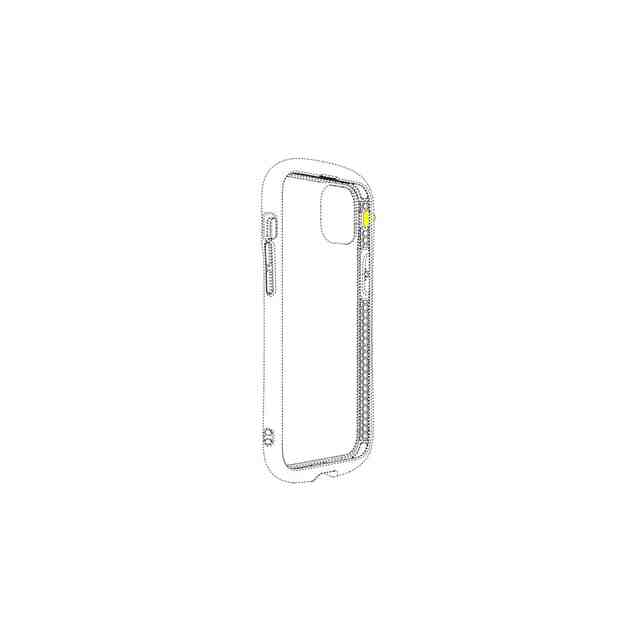

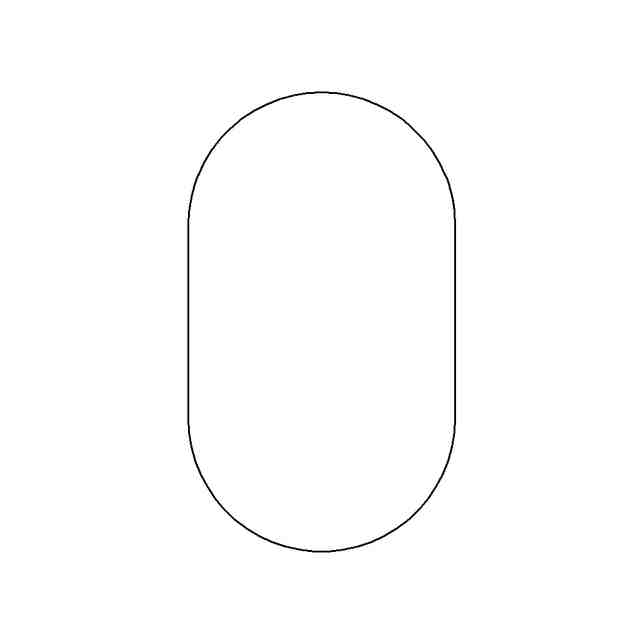

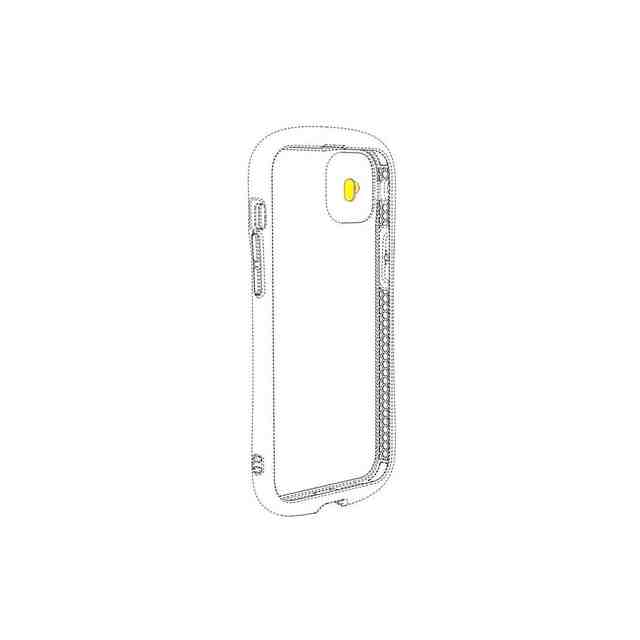

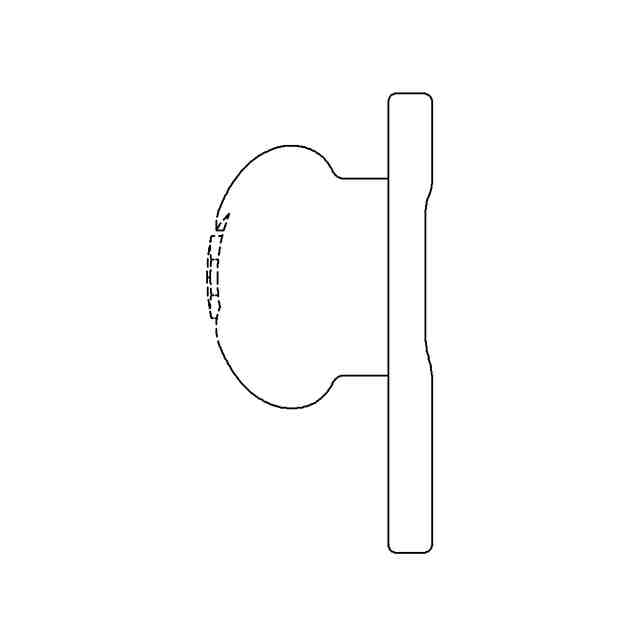

発行日2025-10-29 公報種別意匠公報(S) 登録番号1811703 登録日2025-10-20 意匠に係る物品Cell phone strap connector 意匠分類H7-4390(電子情報入出力機器) 出願番号2024504879,3020240023315 出願日 意匠権者Hamee Global Inc. 代理人 意匠に係る物品の説明 意匠の説明The subject design is made of synthetic resins; the subject design is used mainly as a cell phone strap connector; the broken lines showing portions of a cell phone strap connector depicts only environment and forms no part of the claim; reproduction 1.1 is a perspective view of the cell phone strap connector; reproduction 1.2 is a front view of the subject design; reproduction 1.3 is a rear view of the subject design; reproduction 1.4 is a left side view of the subject design; reproduction 1.5 is a right side view of the subject design; reproduction 1.6 is a top view of the subject design; reproduction 1.7 is a bottom view of the subject design; reproduction 1.8 is a reference view showing the product being installed in a cell phone case; reproduction 1.9 is a reference view showing the product is installed in a cell phone case; a strap can be attached to the protruding knob-shaped part of the product, which is highlighted in yellow in figs 1.8 and 1.9; with the strap attached, the product can be installed from the inside to the outside through a designated hole in the phone case; the yellow color in figs 1.8 and 1.9 is for illustrative purposes only and forms no part of the claimed design; reproduction 1.10 is a reference view showing a strap passing from the outside into a cell phone case and hanging on the product; reproduction 1.11 is a reference view showing the product being installed in a cell phone case thereon with a strap hanging; reproduction 1.12 is a reference view showing the product installed in a cell phone case thereon with a strap hanging; reproductions 1.8, 1.9, 1.10, 1.11 and 1.12 form no part of the claimed designs; the grayscale in the drawings as well as reproductions 1.8, 1.9, 1.10, 1.11 and 1.12 form no part of the claimed design. 1.1)Perspective; 1.2)Front; 1.3)Back; 1.4)Left; 1.5)Right; 1.6)Top; 1.7)Bottom; 1.8)Reference; 1.9)Reference; 1.10)Reference; 1.11)Reference; 1.12)Reference この意匠をJ-PlatPat（特許庁公式サイト）で参照する
