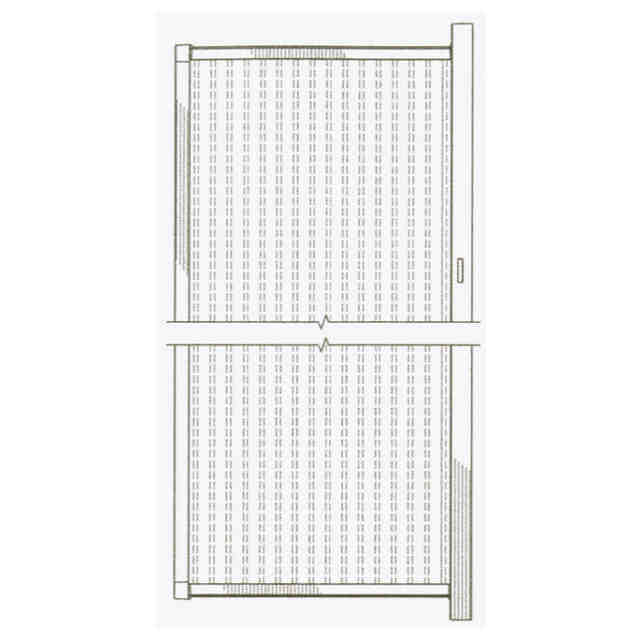

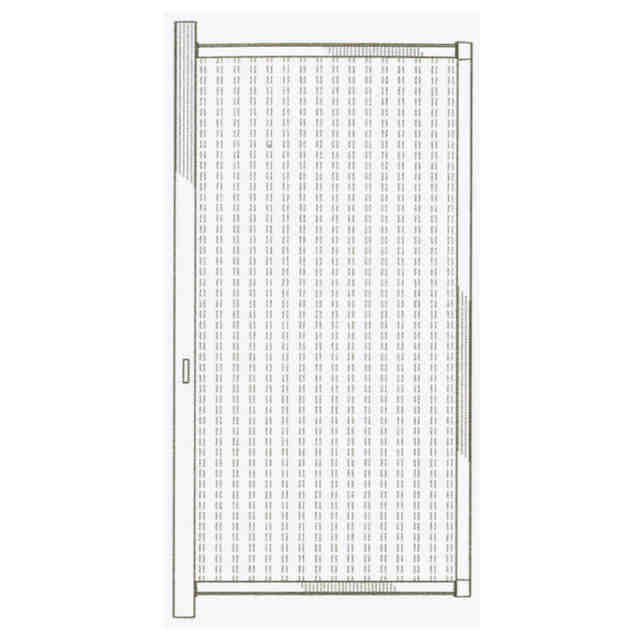

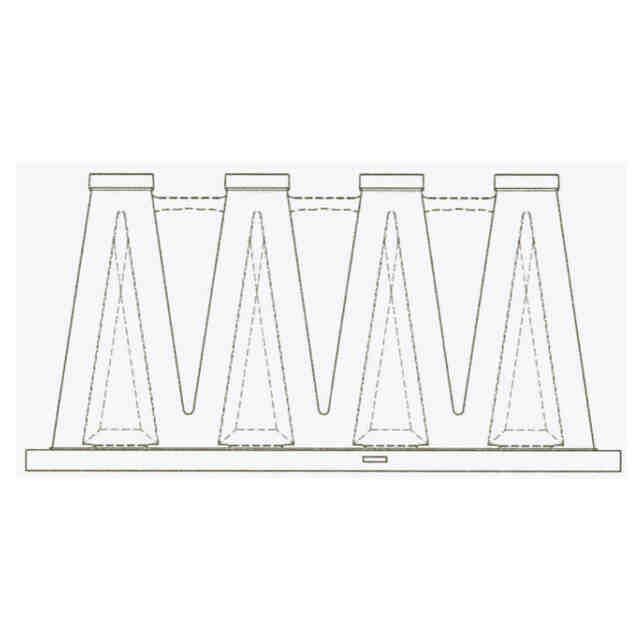

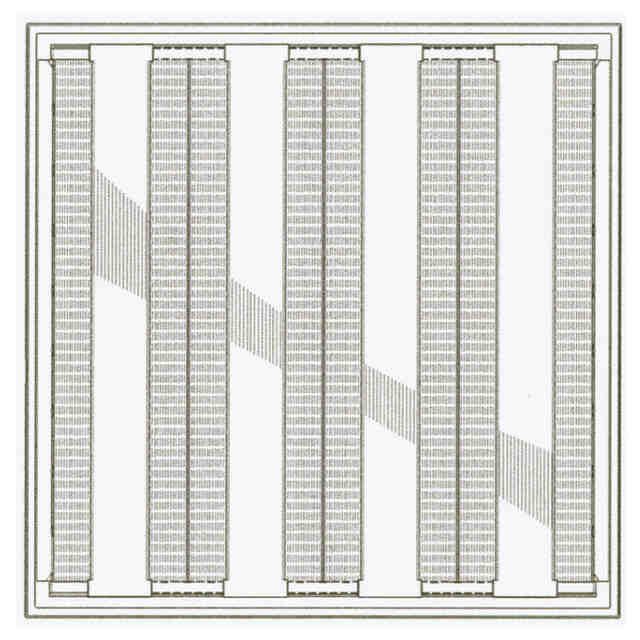

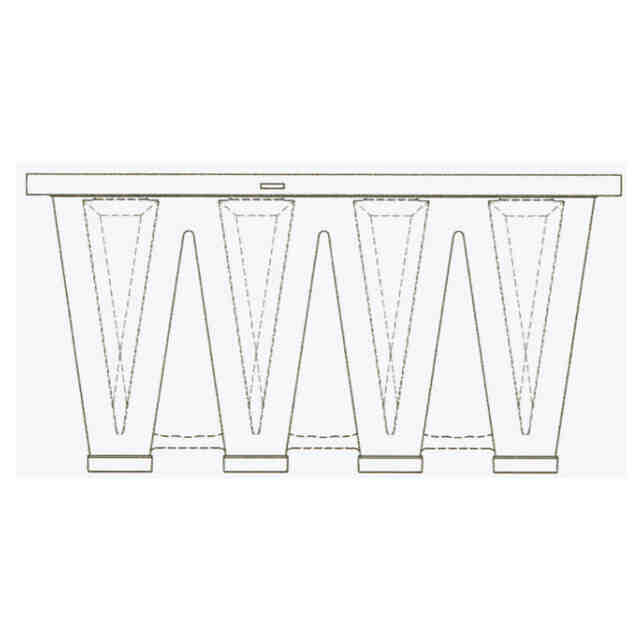

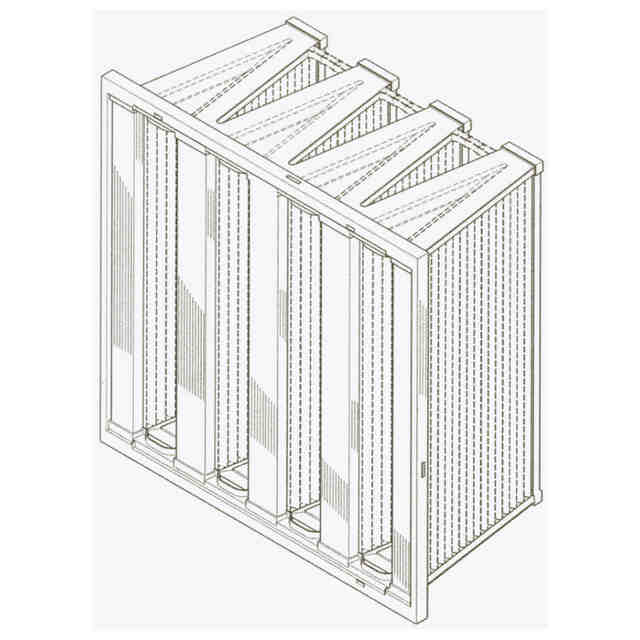

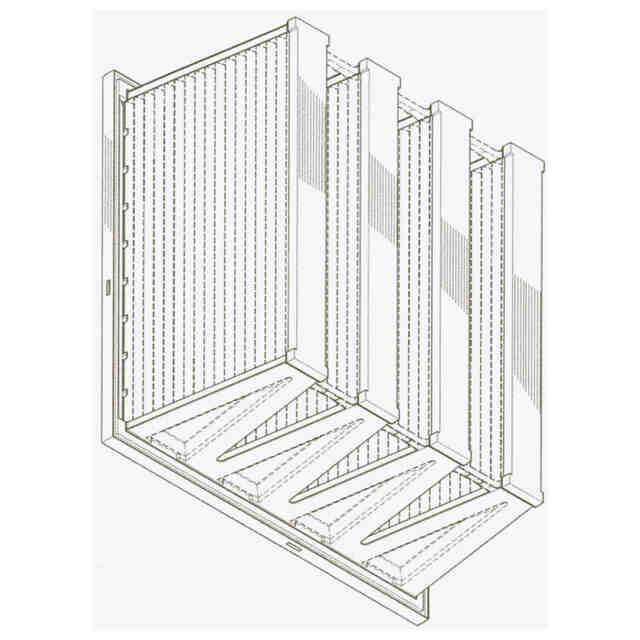

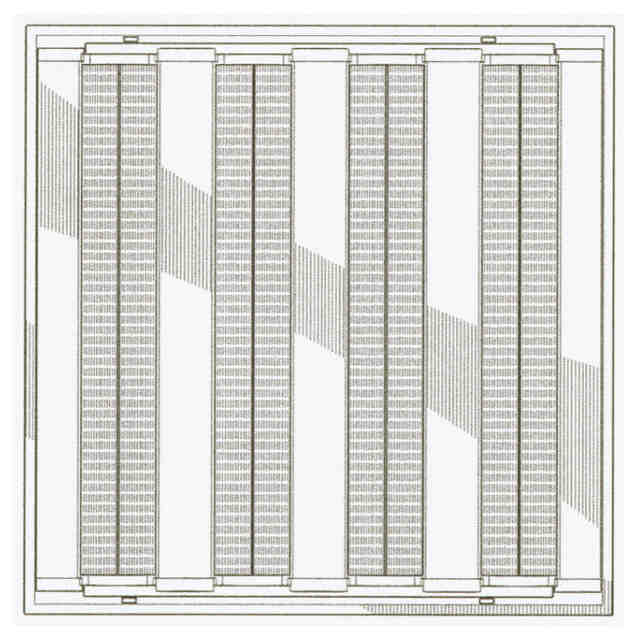

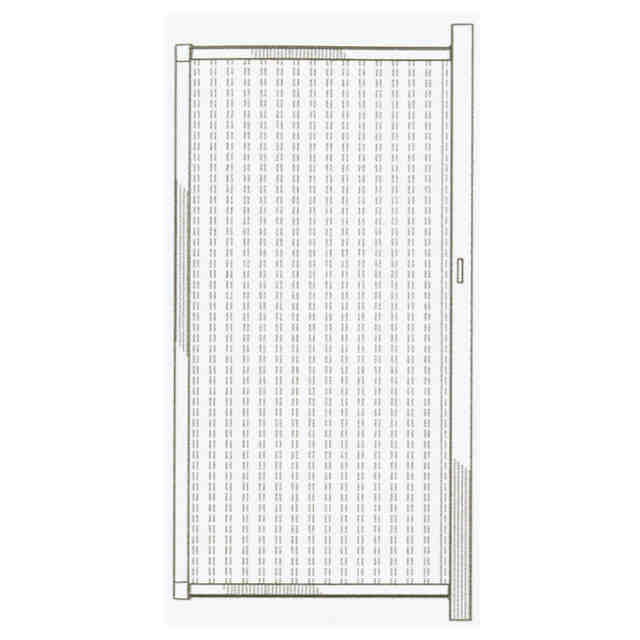

発行日2025-09-02 公報種別意匠公報(S) 登録番号1807618 登録日2025-08-25 意匠に係る物品V-Bank air filter 意匠分類D4-39(暖冷房機又は空調換気機器) 出願番号2023501441,29854400 出願日 意匠権者Camfil AB 代理人園田・小林弁理士法人 意匠に係る物品の説明 意匠の説明The present design is a V-bank air filter of a new design; 2.1 is a front perspective view of the V-bank air filter of a new design; 2.2 is a back perspective view of the V-bank air filter: 2.3 is a front view of the V-bank air filter; 2.4 is a side view of one side of the V-bank air filter; 2.5 is a back view of the V-bank air filter; 2.6 is a side view the V-bank air filter that is opposite of the side shown in Figure 2.4; 2.7 is a top view of the V-bank air filter; 2.8 is a bottom view of the V-bank air filter; 2.9 is a reference side view of the V-bank air filter of Figure 2.1 illustrating with break lines that no particular height is claimed; 2.9 indicates that the height varies within the break lines; portions of the V-bank air filter shown in broken lines form no part of the claimed design; all surfaces not shown form no part of the claimed design. 2.1)Front perspective; 2.2)Back perspective; 2.3)Front; 2.4)Side; 2.5)Back; 2.6)Side; 2.7)Top; 2.8)Bottom; 2.9)Reference この意匠をJ-PlatPat（特許庁公式サイト）で参照する
