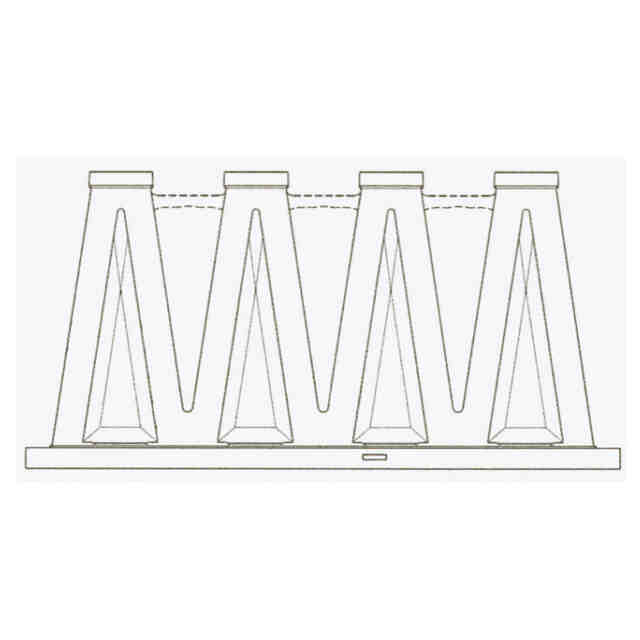

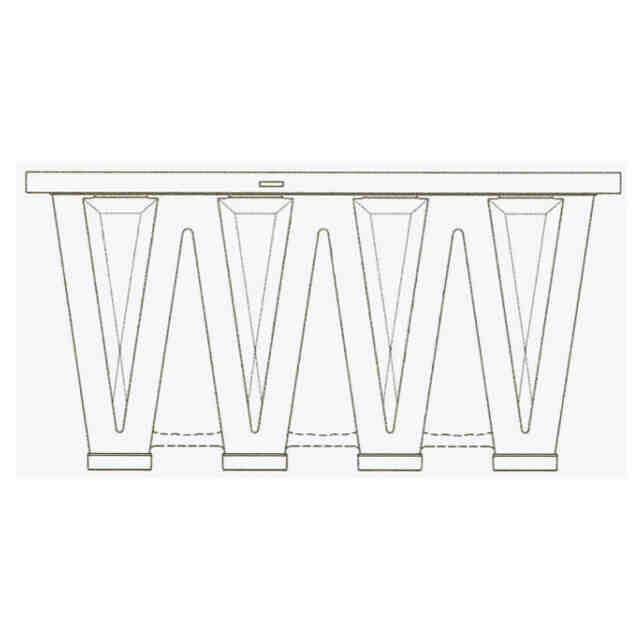

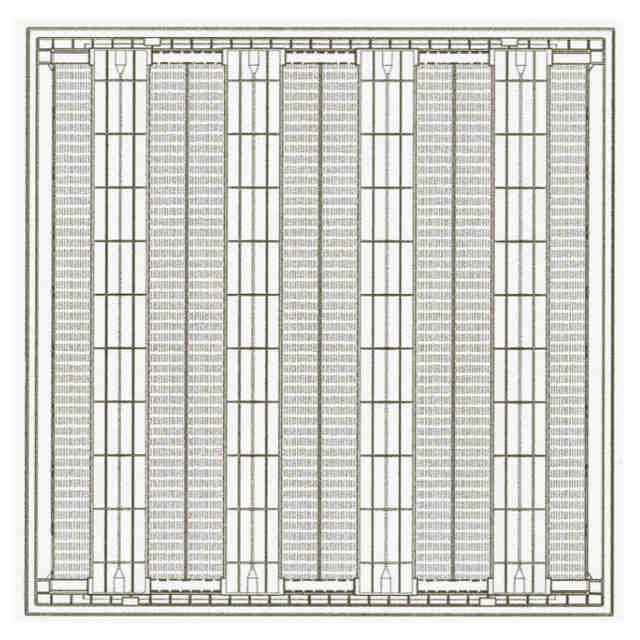

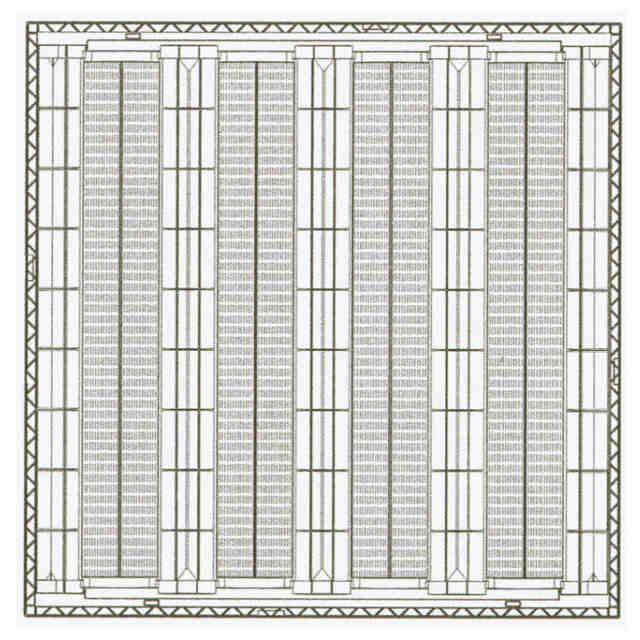

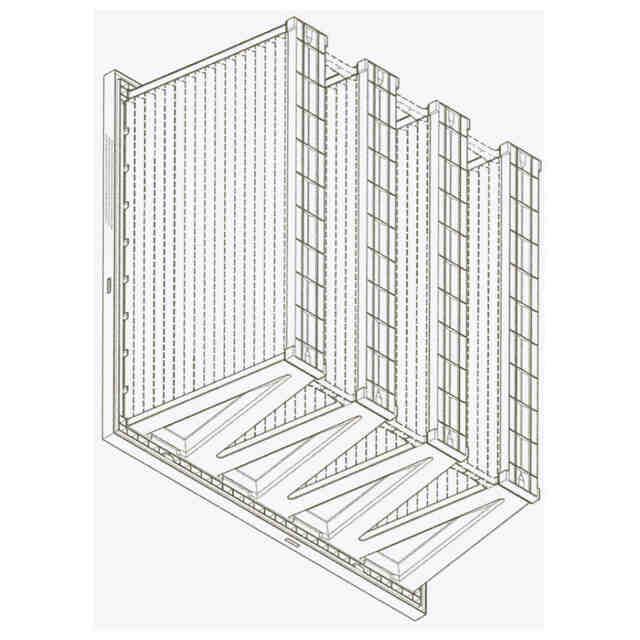

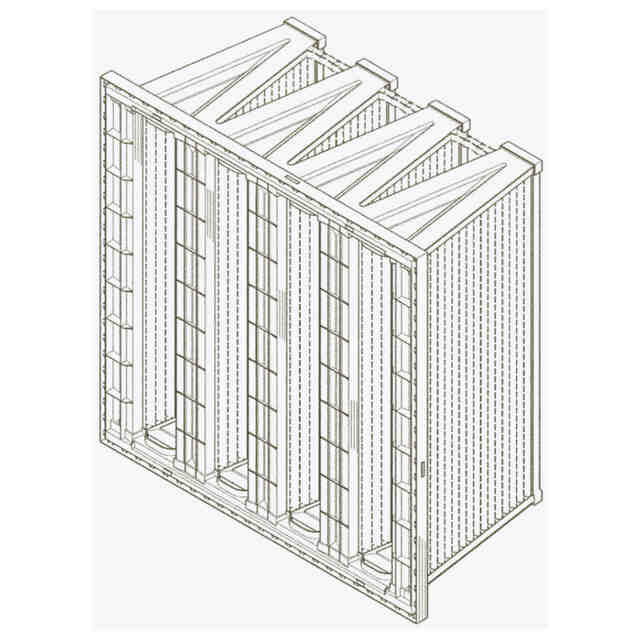

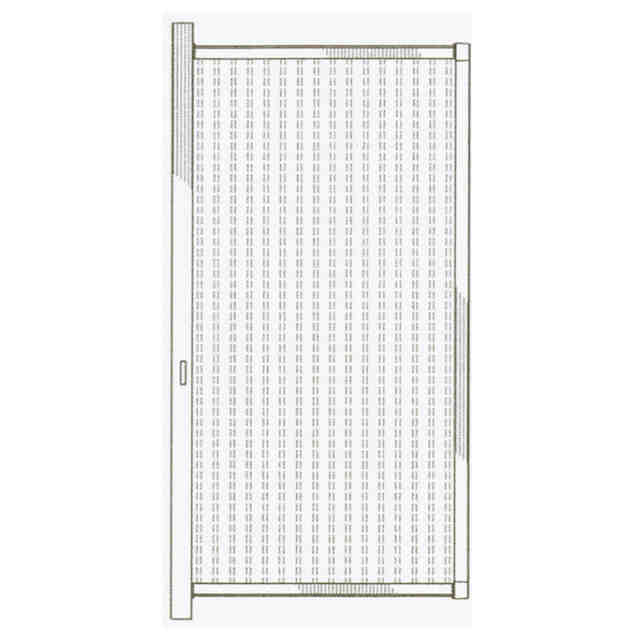

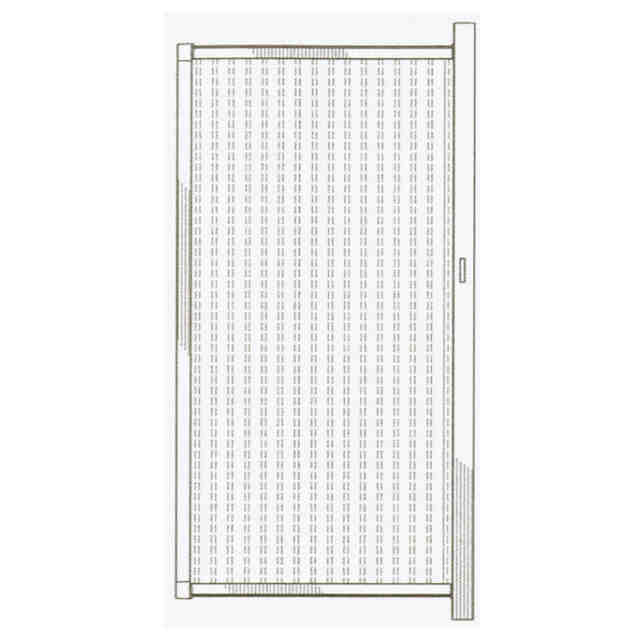

発行日2025-09-02 公報種別意匠公報(S) 登録番号1807617 登録日2025-08-25 意匠に係る物品V-Bank air filter 意匠分類D4-39(暖冷房機又は空調換気機器) 出願番号2023501440,29854400 出願日 意匠権者Camfil AB 代理人園田・小林弁理士法人 意匠に係る物品の説明 意匠の説明The present design is a V-bank air filter of a new design; 1.1 is a front perspective view of the V-bank air filter of a new design; 1.2 is a back perspective view of the V-bank air filter; 1.3 is a front view of the V-bank air filter; 1.4 is a side view of one side of the V-bank air filter; 1.5 is a back view of the V-bank air filter; 1.6 is a side view the V-bank air filter that is opposite of the side shown in Figure 1.4; 1.7 is a top view of the V-bank air filter; 1.8 is a bottom view of the V-bank air filter; 1.9 is a reference side view of the V-bank air filter illustrating with break lines that no particular height is claimed; 1.9 indicates that the height varies within the break lines; portions of the V-bank air filter shown in broken lines form no part of the claimed design; all surfaces not shown form no part of the claimed design. 1.1)Front perspective; 1.2)Back perspective; 1.3)Front; 1.4)Side; 1.5)Back; 1.6)Side; 1.7)Top; 1.8)Bottom; 1.9)Reference この意匠をJ-PlatPat（特許庁公式サイト）で参照する
