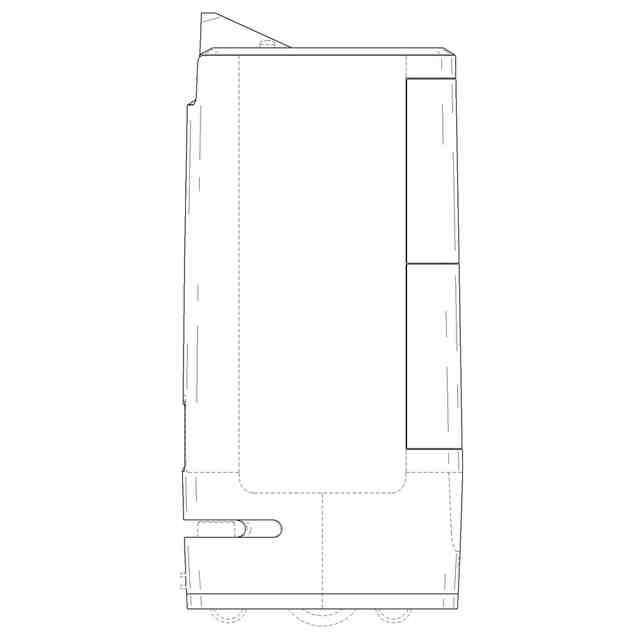

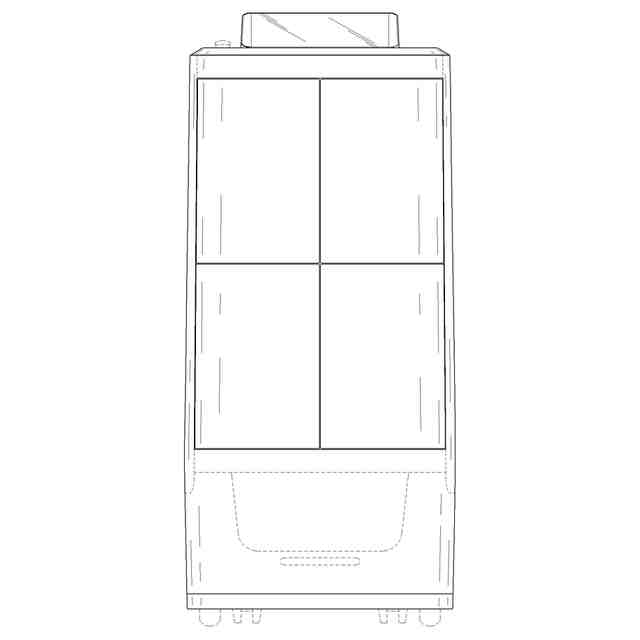

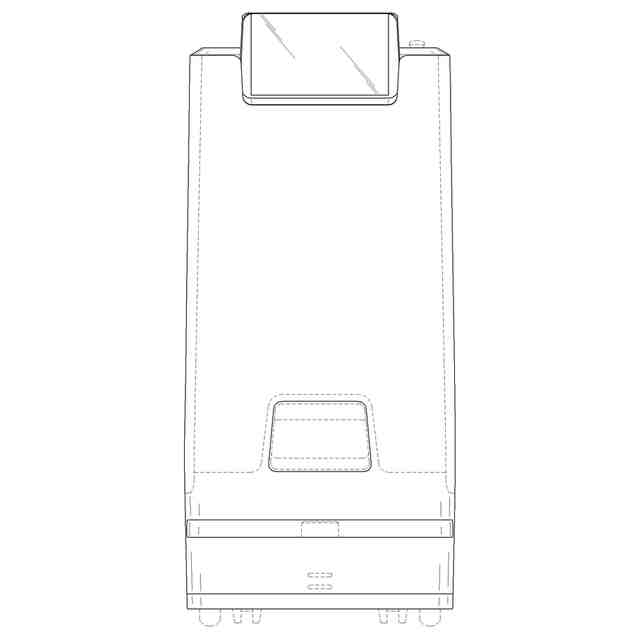

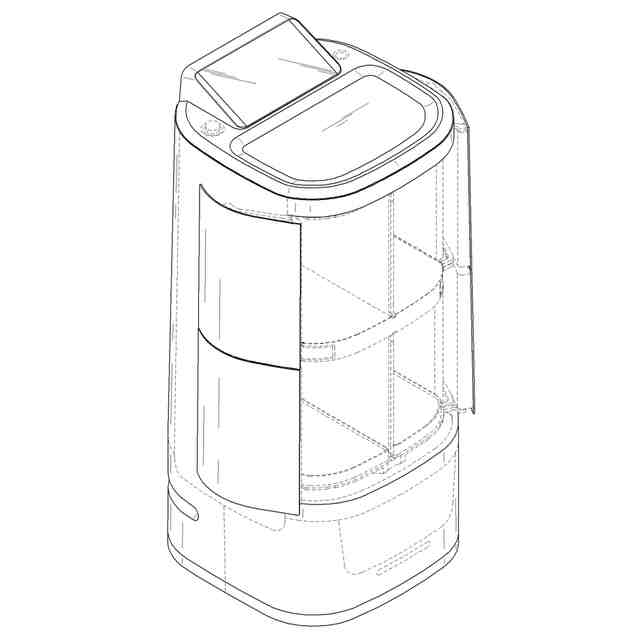

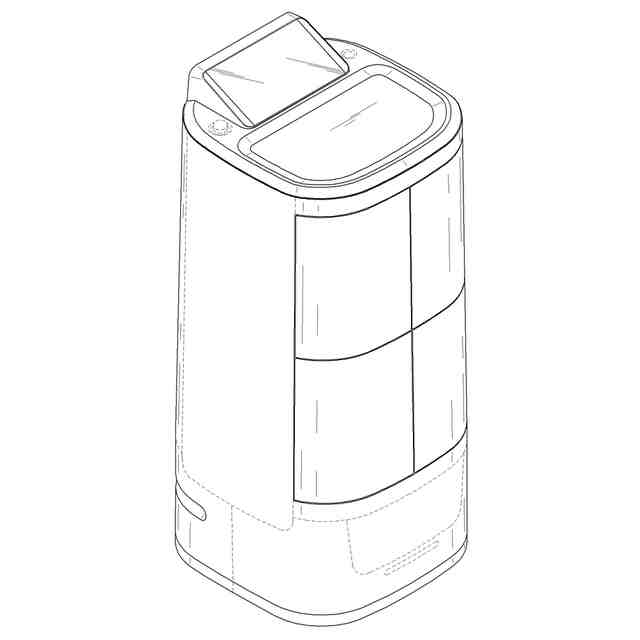

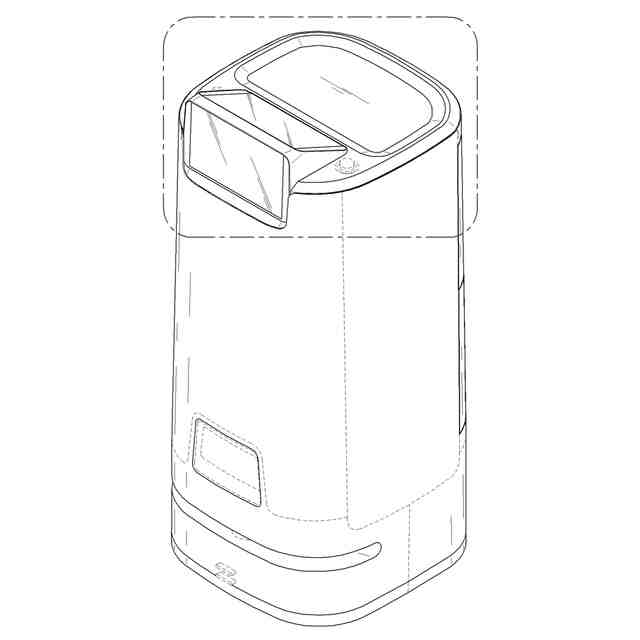

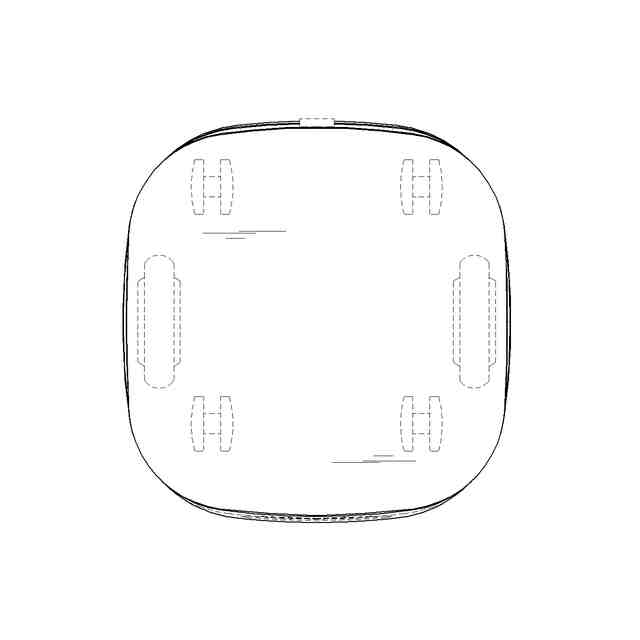

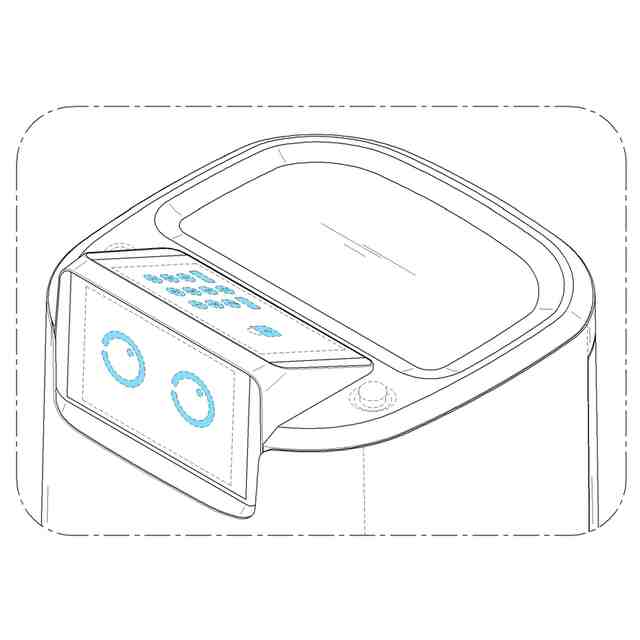

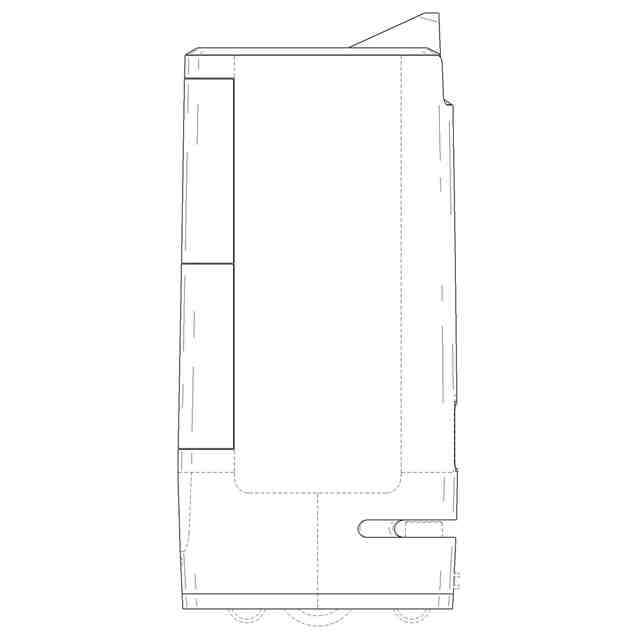

発行日2025-03-05 公報種別意匠公報(S) 登録番号1792721 登録日2025-02-25 意匠に係る物品Delivery robot 意匠分類J0-2(J1～J7に属さないその他の一般機械器具) 出願番号2023503980,30-2023-0026576 出願日 意匠権者LG ELECTRONICS INC. 代理人 意匠に係る物品の説明 意匠の説明The characteristic features of the design lie in the combination of the shape and pattern; the broken lines shown in reproductions 1.1 to 1.8 depict portions of the delivery robot and form no part of the claimed design; reproduction 1.9 is a partially enlarged view of reproduction 1.1 showing a state of use and reproduction 1.10 shows a state of the door opened in use; the other broken lines and colors shown in reproductions 1.9 and 1.10 illustrate environmental structure and form no part of the claimed design; the shading lines are used to show the surface of the claimed design and do not represent its surface ornamentation. 1.1)Front perspective view; 1.2)Back perspective view; 1.3)Front; 1.4)Back; 1.5)Left; 1.6)Right; 1.7)Top; 1.8)Bottom; 1.9)Reference view; 1.10)Reference view この意匠をJ-PlatPatで参照する
