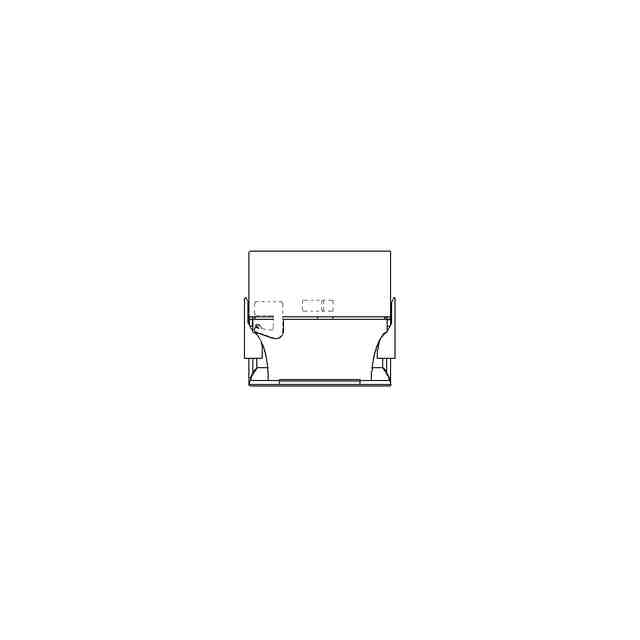

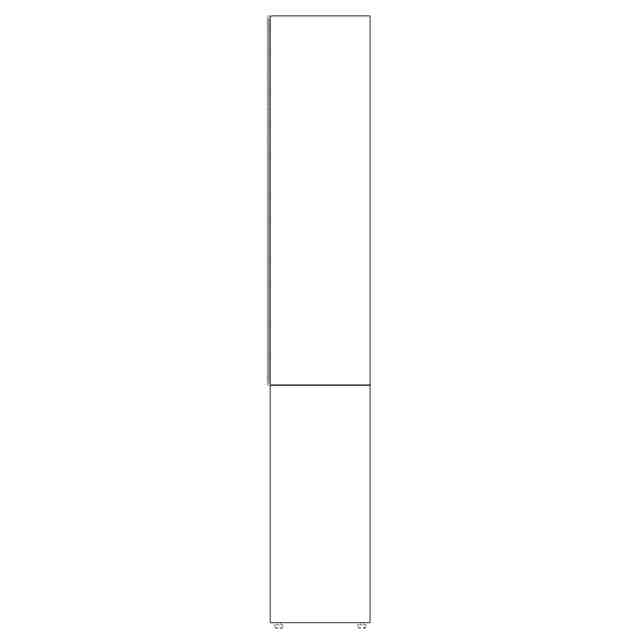

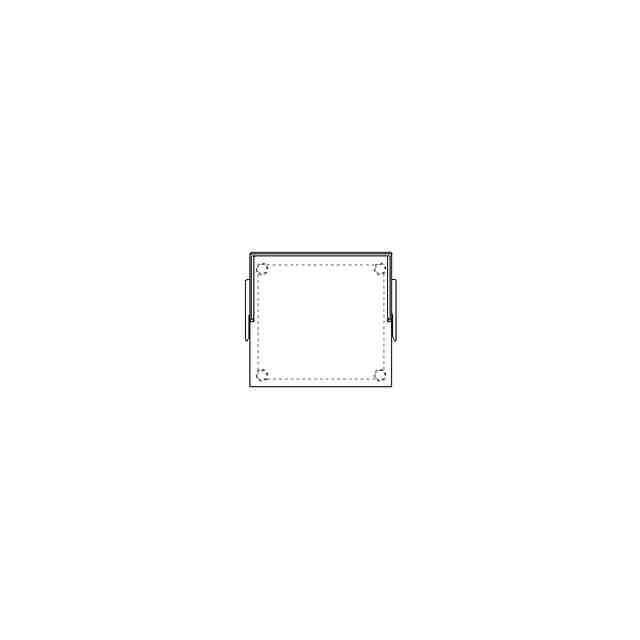

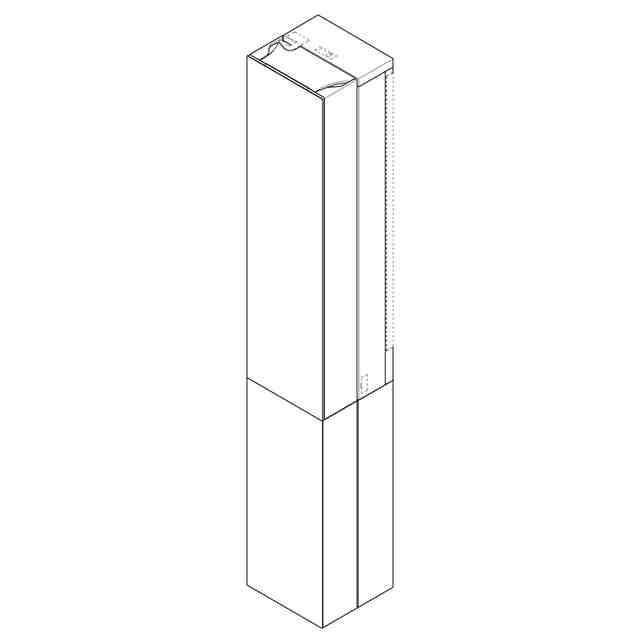

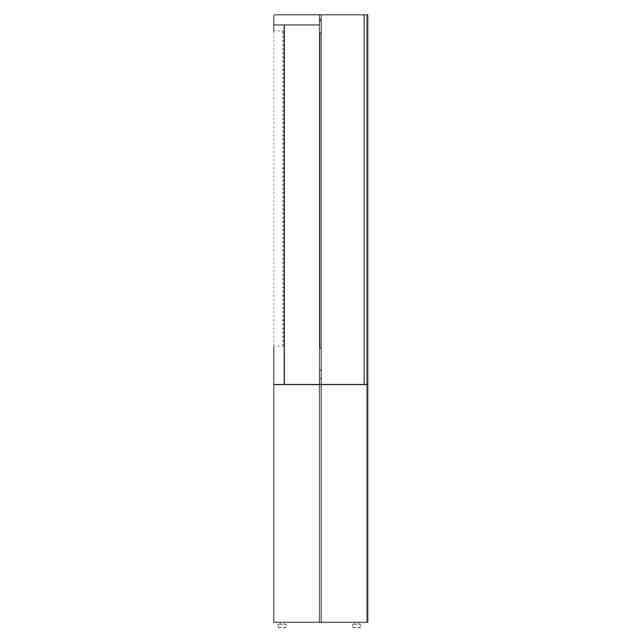

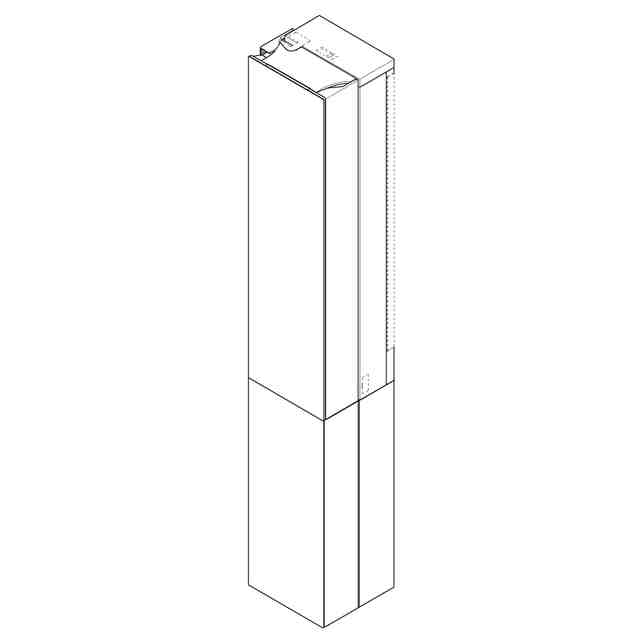

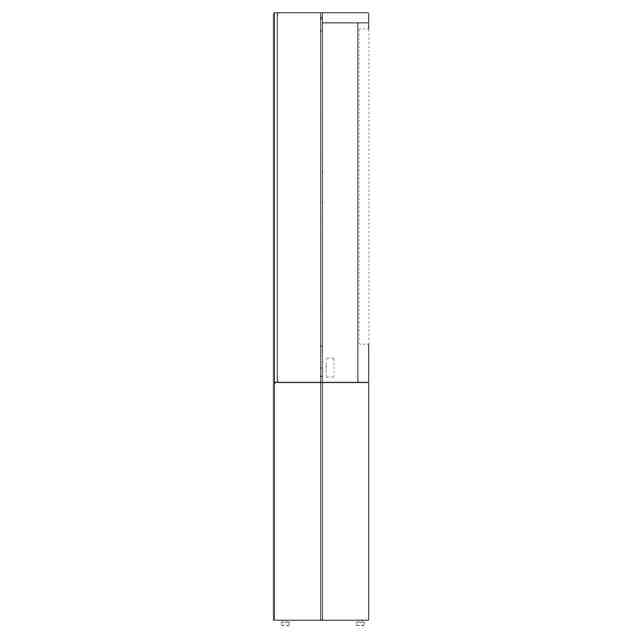

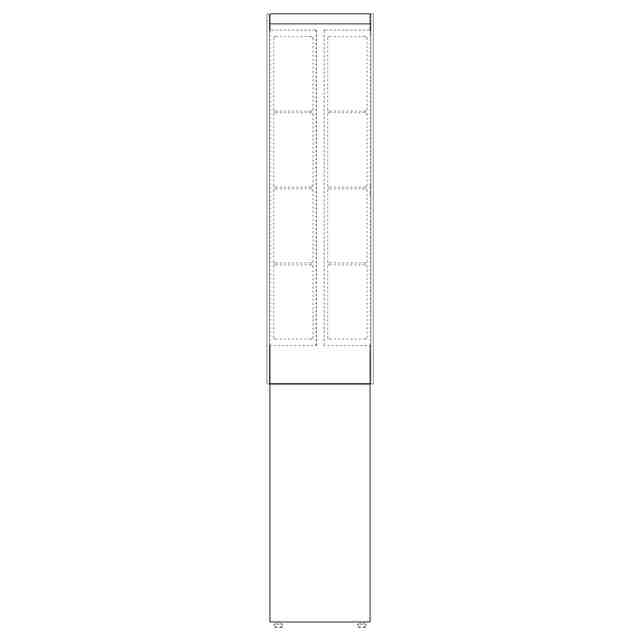

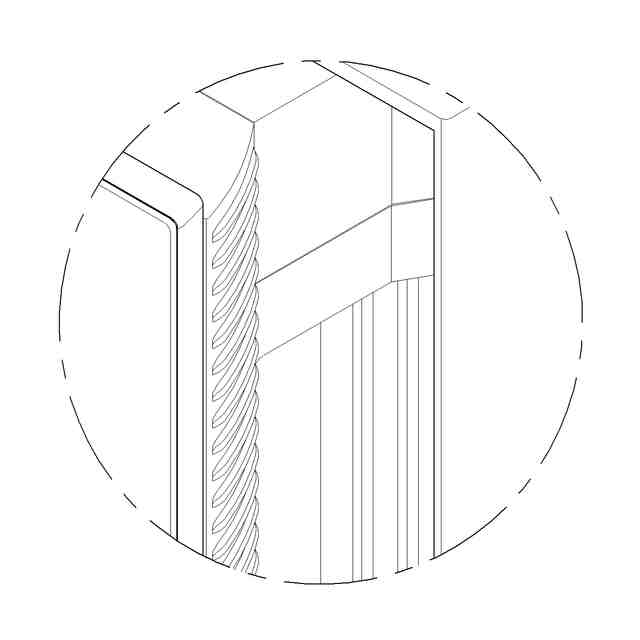

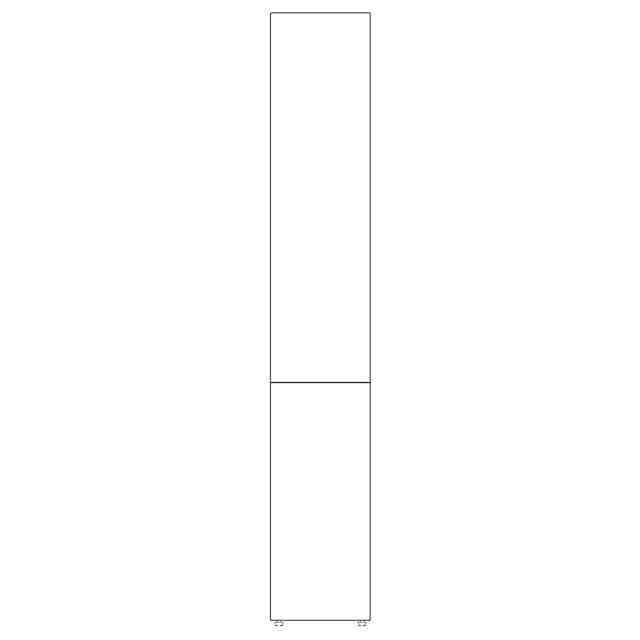

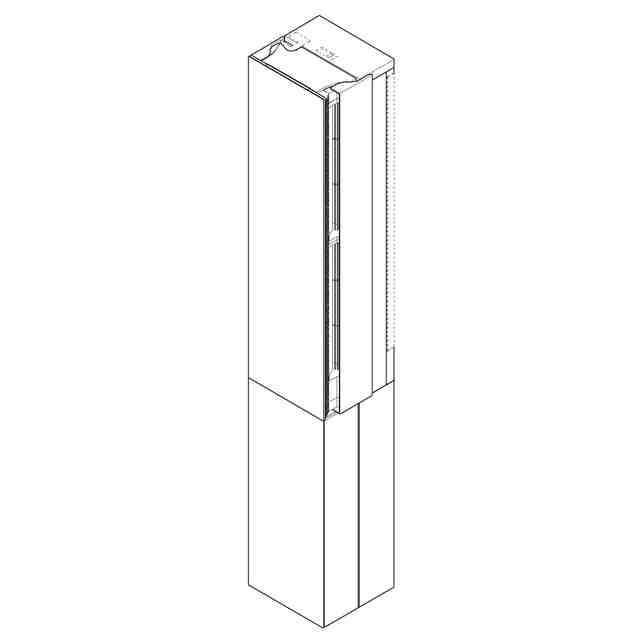

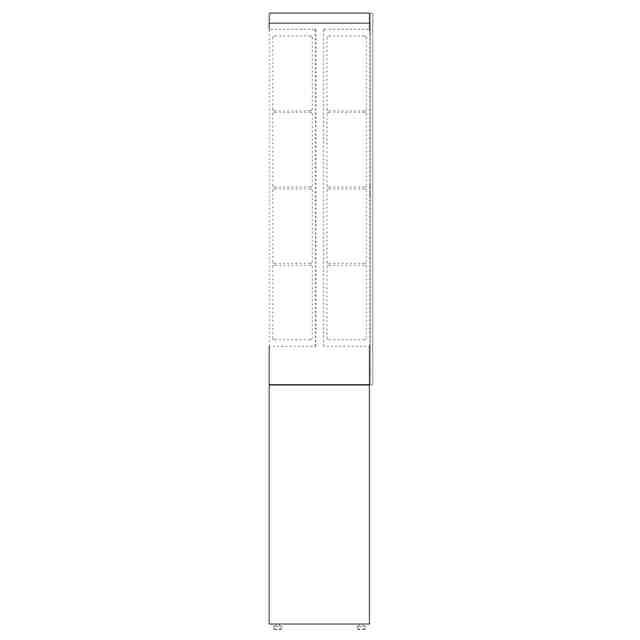

発行日2024-10-17 公報種別意匠公報(S) 登録番号1782393 登録日2024-10-07 意匠に係る物品Air conditioner 意匠分類D4-3110(暖冷房機又は空調換気機器) 出願番号2023501281,30-2022-0044295 出願日 意匠権者LG Electronics Inc. 代理人 意匠に係る物品の説明 意匠の説明The broken lines depict portions of the air conditioner that form no part of the claimed design; this design is for an air conditioner with sliding doors on both sides, and the outlet is not exposed when not in use; this design can control the direction and strength of wind by opening the both sides sliding doors at the same time, or one of the two (right or left) side sliding doors; reproductions 1.1 to 1.7 show the state in which the sliding doors have been closed, and reproductions 1.8 to 1.15 show the state in which the right and left sliding doors have been opened, and reproductions 1.16 to 1.23 show the state in which the sliding door at left has been opened, and reproductions 1.24 to 1.31 show the state in which the sliding door at right has been opened; reproduction 1.14 is a partial enlarged view of A part for reproduction 1.8; reproductions 1.15, 1.23 and 1.31 are reference views showing the use state in which the display part is operated. 1.1)Perspective; 1.2)Front; 1.3)Back; 1.4)Left; 1.5)Right; 1.6)Top; 1.7)Bottom; 1.8)Perspective view 2; 1.9)Front view 2; 1.10)Back view 2; 1.11)Left view 2; 1.12)Top view 2; 1.13)Bottom view 2; 1.14)Partial enlarged view; 1.15)Reference view; 1.16)Perspective view 3; 1.17)Front view 3; 1.18)Back view 3; 1.19)Left view 3; 1.20)Right view 2; 1.21)Top view 3; 1.22)Bottom view 3; 1.23)Reference view 2; 1.24)Perspective view 4; 1.25)Front view 4; 1.26)Back view 4; 1.27)Left view 4; 1.28)Right view 3; 1.29)Top view 4; 1.30)Bottom view 4; 1.31)Reference view 3
