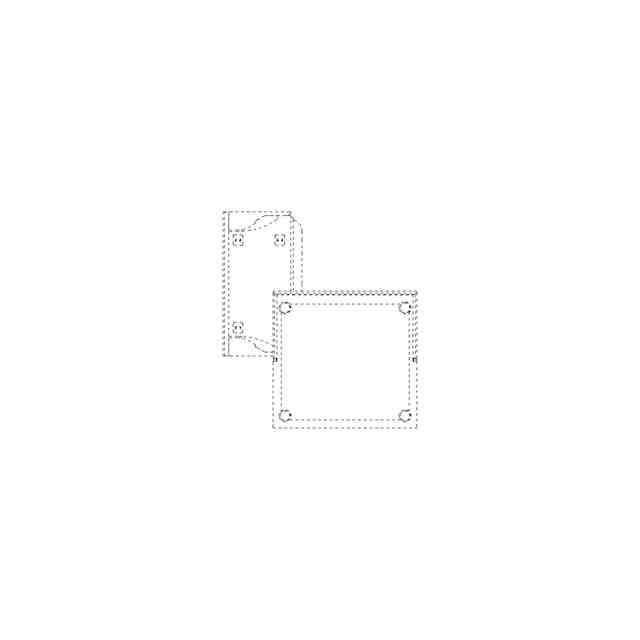

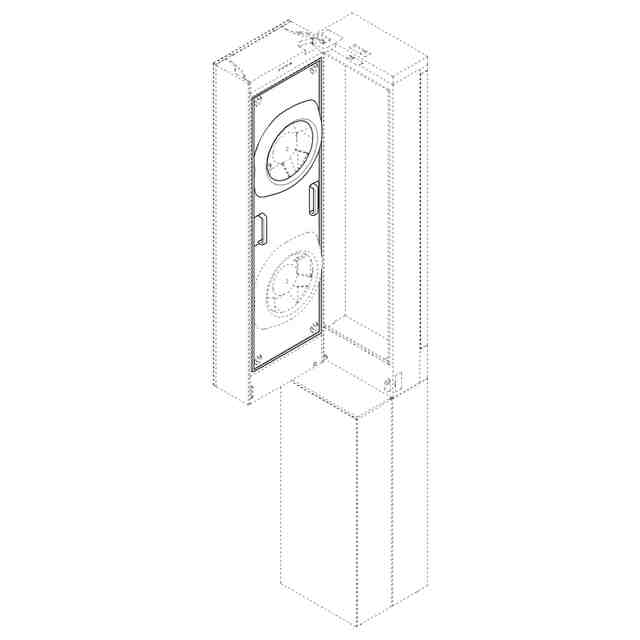

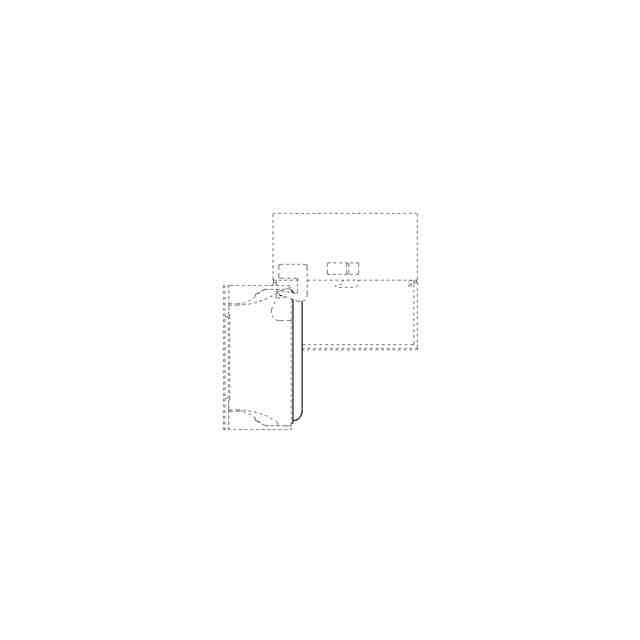

発行日2024-10-16 公報種別意匠公報(S) 登録番号1782390 登録日2024-10-07 意匠に係る物品Air conditioner 意匠分類D4-3110(暖冷房機又は空調換気機器) 出願番号2023501242,30-2022-0044300 出願日 意匠権者LG Electronics Inc. 代理人 意匠に係る物品の説明 意匠の説明The broken lines depict portions of the air conditioner that form no part of the claimed design; this design is for an air conditioner whose front upper part can be opened; this design has a fan door that covers the inside fans, so that the inside can be seen neatly when the front part is opened, and it serves as a flow path to send air flow; reproduction 1.8 is an exploded view showing that the fan door has been separated. 1.1)Perspective; 1.2)Front; 1.3)Back; 1.4)Left; 1.5)Right; 1.6)Top; 1.7)Bottom; 1.8)Exploded この意匠をJ-PlatPatで参照する
