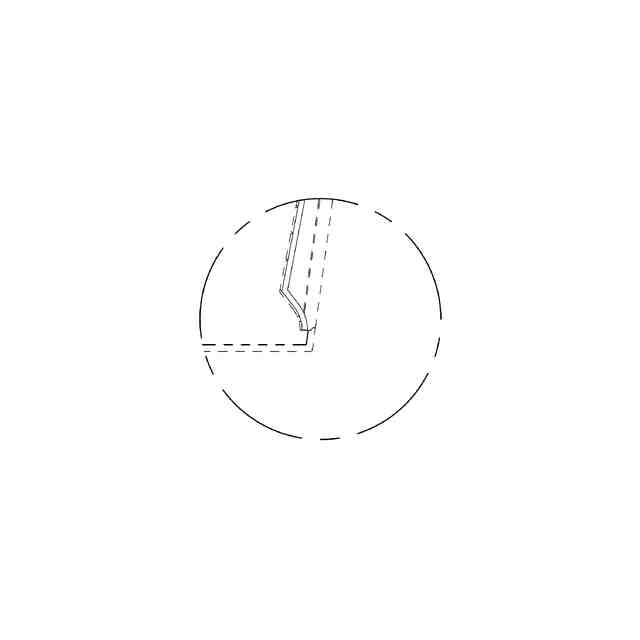

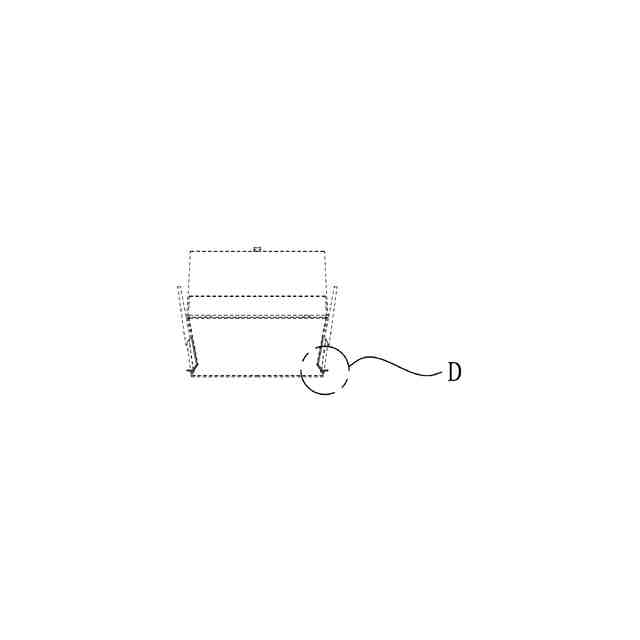

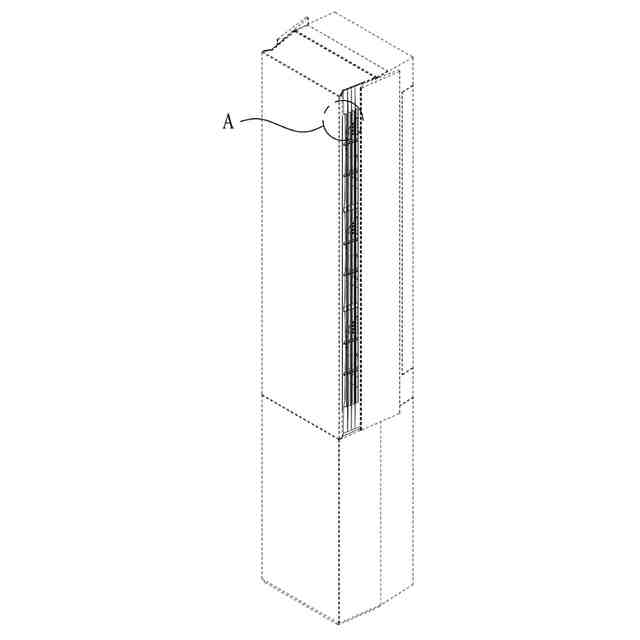

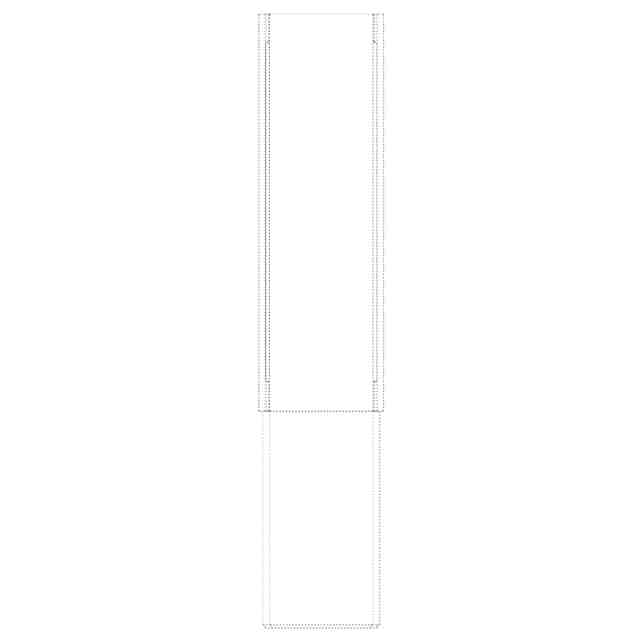

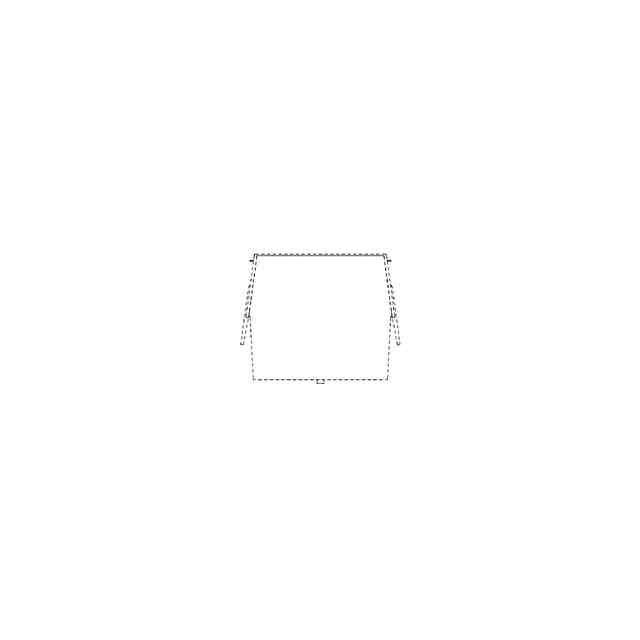

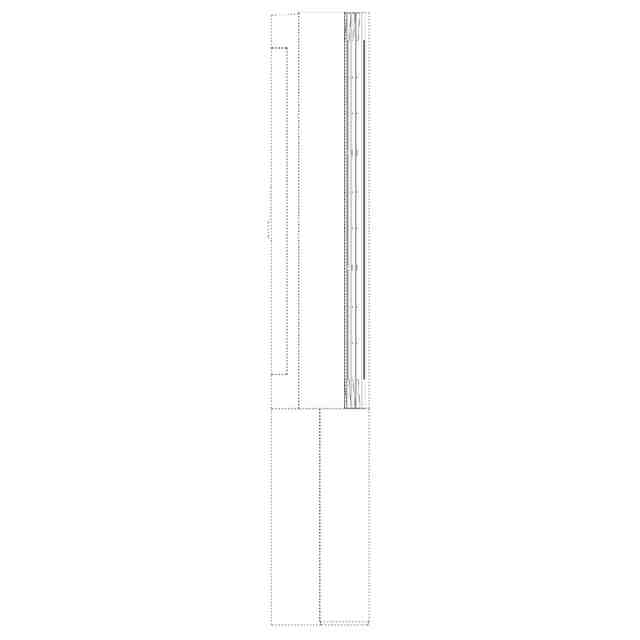

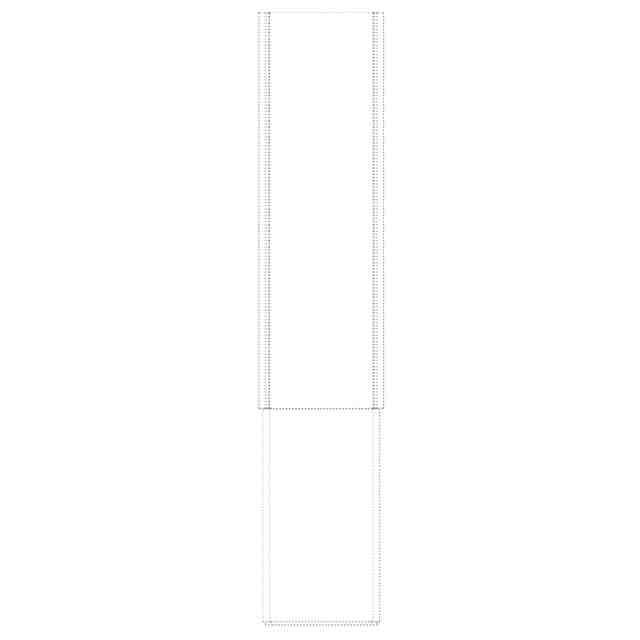

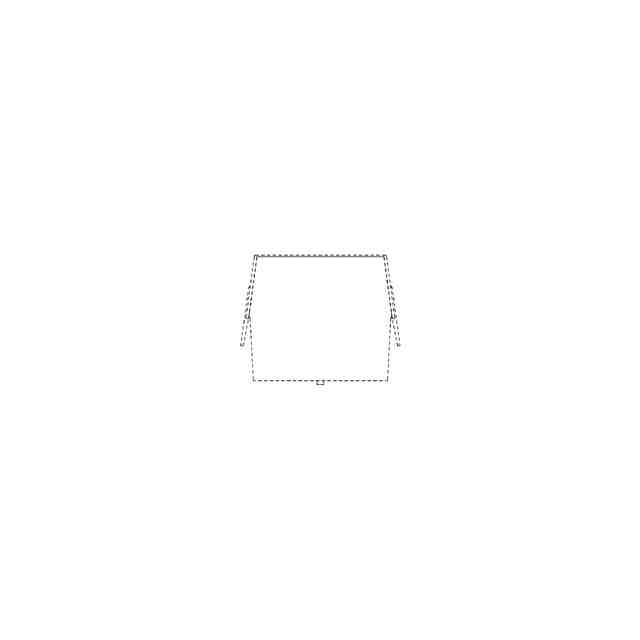

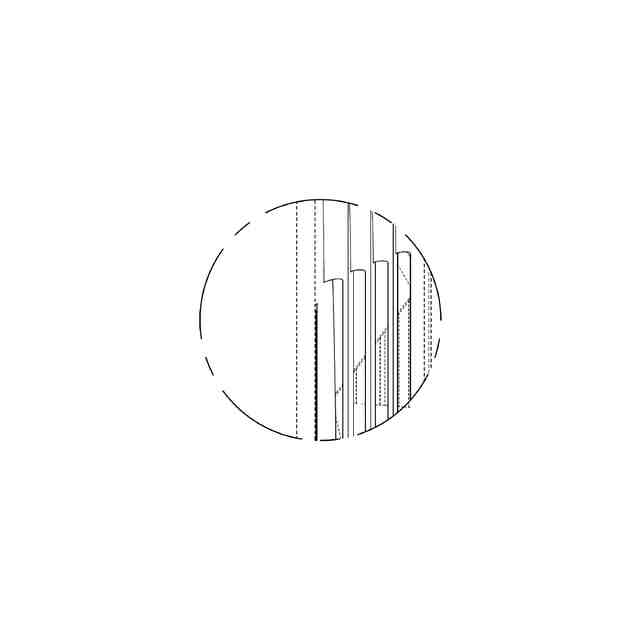

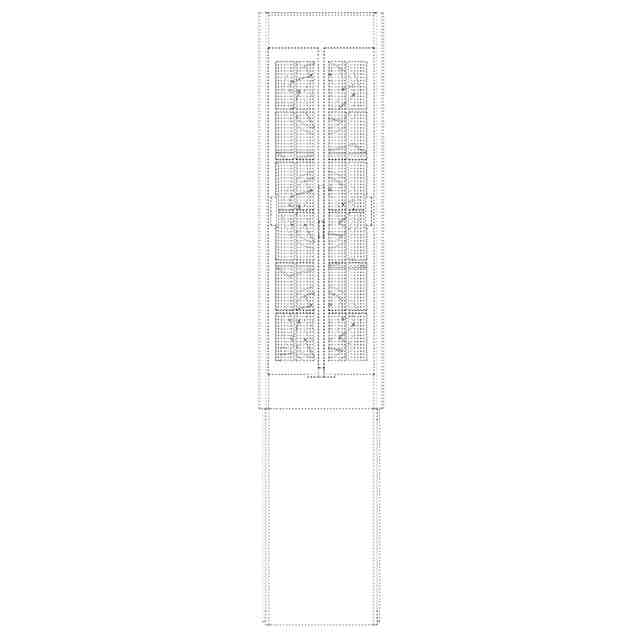

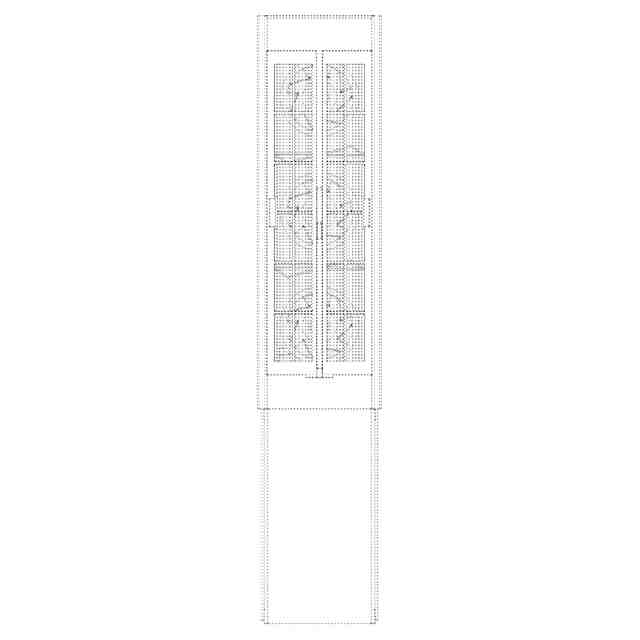

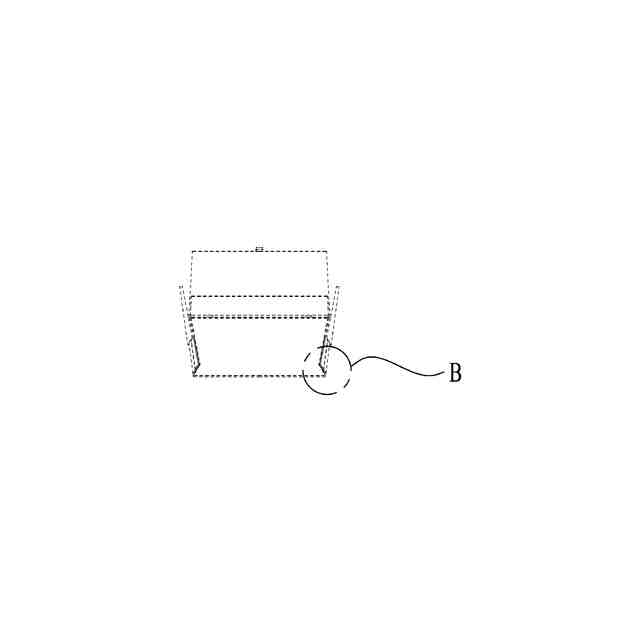

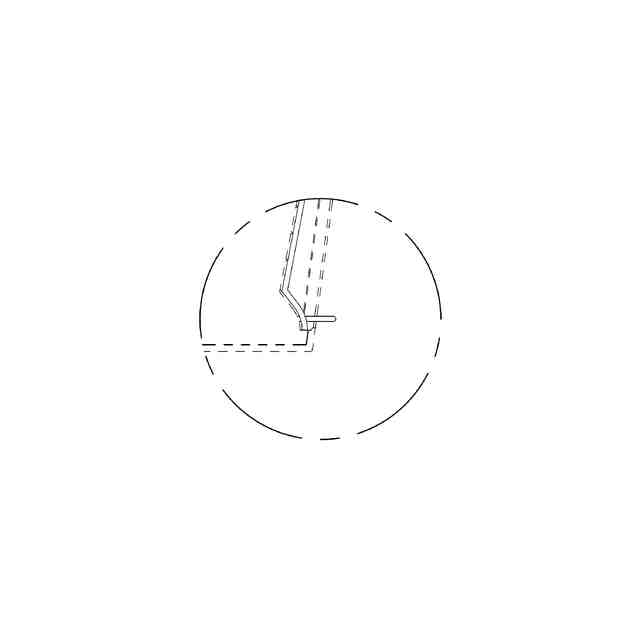

発行日2025-06-25 公報種別意匠公報(S) 登録番号1801936 登録日2025-06-16 意匠に係る物品Air conditioner 意匠分類D4-3110(暖冷房機又は空調換気機器) 出願番号2024501891,30-2023-0040559 出願日 意匠権者LG Electronics Inc. 代理人 意匠に係る物品の説明 意匠の説明The broken lines depict portions of the air conditioner that form no part of the claimed design; this design is for an air conditioner equipped with air guards on both sides; as shown in reproductions 1.9 to 1.16, when the air guards protrude, the wind direction can be changed to the side; reproductions 1.4 and 1.12 are left views where the right views are mirror images; reproduction 1.7 is a partial enlarged view showing the A part of reproduction 1.1; reproduction 1.8 is a partial enlarged view showing the B part of reproduction 1.5; reproductions 1.9 to 1.16 are views in condition that the side air guards have been protruded; reproduction 1.15 is a partial enlarged view showing the C part of reproduction 1.9; reproduction 1.16 is a partial enlarged view showing the D part of reproduction 1.13. 1.1)Perspective; 1.2)Front; 1.3)Back; 1.4)Left; 1.5)Top; 1.6)Bottom; 1.7)Enlarged; 1.8)Enlarged view 2; 1.9)Perspective view 2; 1.10)Front view 2; 1.11)Back view 2; 1.12)Left view 2; 1.13)Top view 2; 1.14)Bottom view 2; 1.15)Enlarged view 3; 1.16)Enlarged view 4 この意匠をJ-PlatPatで参照する
