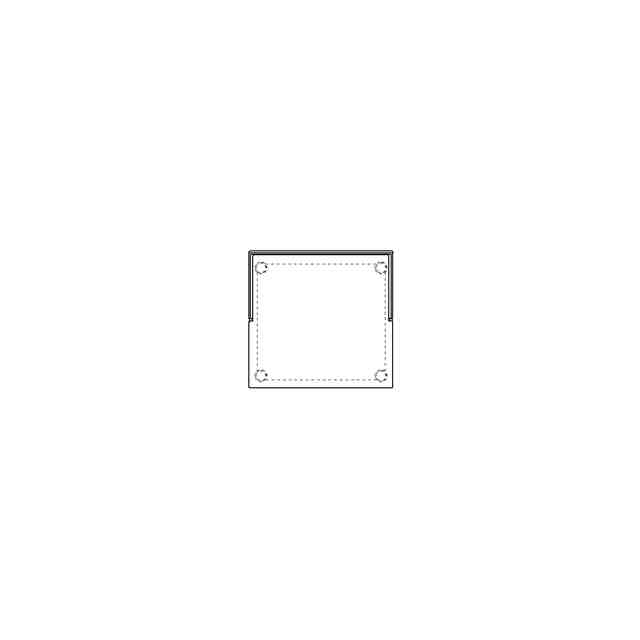

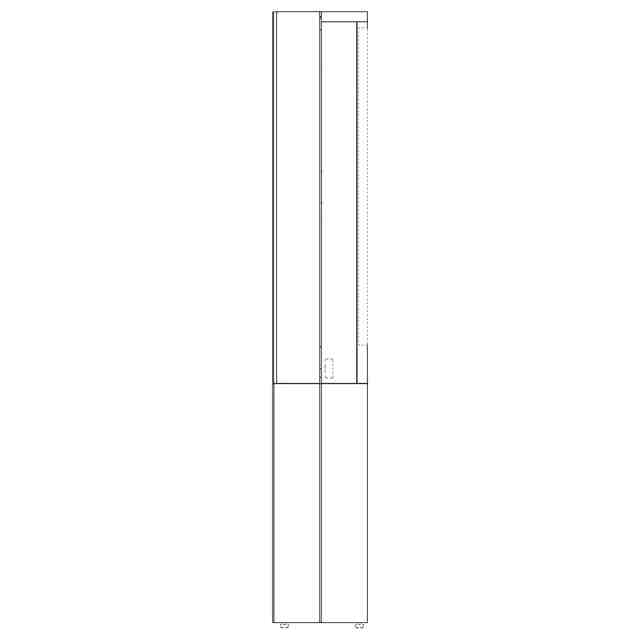

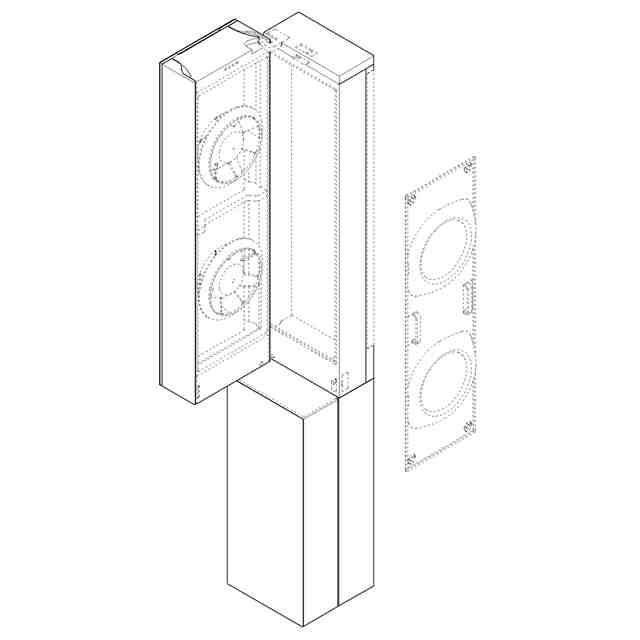

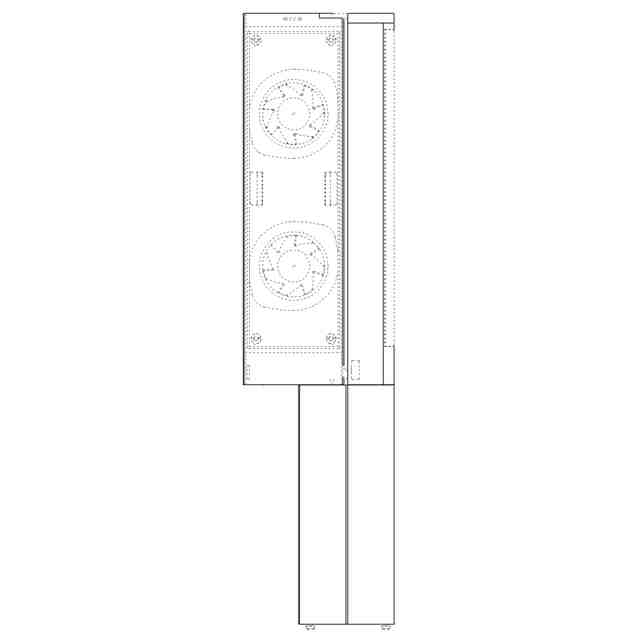

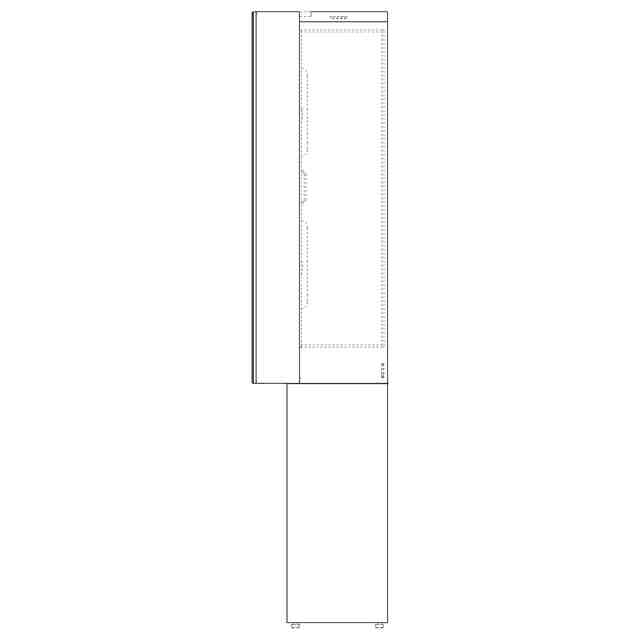

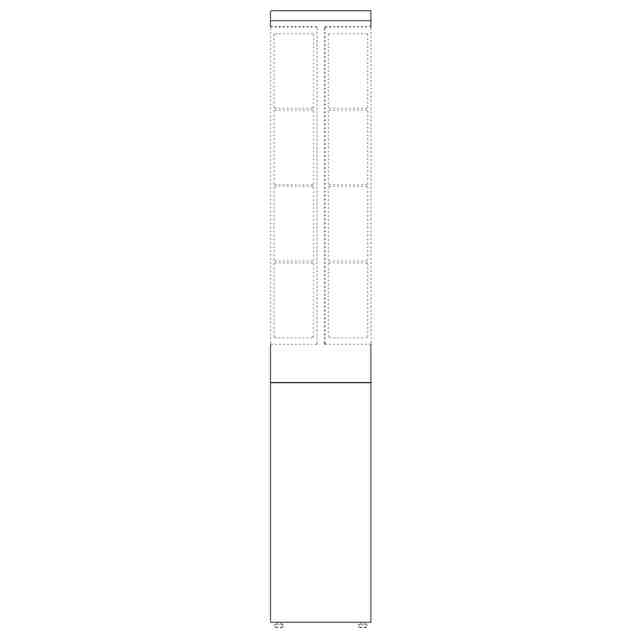

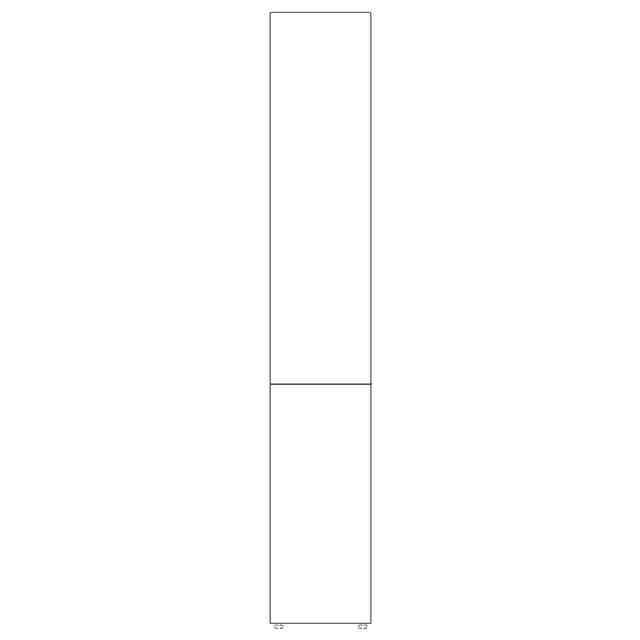

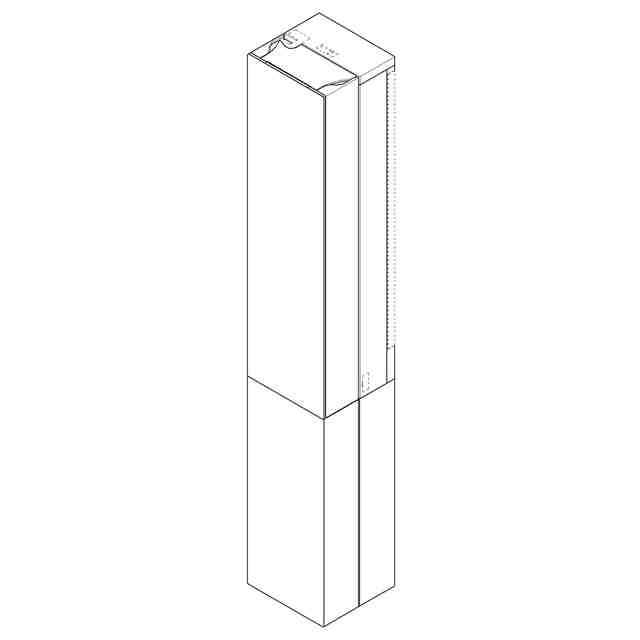

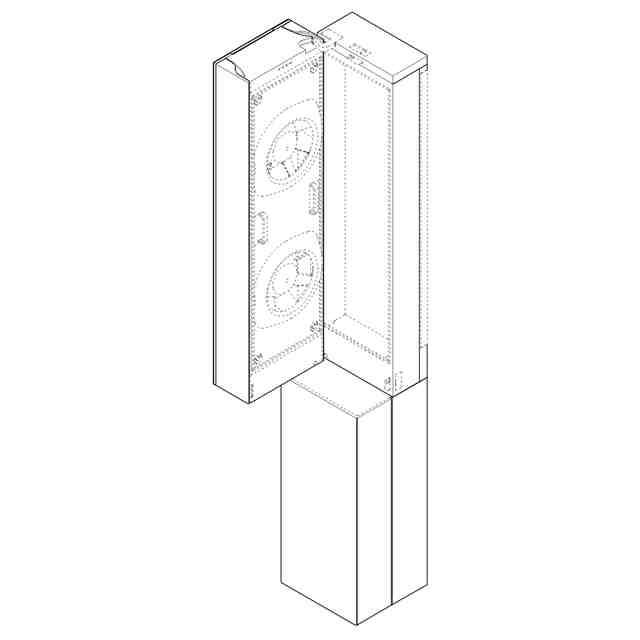

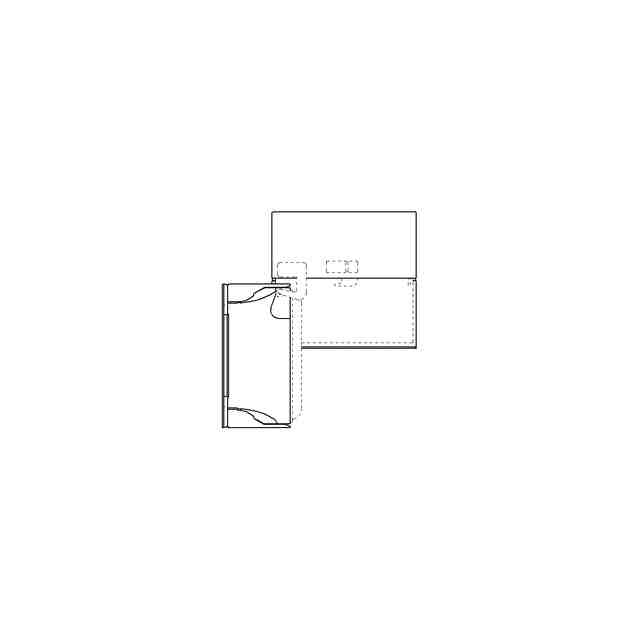

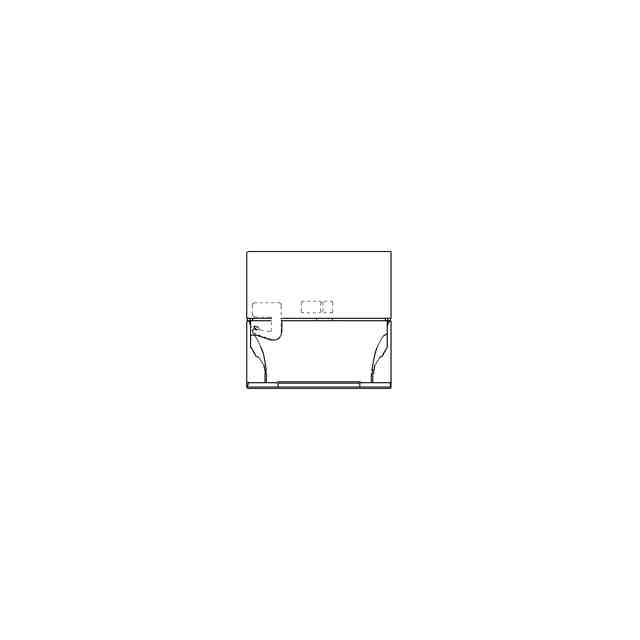

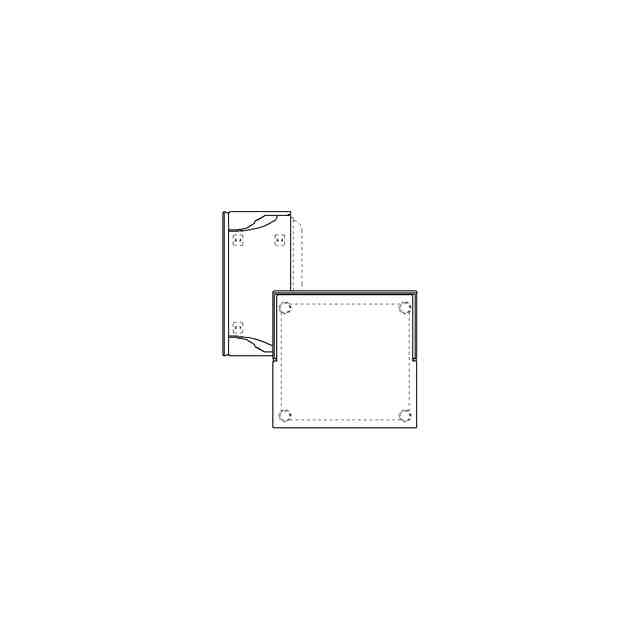

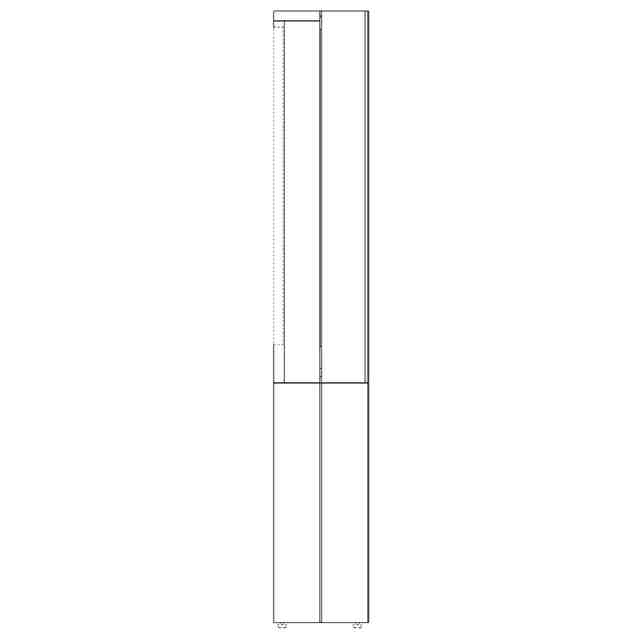

発行日2024-10-16 公報種別意匠公報(S) 登録番号1782389 登録日2024-10-07 意匠に係る物品Air conditioner 意匠分類D4-3110(暖冷房機又は空調換気機器) 出願番号2023501239,30-2022-0044301 出願日 意匠権者LG Electronics Inc. 代理人 意匠に係る物品の説明 意匠の説明The broken lines depict portions of the air conditioner that form no part of the claimed design; this design is for an air conditioner; as shown in reproductions 1.8 to 1.15, since the front upper part of this design can be opened, the user can easily clean the inside; reproductions 1.1 to 1.7 show the state in which the front upper part has been closed, and reproductions 1.8 to 1.15 show the state in which the front upper part has been opened; reproduction 1.15 is an exploded view of reproduction 1.8 in which the fan door has been separated. 1.1)Perspective; 1.2)Front; 1.3)Back; 1.4)Left; 1.5)Right; 1.6)Top; 1.7)Bottom; 1.8)Perspective view 2; 1.9)Front view 2; 1.10)Back view 2; 1.11)Left view 2; 1.12)Right view 2; 1.13)Top view 2; 1.14)Bottom view 2; 1.15)Exploded
