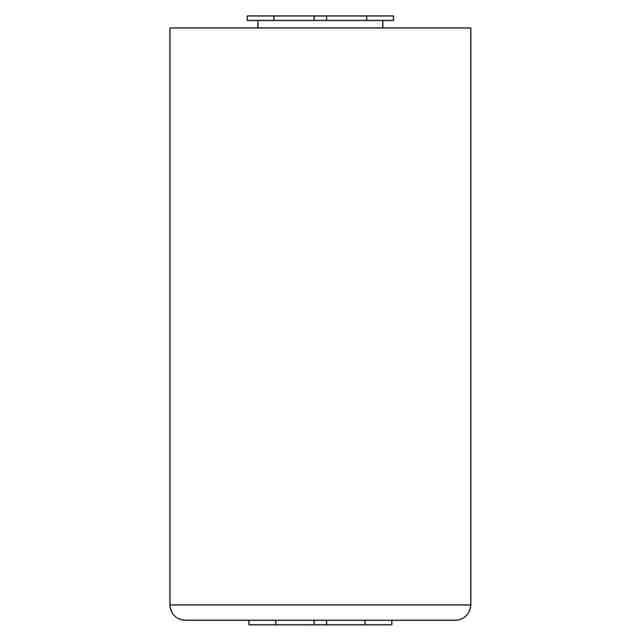

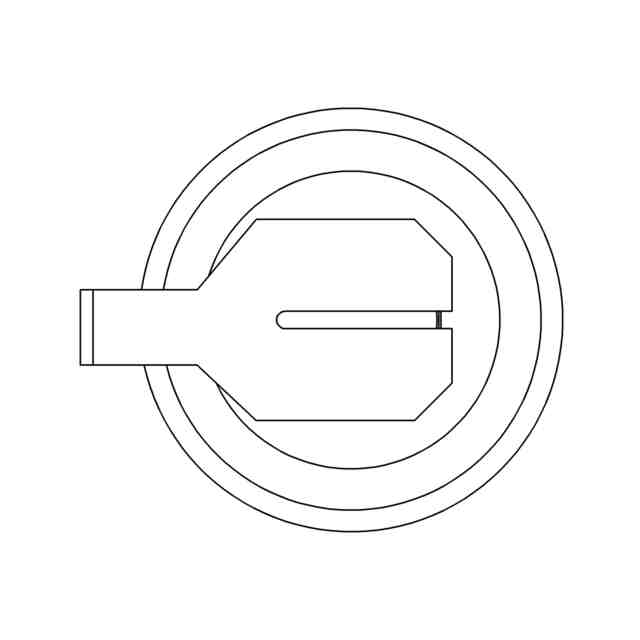

発行日2025-02-26 公報種別意匠公報(S) 登録番号1792080 登録日2025-02-17 意匠に係る物品Battery with connection terminals 意匠分類H1-800(基本的電気素子) 出願番号2023503684 出願日 意匠権者FDK CORPORATION 代理人 意匠に係る物品の説明 意匠の説明The claimed design is applied in a Battery with connection terminals. The connection terminals are attached to each of the positive and negative electrode sides of the cylindrical battery. Each connection terminal is plate-shaped and has a hook-shaped portion extending to the lateral side the cylindrical battery. In the battery with connecting terminals, the hook-shaped portions of both the positive and negative electrode side connection terminals are inserted into and connected to a board. 1.1)Perspective; 1.2)Front; 1.3)Back; 1.4)Left; 1.5)Right; 1.6)Top; 1.7)Bottom この意匠をJ-PlatPatで参照する
