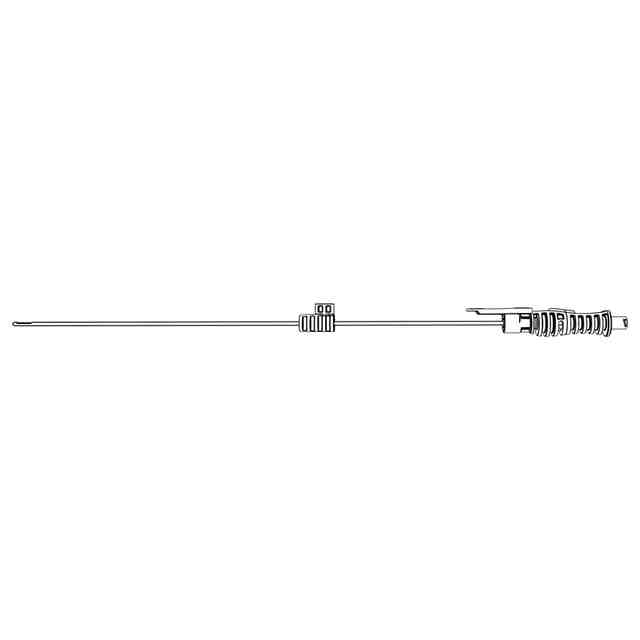

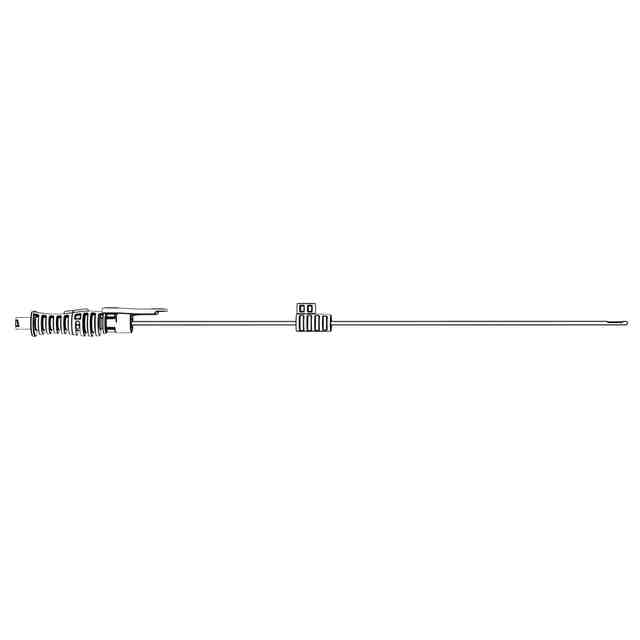

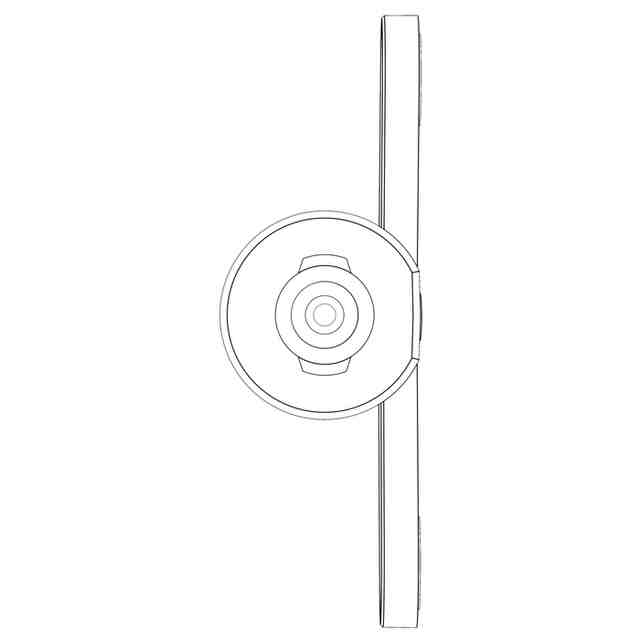

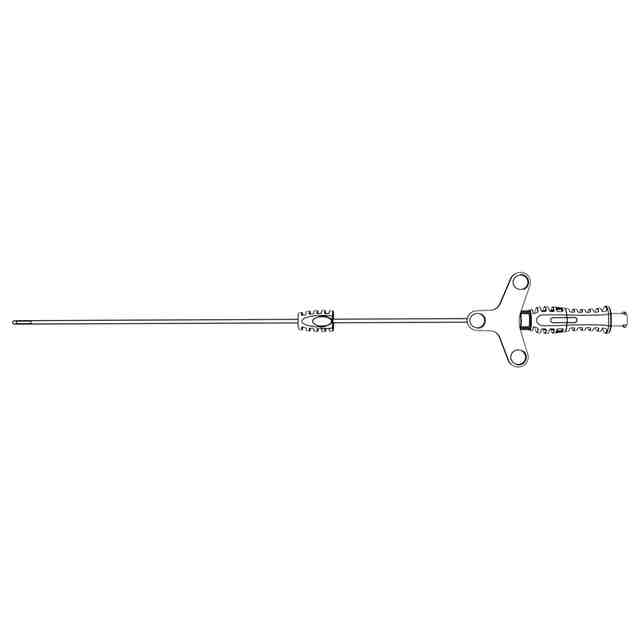

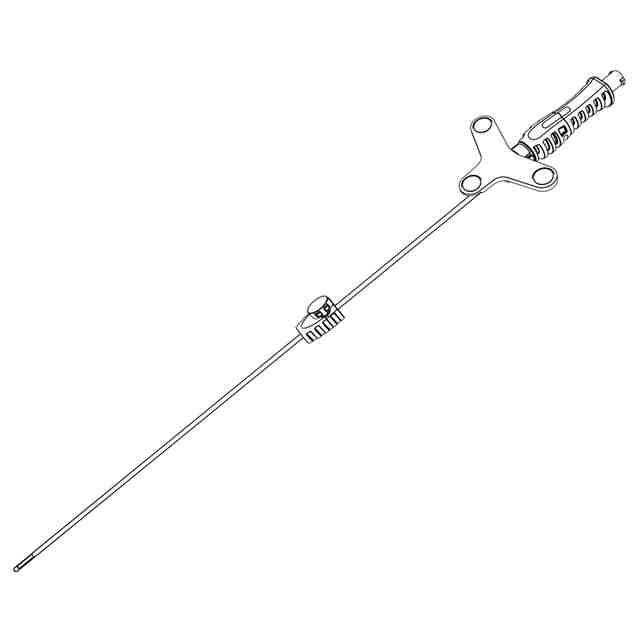

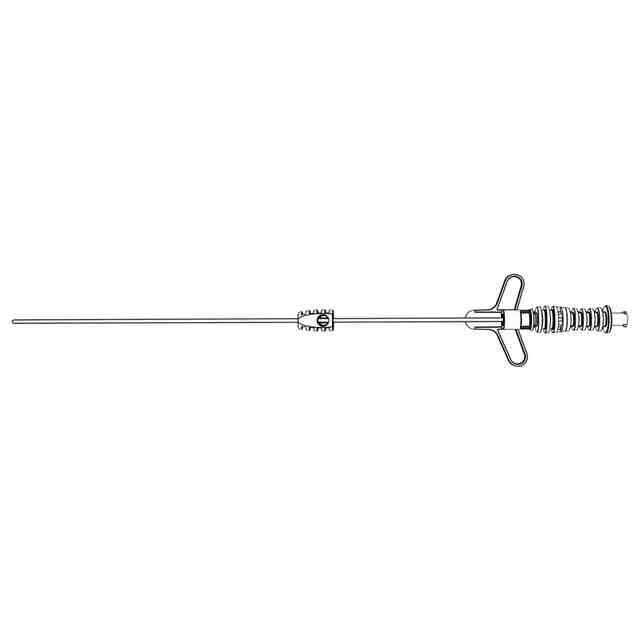

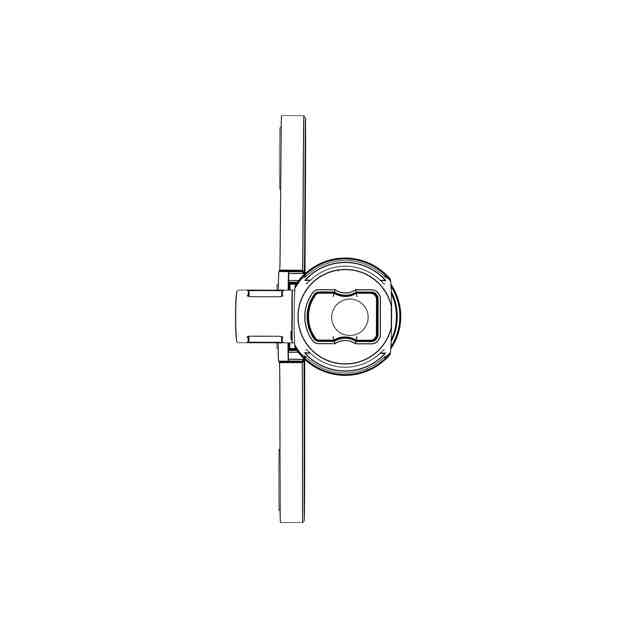

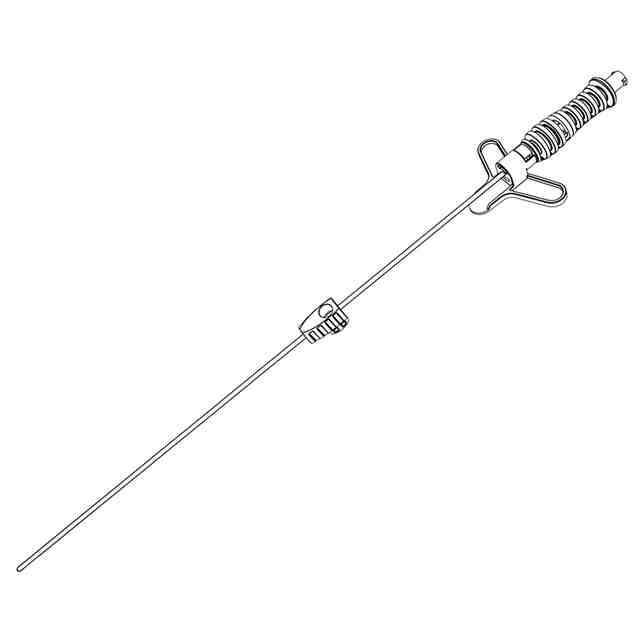

発行日2025-07-24 公報種別意匠公報(S) 登録番号1804404 登録日2025-07-15 意匠に係る物品Biopsy needle 意匠分類J7-42(医療機械器具) 出願番号2023503471,015023119-0002 出願日 意匠権者ブレインラボ アーゲー,Brainlab AG 代理人弁理士法人はなぶさ特許商標事務所 意匠に係る物品の説明 意匠の説明Fig. 2.1 shows a perspective view of the upper side of a biopsy needle; fig. 2.2 shows a perspective view of the lower side of the biopsy needle; fig. 2.3 shows a top view of the biopsy needle; fig. 2.4 shows a left side view of the biopsy needle; fig. 2.5 shows a right side view of the biopsy needle; fig. 2.6 shows a back view of the biopsy needle; fig. 2.7 shows a front view of the biopsy needle; fig. 2.8 shows a bottom view of the biopsy needle. この意匠をJ-PlatPatで参照する
