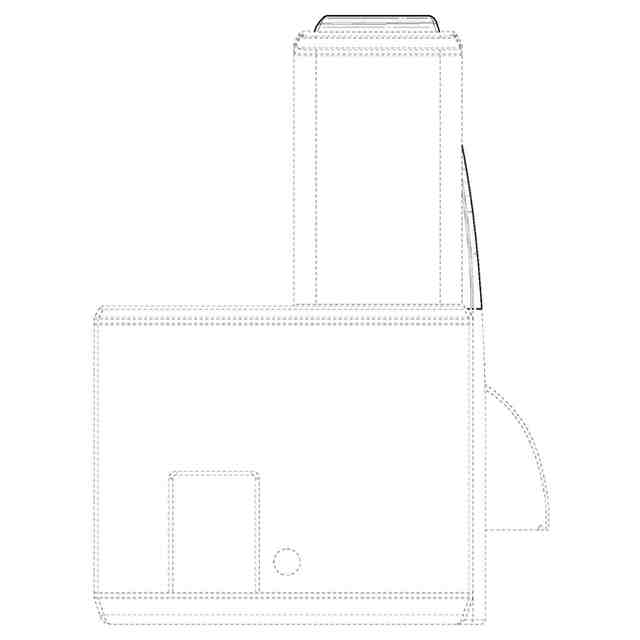

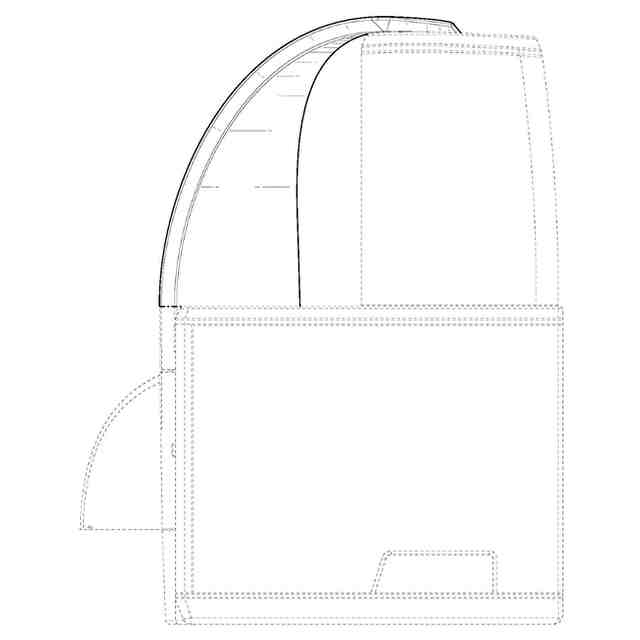

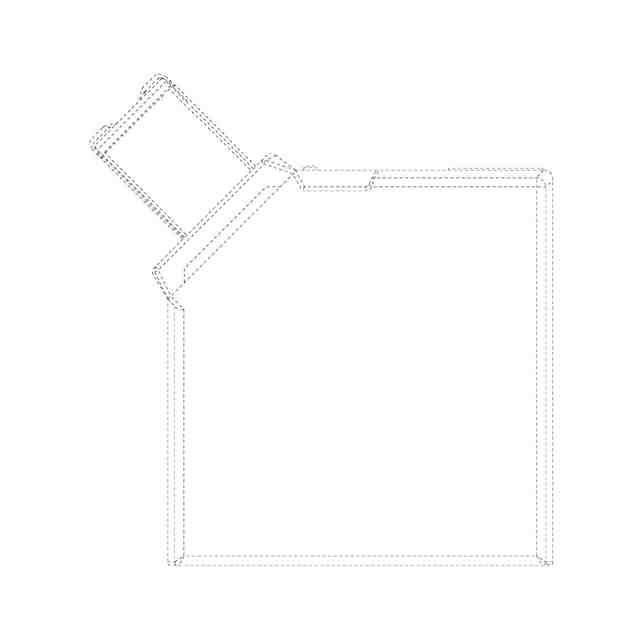

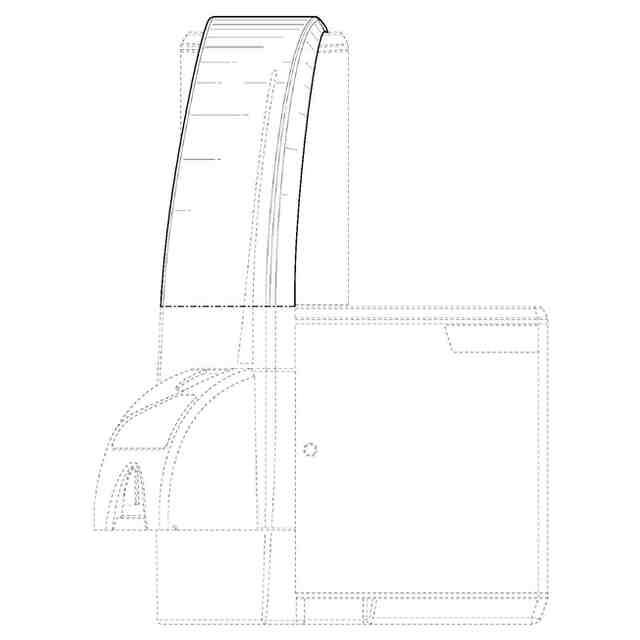

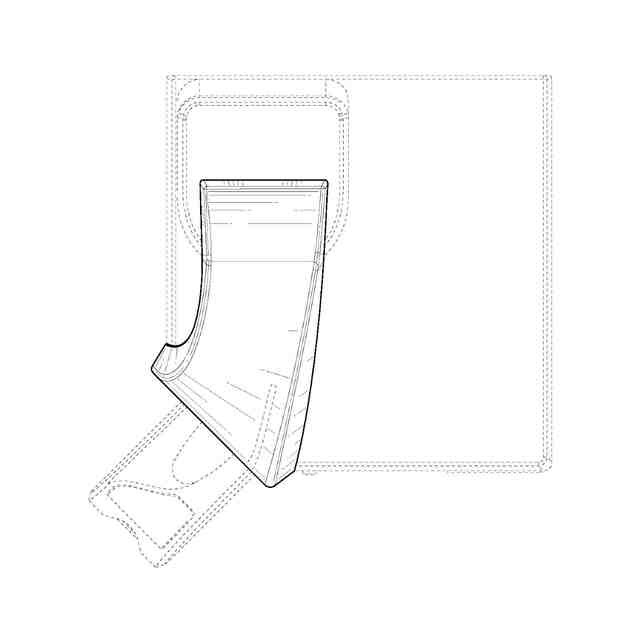

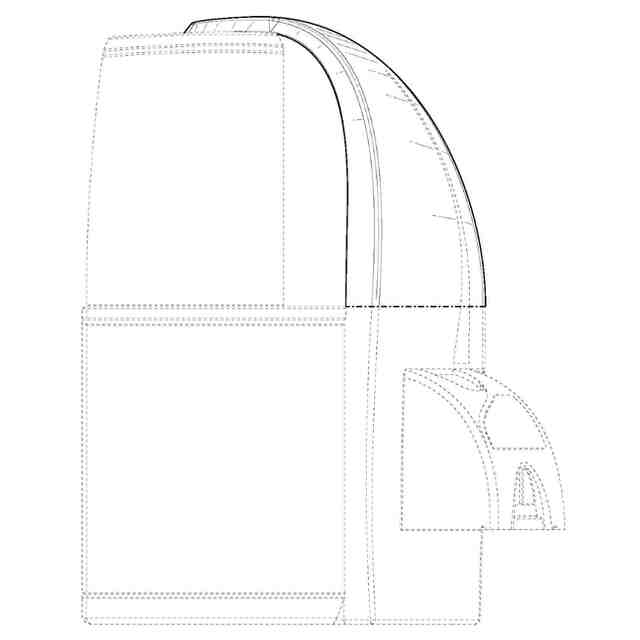

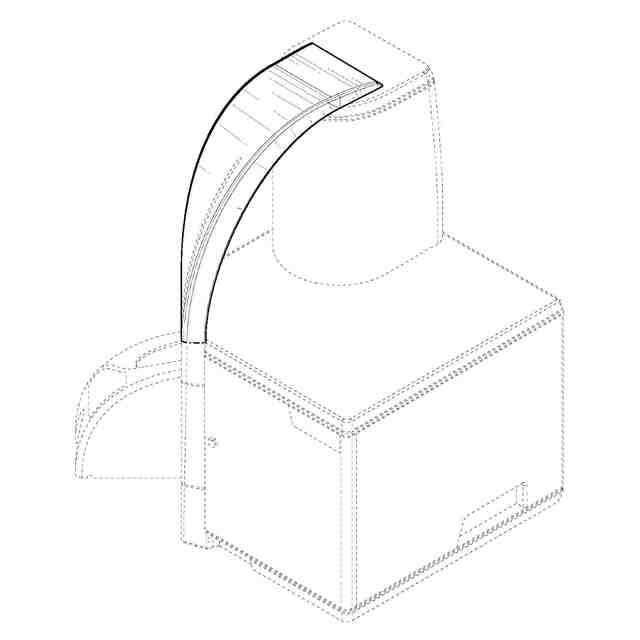

発行日2025-05-20 公報種別意匠公報(S) 登録番号1799002 登録日2025-05-12 意匠に係る物品Mass spectrograph 意匠分類J1-500(計量器、測定機械器具及び測量機械器具) 出願番号2023502840,29/872,323 出願日 意匠権者CMP Scientific Corp 代理人弁理士法人広江アソシエイツ特許事務所 意匠に係る物品の説明 意匠の説明FIGS. 2.1-2.7 depict a second embodiment of a mass spectrometry instrument; FIG. 2.1 is a left side view of the mass spectrometry instrument; FIG. 2.2 is a front view thereof; FIG. 2.3 is a right side view thereof; FIG. 2.4 is a back view thereof; FIG. 2.5 is a top view thereof; FIG. 2.6 is a bottom view thereof; FIG. 2.7 is a right perspective view thereof. Features shown in dashed lines form no part of the design as claimed; Surface features shown with surface shading form no part of the design as claimed, except when enclosed by solid lines; In FIGS. 2.1-2.7, the dash dot lines form a boundary line across a surface feature to separate the surface feature into claimed portions and unclaimed portions of the design as claimed. 2.1)Left; 2.2)Front; 2.3)Right; 2.4)Back; 2.5)Top; 2.6)Bottom; 2.7)Perspective この意匠をJ-PlatPatで参照する
