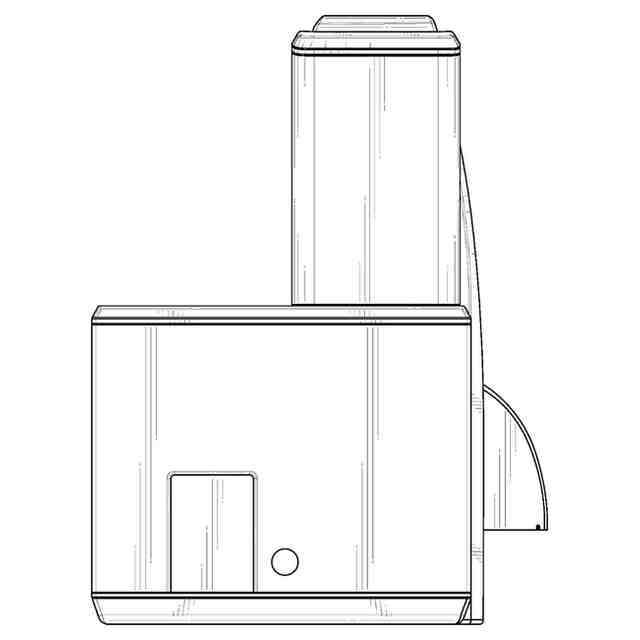

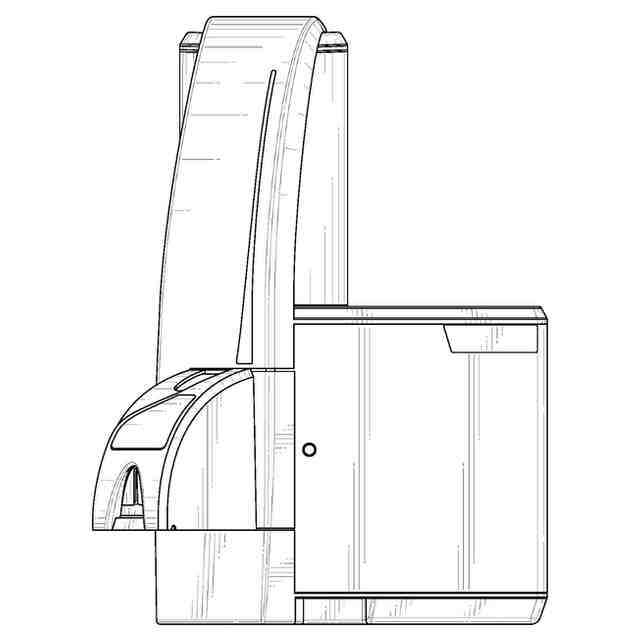

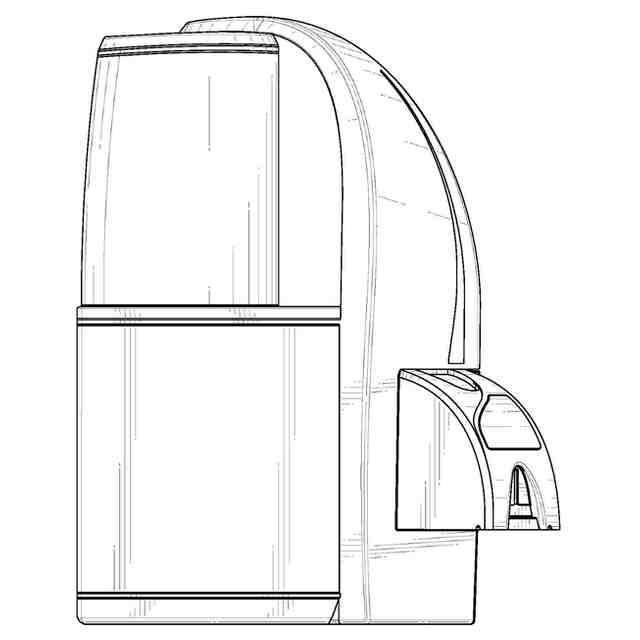

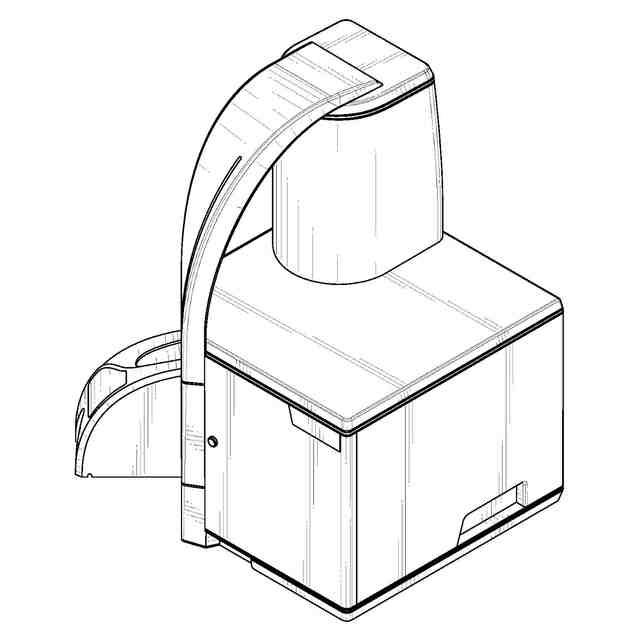

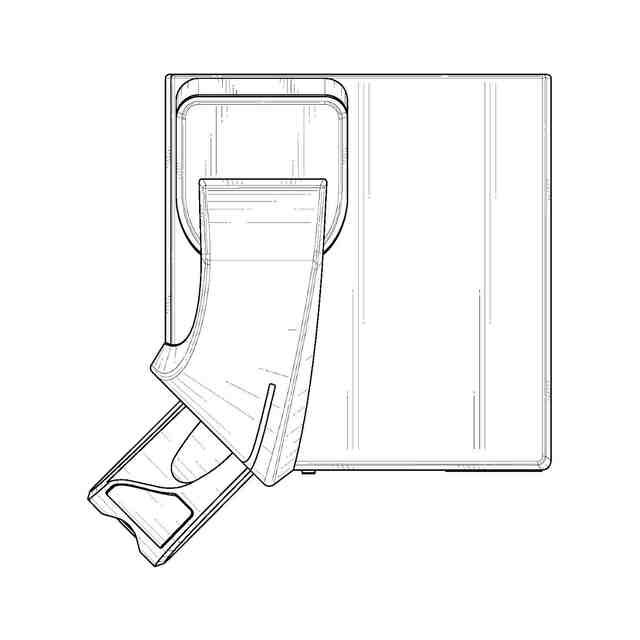

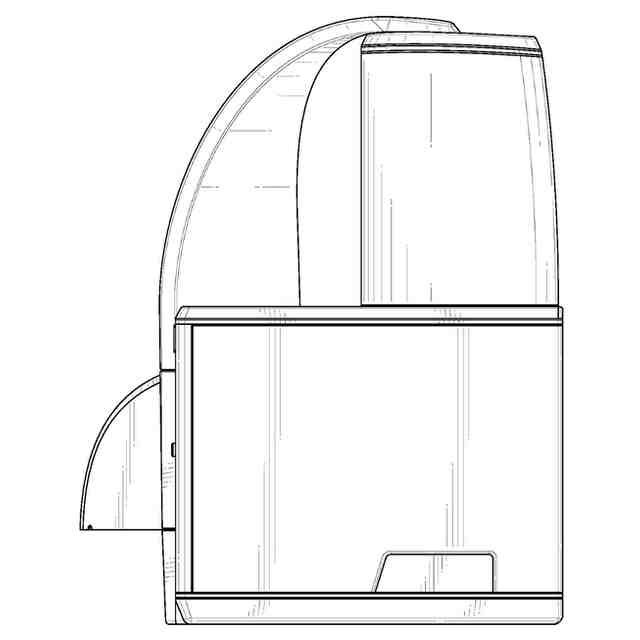

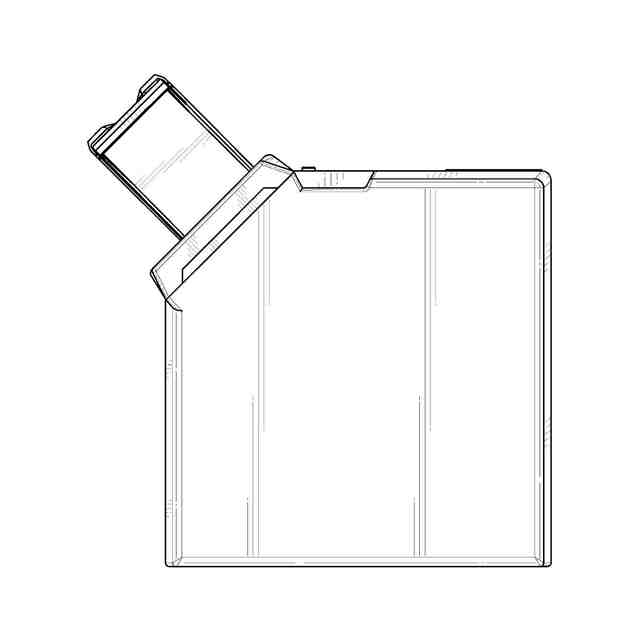

発行日2025-01-16 公報種別意匠公報(S) 登録番号1789108 登録日2025-01-07 意匠に係る物品Mass spectrograph 意匠分類J1-500(計量器、測定機械器具及び測量機械器具) 出願番号2023502839,29/872,323 出願日 意匠権者CMP Scientific Corp 代理人 意匠に係る物品の説明 意匠の説明FIGS. 1.1-1. 7 depict a first embodiment of a mass spectrometry instrument; FIG. 1.1 is a left side view of the mass spectrometry instrument; FIG. 1.2 is a front view thereof; FIG. 1.3 is a right side view thereof; FIG. 1.4 is a back view thereof; FIG. 1.5 is a top view thereof; FIG. 1.6 is a bottom view thereof; FIG. 1.7 is a right perspective view thereof. 1.1)Left; 1.2)Front; 1.3)Right; 1.4)Back; 1.5)Top; 1.6)Bottom; 1.7)Perspective この意匠をJ-PlatPatで参照する
