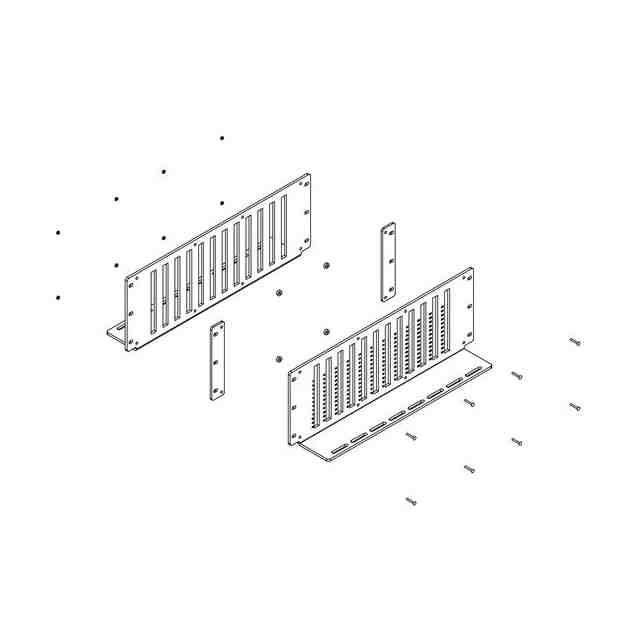

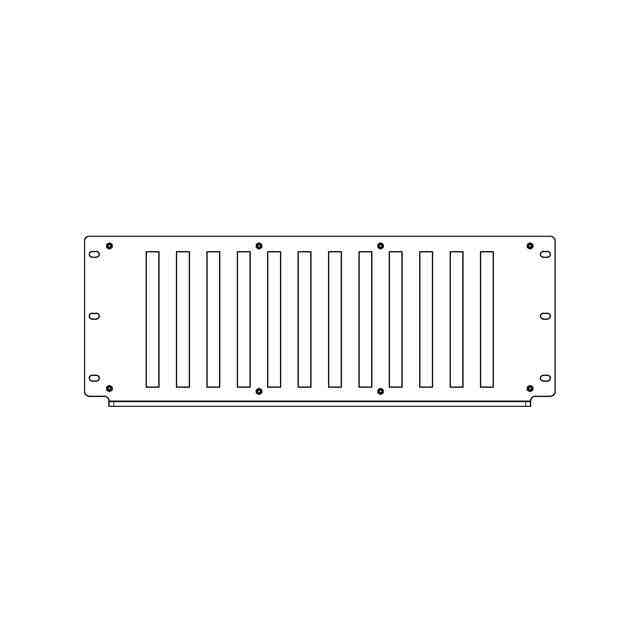

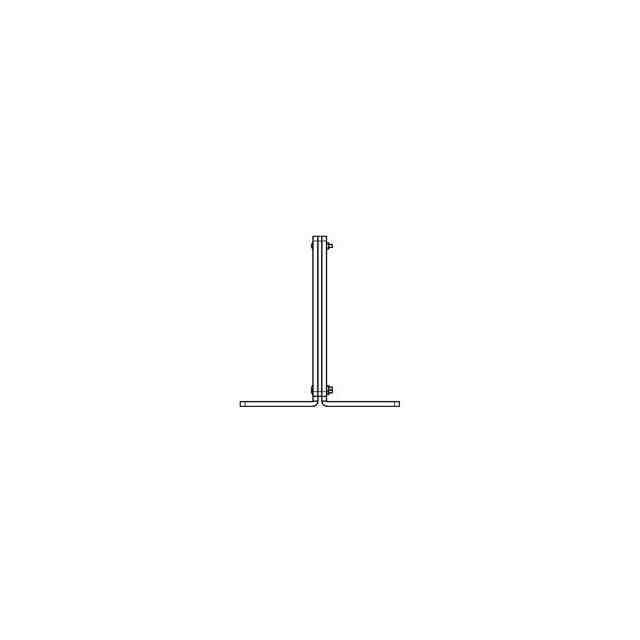

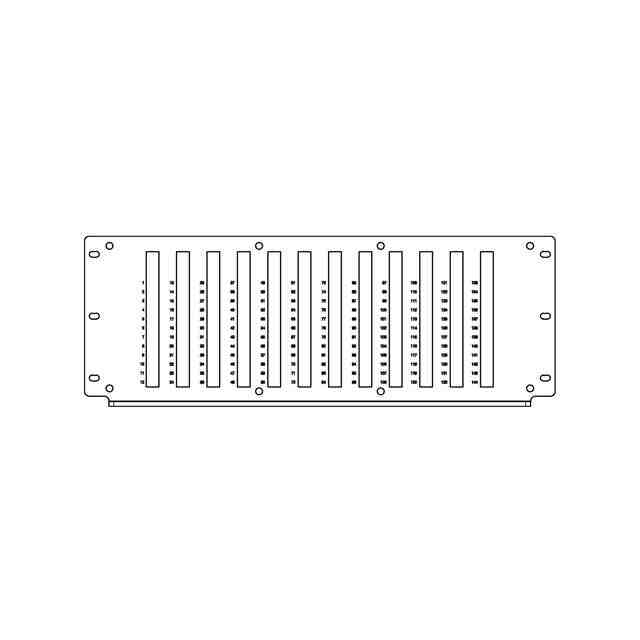

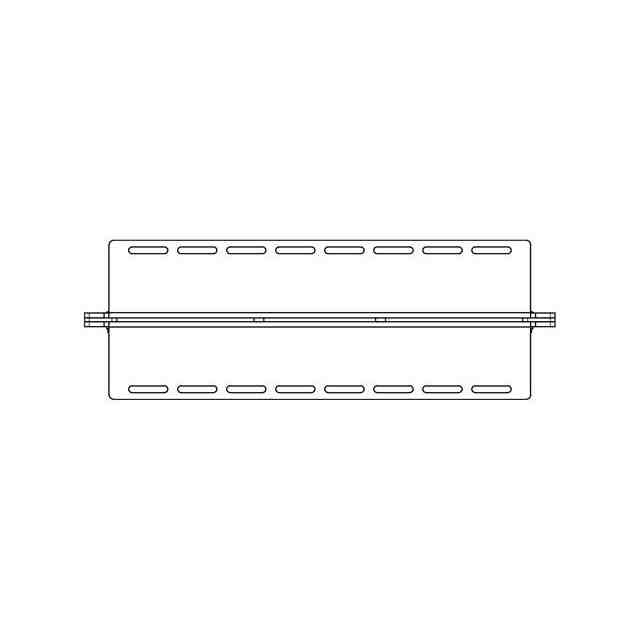

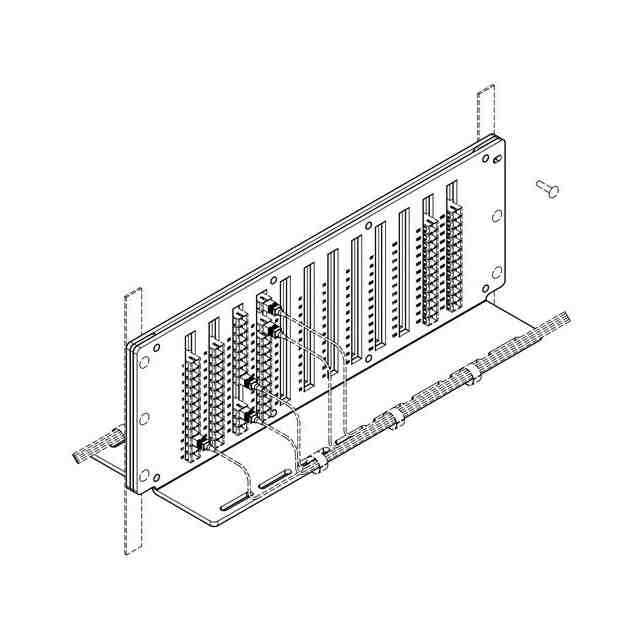

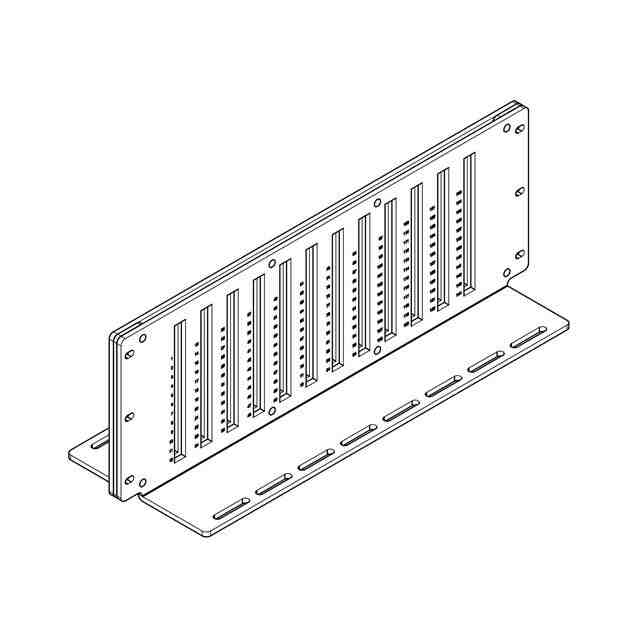

発行日2025-05-01 公報種別意匠公報(S) 登録番号1797464 登録日2025-04-21 意匠に係る物品Panel for fixing optical adapters 意匠分類H1-301(基本的電気素子) 出願番号2024503211 出願日 意匠権者OAC Networks Inc. 代理人 意匠に係る物品の説明 意匠の説明This design is a panel for fixing optical adapters, by separating and fixing both sides of two panels with spacers, several long grooves formed on two panels face each other and form pairs of optical adapter mounting grooves at certain intervals, which means the multiple optical adapters can be easily attached and detached by fitting them into the mounting grooves without bolt fastening, and the space can be secured when attaching and detaching the optical connectors as the optical adapters can be moved along the long grooves; the long grooves of mounting grooves are formed vertically, the installed optical adapters are automatically aligned downward by gravity, and the aligned positions are marked with serial numbers so that the numbers of the optical adapters can be determined or confirmed; cable fixing brackets are formed on the both sides of the lower part of the panels so that the remaining optical cable can be organized or fixed with velcro bands, etc.; reproduction 1.9 is a reference view of the environmental view showing the installation and movement of the optical adapters using the design, and the fixing of the remaining optical cable to the cable fixing brackets, and does not form part of the claimed design; the parts shown by means of broken lines in the reproductions are not part of the claimed design. 1.1)Perspective; 1.2)Front; 1.3)Back; 1.4)Left; 1.5)Right; 1.6)Top; 1.7)Bottom; 1.8)Exploded; 1.9)Reference この意匠をJ-PlatPatで参照する
