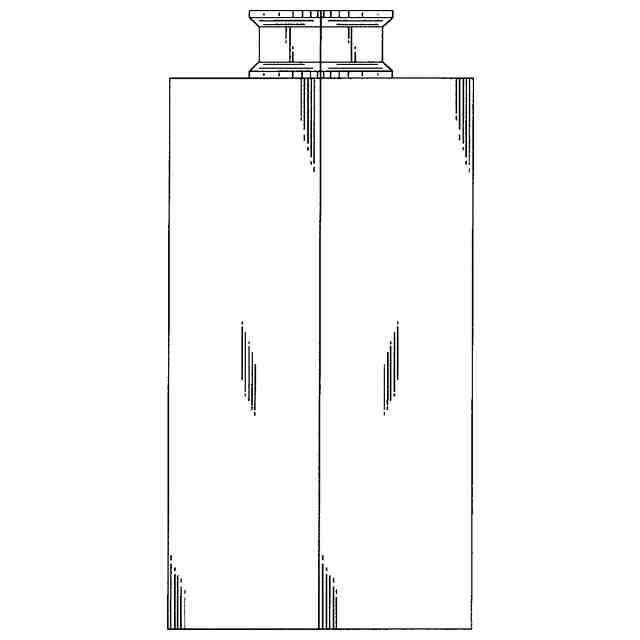

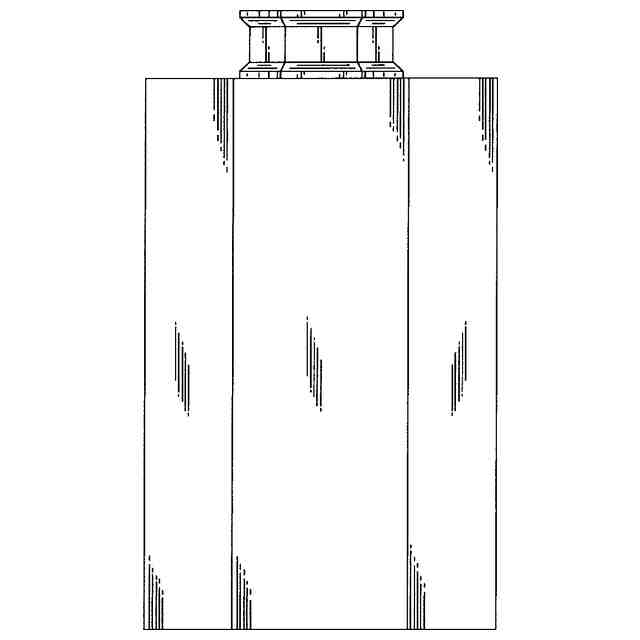

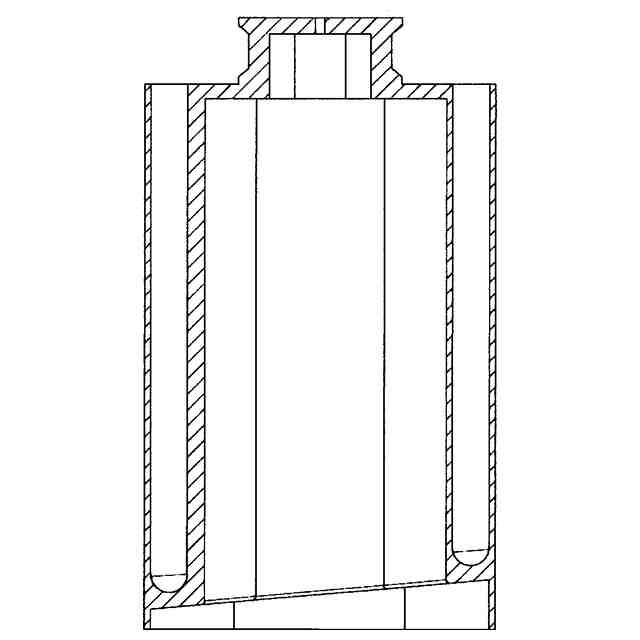

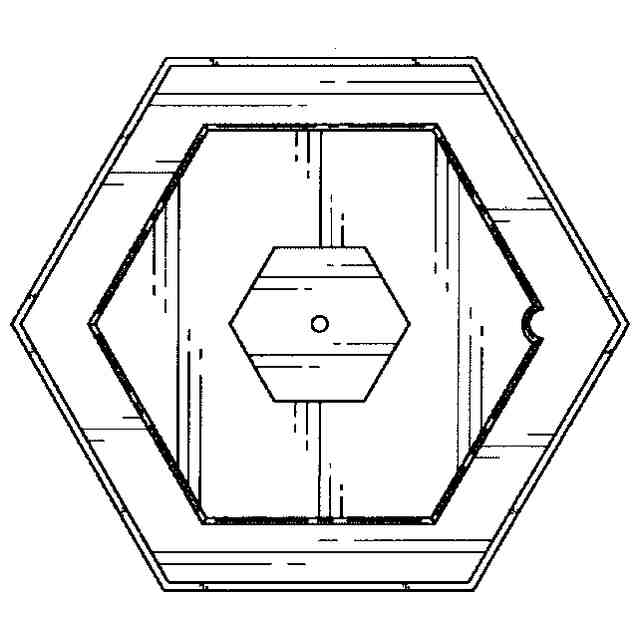

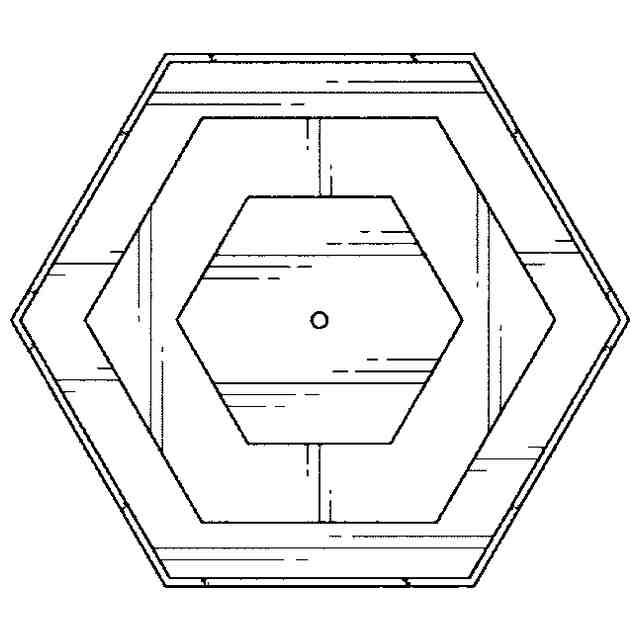

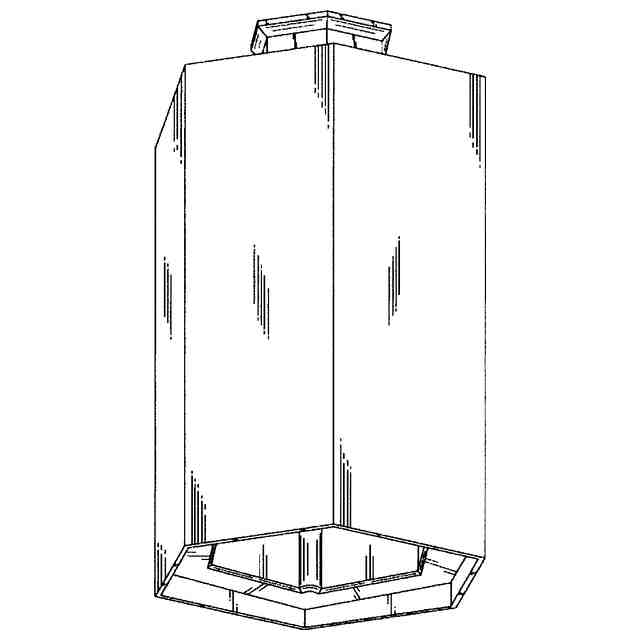

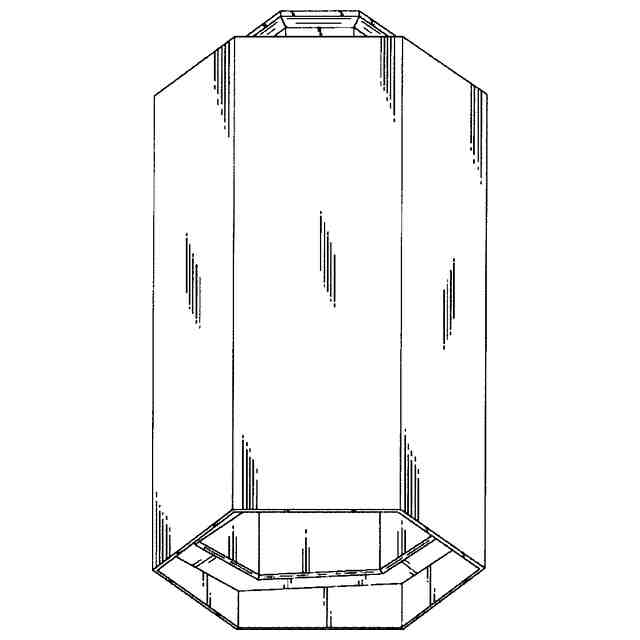

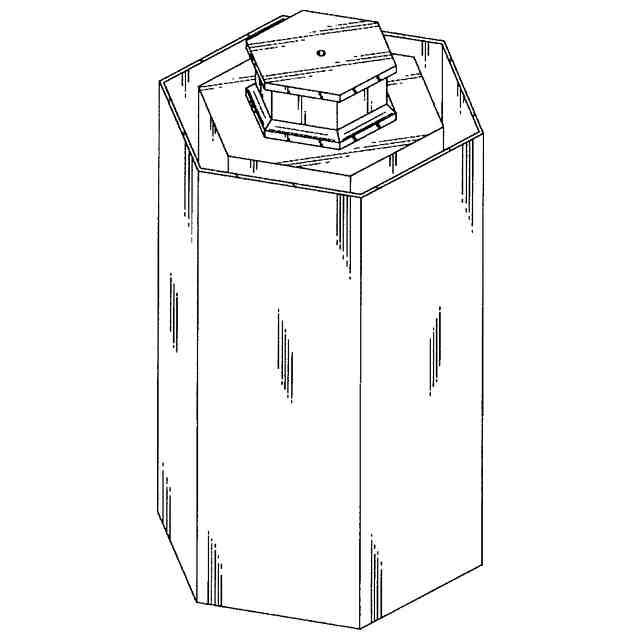

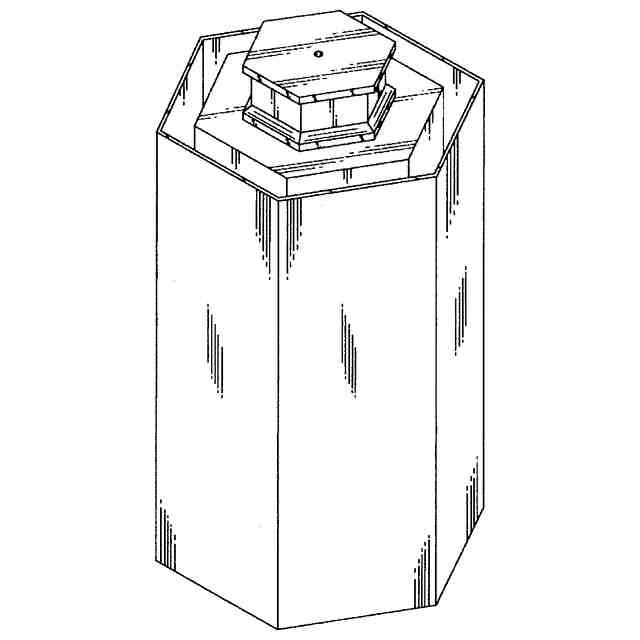

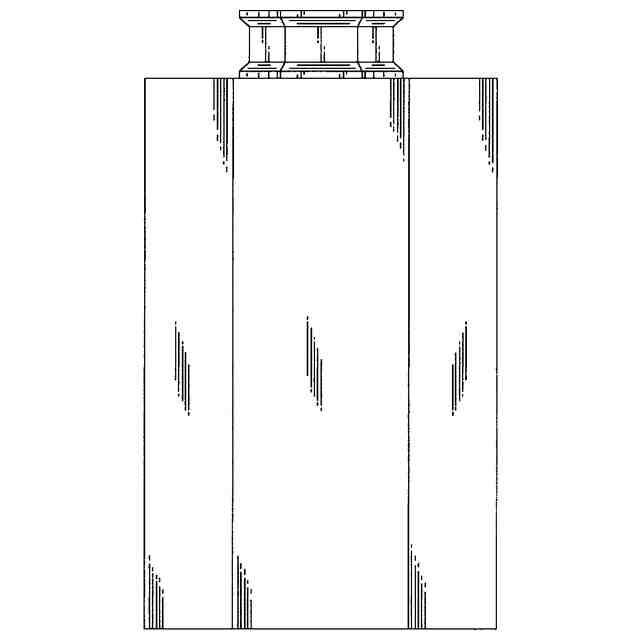

発行日2025-04-08 公報種別意匠公報(S) 登録番号1795541 登録日2025-03-31 意匠に係る物品Hand-operated instrument and tool for laboratories 意匠分類K6-71(化学機械器具) 出願番号2023502725,015014936-0001 出願日 意匠権者Quantoom Biosciences, societe anonyme 代理人個人,個人,個人 意匠に係る物品の説明The article of the design is a vessel for use in biochemical purification systems and forms a part of a broader mRNA production system. The vessel is 86.6 mm wide and 179 mm high. 意匠の説明The characteristic features of the design lie in the shape of the hand-operated instrument and tool for laboratories, as shown and described. The break lines in the reproductions 1.1 to 1.4 and 1.7 to 1.11 indicate that the appearance of any portion of the instrument and tool for laboratory use between the break lines does not form part of the claimed design. 1.1)Top, left, front perspective view; 1.2)Top, right, back perspective view; 1.3)Bottom, left, back perspective view; 1.4)Front elevation view; 1.5)Top plan view; 1.6)Bottom plan view; 1.7)Cross-sectional view taken through front to back center; 1.8)Bottom, right, front perspective view; 1.9)Front; 1.10)Left elevation view; 1.11)Right elevation view この意匠をJ-PlatPatで参照する
