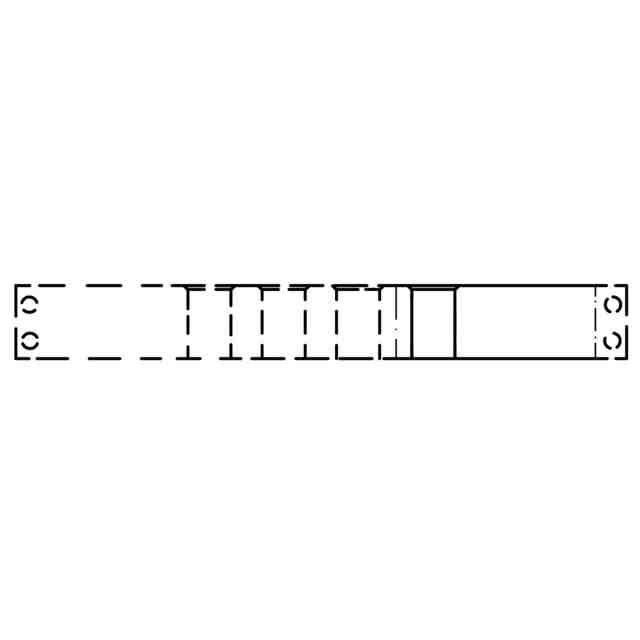

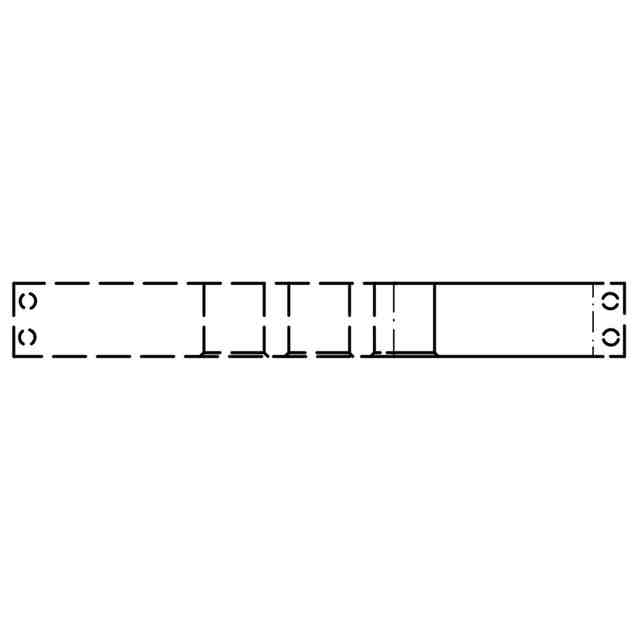

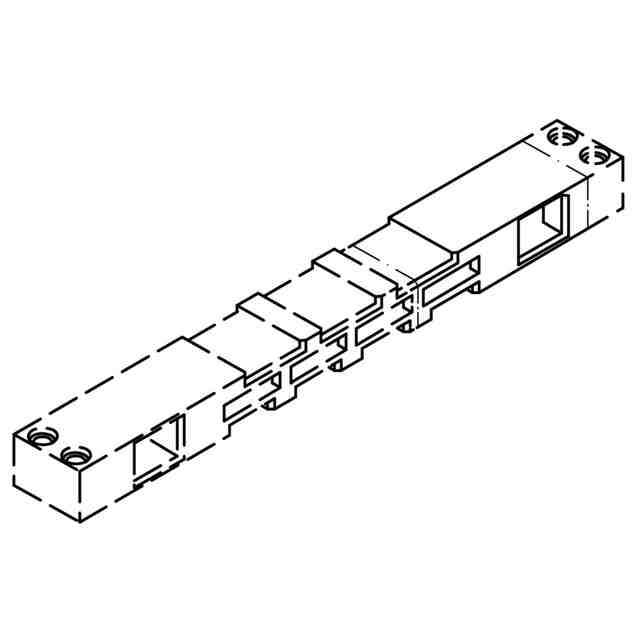

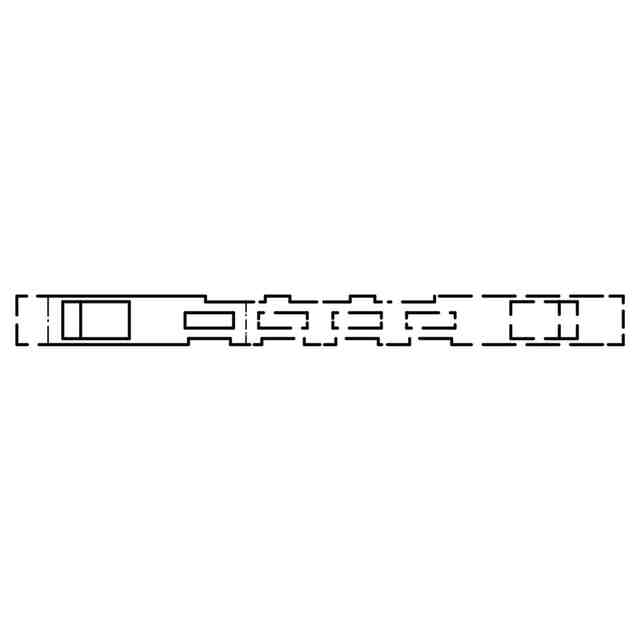

発行日2025-09-02 公報種別意匠公報(S) 登録番号1807630 登録日2025-08-25 意匠に係る物品Optical fiber connector 意匠分類H1-302(基本的電気素子) 出願番号2024501255 出願日 意匠権者Hakusan Inc. 代理人 意匠に係る物品の説明 意匠の説明Name of this industrial design product: optical fiber connector; Purpose of this industrial design product: Used for holding multiple ferrules and connecting optical fibers; Key design feature of this industrial design product: its shape; The picture or photo that best represents the key design feature: Reproduction 1.1; Reproduction 1.1 is a perspective view showing the front, top, and left side of the design; Reproduction 1.8 is a cross-sectional view taken along lines A-A’ in reproduction 1.2; The broken lines, the dot-dash broken lines, arrows and letters(A) in the reproductions form no part of the claimed design; The dot-dash broken lines define the bounds of the claimed design and form no part thereof; The reproduction 1.9 is a reference view showing the usage states of the product and they do not form part of the claimed design. 1.1)Perspective; 1.2)Front; 1.3)Back; 1.4)Top; 1.5)Bottom; 1.6)Left; 1.7)Right; 1.8)Cross sectional; 1.9)Reference view この意匠をJ-PlatPat（特許庁公式サイト）で参照する
