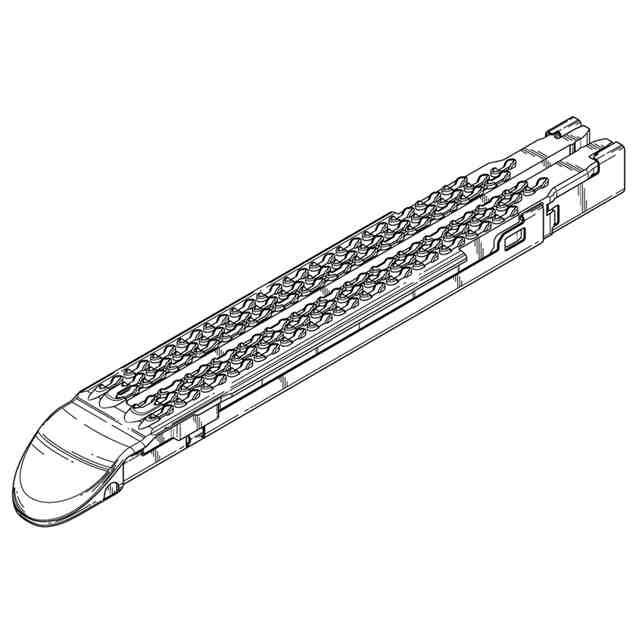

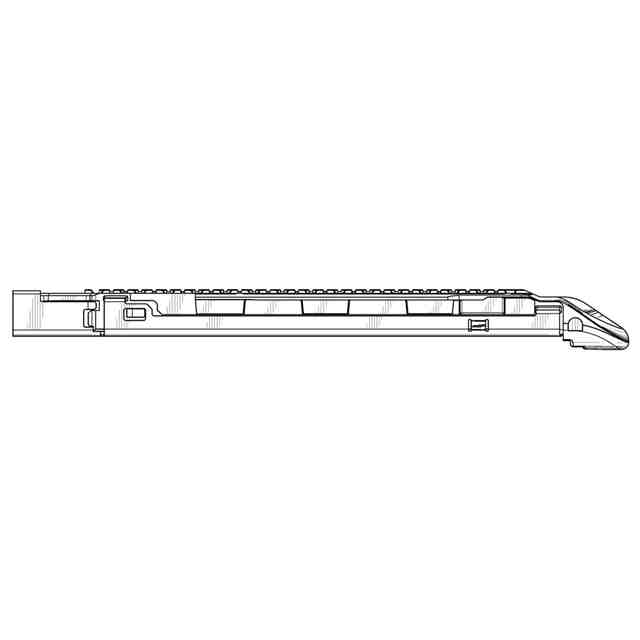

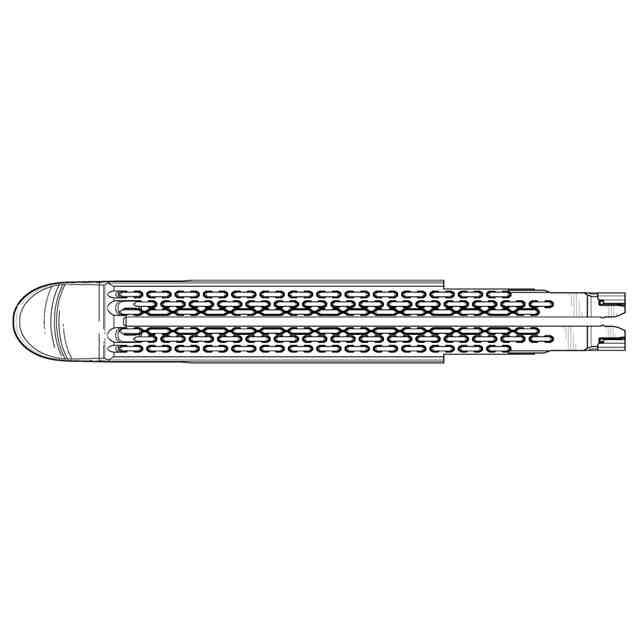

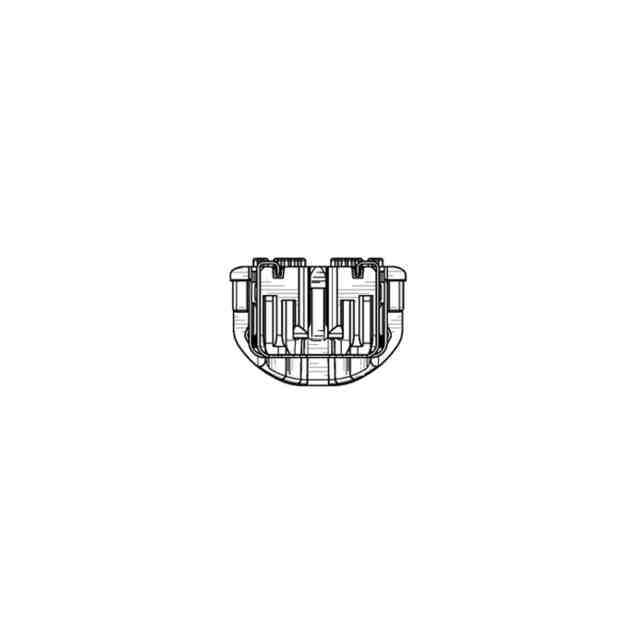

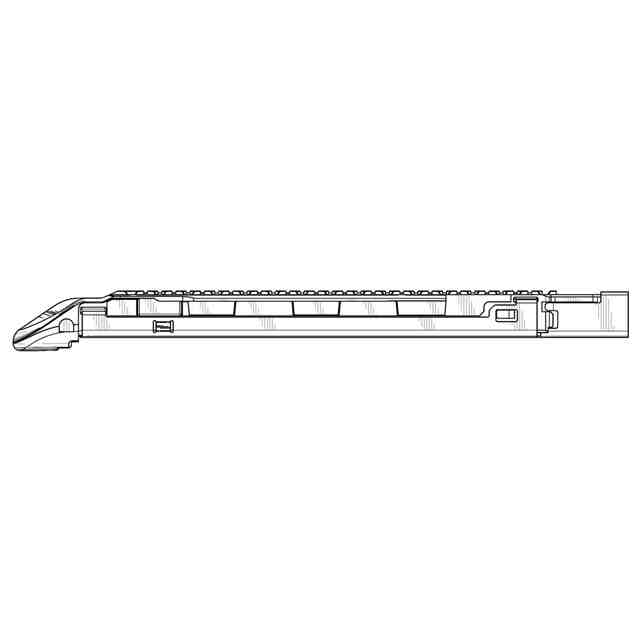

発行日2025-08-14 公報種別意匠公報(S) 登録番号1806011 登録日2025-08-04 意匠に係る物品Surgical stapler cartridge 意匠分類J7-41(医療機械器具) 出願番号2023503242,29/892,597 出願日 意匠権者Cilag GmbH International 代理人個人,個人,個人,個人,個人 意匠に係る物品の説明 意匠の説明The characteristic features of the design lie in the shape of the surgical stapler cartridge. The representations of the design are in black and white. The design does not claim protection for a specific coloring. The shade lines in the figures show contour and not surface ornamentation. Fig. 6.1 is a perspective view of a surgical stapler cartridge, showing the new design; Fig. 6.2 is a front elevational view of the surgical stapler cartridge of Fig. 6.1; Fig. 6.3 is a rear elevational view of the surgical stapler cartridge of Fig. 6.1; Fig. 6.4 is a first side elevational view of the surgical stapler cartridge of Fig. 6.1; Fig. 6.5 is a second side elevational view of the surgical stapler cartridge of Fig. 6.1; Fig. 6.6 is a top plan view of the surgical stapler cartridge of Fig. 6.1; Fig. 6.7 is a bottom plan view of the surgical stapler cartridge of Fig. 6.1. 6.1)Perspective; 6.2)Front elevational view; 6.3)Rear elevational view; 6.4)First side elevational view; 6.5)Second side elevational view; 6.6)Top plan view; 6.7)Bottom plan view
