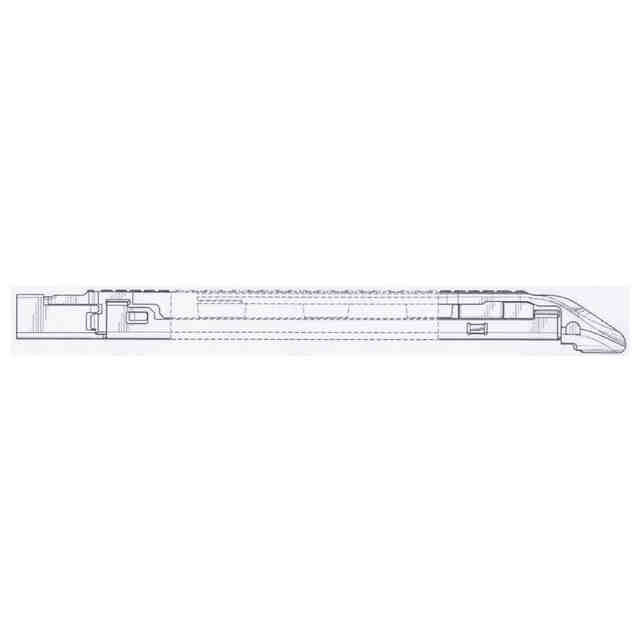

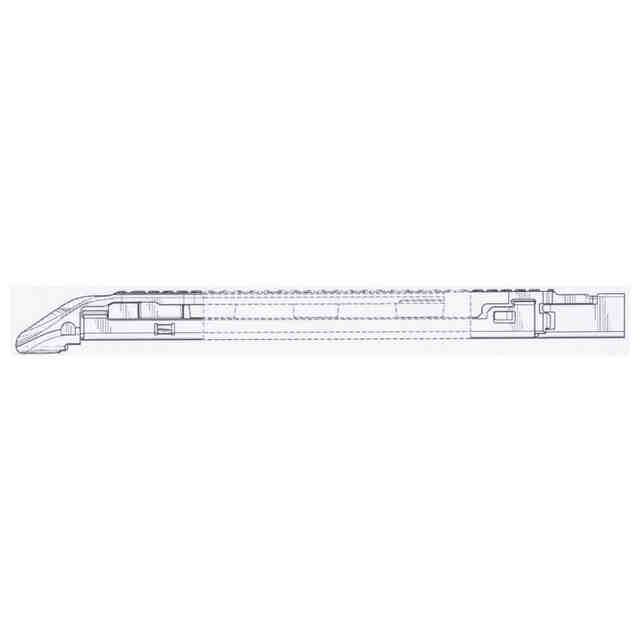

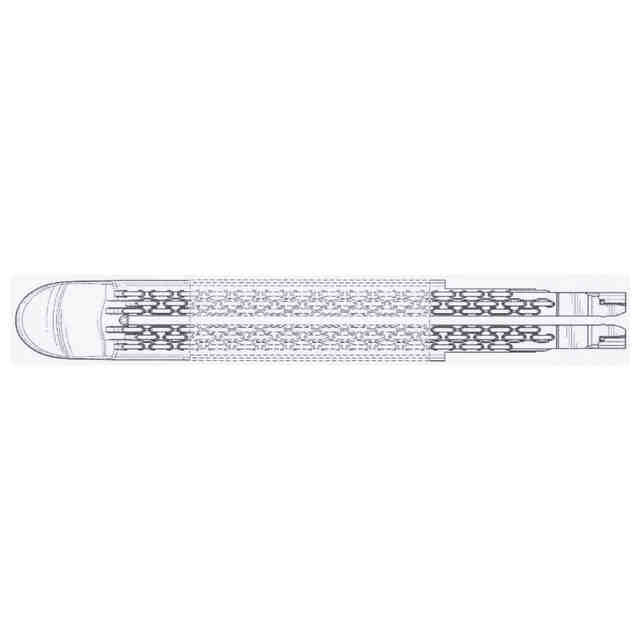

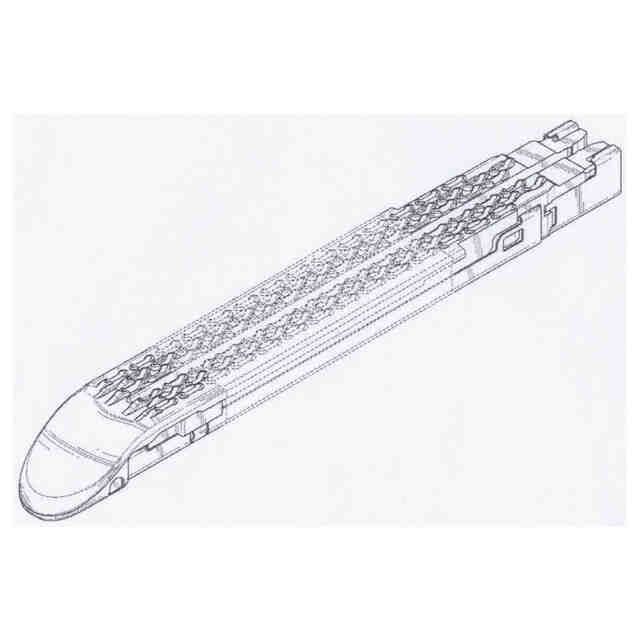

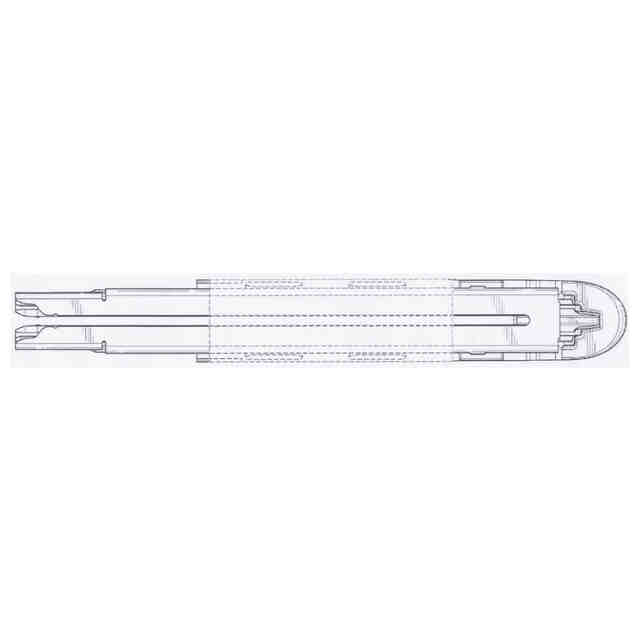

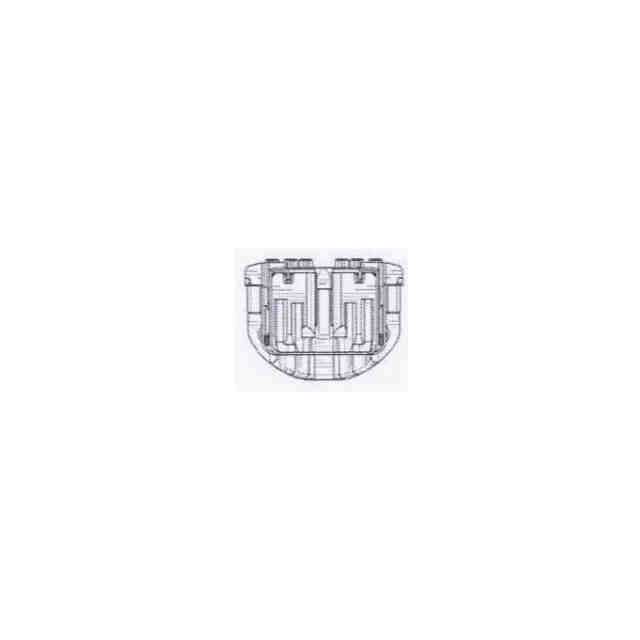

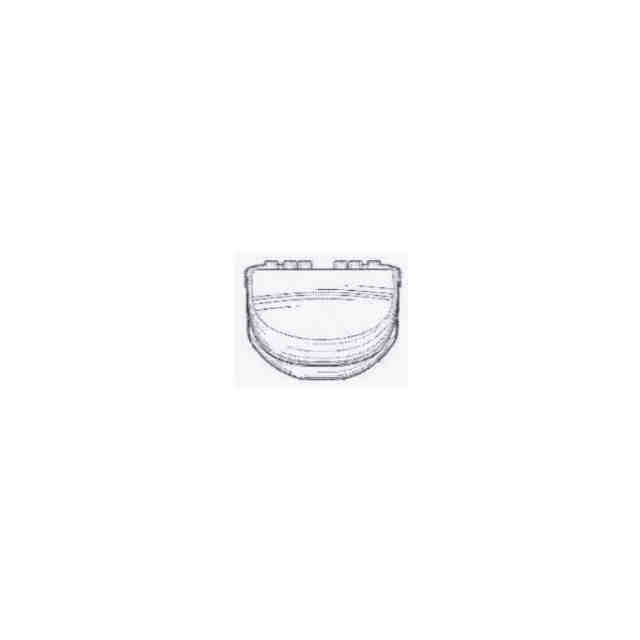

発行日2025-07-17 公報種別意匠公報(S) 登録番号1803692 登録日2025-07-07 意匠に係る物品Surgical stapler cartridge 意匠分類J7-41(医療機械器具) 出願番号2023503239,29/892,596 出願日 意匠権者Cilag GmbH International 代理人個人,個人,個人,個人,個人 意匠に係る物品の説明 意匠の説明The characteristic features of the designs lie in the shape of the surgical stapler cartridge. There presentations of the designs are in black and white. The designs does not claim protection for a specific coloring. The shade lines in the figures show contour and not surface ornamentation. The dash-dash broken lines in the drawings are included for the purpose of illustrating portions of the respective surgical stapler cartridge that form no part of the claimed design. The dot-dash broken lines in the drawings are included for the purpose of defining the boundary of the claim, it being understood that regions between the dot-dash broken lines and the dot-dash broken lines themselves form no part of the claimed design. 3.1 is a perspective view of another surgical stapler cartridge, showing the new design; Fig. 3.2 is a front elevational view of the surgical stapler cartridge of Fig. 3.1; Fig. 3.3 is a rear elevational view of the surgical stapler cartridge of Fig. 3.1; Fig. 3.4 is a first side elevational view of the surgical stapler cartridge of Fig. 3.1; Fig. 3.5 is a second side elevational view of the surgical stapler cartridge of Fig. 3.1; Fig. 3.6 is a top plan view of the surgical stapler cartridge of Fig. 3.1; Fig. 3.7 is a bottom plan view of the surgical stapler cartridge of Fig. 3.1. この意匠をJ-PlatPatで参照する
