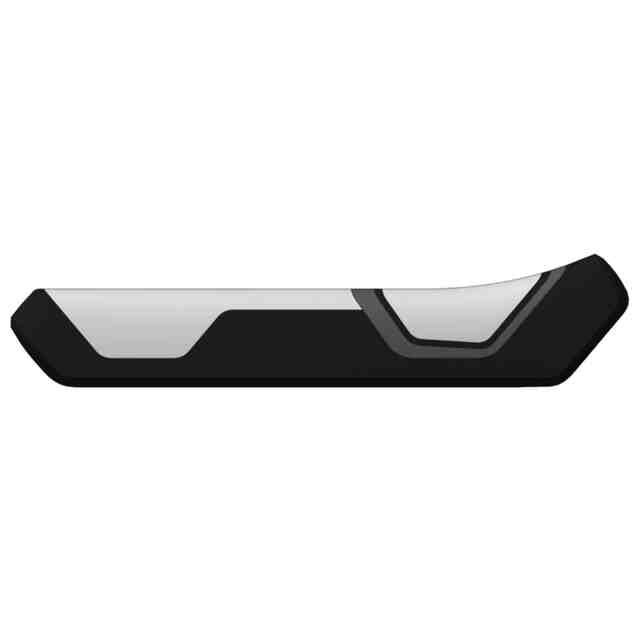

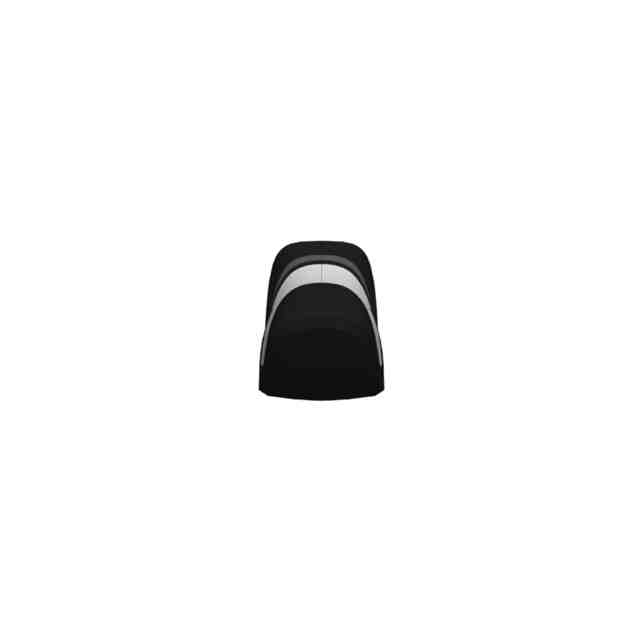

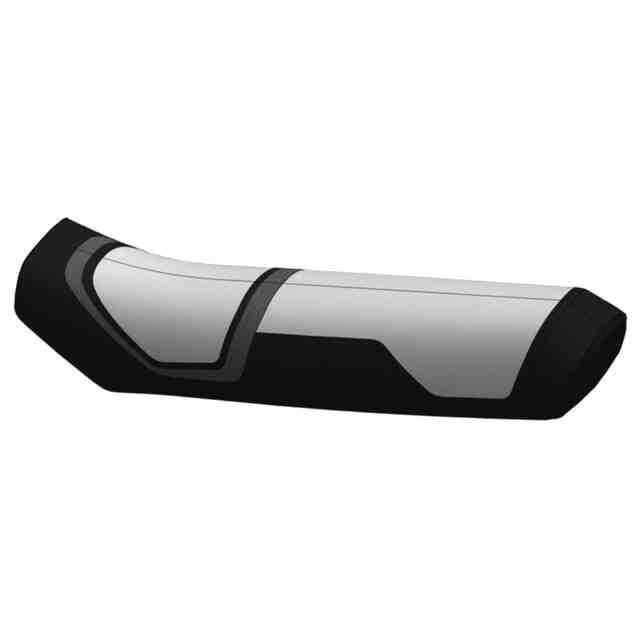

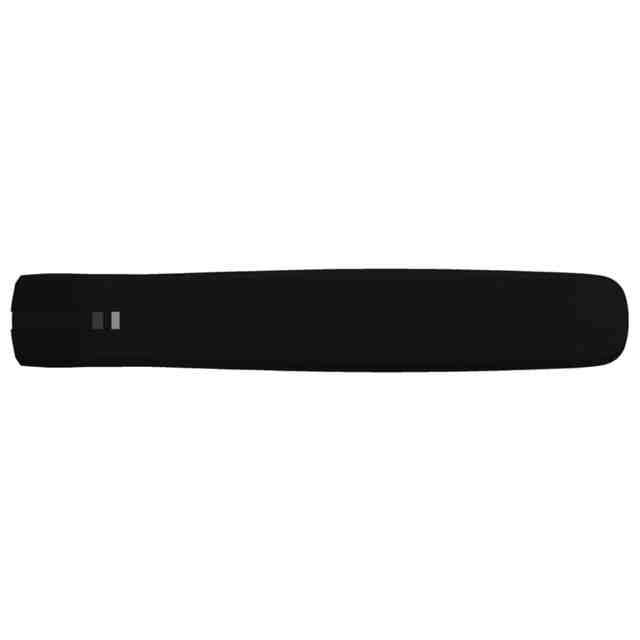

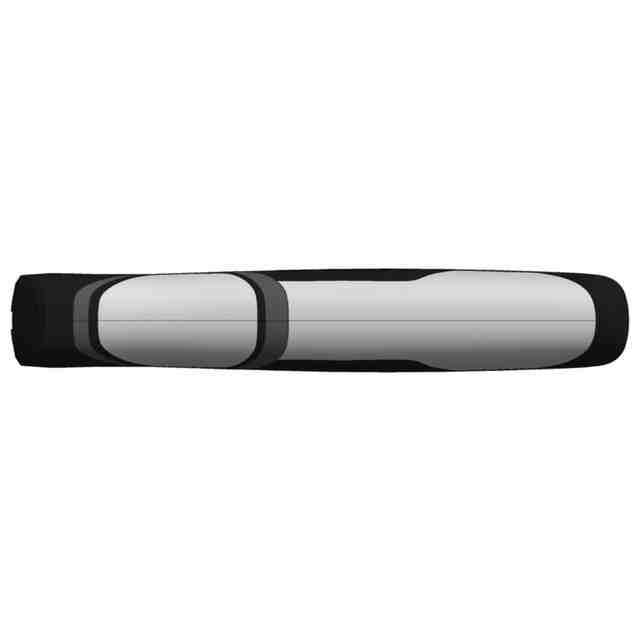

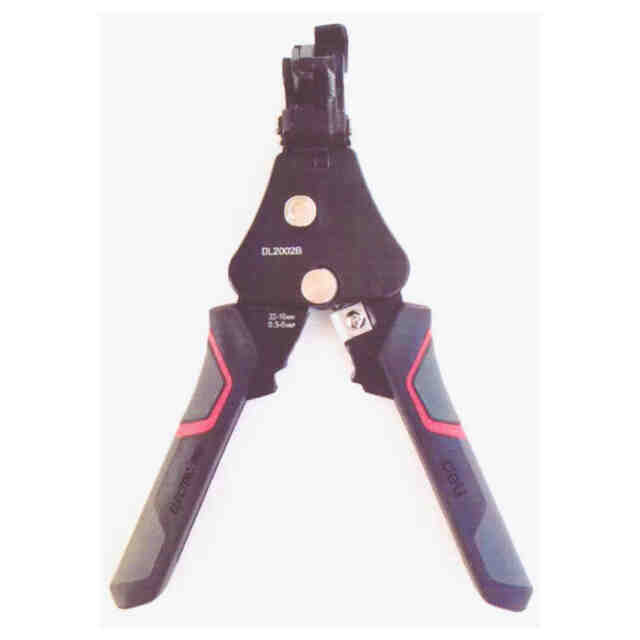

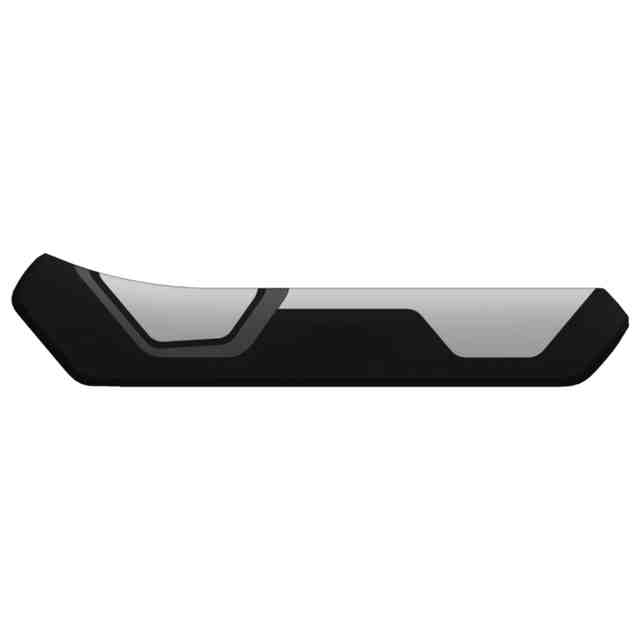

発行日2025-07-23 公報種別意匠公報(S) 登録番号1804247 登録日2025-07-14 意匠に係る物品Handle for wire stripper 意匠分類K1-227(利器及び工具) 出願番号2024500670,2023308580359 出願日 意匠権者Ningbo Deli Tools Co., LTD 代理人弁理士法人にじいろ特許事務所 意匠に係る物品の説明 意匠の説明Novelty is claimed in the features of shape, pattern and configuration of the handle for wire stripper shown in the accompanying drawings; a handle for wire stripper that may be used on pliers and similar hand tools; the characteristic features of the design lie in the combination of shape and pattern; Fig. 1.1 is a front, right and top side perspective view of a Handle for wire stripper showing our new design; Fig. 1.2 is a front elevation view thereof; Fig. 1.3 is a rear elevation view thereof; Fig. 1.4 is a left side elevation view thereof; Fig. 1.5 is a right side elevation view thereof; Fig. 1.6 is a top plan view thereof; and Fig. 1.7 is a bottom plan view thereof; Fig. 1.8 is a reference view showing the state of use. この意匠をJ-PlatPatで参照する
