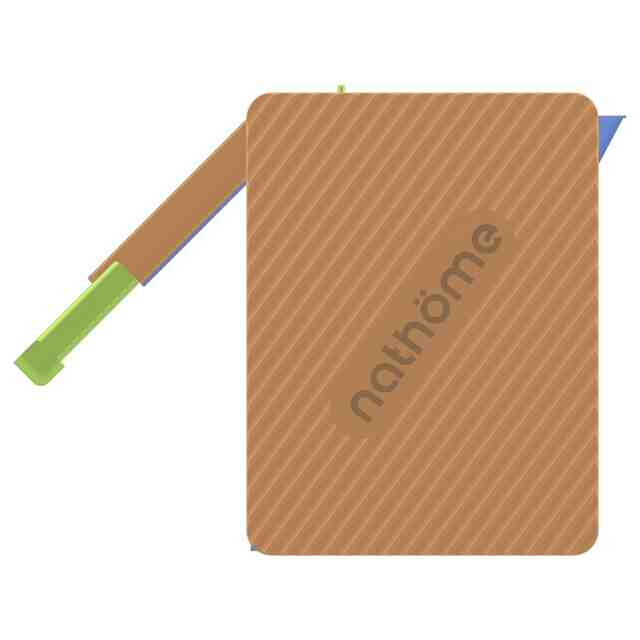

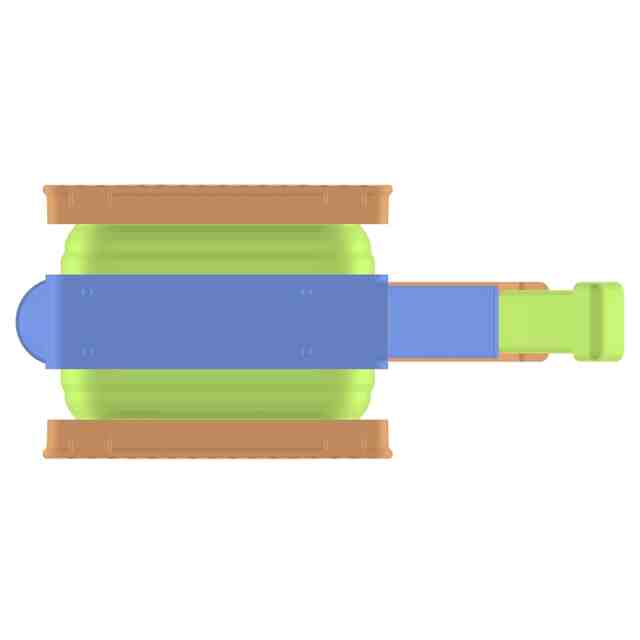

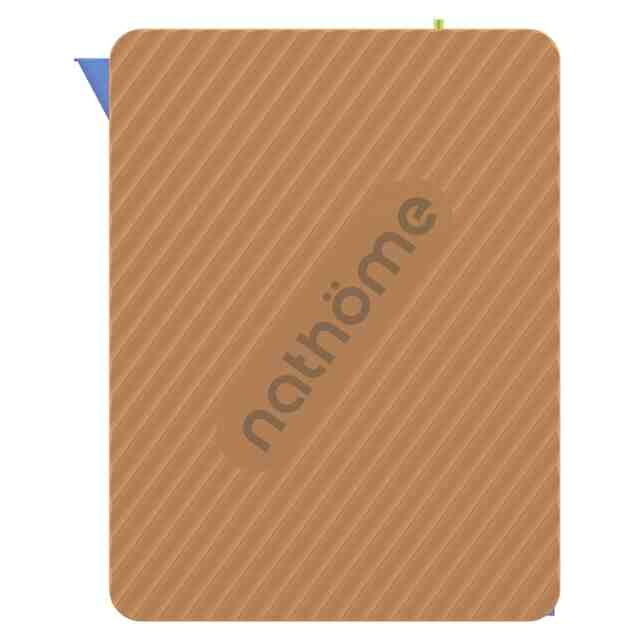

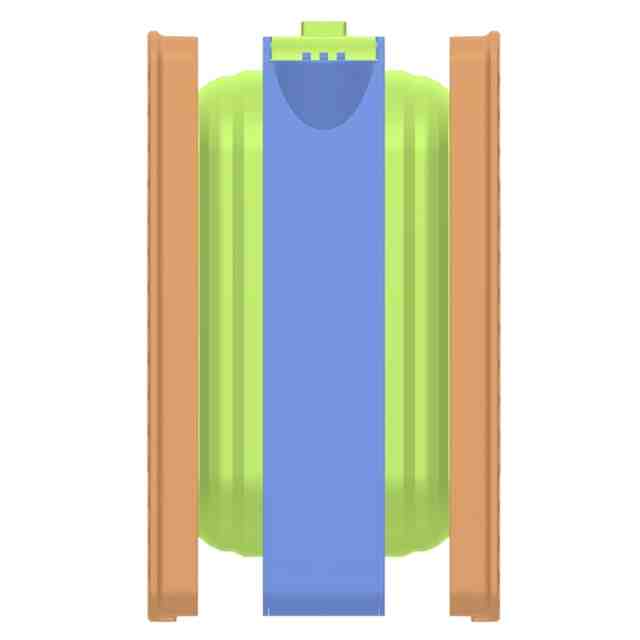

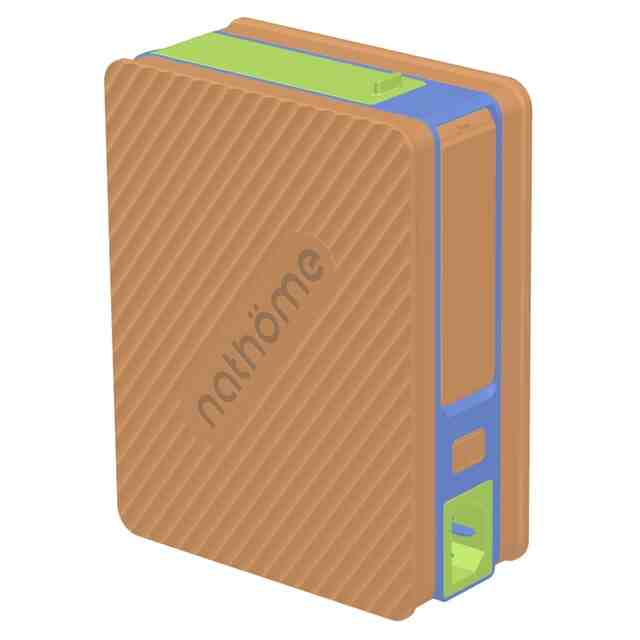

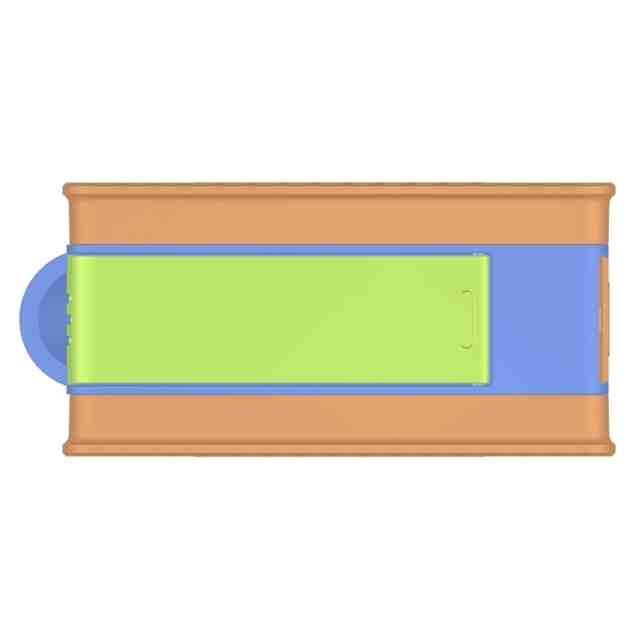

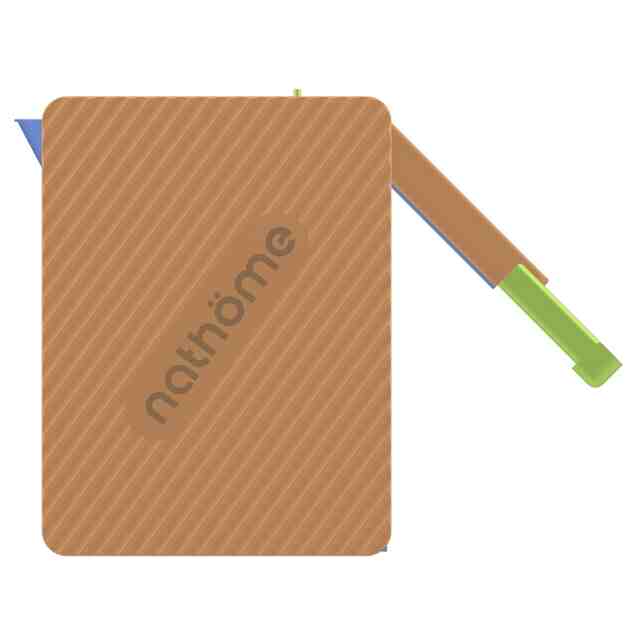

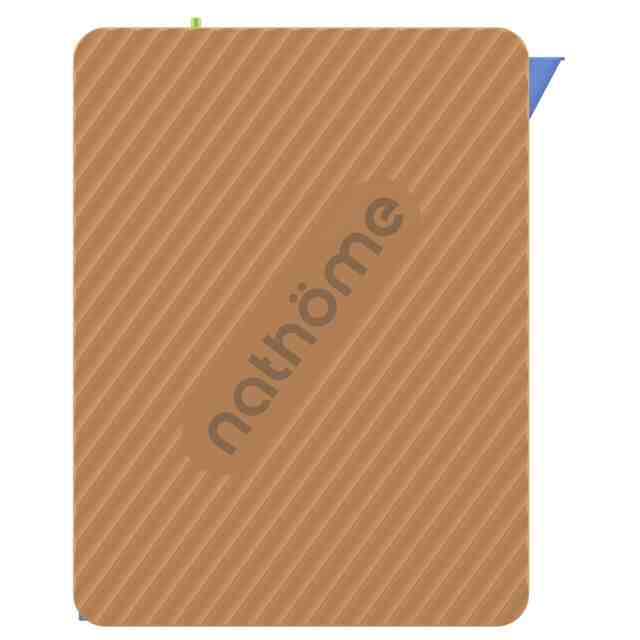

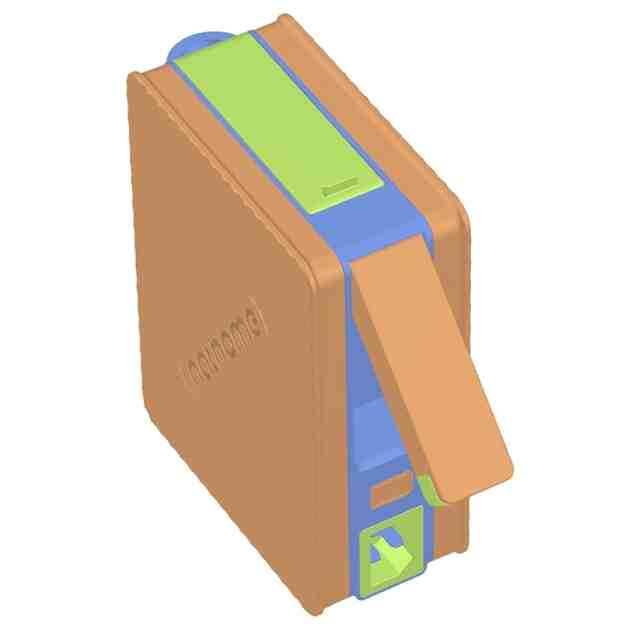

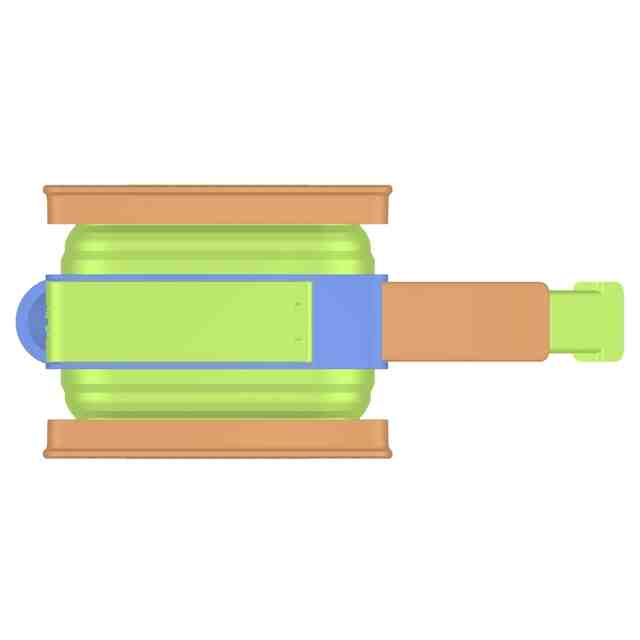

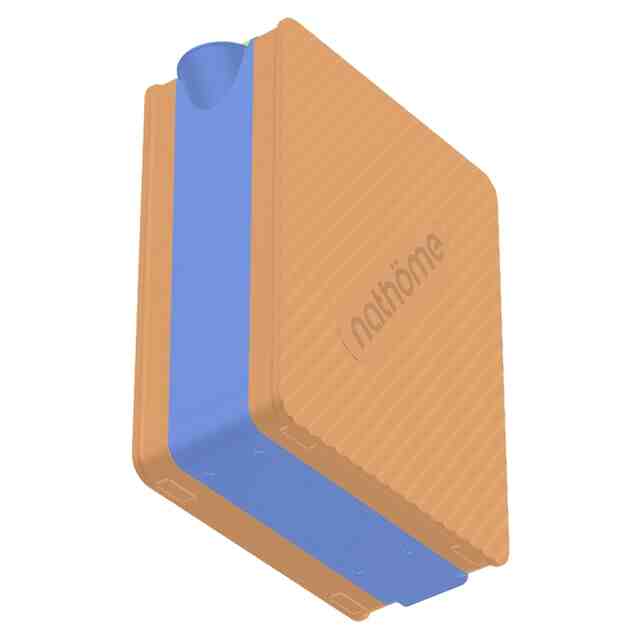

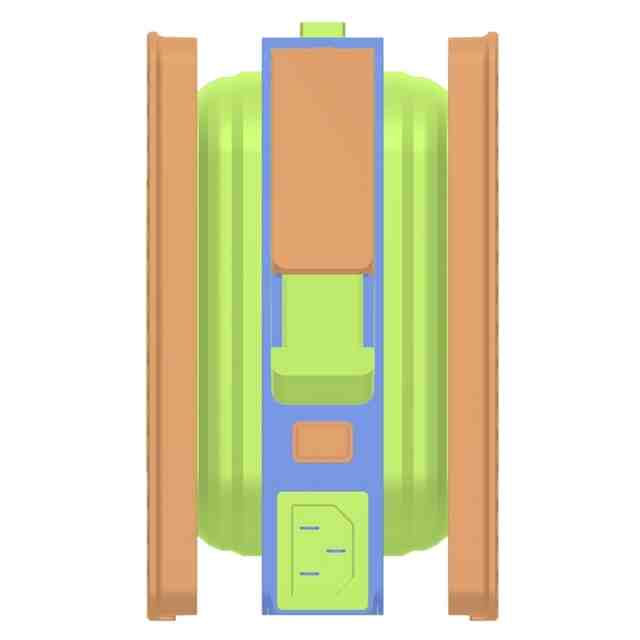

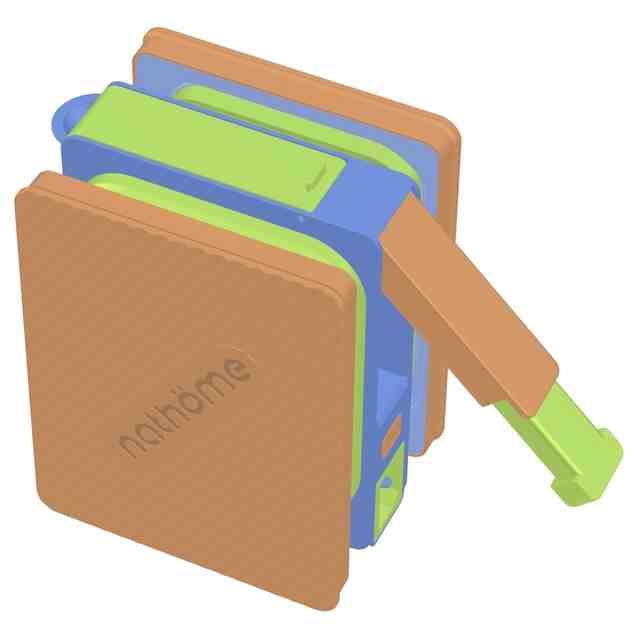

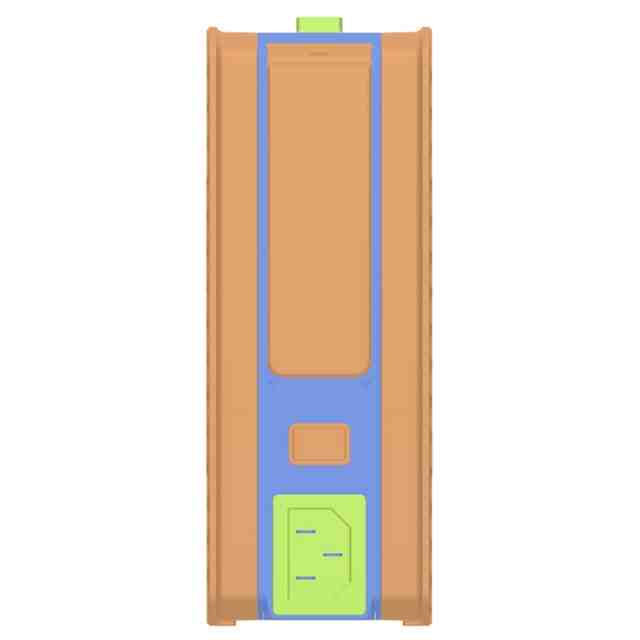

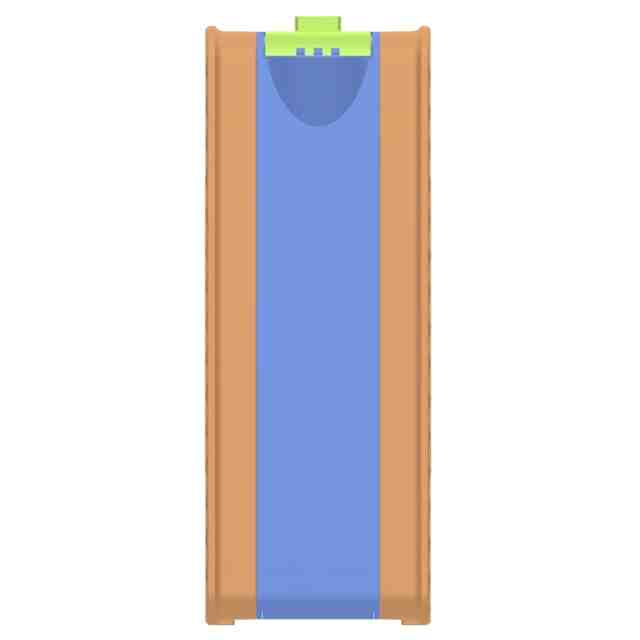

発行日2025-07-17 公報種別意匠公報(S) 登録番号1803710 登録日2025-07-07 意匠に係る物品Electric kettle 意匠分類C5-421(飲食用容器又は調理用容器) 出願番号2024502372,202430082589.9 出願日 意匠権者Shanghai Nide Electrical Appliance Technology Co., Ltd. 代理人 意匠に係る物品の説明 意匠の説明The electric kettle has an accordion shape and comprises a main body and a handle; the main body comprises a left part, a right part, two foldable parts and a host; the left part and right part are the same rectangular shape, and the entire outer surfaces of the two parts are provided with inclined concave stripes; in the center of the outer surface of the left part and right part is an inclined plane with texts; one foldable part is arranged between the left part and host, and the other foldable part is arranged between the right part and host; these two foldable parts are the same rectangular shape with rounded corners; the host is a rectangular shape; a rectangular cover is located on the top of the host, and there is a small rectangular protrusion on the cover; a spout is located on the front of the host; the handle is a rectangular shape and has an extendable t-shaped structure, and the whole handle can be fully embedded in the host; a rectangular button and a rectangular charging port are located on the lower back of the host; reproductions 1.1 to 1.8 show the subject design in use; reproductions 1.9 to 1.16 show the subject design in a folded state; reproductions 1.17 to 1.19 show the subject design in a half-folded state. 1.1)Perspective; 1.2)Perspective; 1.3)Front; 1.4)Back; 1.5)Left; 1.6)Right; 1.7)Top; 1.8)Bottom; 1.9)Perspective view in a folded state; 1.10)Perspective view in a folded state; 1.11)Front view in a folded state; 1.12)Back view in a folded state; 1.13)Left view in a folded state; 1.14)Right view in a folded state; 1.15)Top view in a folded state; 1.16)Bottom view in a folded state; 1.17)Reference view in a half folded state; 1.18)Reference view in a half folded state; 1.19)Reference view in a half folded state この意匠をJ-PlatPatで参照する
