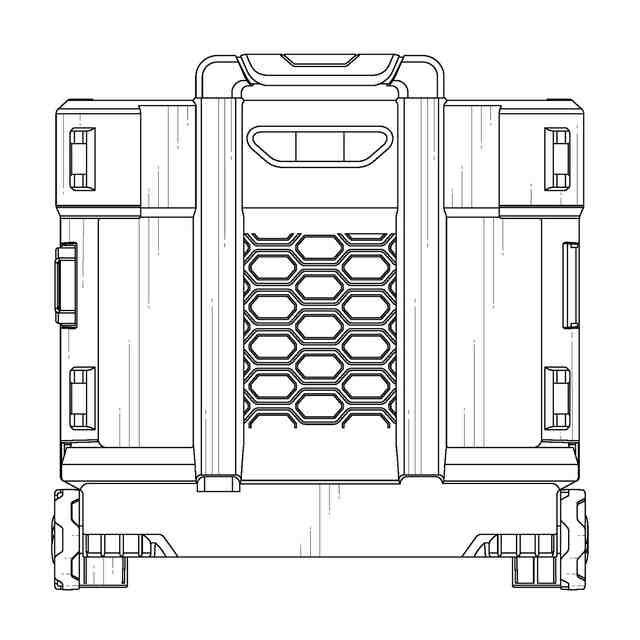

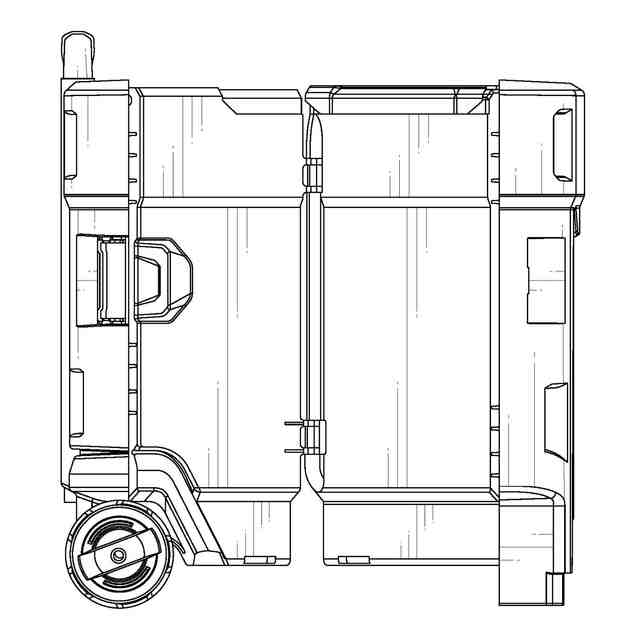

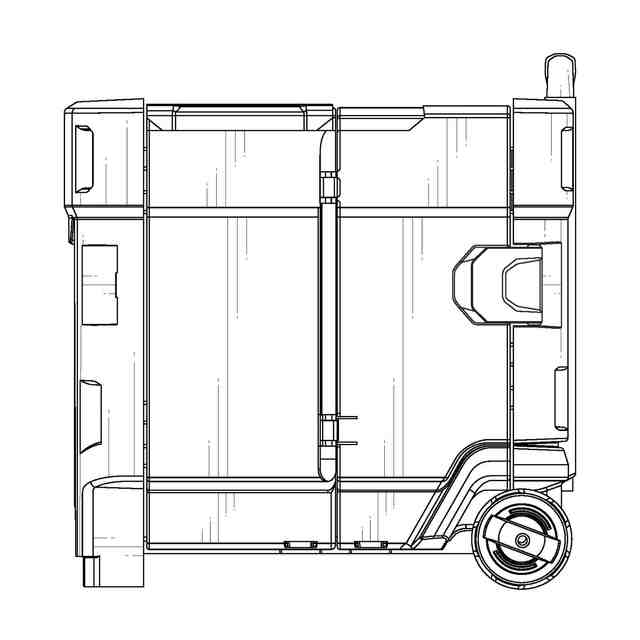

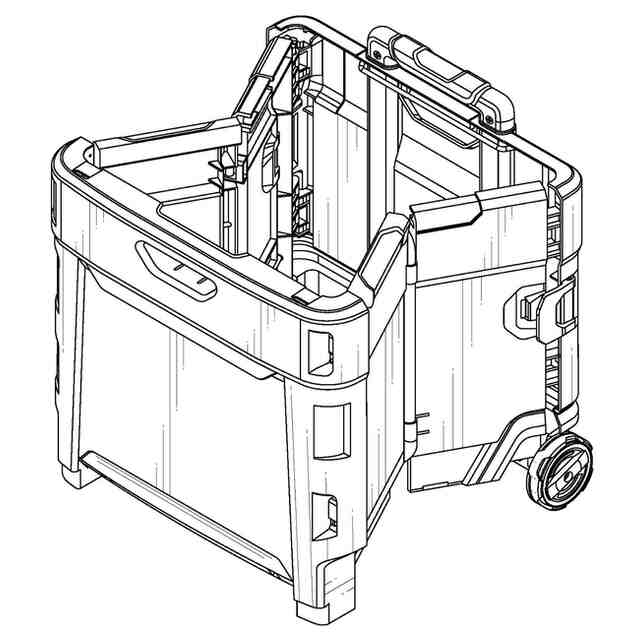

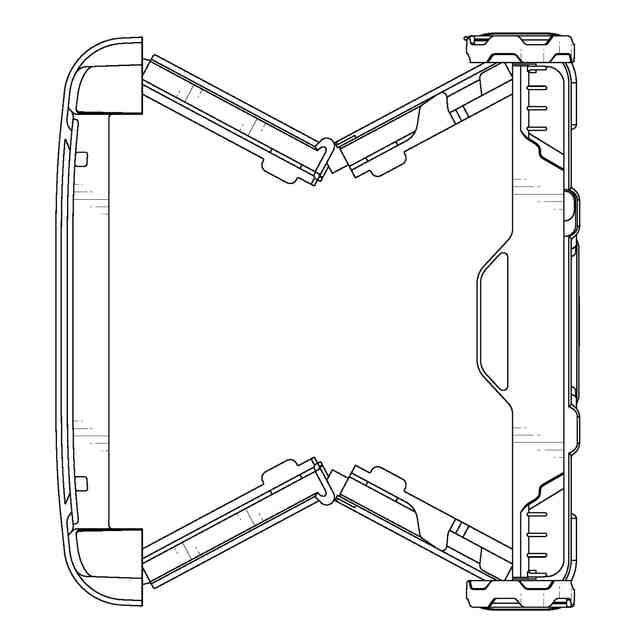

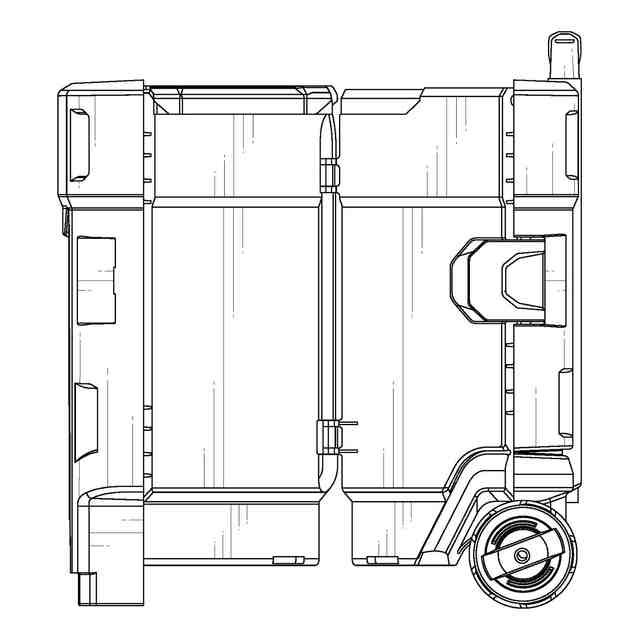

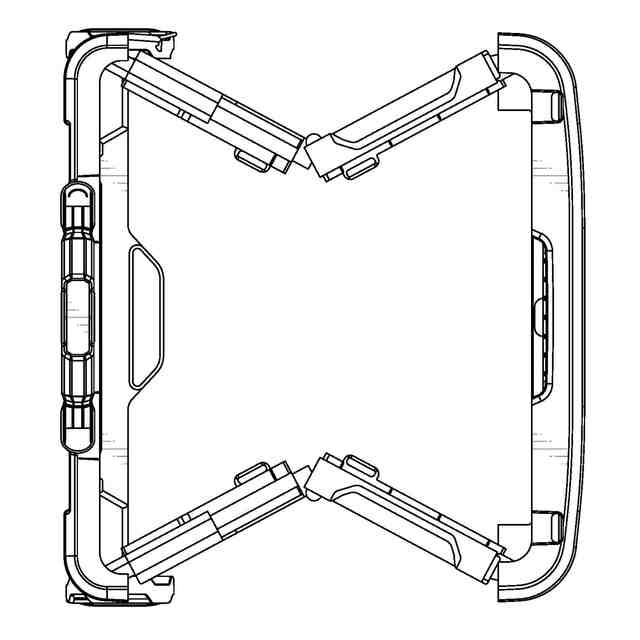

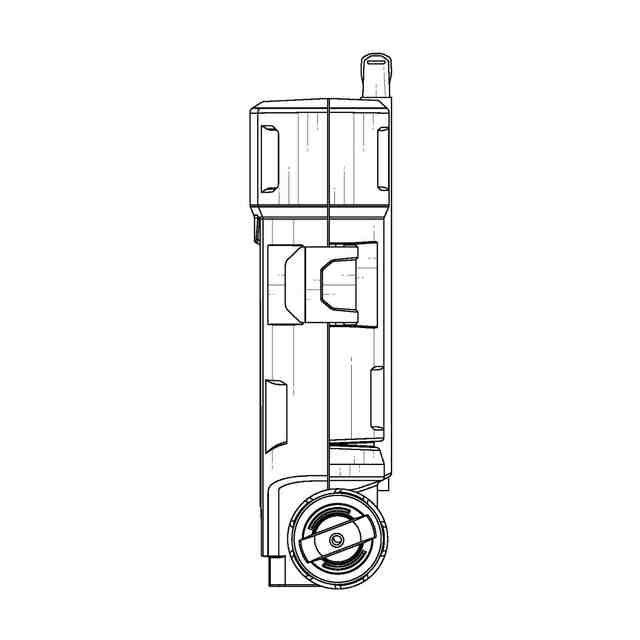

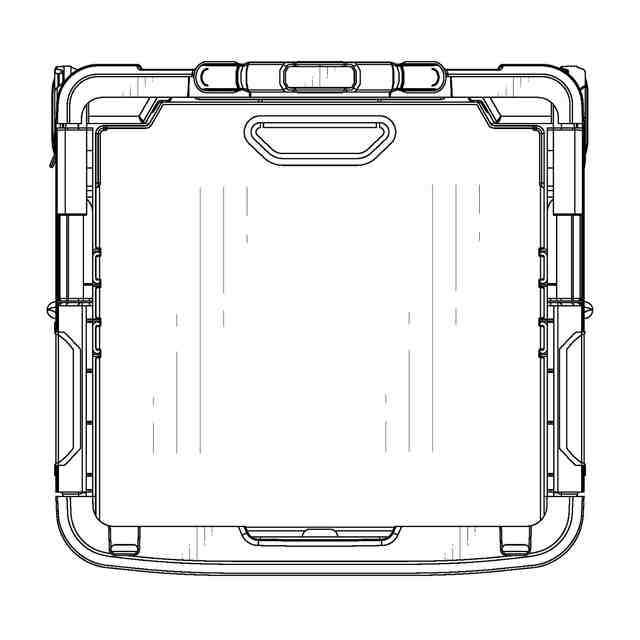

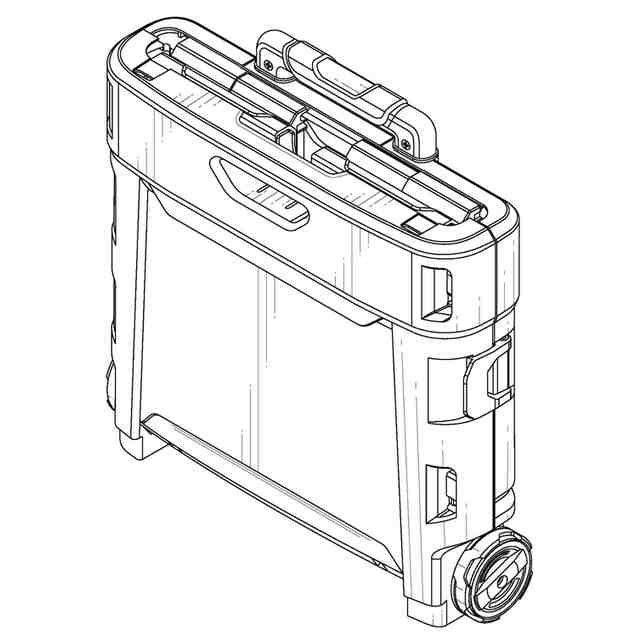

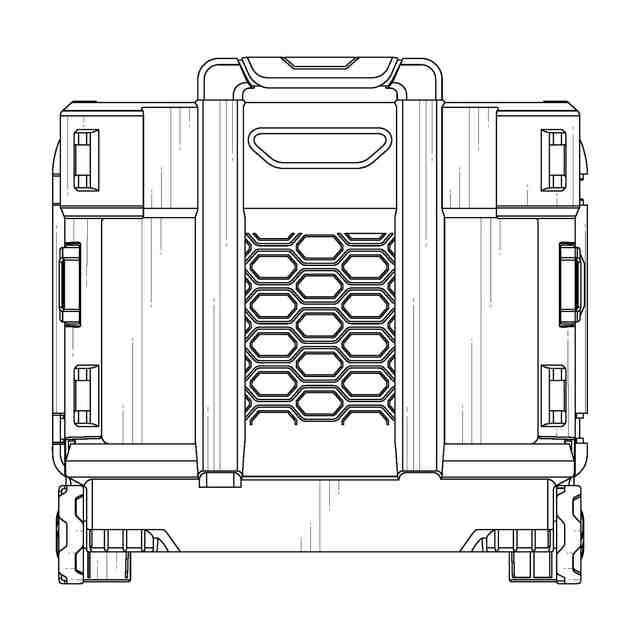

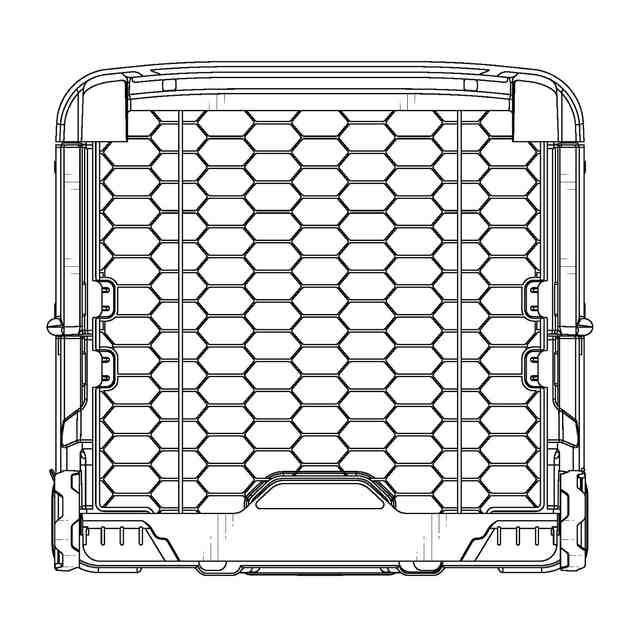

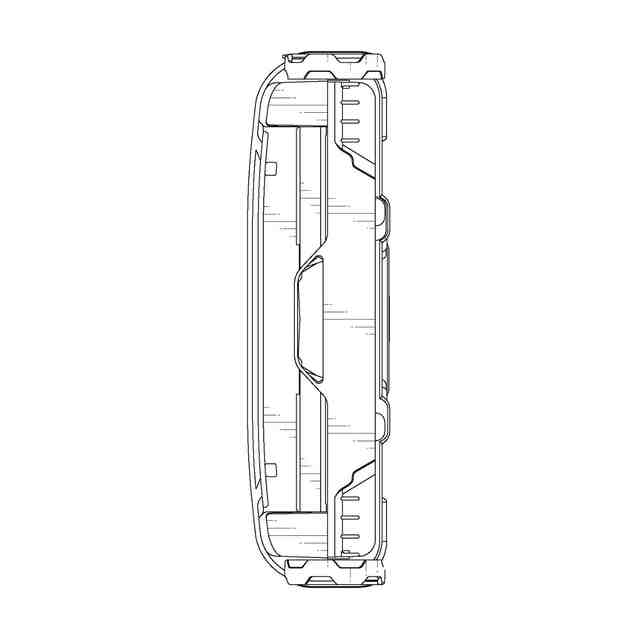

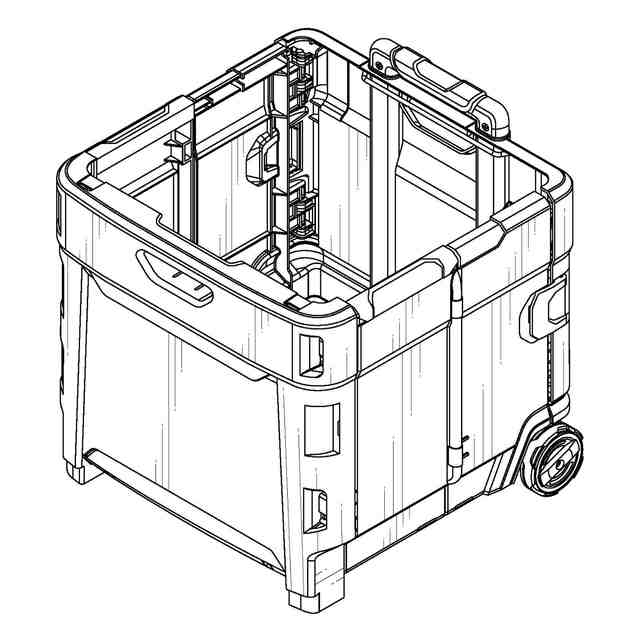

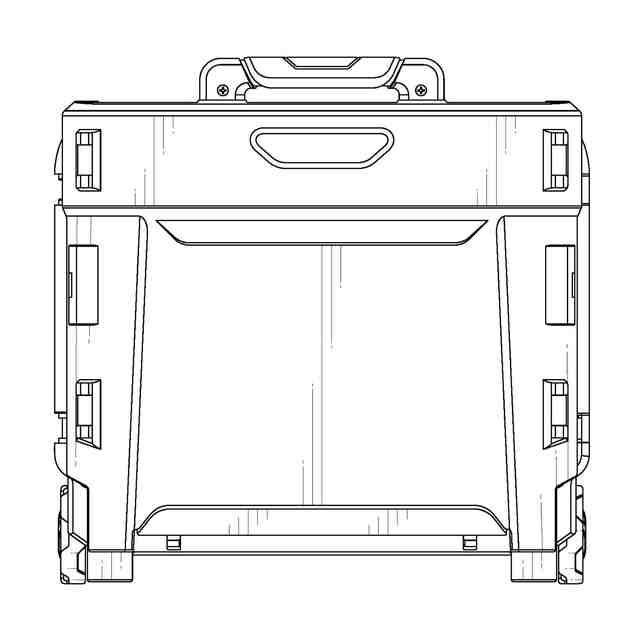

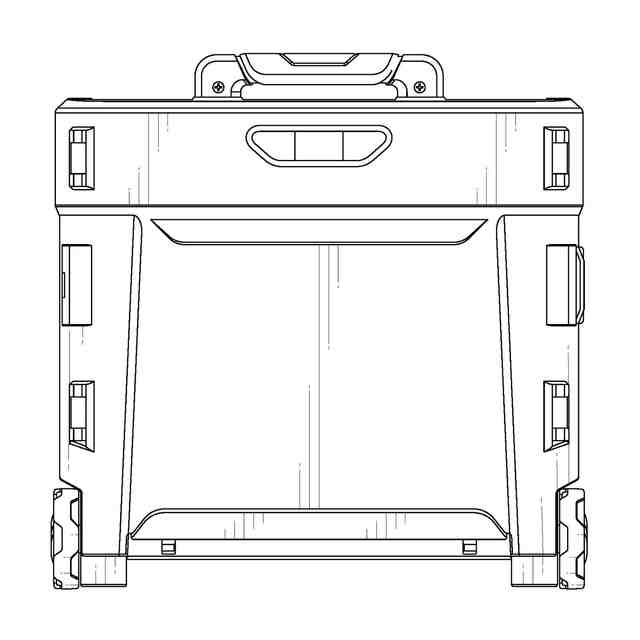

発行日2025-07-02 公報種別意匠公報(S) 登録番号1802584 登録日2025-06-23 意匠に係る物品Collapsible cart 意匠分類G2-500(車両) 出願番号2024502253 出願日 意匠権者JOURNE BRANDS, INC. 代理人個人,個人,個人 意匠に係る物品の説明 意匠の説明1.15 to 1.21 show when the cart is fully expanded, and the bottom plate is set on the horizontal position at the bottom of the cart. When the cart is folded, the bottom plate is lifted via its handhold opening shown in 1.20 and moved into an upright vertical position, where it is stored behind the front panel, under an upper flange of the front panel. In the state showing the cart being folded in 1.1 to 1.7 and the state showing in the middle of the cart being folded in 1.8 to 1.14, the bottom plate is stored behind the front panel, under an upper flange of the front panel, and a small portion thereof is visible from the central recess in the upper flange of the front panel. The bottom plate has an upper surface that is smooth and a lower surface that has a polygonal relief pattern as shown in 1.20 and 1.21. 1.1) Perspective; 1.2)Front; 1.3)Back; 1.4)Right; 1.5)Left; 1.6)Top; 1.7)Bottom; 1.8)Perspective; 1.9)Front; 1.10)Back; 1.11)Right; 1.12)Left; 1.13)Top; 1.14)Bottom; 1.15)Perspective; 1.16)Front; 1.17)Back; 1.18)Right; 1.19)Left; 1.20)Top; 1.21)Bottom
