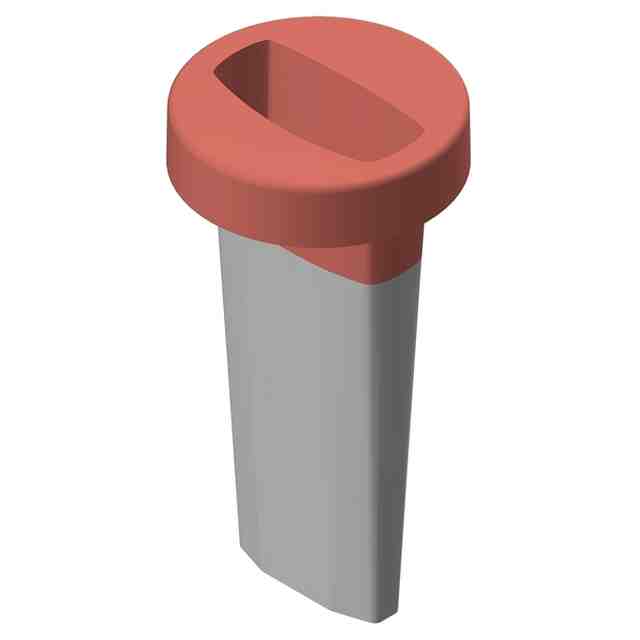

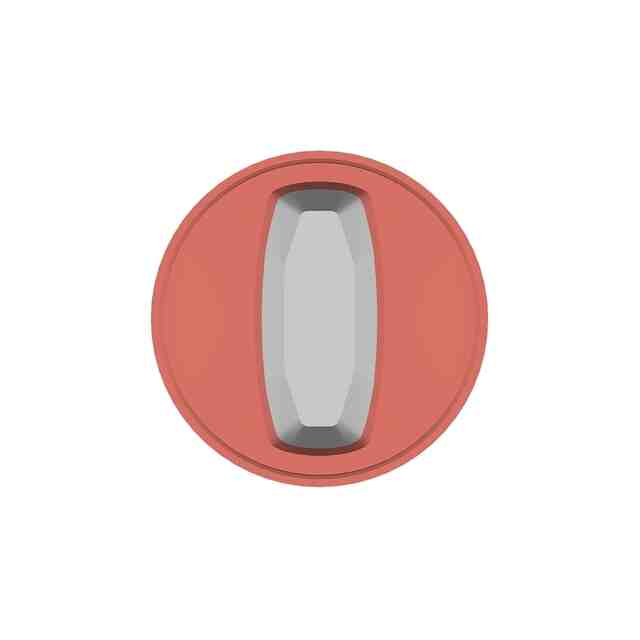

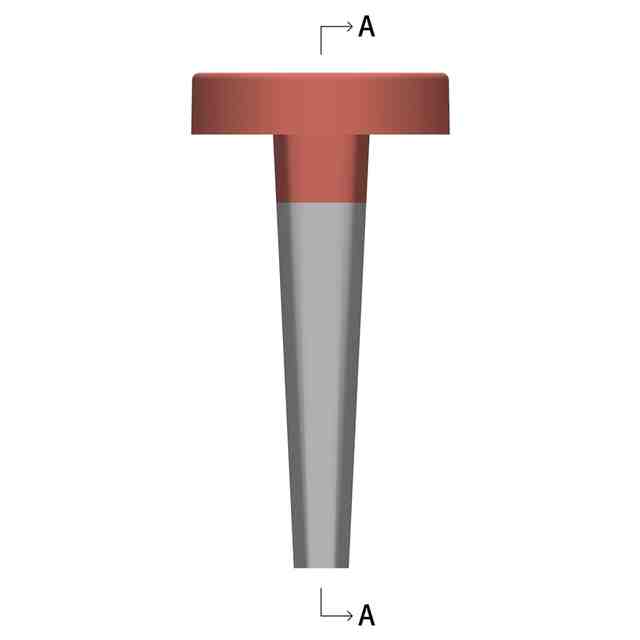

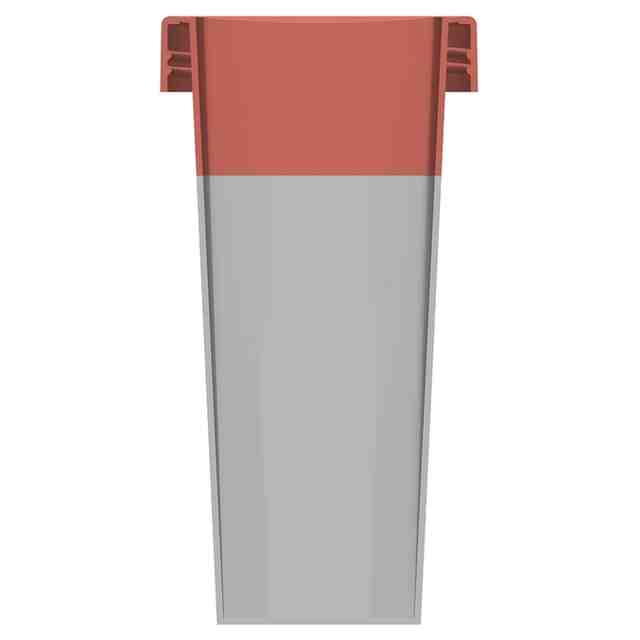

発行日2025-05-27 公報種別意匠公報(S) 登録番号1799649 登録日2025-05-19 意匠に係る物品Main body of immersion heater 意匠分類K6-500(化学機械器具) 出願番号2024500440,202330835628.3 出願日 意匠権者Zhihui Jingchuang (Shanghai)Industrial Co.,Ltd 代理人 意匠に係る物品の説明 意匠の説明The product is a main body of an immersion heater; the product is used to insert into a container containing liquid or fluid and to transfer heat of the product to the liquid or fluid therein; the characteristic features of the design lie in the shape of the claimed part which is not covered by a red translucent layer; the back view of Design 3 is omitted because it is symmetrical with its respective front view (3.2); the right view of Design 3 is omitted because it is symmetrical with its respective left view (3.3); each claimed design is a partial design while the disclaimed part is covered by a red translucent layer in the reproductions. 3.1)Perspective; 3.2)Front; 3.3)Left; 3.4)Top; 3.5)Bottom; 3.6)A-A sectional view この意匠をJ-PlatPat（特許庁公式サイト）で参照する
