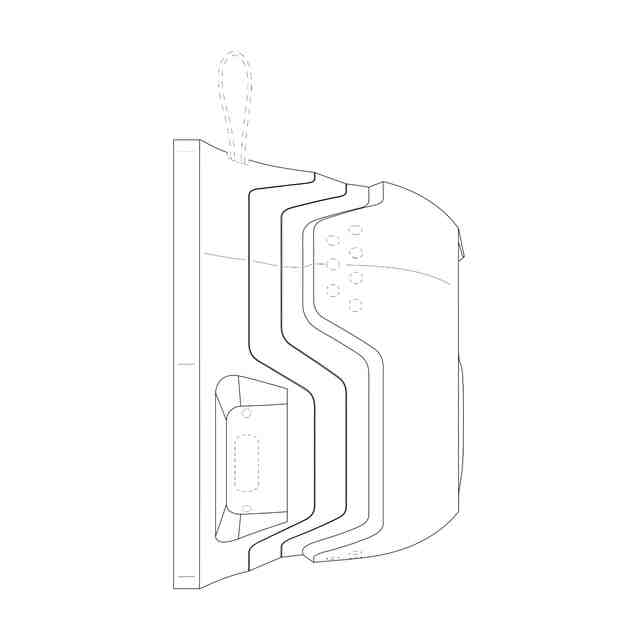

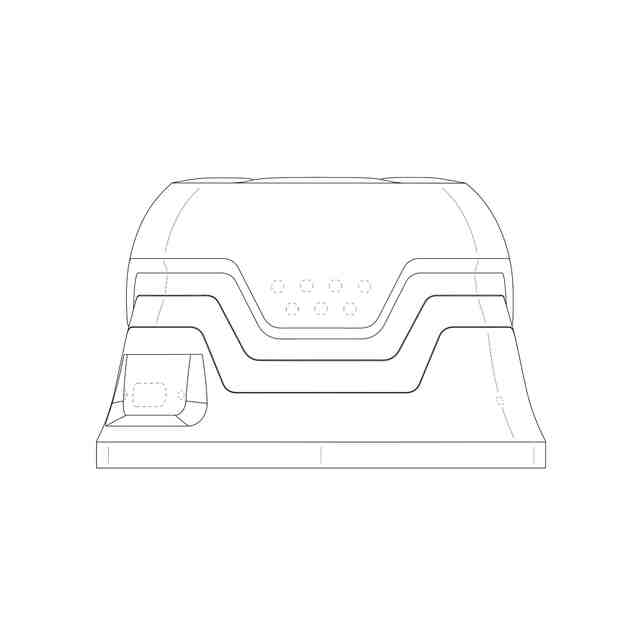

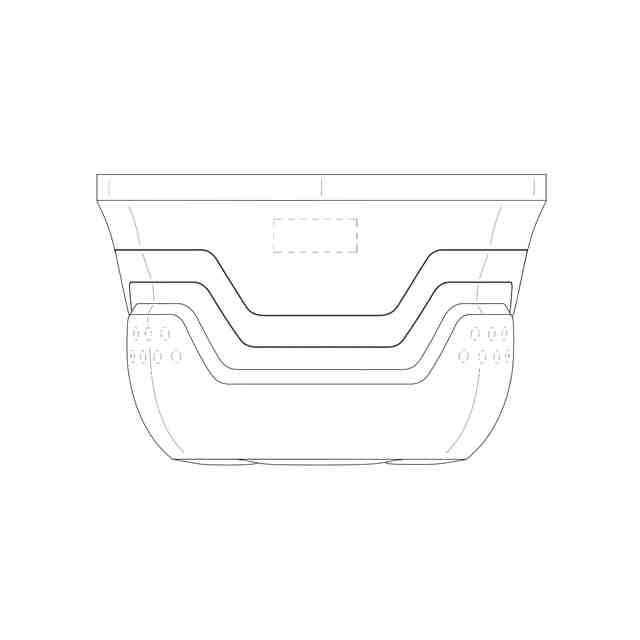

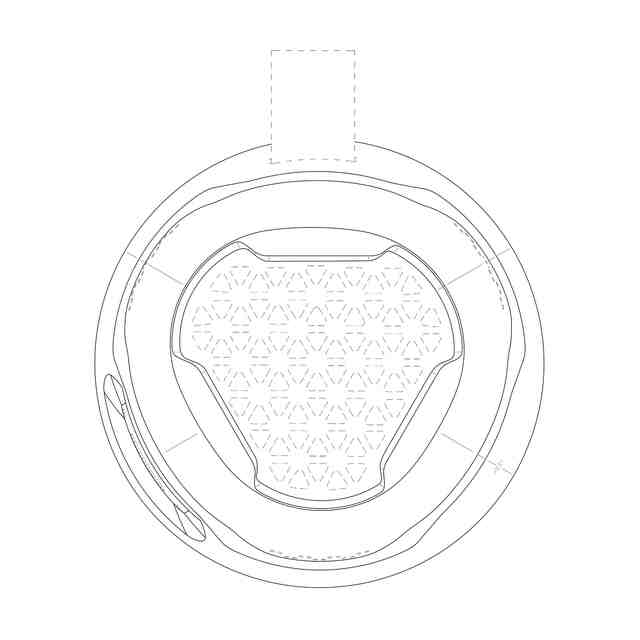

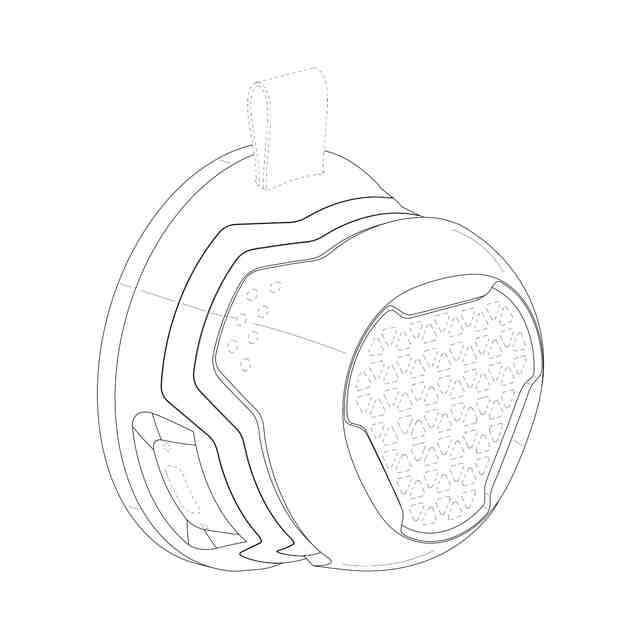

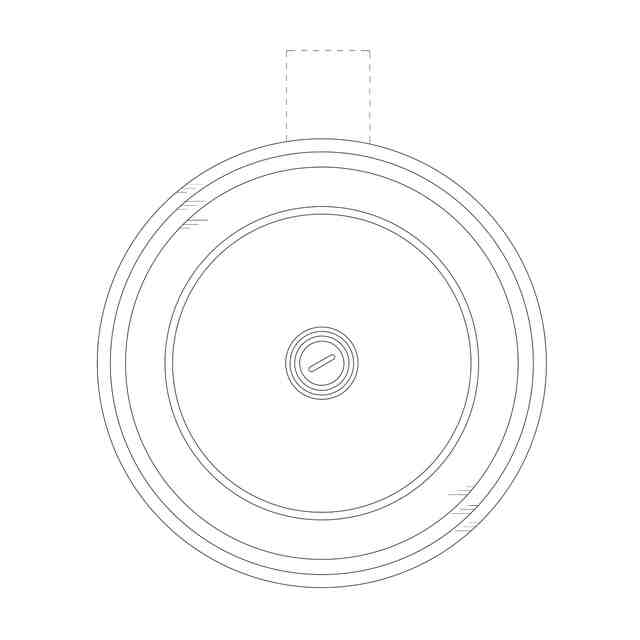

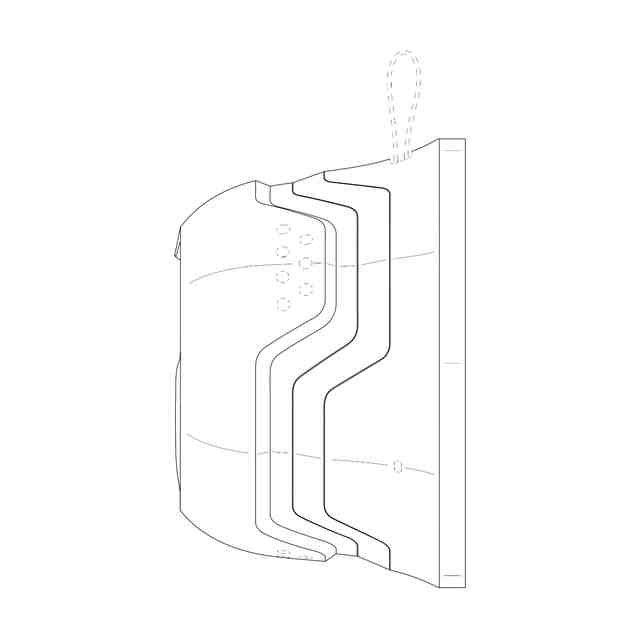

発行日2025-05-09 公報種別意匠公報(S) 登録番号1798109 登録日2025-04-28 意匠に係る物品Speaker 意匠分類H7-2322(電子情報入出力機器) 出願番号2024503986,2024306348732 出願日 意匠権者Shenzhen Jsound Technologies Limited 代理人 意匠に係る物品の説明 意匠の説明Fig. 1.1 is a front and top perspective view of a speaker, showing my new design; Fig. 1.2 is a rear and bottom perspective view; Fig. 1.3 is a front elevation view thereof; Fig. 1.4 is a rear elevation view thereof; Fig. 1.5 is a left side elevation view thereof; Fig. 1.6 is a right side elevation view thereof; Fig. 1.7 is a top plan view thereof; and, Fig. 1.8 is a bottom plan view thereof; The broken lines in the drawings represent portions of the speaker that form no part of the claimed design; The shading lines in the drawings better illustrate the appearance of the product and form no part of the claimed design. 1.1)Perspective; 1.2)Perspective; 1.3)Front; 1.4)Back; 1.5)Left; 1.6)Right; 1.7)Top; 1.8)Bottom この意匠をJ-PlatPatで参照する
