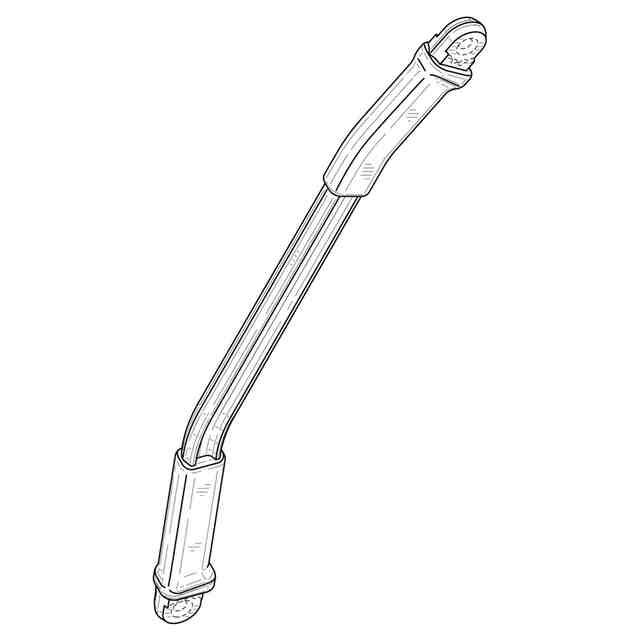

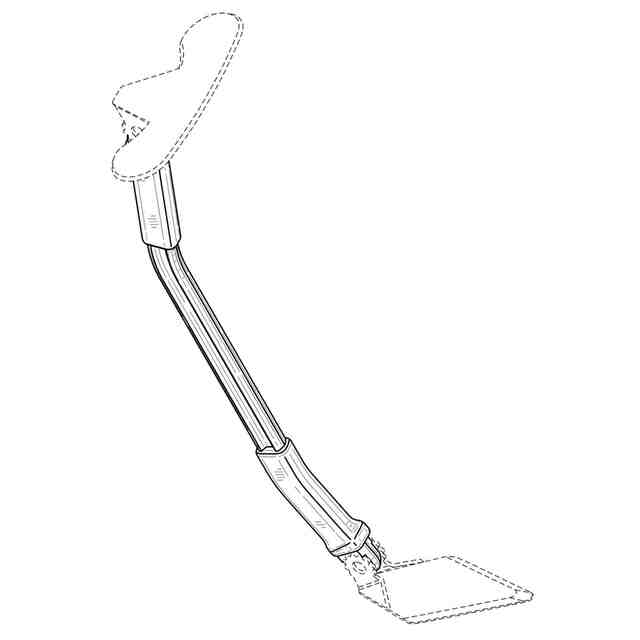

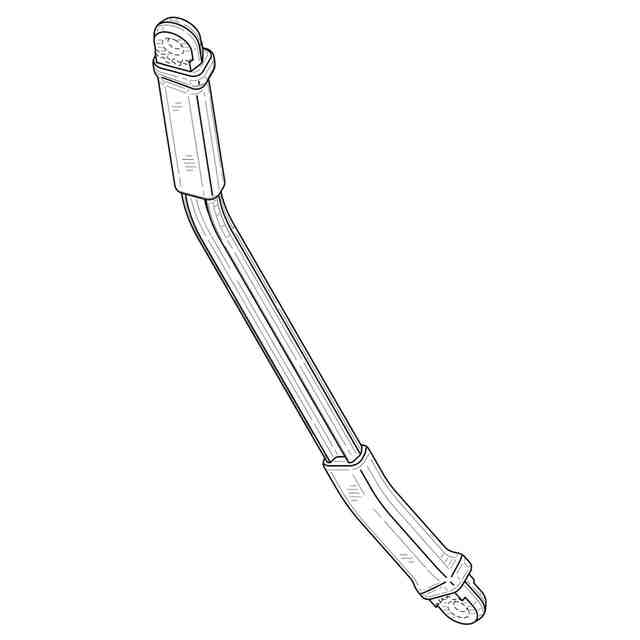

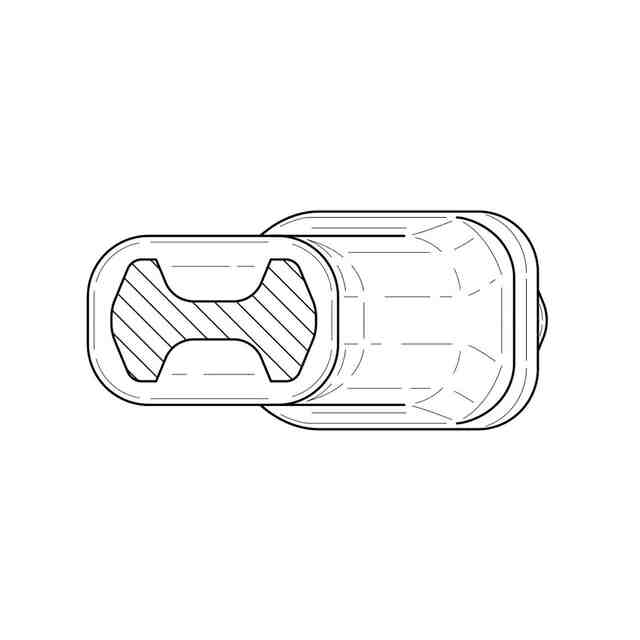

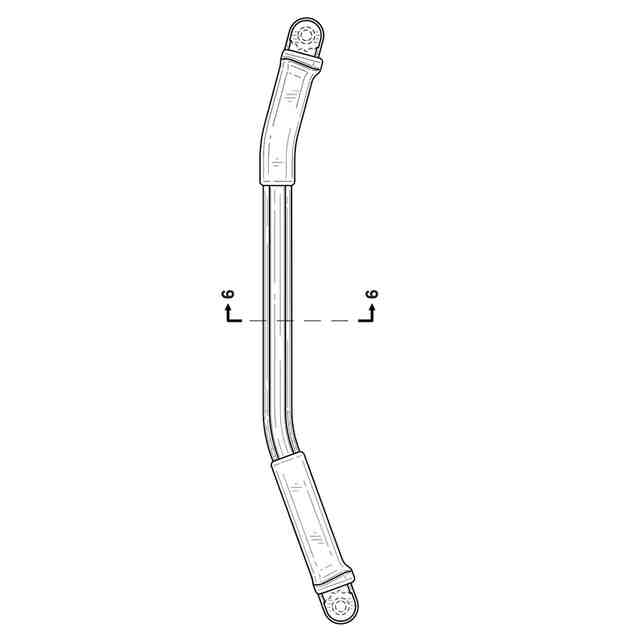

発行日2025-04-22 公報種別意匠公報(S) 登録番号1796823 登録日2025-04-14 意匠に係る物品Handle with two grips for hand tools 意匠分類K3-169(農業用機械器具、鉱山機械、建設機械等) 出願番号2023504200 出願日 意匠権者Botaniworld, LLC 代理人 意匠に係る物品の説明 意匠の説明The characteristic features of the design lie in the shape of the angled shaft with a generally I-beam cross-section and the hand grips at respective ends; the back view is omitted because it is a mirror image of the front view; representation 1.6 is an enlarged cross-section in the plane 6-6 of representation 1.3; the design may be used with interchangeable hand tools; the broken line illustrations of representative interchangeable hand tools in reproduction 1.7 show environmental structure and are not part of the claimed design; the parts shown by means of broken lines in the representations are not part of the claimed design; the parallel thin lines in the representations illustrate contours and flat surfaces only and do not illustrate ornamentation or decoration on the product’s surface. 1.1)Perspective; 1.2)Perspective; 1.3)Front; 1.4)Top; 1.5)Bottom; 1.6)Enlarged cross-section of plane 6-6 in No. 1.3; 1.7)Perspective この意匠をJ-PlatPatで参照する
