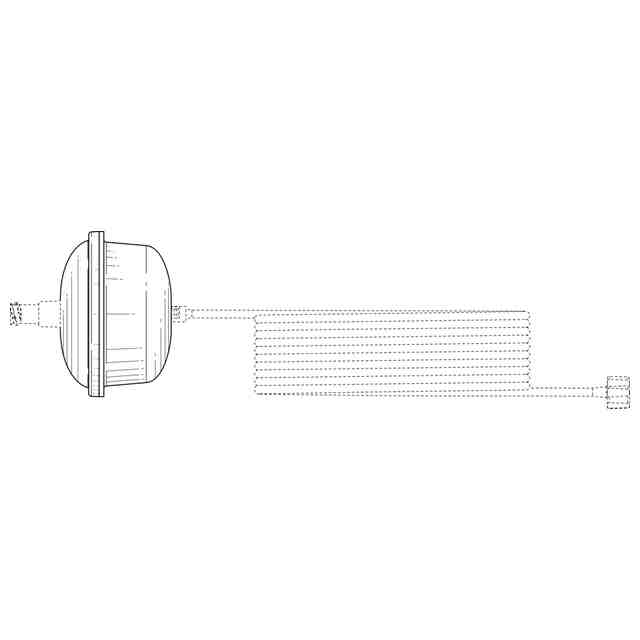

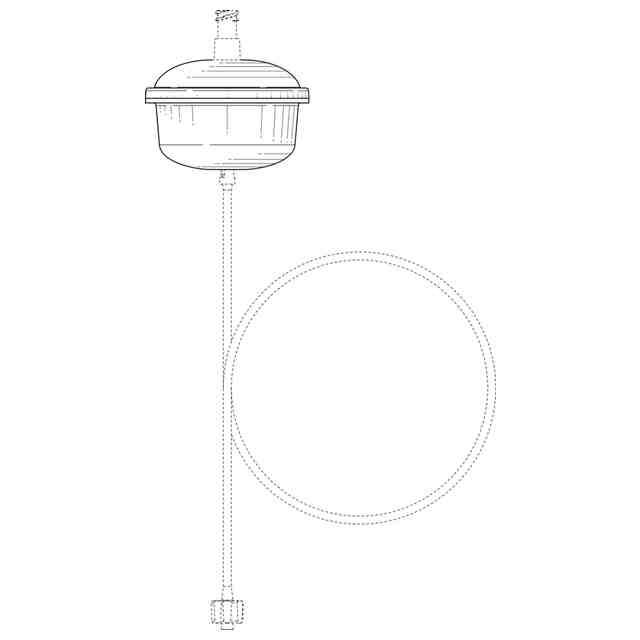

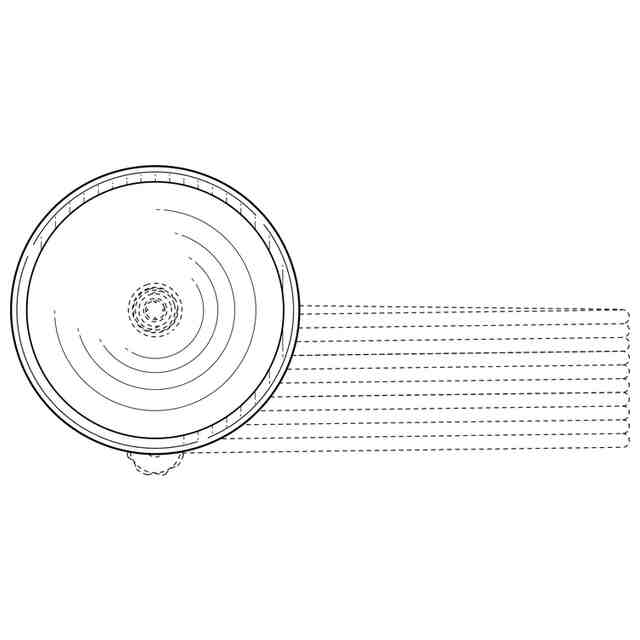

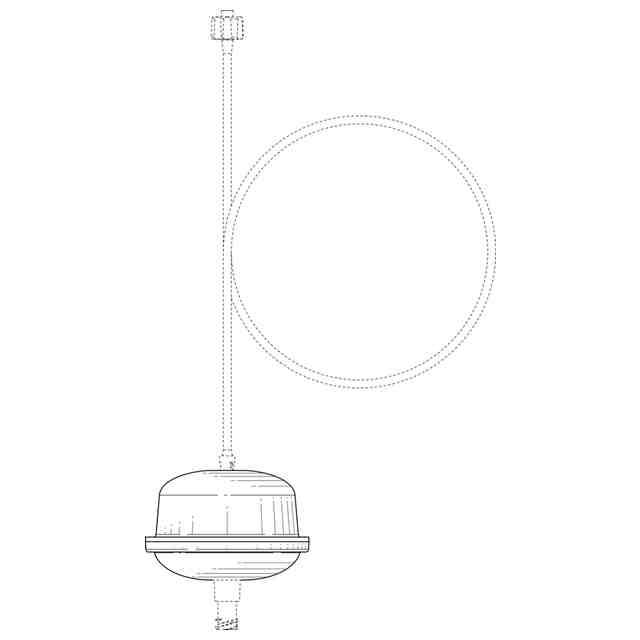

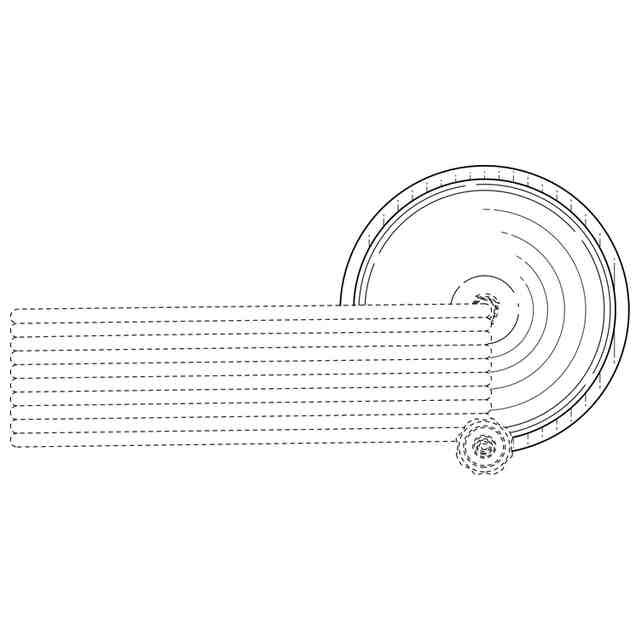

発行日2025-04-08 公報種別意匠公報(S) 登録番号1795546 登録日2025-03-31 意匠に係る物品Gas sample filter 意匠分類J7-46(医療機械器具) 出願番号2023503490,29/884,633 出願日 意匠権者Mallinckrodt Pharmaceuticals Ireland Limited 代理人個人 意匠に係る物品の説明The subject article is a gas sample filter comprising an inlet and an outlet. The subject article receives sample gas from a sample gas line of a therapeutic gas delivery device at the inlet. The subject article removes liquid(e.g., humidity)from the gas and provides the gas via the outlet to a gas sampling module. 意匠の説明The designs are the visual features shown in solid lines in the drawings, whether those features are features of shape, configuration, ornament, or pattern, or are a combination of any of those features; the broken lines form no part of the claimed design; the shade lines in the drawings show contour of surfaces and do not illustrate an ornamentation, treatment, or decoration on the surfaces. 1.1) Top isometric view; 1.2) Front view; 1.3) Back view; 1.4) Left view; 1.5)Right view; 1.6)Top view; 1.7)Bottom view; 1.8)Explanatory reference view. この意匠をJ-PlatPatで参照する
