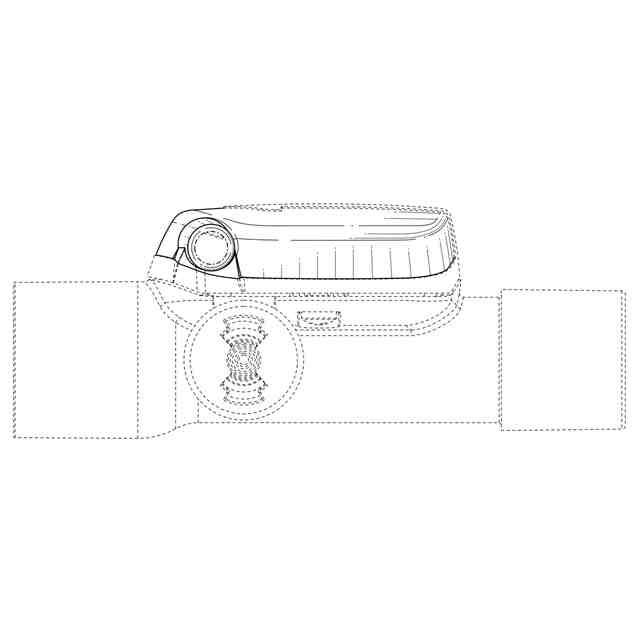

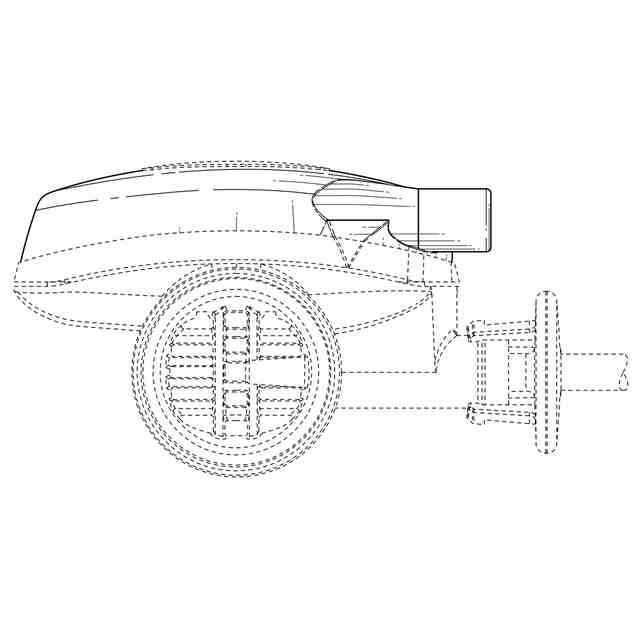

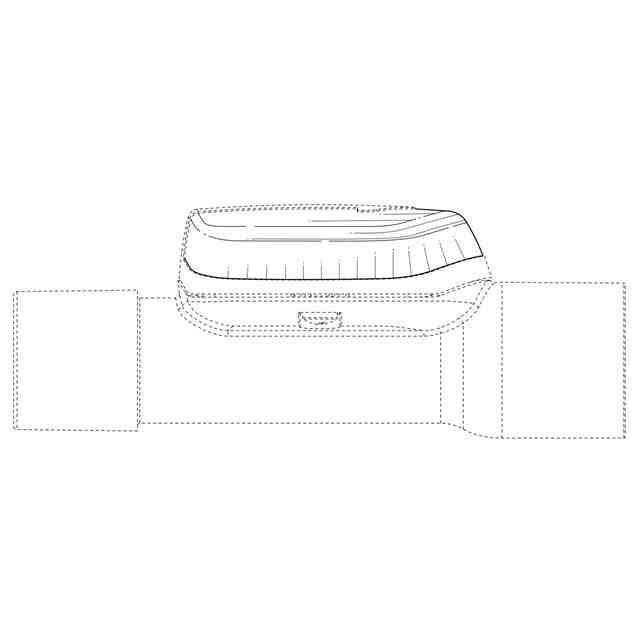

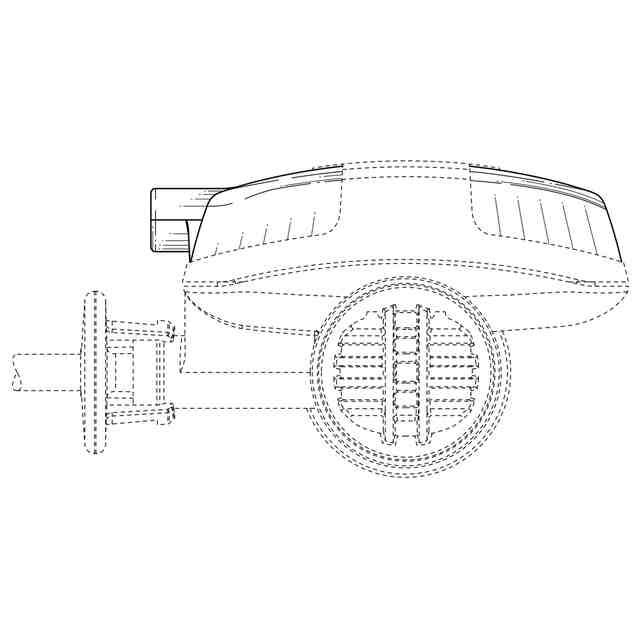

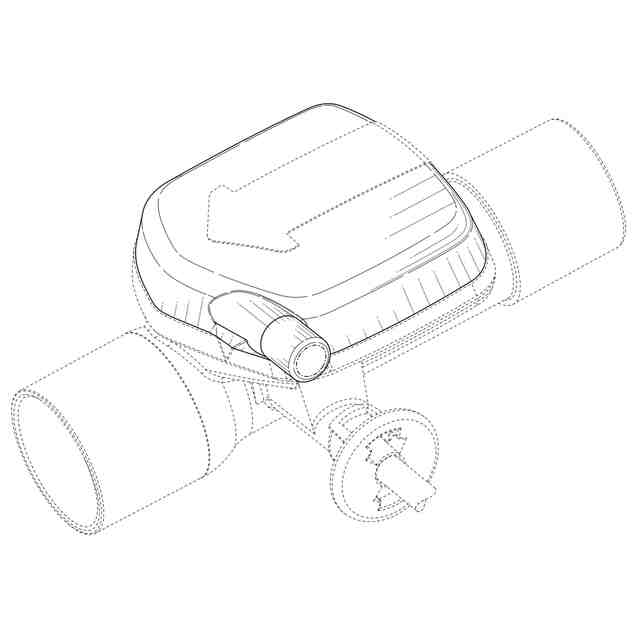

発行日2025-04-08 公報種別意匠公報(S) 登録番号1795545 登録日2025-03-31 意匠に係る物品Injector module 意匠分類J7-44(医療機械器具) 出願番号2023503488,29/884,632 出願日 意匠権者Mallinckrodt Pharmaceuticals Ireland Limited 代理人個人 意匠に係る物品の説明The subject article is an injector module comprising a first inlet, a second inlet and an outlet. The subject article is operable to receive a flow of a breathing gas at the first inlet and a flow of therapeutic gas at the second inlet, form a mixture of the breathing gas and therapeutic gas, and deliver the mixture of breathing gas and therapeutic gas via the outlet to an inspiratory line. 意匠の説明The designs are the visual features shown in solid lines in the drawings, whether those features are features of shape, configuration, ornament, or pattern, or are a combination of any of those features; the broken lines form no part of the claimed designs; the chain lines (i.e., dash-dot-dash lines) indicate only the boundary between portions sought to be registered and the other portions; the shade lines in the drawings show contour of surfaces and do not illustrate an ornamentation, treatment, or decoration on the surfaces. 4.1) Top isometric view; 4.2) Front view; 4.3) Back view; 4.4) Left view; 4.5) Right view; 4.6) Top view; 4.7) Bottom view; 4.8) Explanatory reference view. この意匠をJ-PlatPat（特許庁公式サイト）で参照する
