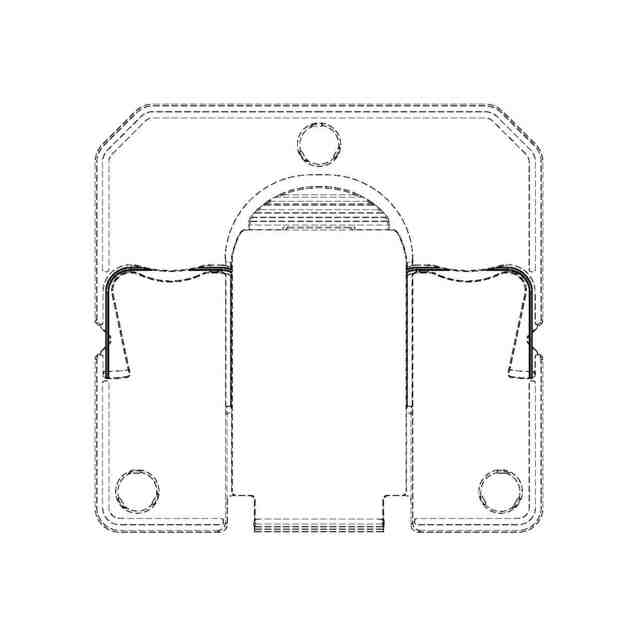

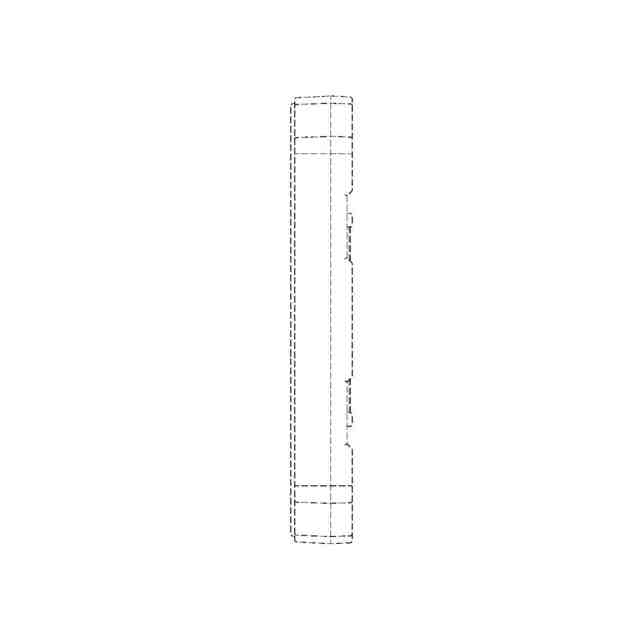

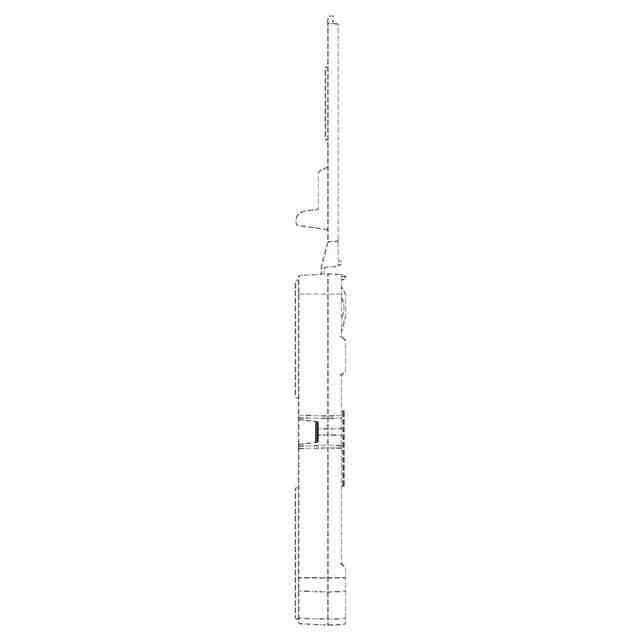

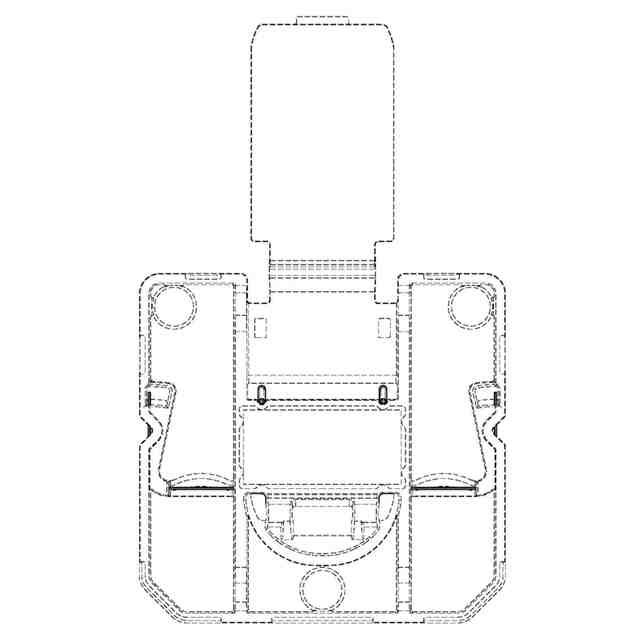

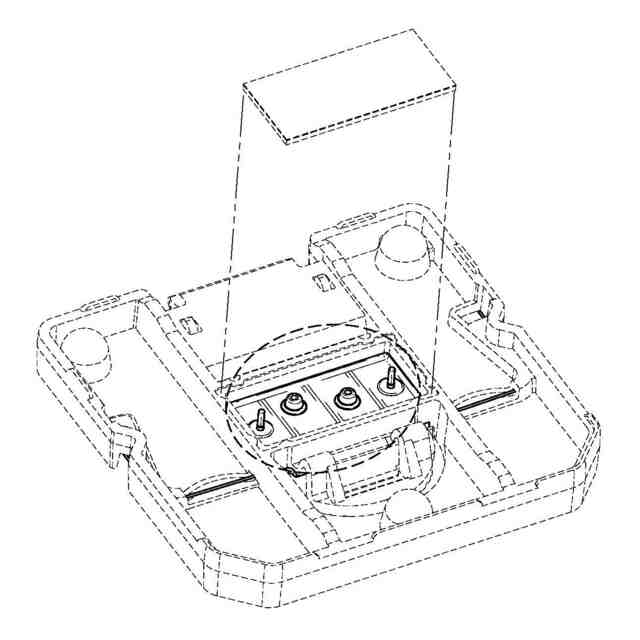

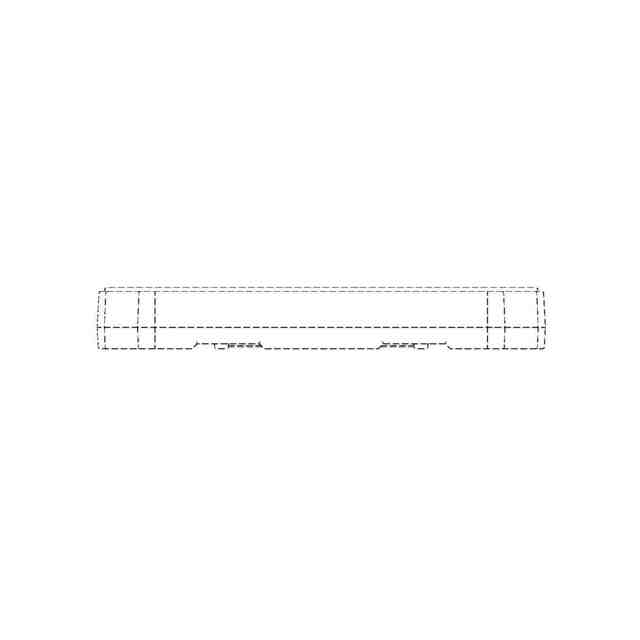

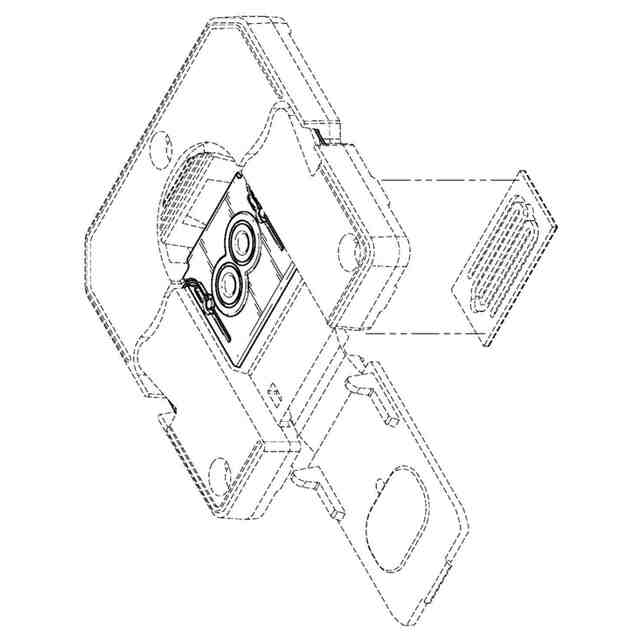

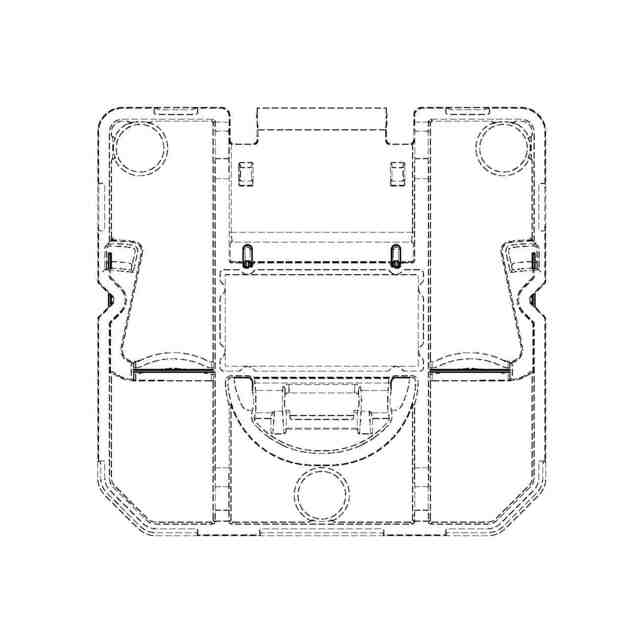

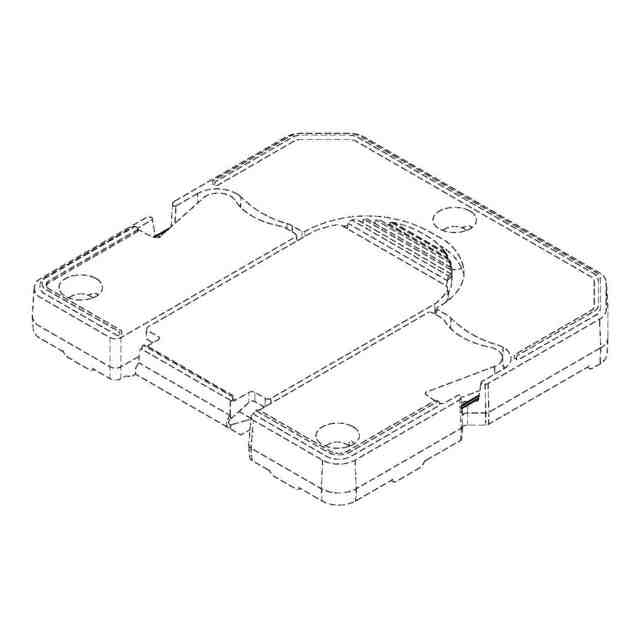

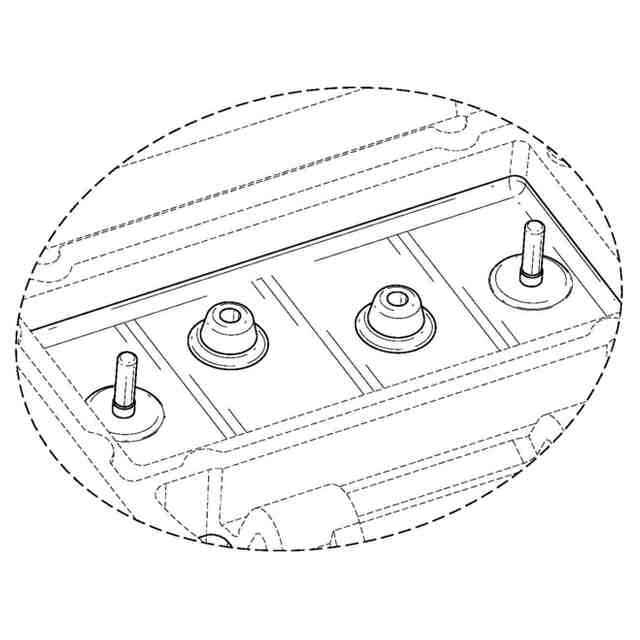

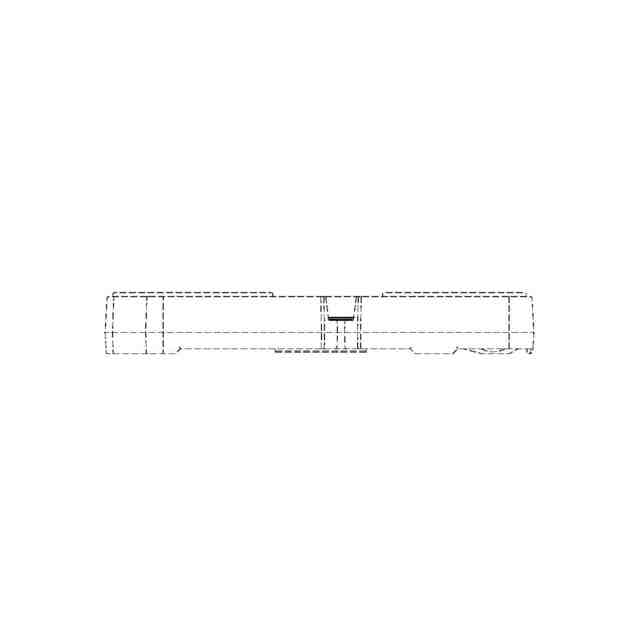

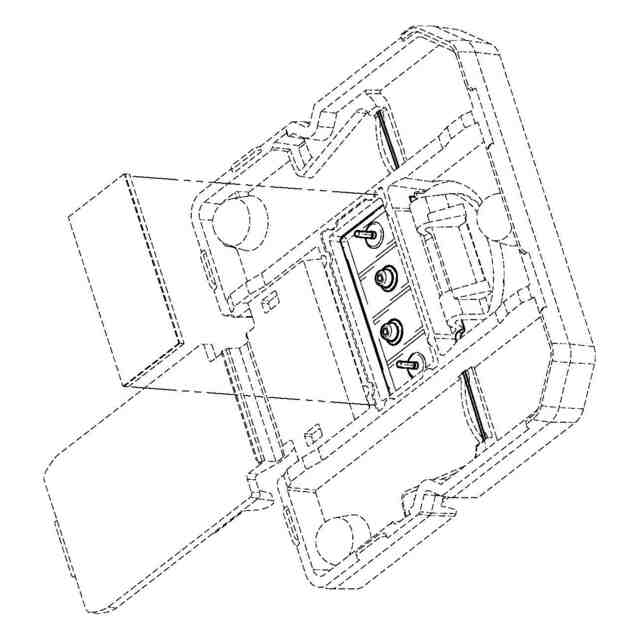

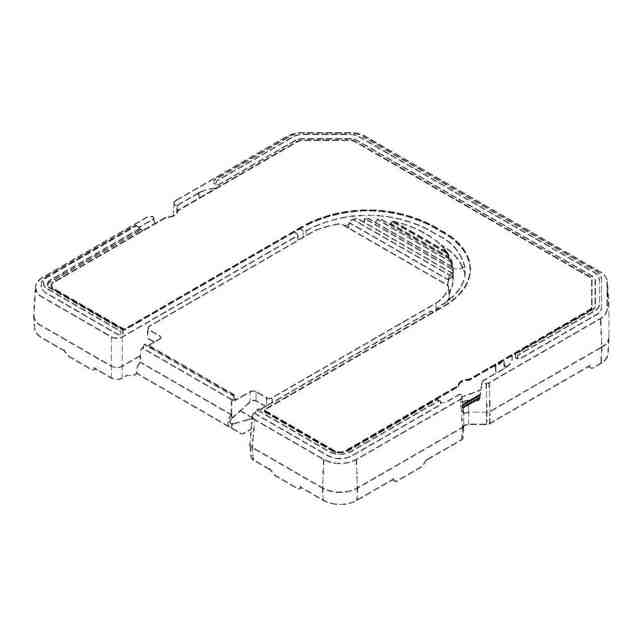

発行日2025-04-02 公報種別意匠公報(S) 登録番号1794912 登録日2025-03-24 意匠に係る物品Cartridge for optical genome mapping 意匠分類J1-519(計量器、測定機械器具及び測量機械器具) 出願番号2024501812,29/880,146 出願日 意匠権者BIONANO GENOMICS, INC. 代理人 意匠に係る物品の説明 意匠の説明Cartridge for optical genome mapping; A new, original and ornamental design for a cartridge for optical genome mapping, of which the following is the specification, reference being had to the accompanying drawings, forming a part hereof; FIG. 1.1 is a top isometric view of a cartridge for optical genome mapping embodying our new design; FIG. 1.2 is a bottom isometric view thereof; FIG. 1.3 is a front view thereof; FIG. 1.4 is a back view thereof; FIG. 1.5 is a left-side view thereof; FIG. 1.6 is a right-side view thereof; FIG. 1.7 is a top view thereof; FIG. 1.8 is a bottom view thereof; FIG. 1.9 is an exploded top isometric view thereof; FIG. 1.10 is an exploded bottom isometric view thereof; FIG. 1.11 is a detail view of a portion of FIG. 1.10 as shown; FIG. 1.12 is a top isometric view thereof (with a portion of the top covered); FIG. 1.13 is a top isometric view thereof (open configuration); FIG. 1.14 is bottom isometric view thereof; FIG. 1.15 is a front view thereof; FIG. 1.16 is a back view thereof; FIG. 1.17 is a left-side view thereof; FIG. 1.18 is a right-side view thereof; FIG. 1.19 is a top view thereof; FIG. 1.20 is a detail view of a portion of FIG. 1.19 as shown; FIG. 1.21 is a bottom view thereof; FIG. 1.22 is an exploded top isometric view thereof; FIG. 1.23 is an exploded bottom isometric view thereof; FIG. 1.24 is a top isometric view thereof (with a portion of the top covered); The shade lines show contour and not surface ornamentation; Broken lines are used to illustrate portions of a cartridge for optical genome mapping or environmental subject matter that form no part of the claimed design. この意匠をJ-PlatPatで参照する
