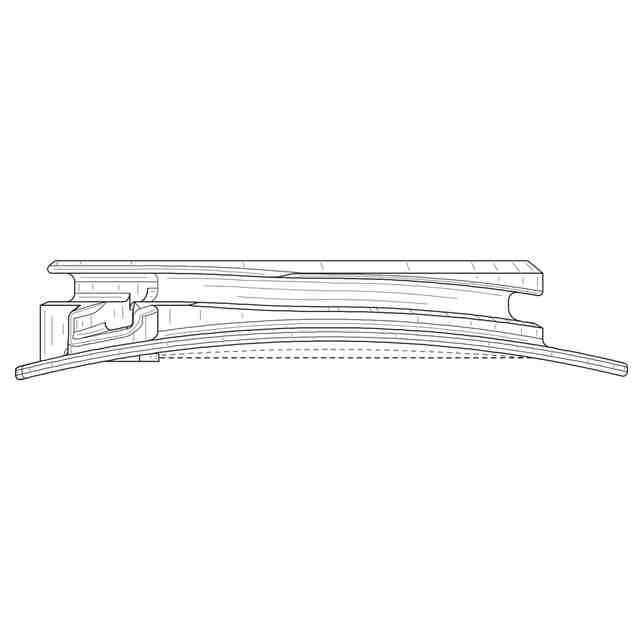

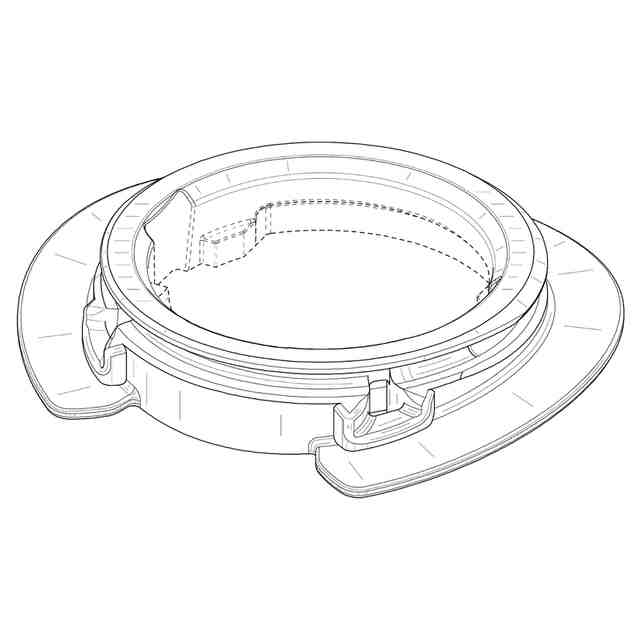

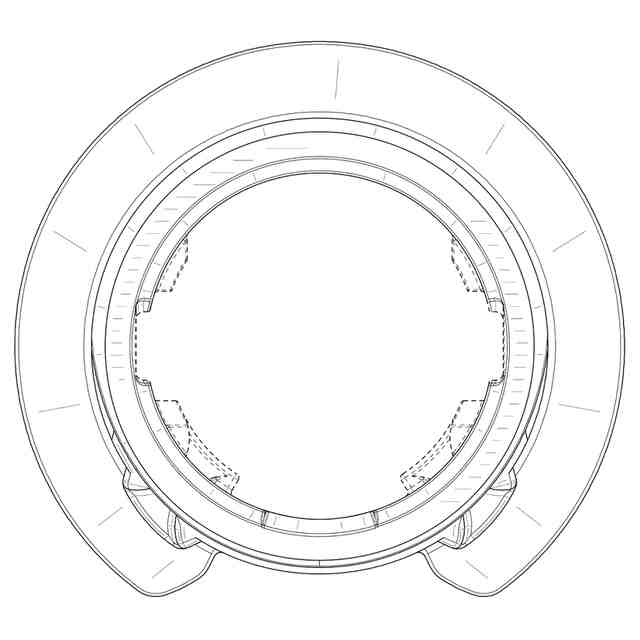

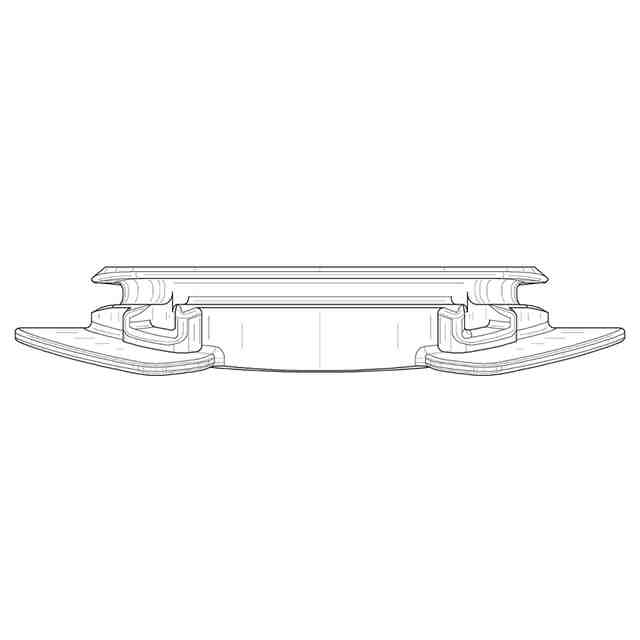

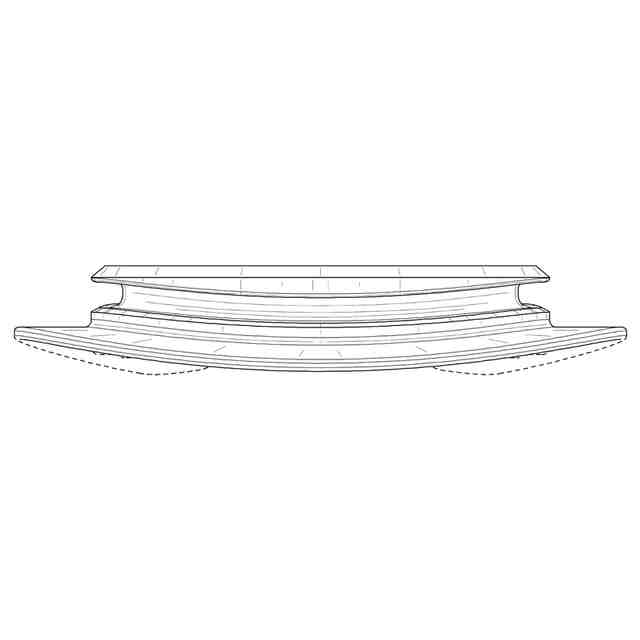

発行日2024-08-22 公報種別意匠公報(S) 登録番号1778212 登録日2024-08-13 意匠に係る物品Base member for a lace tightening device 意匠分類B9-149(衣服及び身の回り品汎用部品及び付属品) 出願番号2022503900 出願日 意匠権者Boa Technology Inc. 代理人 意匠に係る物品の説明 意匠の説明Be it known that we have invented a new, original, and ornamental design for a base member for a lace tightening device, of which the following is a specification, reference being made to the accompanying drawings, forming a part thereof. Fig. 1.1 is a perspective view of the base member for a lace tightening device; fig. 1.2 is a front view of the base member for a lace tightening device; fig. 1.3 is a back view of the base member for a lace tightening device; fig. 1.4 is a first side view of the base member for a lace tightening device; fig. 1.5 is a second side view of the base member for a lace tightening device; fig. 1.6 is a top view of the base member for a lace tightening device; fig. 1.7 is a bottom view of the base member for a lace tightening device; The base member is attachable to an article, such as an article of footwear; a lace tightening device can be removably attached to the base member to attach the lace tightening device to the article; the portions illustrated by solid lines are the portions for which the claimed design is intended; the broken lines in the drawings represent environment that form no part of the claim. 1.1)Perspective; 1.2)Front; 1.3)Back; 1.4)Right; 1.5)Left; 1.6)Top; 1.7)Bottom
