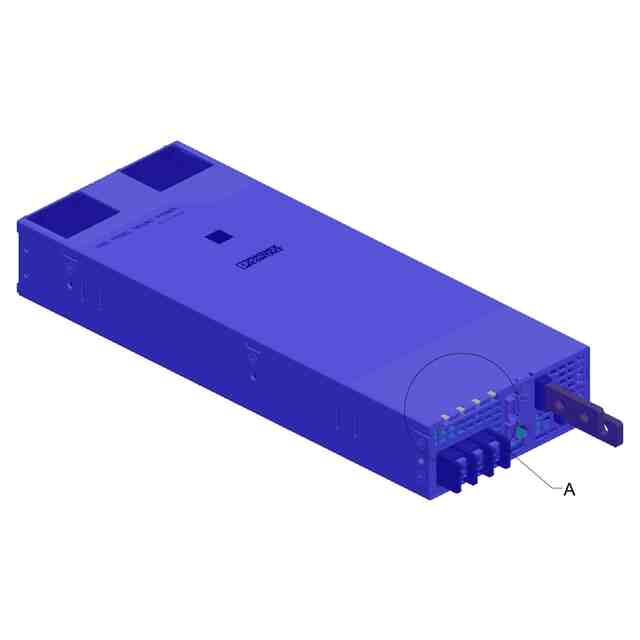

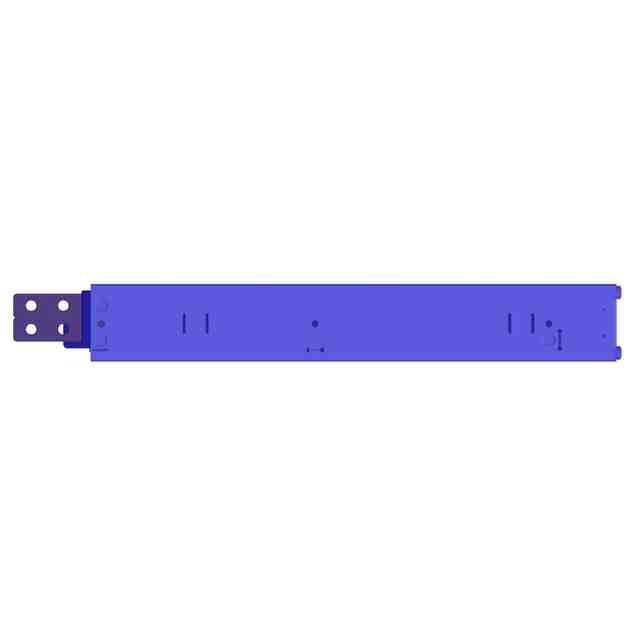

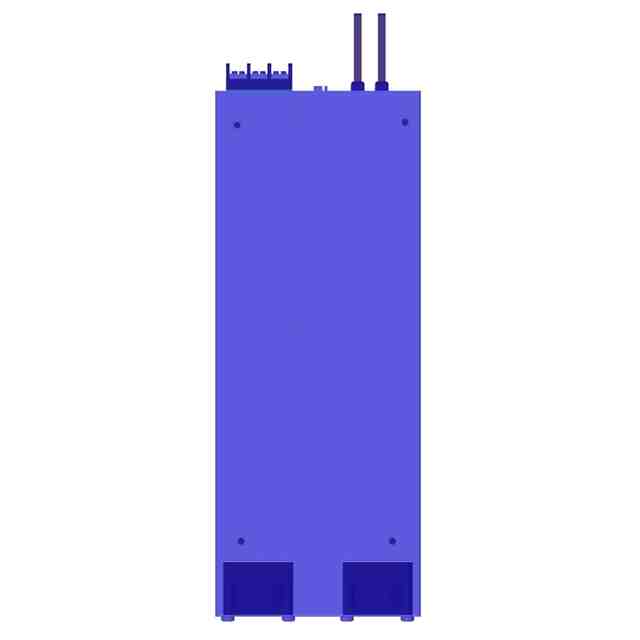

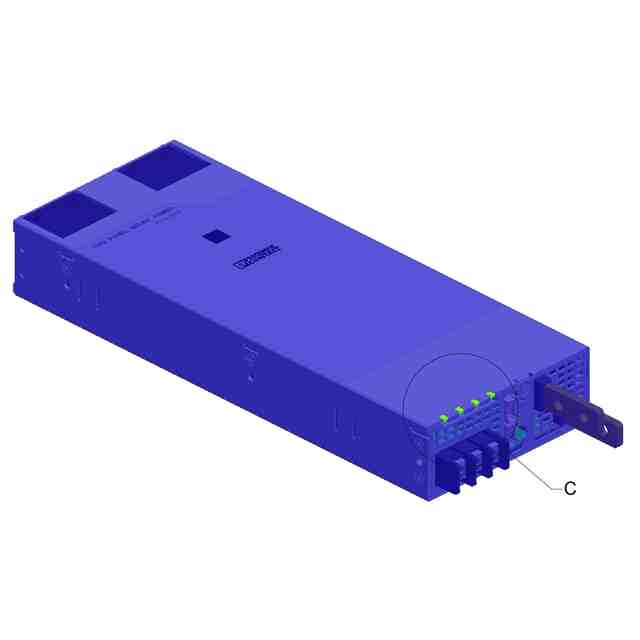

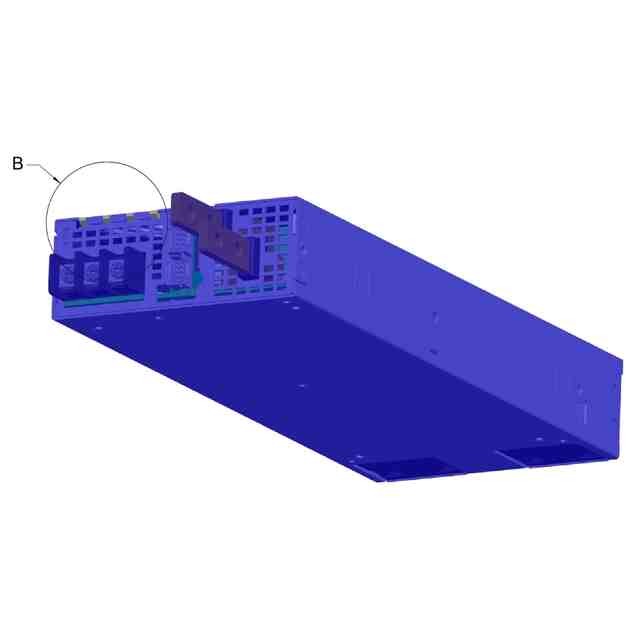

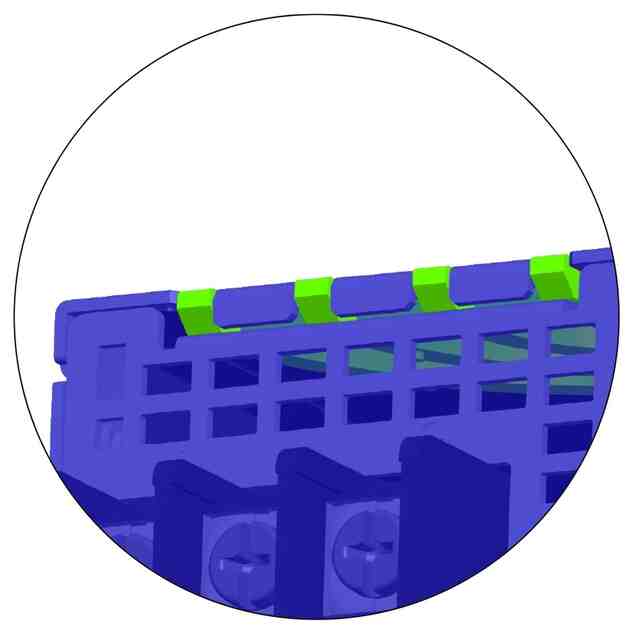

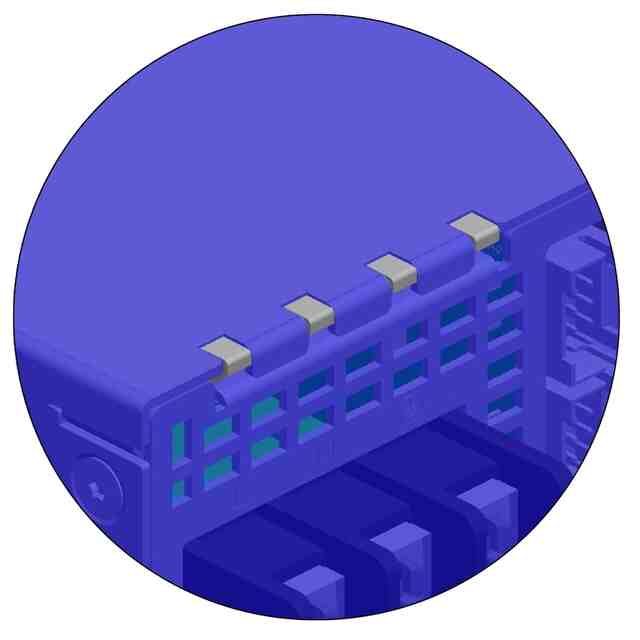

発行日2025-11-18 公報種別意匠公報(S) 登録番号1813113 登録日2025-11-10 意匠に係る物品Power supply device 意匠分類H2-20(回転電気機械、配電機械器具) 出願番号2024503490,202430245831X 出願日 意匠権者PHOENIX CONTACT ASIA-PACIFIC (NANJING) CO., LTD. 代理人弁理士法人T.LABO国際特許事務所 意匠に係る物品の説明 意匠の説明Design 2 is a power supply device, in which the images shown in figs. 2.1-2.14. The dark blue marked parts in figs. 2.1-2.14 show portions of the power supply device which form no part of the claimed design. Figs. 2.9-2.10 and 2.13-2.14 show the state of the LED lights after they are turned on.Fig. 2.1 is a front view, Fig. 2.2 is a back view, Fig. 2.3 is a left view, Fig. 2.4 is a right view, Fig. 2.5 is a top view, Fig. 2.6 is a bottom view, Fig. 2.7 is a perspective view 1, Fig. 2.8 is a perspective view 2, Fig. 2.9 is a perspective view 3, Fig. 2.10 is a perspective view 4, Fig. 2.11 is a partial enlarged of part A, Fig. 2.12 is a partial enlarged of part B, Fig. 2.13 is a partial enlarged of part C, and fig. 2.14 is a partial enlarged of part D. この意匠をJ-PlatPat（特許庁公式サイト）で参照する
