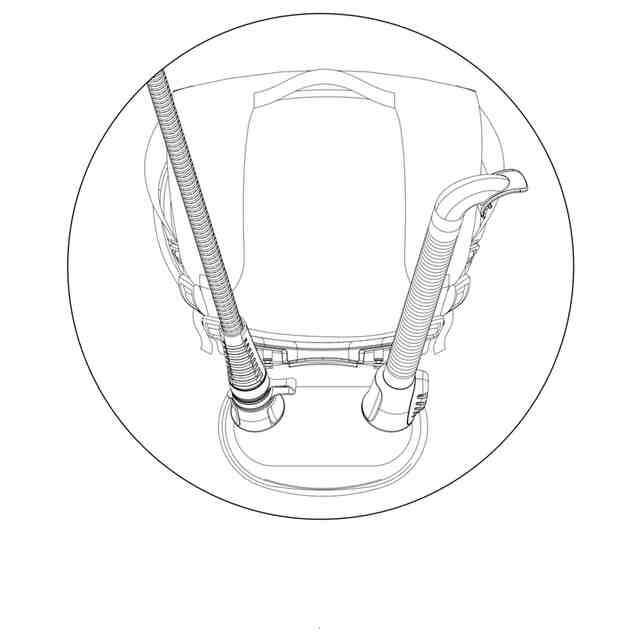

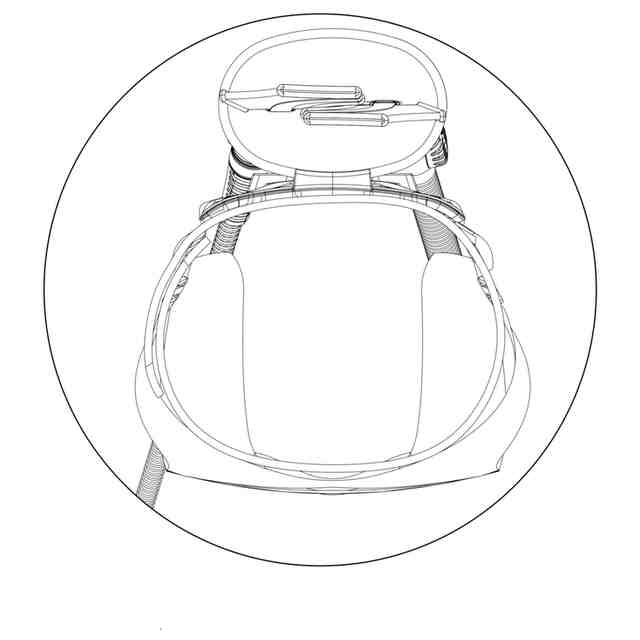

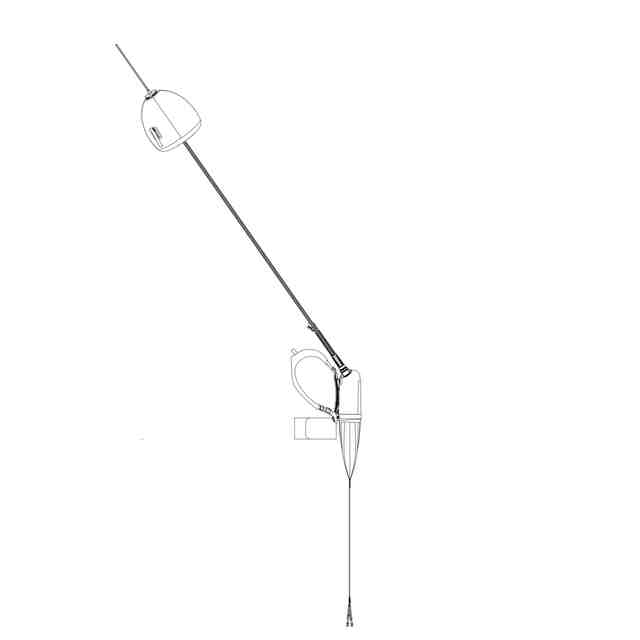

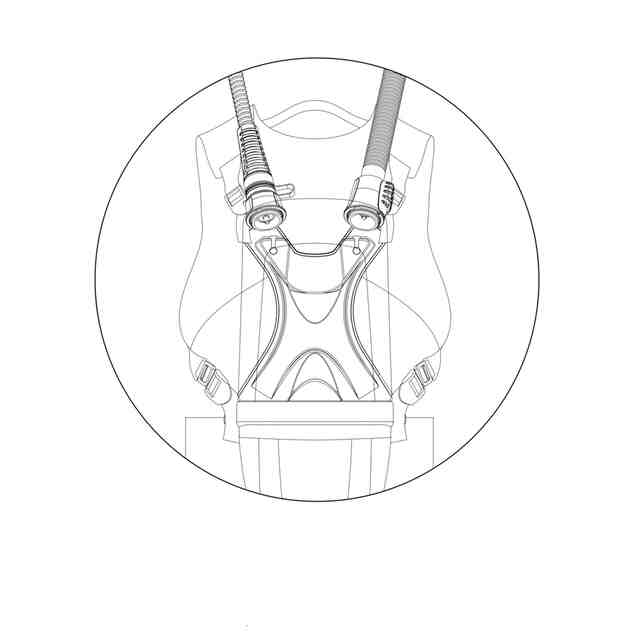

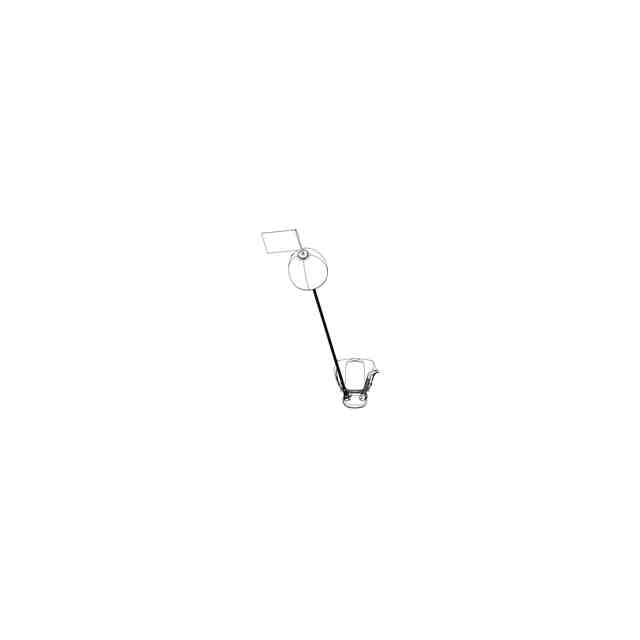

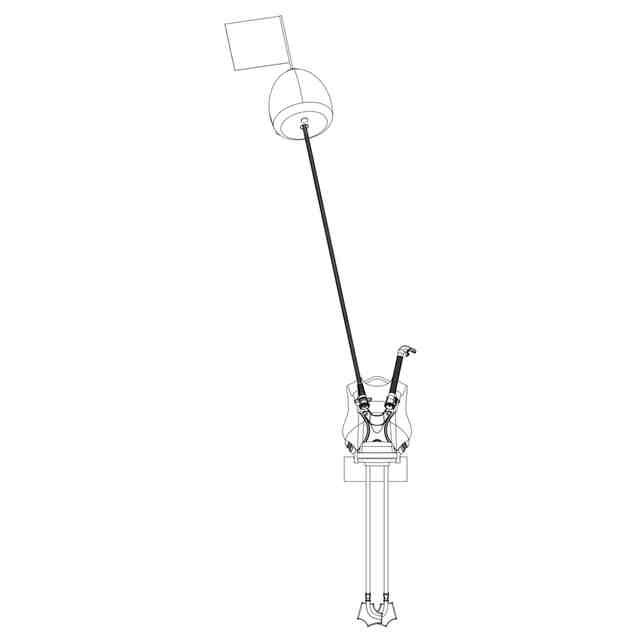

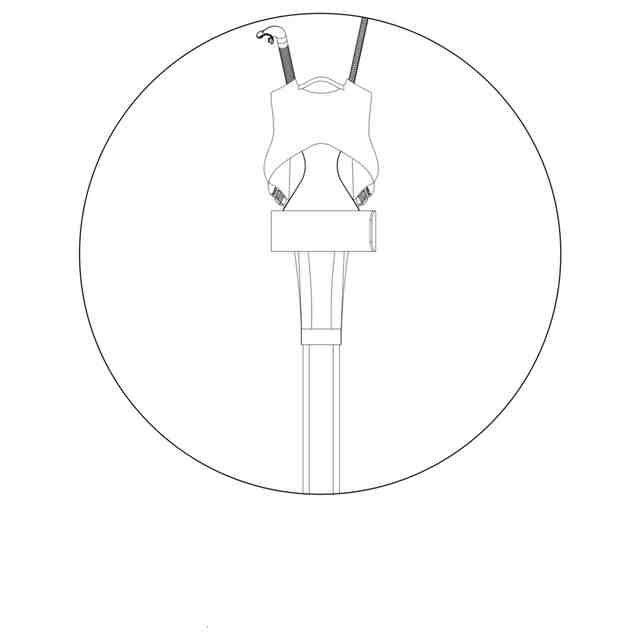

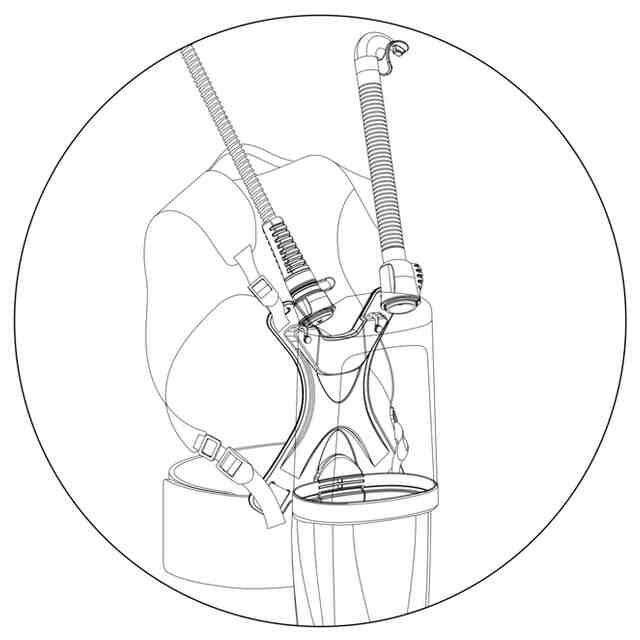

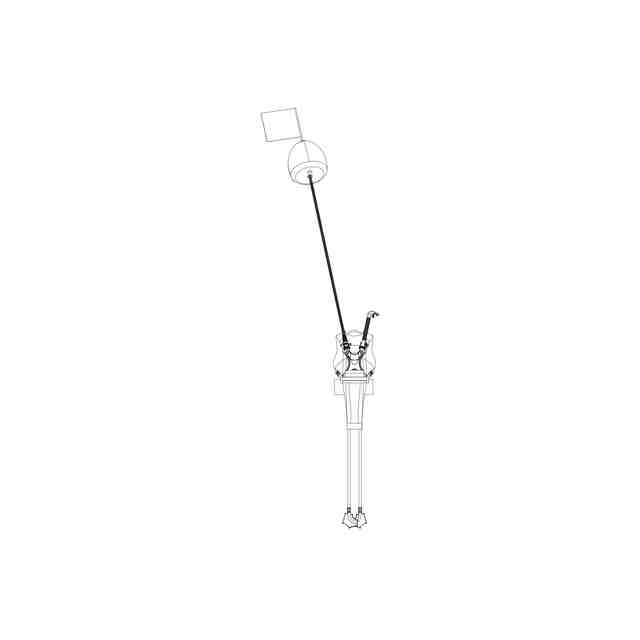

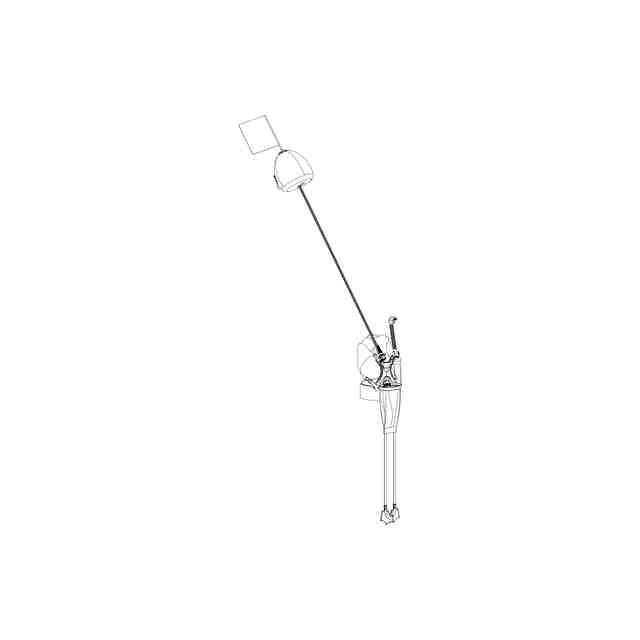

発行日2025-11-18 公報種別意匠公報(S) 登録番号1813075 登録日2025-11-10 意匠に係る物品Wearable personal floatation device with snorkel breathing apparatus 意匠分類E3-530(運動競技用品) 出願番号2024503882,015062314-0001 出願日 意匠権者LIVMEX B.V.,Sani-Kitchen Service B.V. 代理人弁理士法人竹内国際知財事務所 意匠に係る物品の説明This product is a wearable personal floating device, including a vest with a waistbelt, a wearable main unit attached to a breath piece and connected to an inflatable buoy through an air tube and foot sleeves on strings attached to the main unit, that gives the diver access to air supply below the water’s surface through the power of the diver’s own body movement in a way where, as the diver’s legs bend and extend, air is pulled from the water surface into the main unit, water pressure expands the diaphragm and compresses the air inside it for the diver’s inhalation. 意匠の説明1.1)Enlarged; 1.2)Enlarged; 1.3)Enlarged; 1.4)Enlarged; 1.5)Enlarged; 1.6)Enlarged; 1.7)Enlarged; 1.8)Alternative view; 1.9)Right; 1.10)Bottom; 1.11)Perspective; 1.12)Back; 1.13)Left; 1.14)Top; 1.15)Front この意匠をJ-PlatPat（特許庁公式サイト）で参照する
