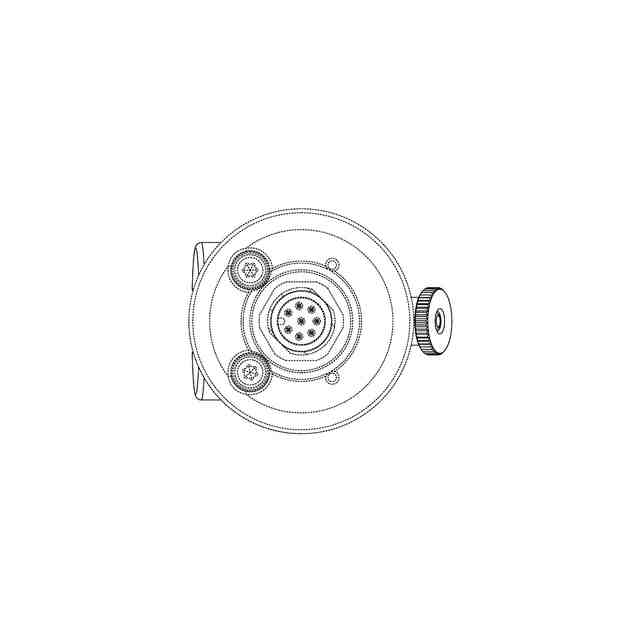

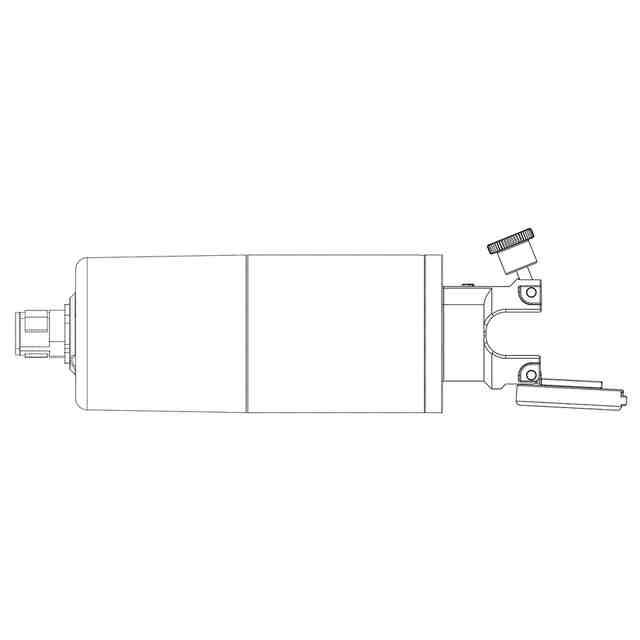

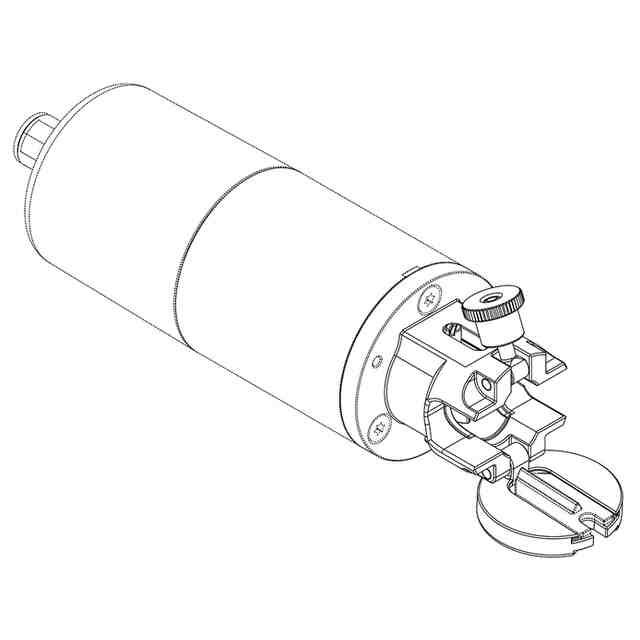

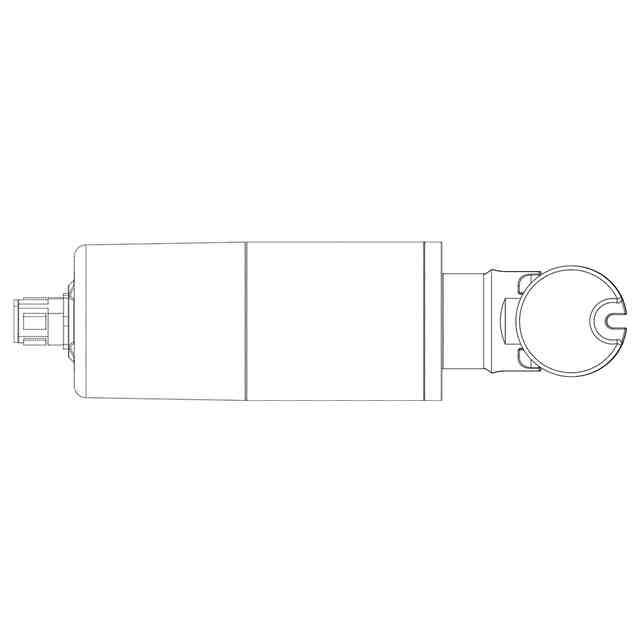

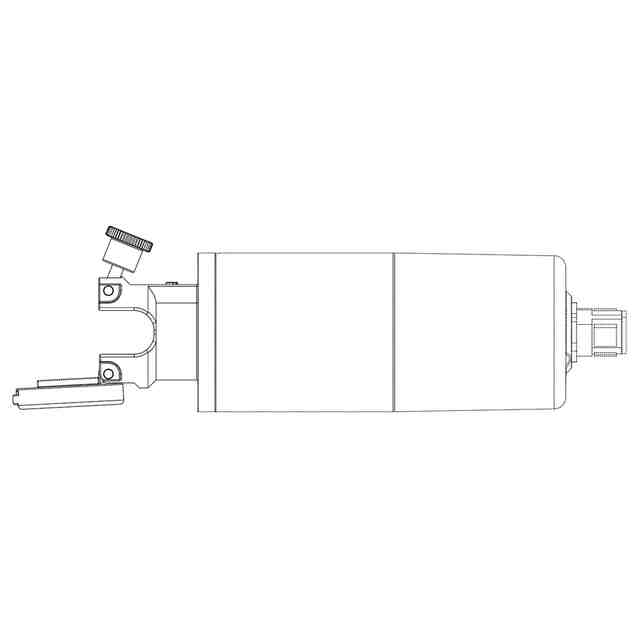

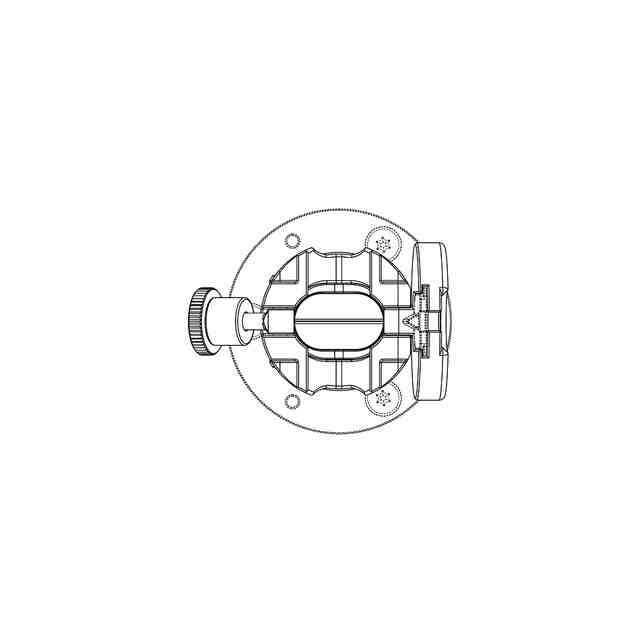

発行日2025-08-05 公報種別意匠公報(S) 登録番号1805335 登録日2025-07-28 意匠に係る物品Pinch valve for liquid pump 意匠分類M2-5000(配線・配管用管、管継ぎ手、バルブ等) 出願番号2023503764 出願日 意匠権者Levitronix GmbH 代理人 意匠に係る物品の説明 意匠の説明The claimed design is for a pinch valve; fig. 1.1 is a perspective view of the claimed design; fig. 1.2 is a back view in an open state; fig. 1.3 is a left-side view in an open state; fig. 1.4 is a top view in an open state; fig. 1.5 is a right-side view in an open state; fig. 1.6 is a bottom view in an open state; fig. 1.7 is a front view in an open state; fig. 1.8 is a perspective view of the valve in a closed state according to the design; the broken lines shown represent unclaimed subject matter and form no part of the claimed design. この意匠をJ-PlatPat（特許庁公式サイト）で参照する
