意匠ウォッチ

発行日2025-05-28
公報種別意匠公報(S)
登録番号1799614
登録日2025-05-19
意匠に係る物品Earbud cleaning kit
意匠分類C3-10(清掃用具、洗濯用具等)
出願番号2023503273
出願日
意匠権者Class and Culture LLC
代理人
意匠に係る物品の説明

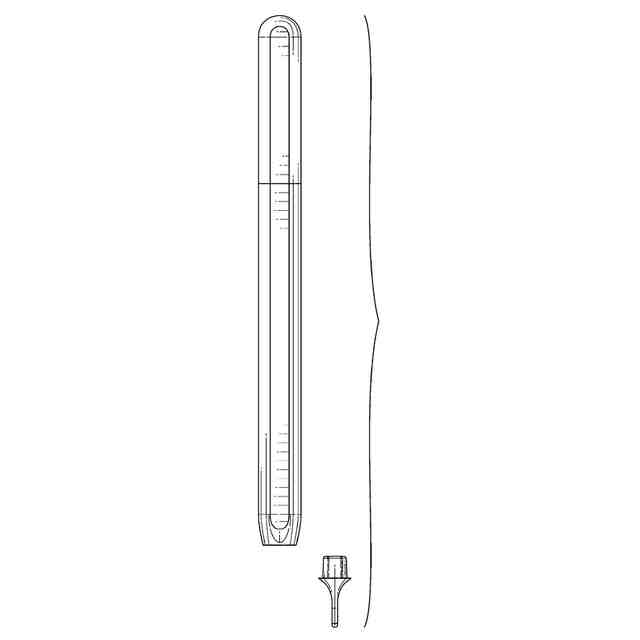

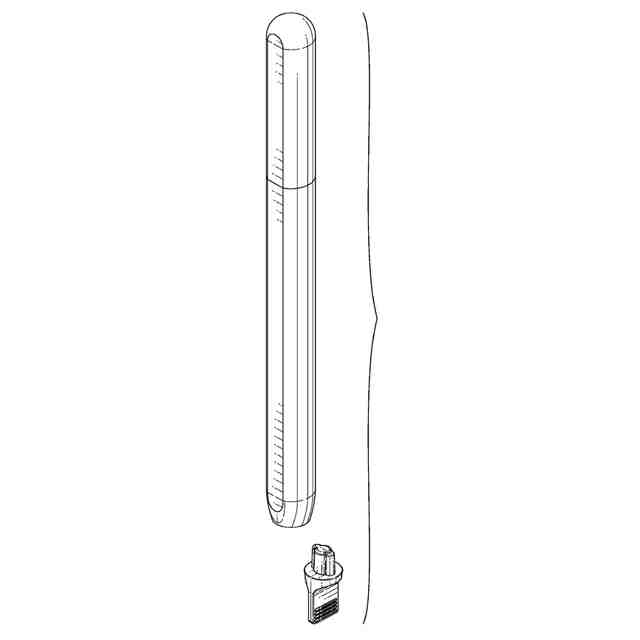

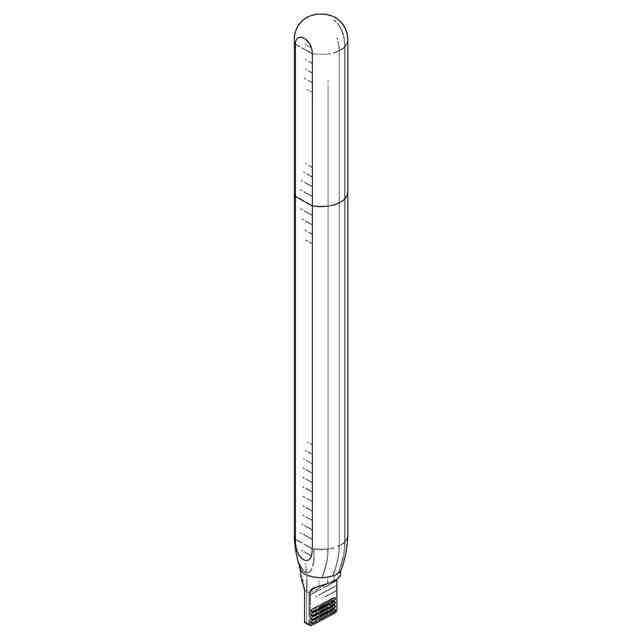

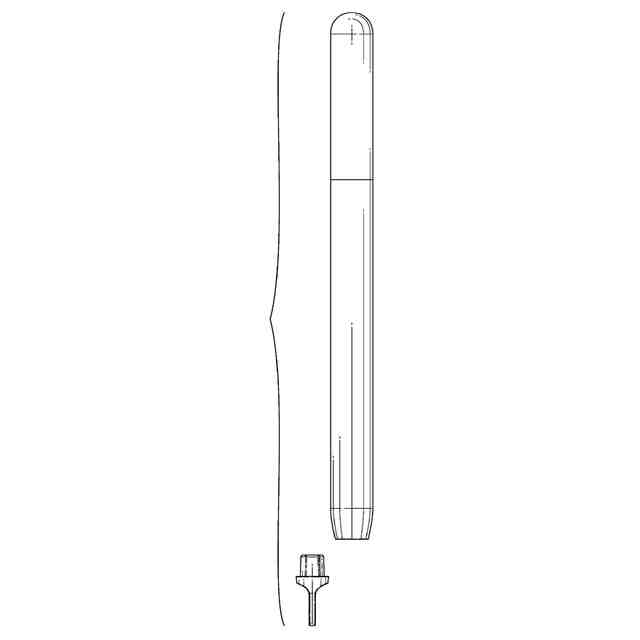

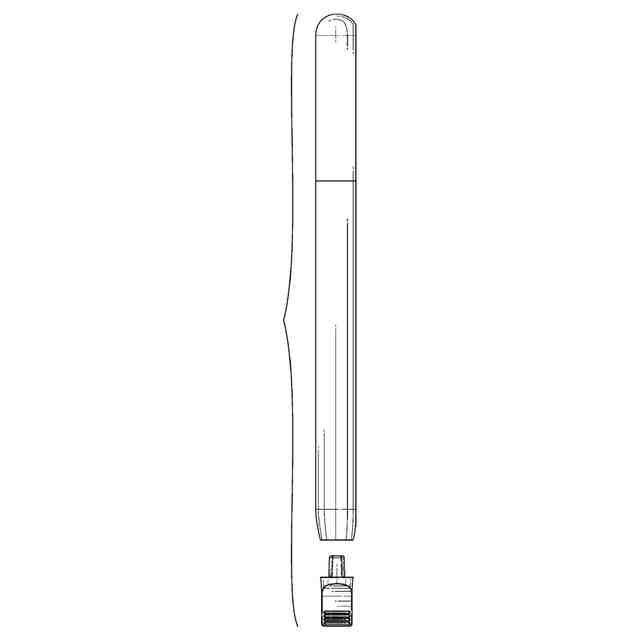

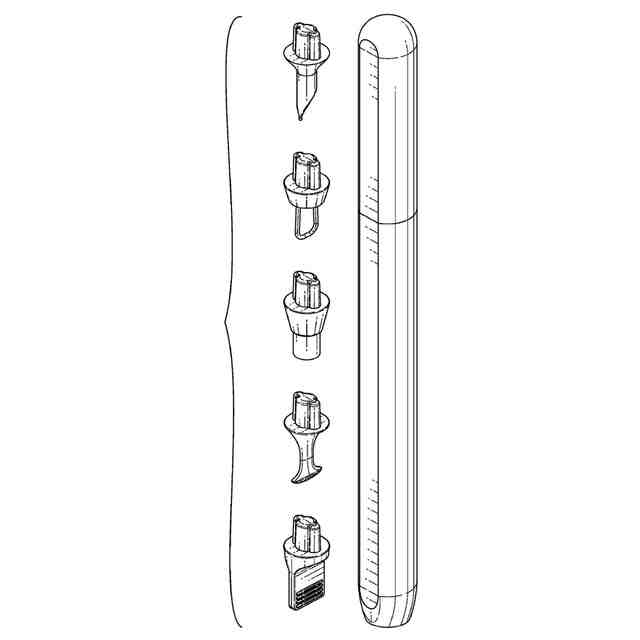

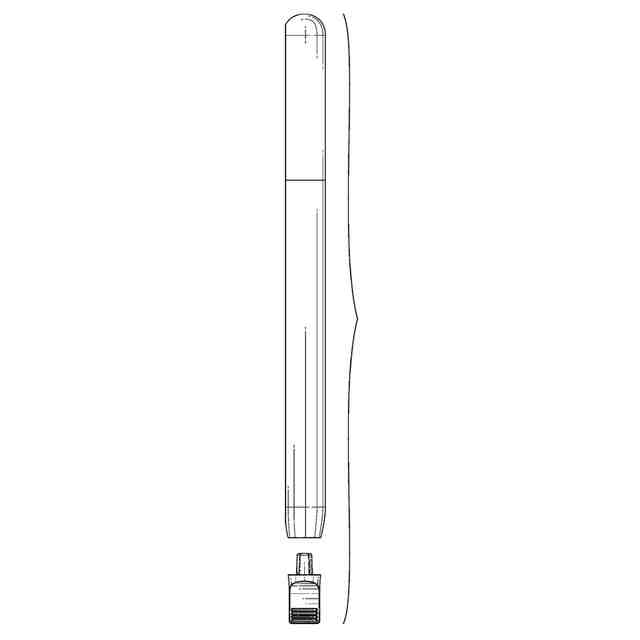

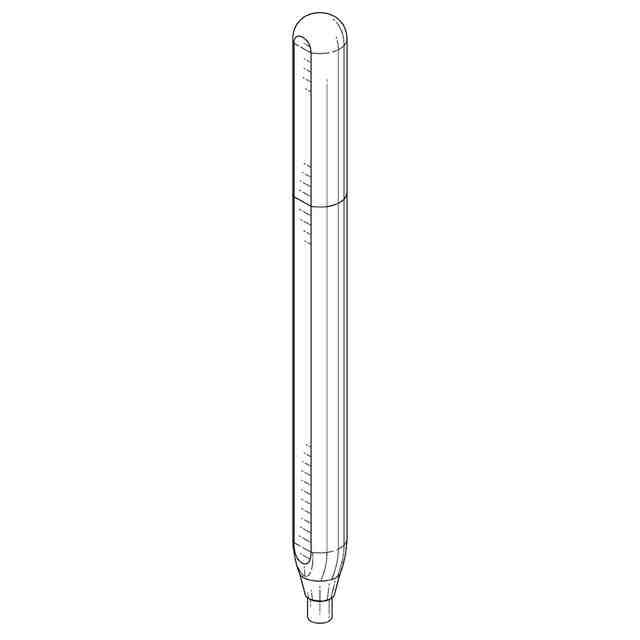

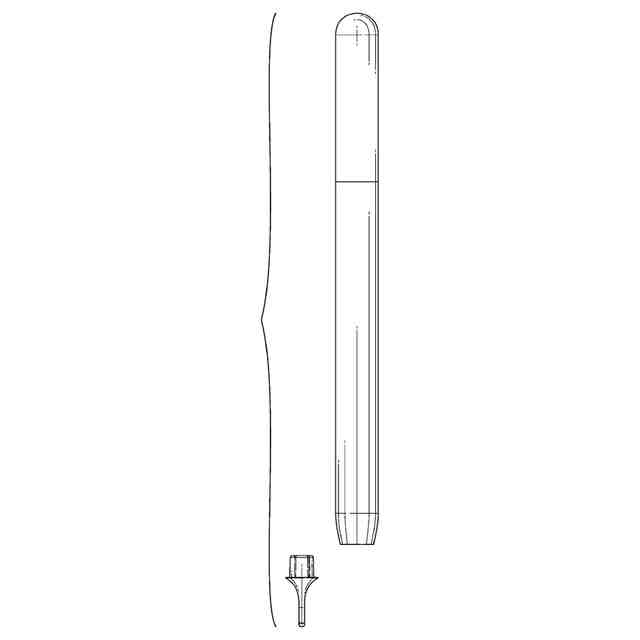

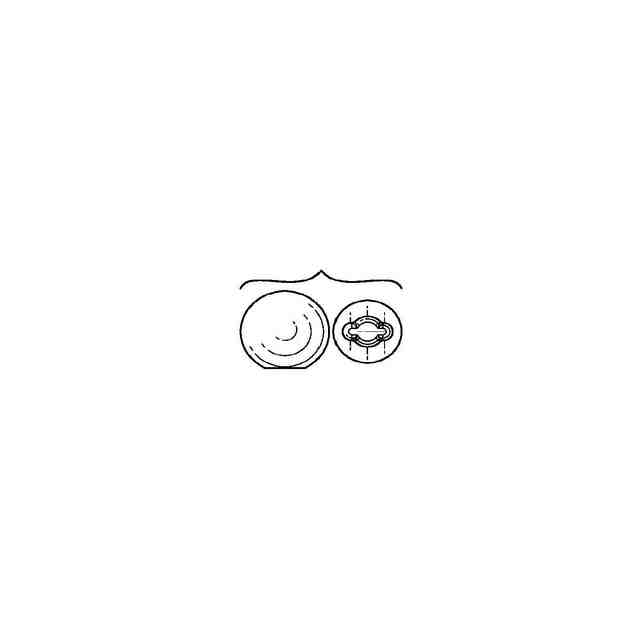

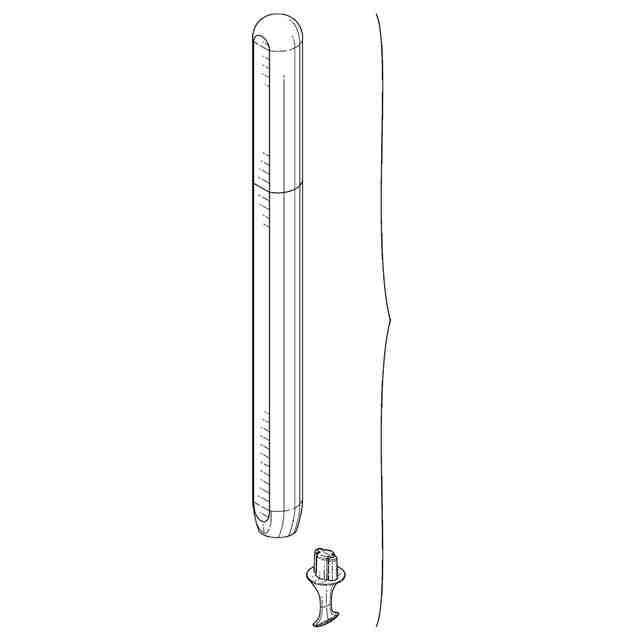

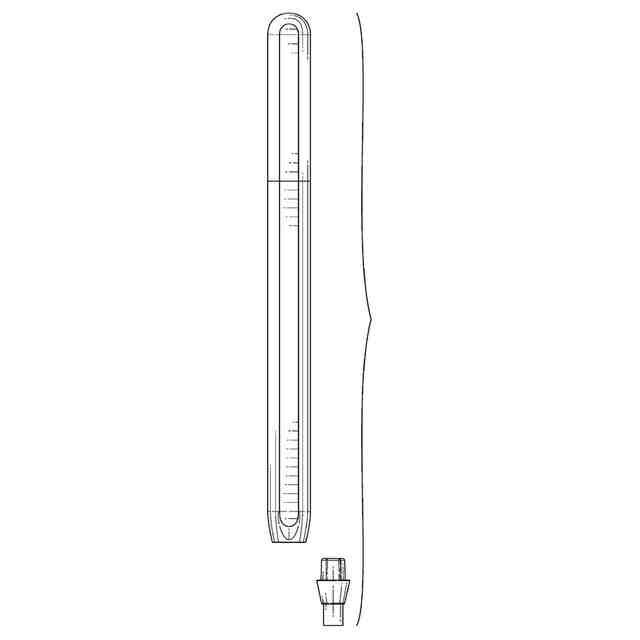

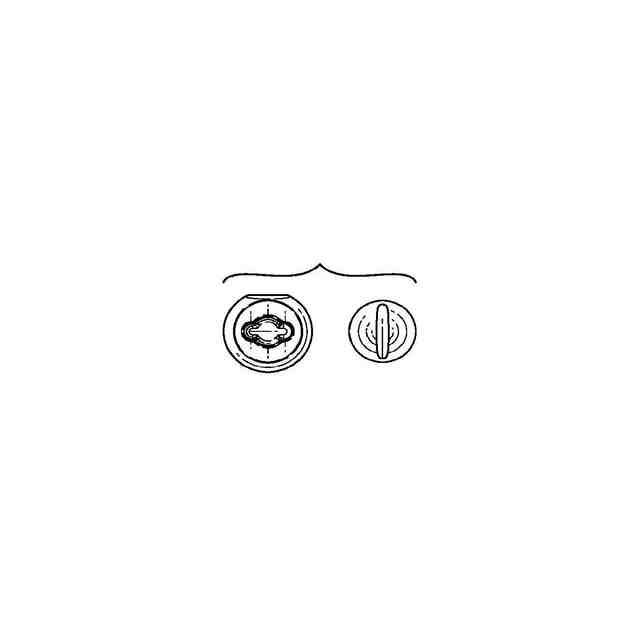

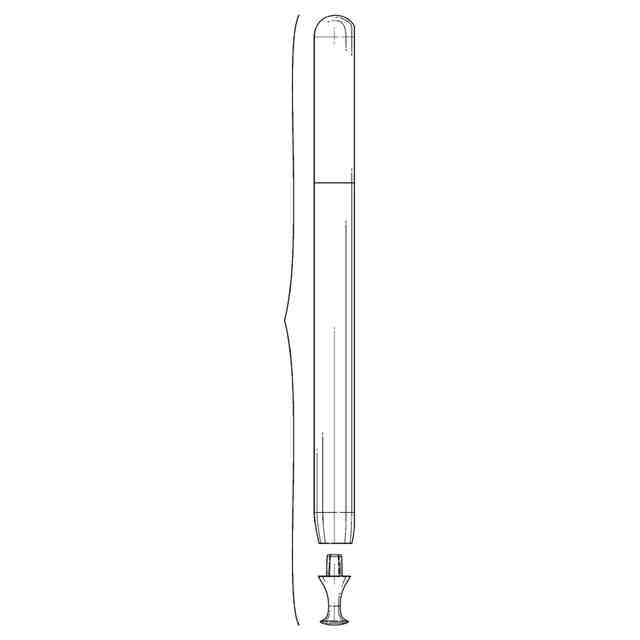

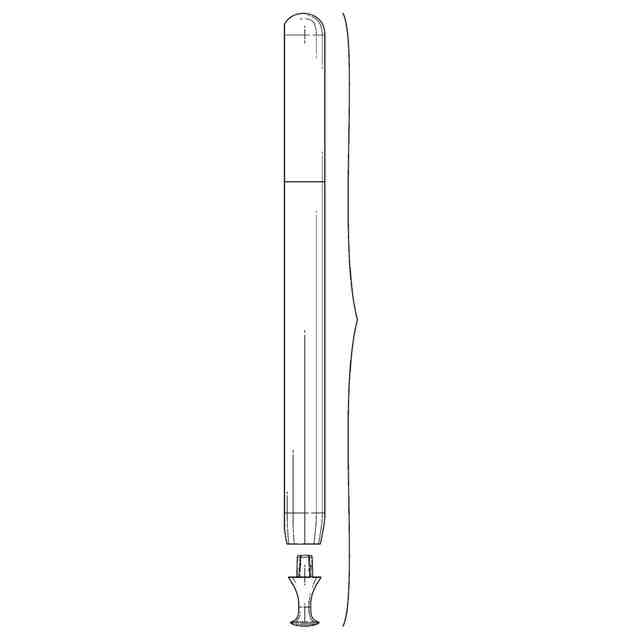

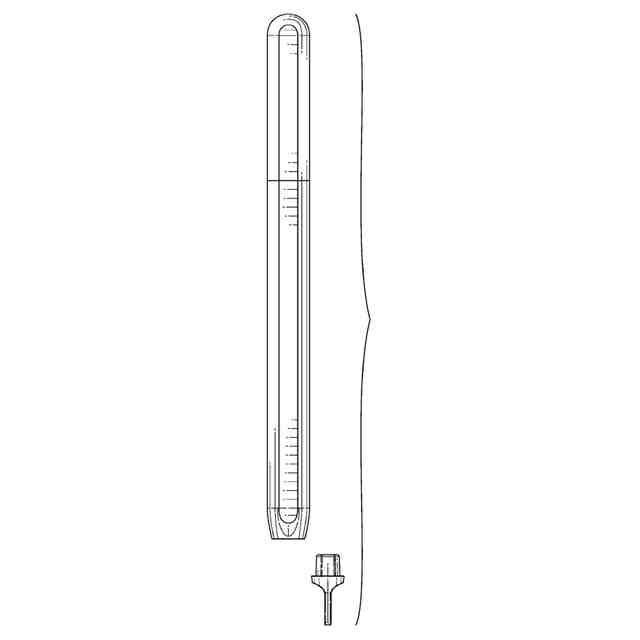

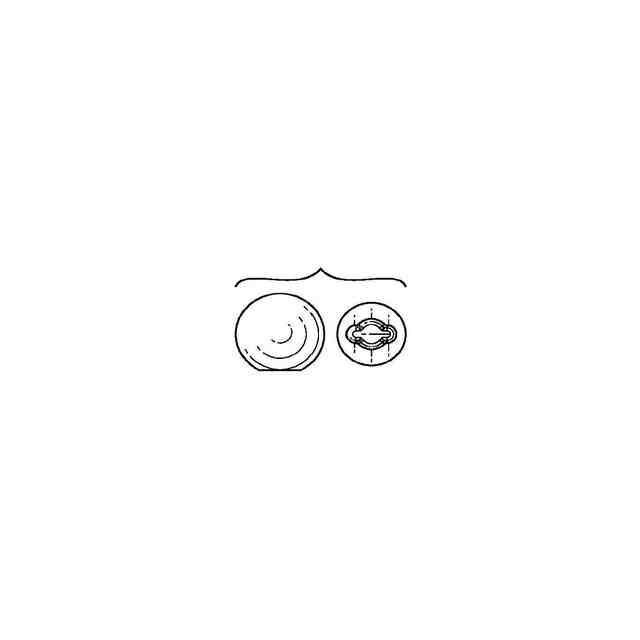

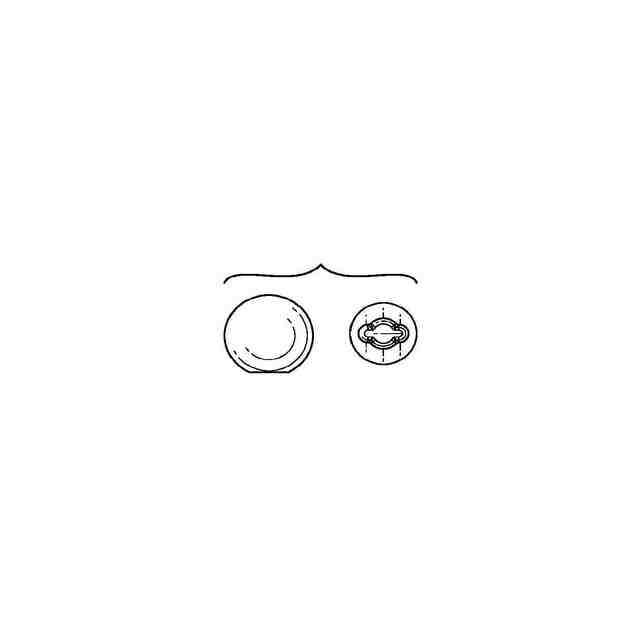

意匠の説明The designs are the visual features shown in solid lines in the drawings, whether those features are features of shape, configuration, ornament, or pattern, or are a combination of any of those features; the broken lines form no part of the claimed design; the shade lines in the drawings show contour of surfaces and do not illustrate an ornamentation, treatment, or decoration on the surfaces. 1.1)Perspective; 1.2)perspective assembled view of a handle with a first tip; 1.3)front exploded view of 1.2; 1.4)rear exploded view of 1.2; 1.5)right exploded view of 1.2; 1.6)left exploded view of 1.2; 1.7)top plan exploded view of 1.2; 1.8)bottom plan exploded view of 1.2; 1.9)perspective exploded view of 1.2; 1.10)perspective assembled view of a handle with a second tip; 1.11)front exploded view of 1.10; 1.12)rear exploded view of 1.10; 1.13)right exploded view of 1.10; 1.14)left exploded view of 1.10; 1.15)top plan exploded view of 1.10; 1.16)bottom plan exploded view of 1.10; 1.17)perspective exploded view of 1.10; 1.18)perspective assembled view of a handle with a third tip; 1.19)front exploded view of 1.18; 1.20)rear exploded view of 1.18; 1.21)right exploded view of 1.18; 1.22)left exploded view of 1.18; 1.23)top plan exploded view of 1.18; 1.24)bottom plan exploded view of 1.18; 1.25)perspective exploded view of 1.18; 1.26)perspective assembled view of a handle with a fourth tip; 1.27)front exploded view of 1.26; 1.28)rear exploded view of 1.26; 1.29)right exploded view of 1.26; 1.30)left exploded view of 1.26; 1.31)top plan exploded view of 1.26; 1.32)bottom plan exploded view of 1.26; 1.33)perspective exploded view of 1.26; 1.34)perspective assembled view of a handle with a fifth tip; 1.35)front exploded view of 1.34; 1.36)rear exploded view of 1.34; 1.37)right side exploded view of 1.34; 1.38)left side exploded view of 1.34; 1.39)top plan exploded view of 1.34; 1.40)bottom plan exploded view of 1.34; 1.41)perspective exploded view of 1.34; 1.42)perspective exploded view of a handle with a top cap

関連意匠
