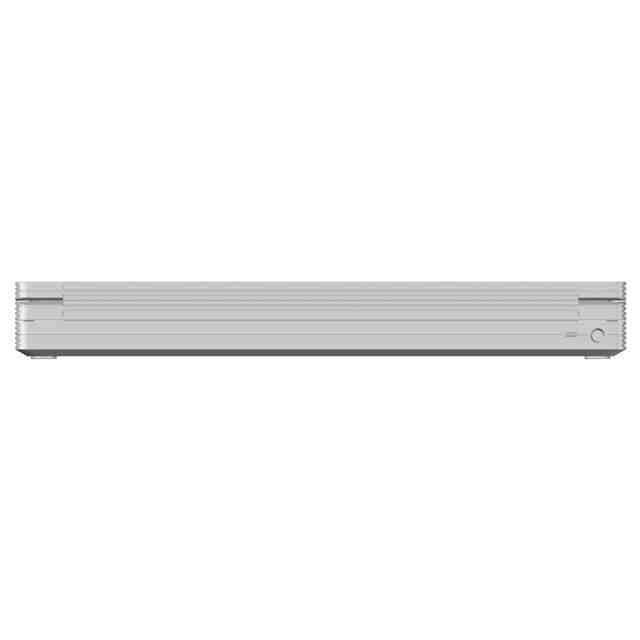

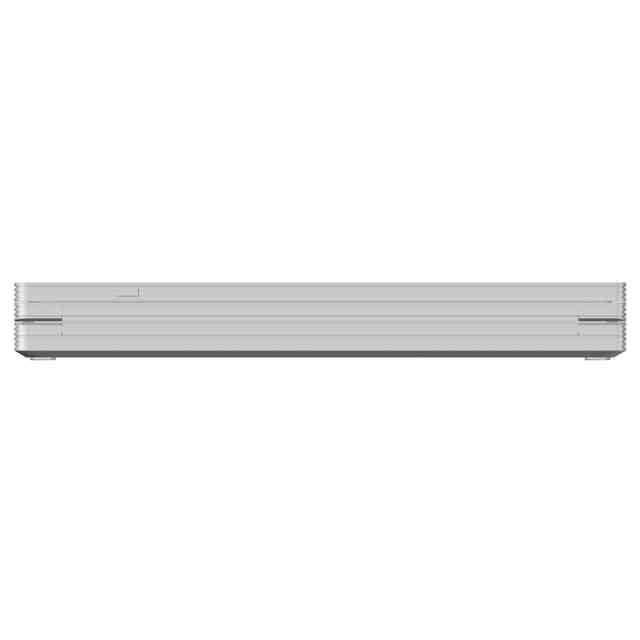

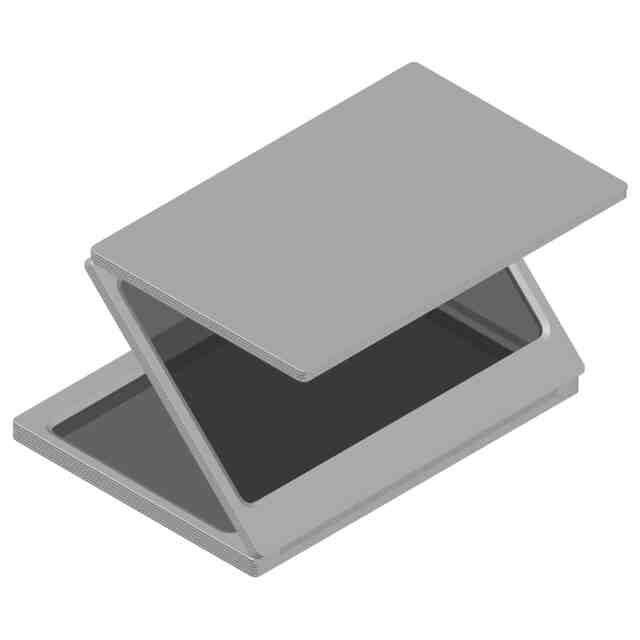

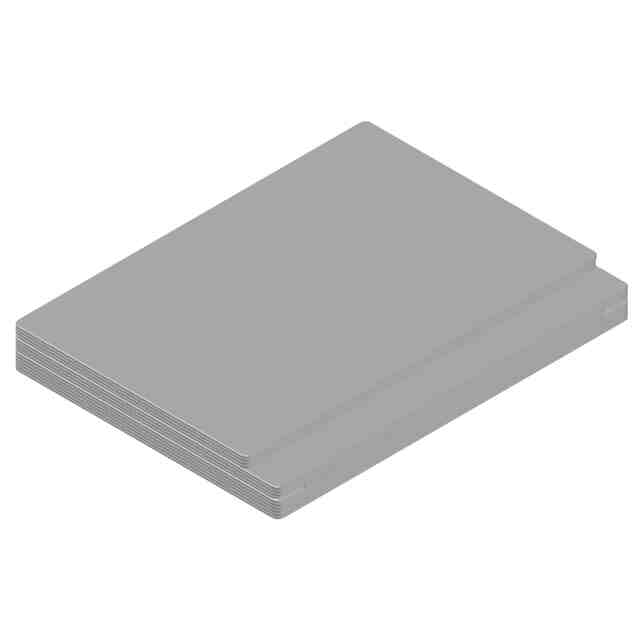

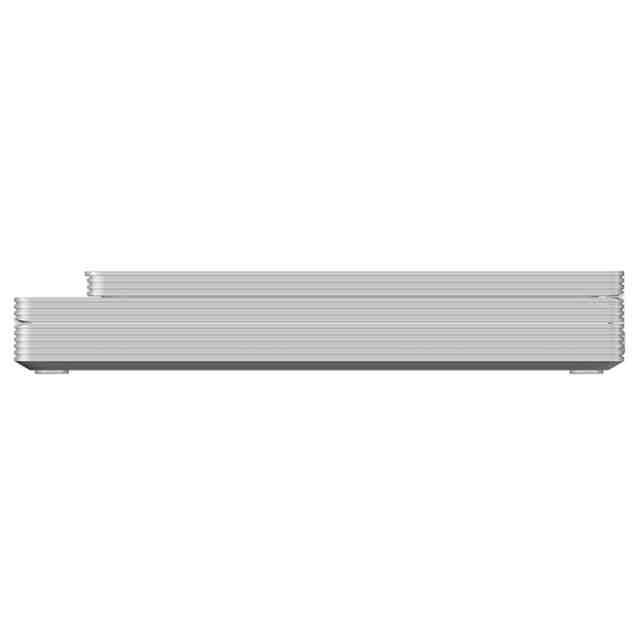

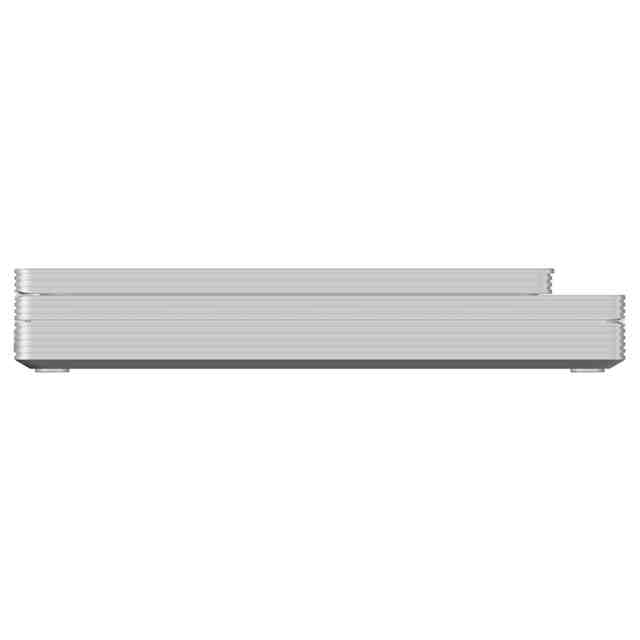

発行日2025-04-08 公報種別意匠公報(S) 登録番号1795539 登録日2025-03-31 意匠に係る物品Radiator for heating 意匠分類D4-172(暖冷房機又は空調換気機器) 出願番号2023502420,30-2022-0047249 出願日 意匠権者GRAPHENE SQUARE INC. 代理人 意匠に係る物品の説明 意匠の説明1. The present design is related with a radiator, and the material of the main body is metal or plastic, and a part of the main body is a transparent heating unit including graphene. 2. The main body has a three-stage folding structure and can be used by folding or unfolding to facilitate movement, storage and use, and the degree of spread of the main body can be adjusted from various angles. 3. The present design may generate heat by applying a voltage to the transparent heating unit, and the transparent heating unit may display 2D or 3D image. 4. FIG. 1.1 to 1.7 is a perspective, front, rear, top, bottom, left and right view of the present design, respectively. 5. FIG. 1.8 shows the use state of the present design in unfolded state, in which the transparent heating unit consists of transparent material. 1.1)Perspective; 1.2)Front; 1.3)Back; 1.4)Top; 1.5)Bottom; 1.6)Left; 1.7)Right; 1.8)Reference この意匠をJ-PlatPatで参照する
