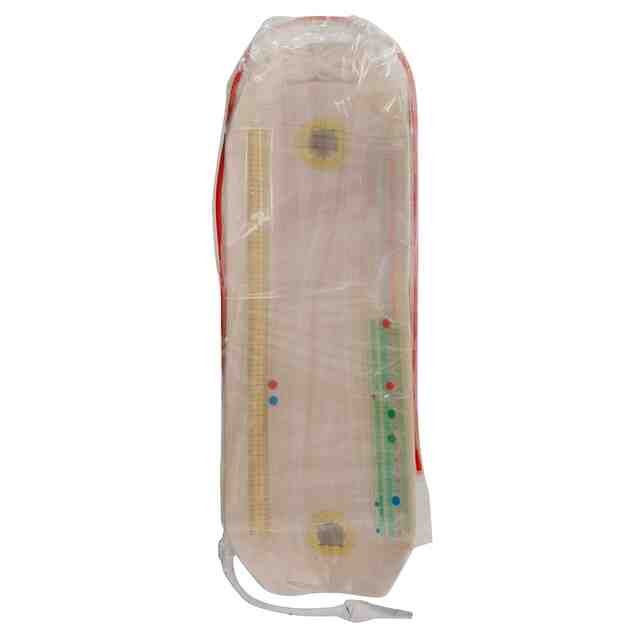

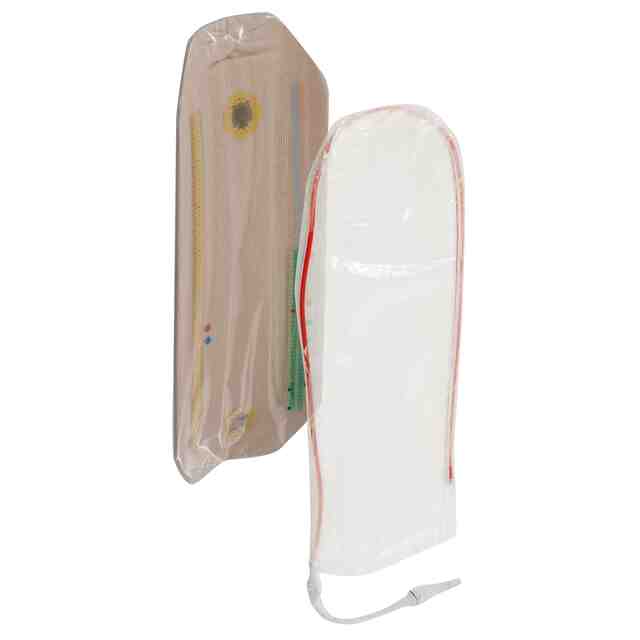

発行日2025-03-11 公報種別意匠公報(S) 登録番号1793220 登録日2025-03-03 意匠に係る物品Bio-modulation light therapy device for blood circulation enhancement comprising graduated scale 意匠分類J7-55(医療機械器具) 出願番号2024500044 出願日 意匠権者Jin Wang KIM,Jung Ok LEE,Hyun Ji KIM,Hyun Woo KIM 代理人個人 意匠に係る物品の説明Figures 1.8 and 1.9 show the main body and cover in a separated state. The product is used in two methods for promoting blood circulation: intravascular phototherapy and extravascular phototherapy. Specifically, it facilitates blood flow through photo biomodulation, stabilizes the arm, and prevents secondary vascular injury. In Figure 1.9, the user’s arm is placed on top of the main body (1) and cover (4) during use. The scale markings (2-1, 2-2) are designed to help align the injection site when the arm is placed. The sticker (2-3) indicates the arm position, vein location, and injection points to avoid repeated puncturing of the same area. The cover (4) has a nearly circular arrangement of linear LEDs (6) around the outer perimeter to perform phototherapy. The electric wire (5) is connected to a switch that controls the on/off function of the LEDs (6). 意匠の説明1.1)Perspective; 1.2) Front; 1.3) Back; 1.4) Left; 1.5) Right; 1.6) Top; 1.7) Bottom; 1.8) Exploded; 1.9) Reference figure showing names of parts この意匠をJ-PlatPatで参照する
