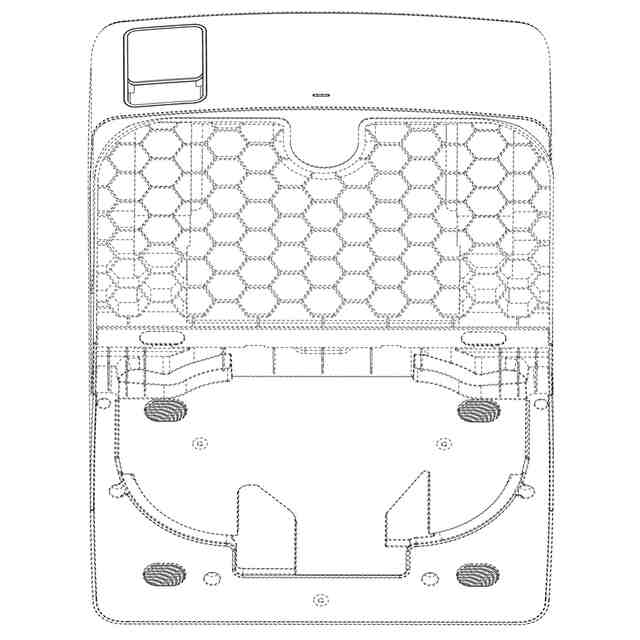

発行日2025-09-09 公報種別意匠公報(S) 登録番号1808179 登録日2025-09-01 意匠に係る物品Docking station for cleaning robot 意匠分類C3-4195(清掃用具、洗濯用具等) 出願番号2024500263,202330712058.9 出願日 意匠権者Beijing Roborock Technology Co., Ltd. 代理人個人,個人,個人 意匠に係る物品の説明 意匠の説明The design product is a docking station for cleaning robot, and the part to be registered as a partial design is used as a liquid receiving mechanism of docking station for cleaning robot; reproduction 1.1 is a front view of a liquid receiving mechanism of docking station for cleaning robot; reproduction 1.2 is a back view thereof; reproduction 1.3 is a left view thereof; reproduction 1.4 is a right view thereof; reproduction 1.5 is a top view thereof; reproduction 1.6 is a bottom view thereof; reproductions 1.7 to 1.9 are three perspective views thereof; the broken lines in the reproductions depict the portions of docking station for cleaning robot that form no part of the claimed design, while only the liquid receiving mechanism presented in the front of the docking station is claimed. 1.1) Front; 1.2) Back; 1.3) Left; 1.4) Right; 1.5) Top; 1.6) Bottom; 1.7) Perspective; 1.8) Perspective; 1.9) Perspective この意匠をJ-PlatPat（特許庁公式サイト）で参照する
