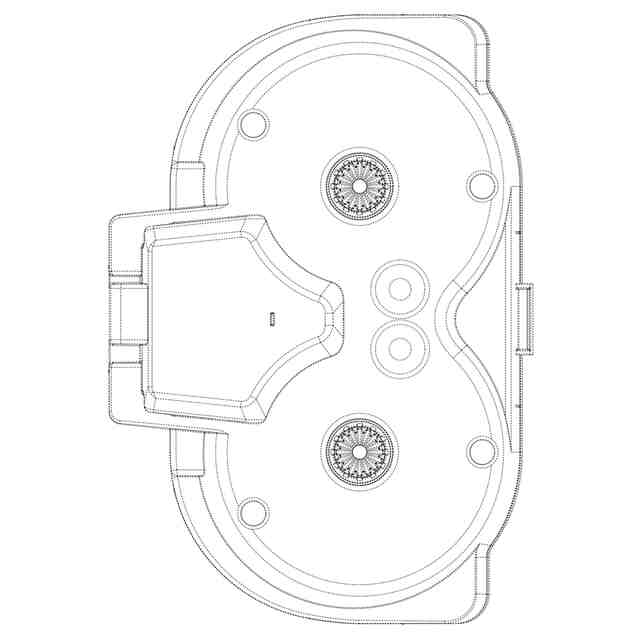

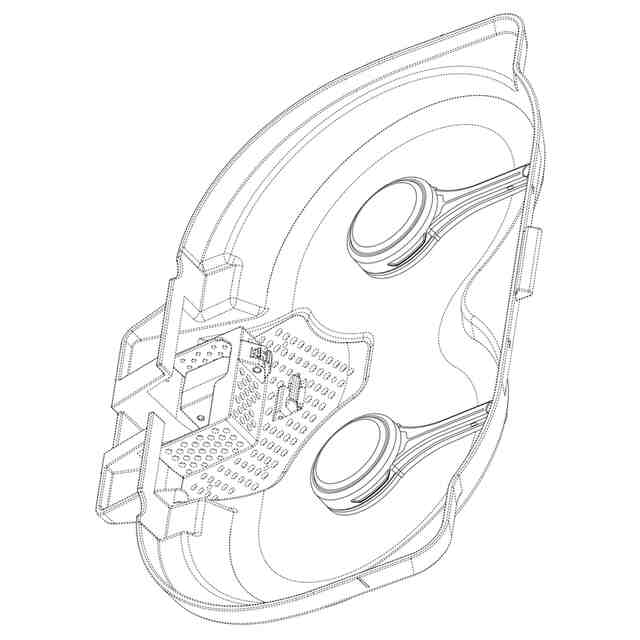

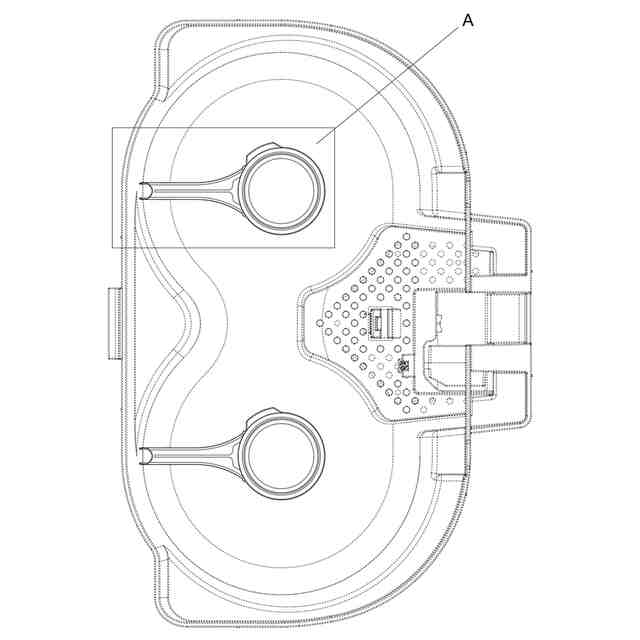

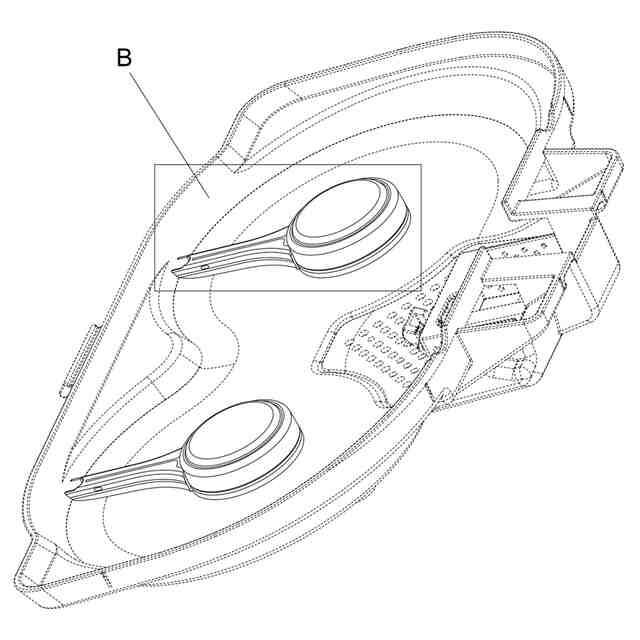

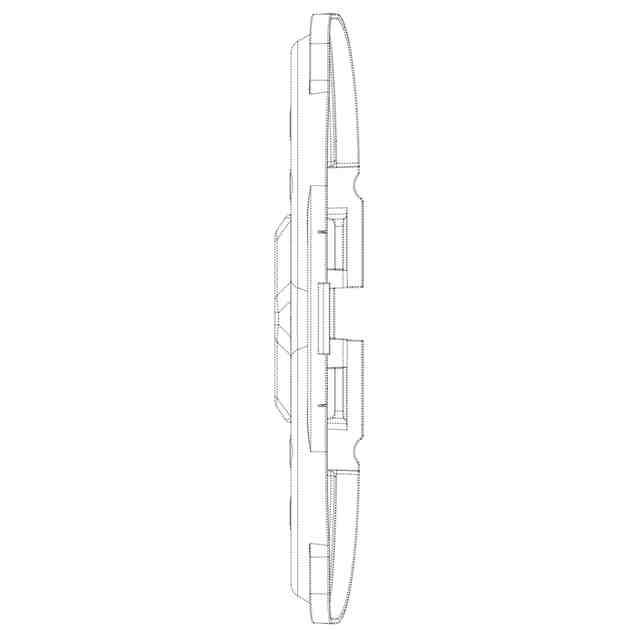

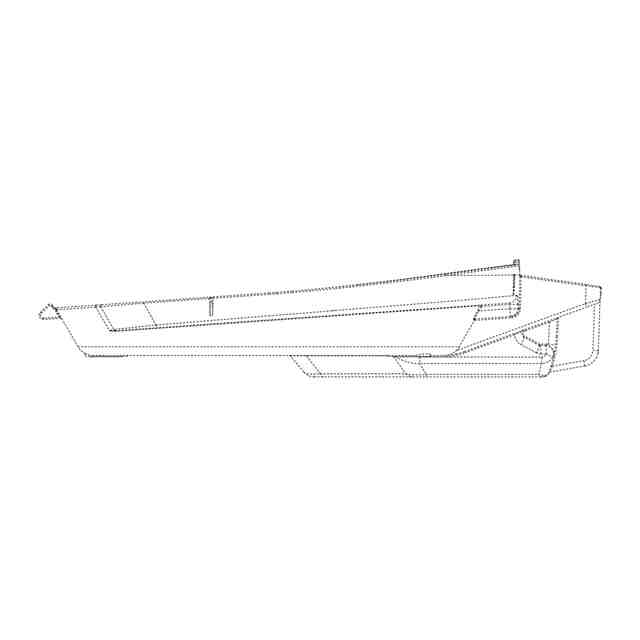

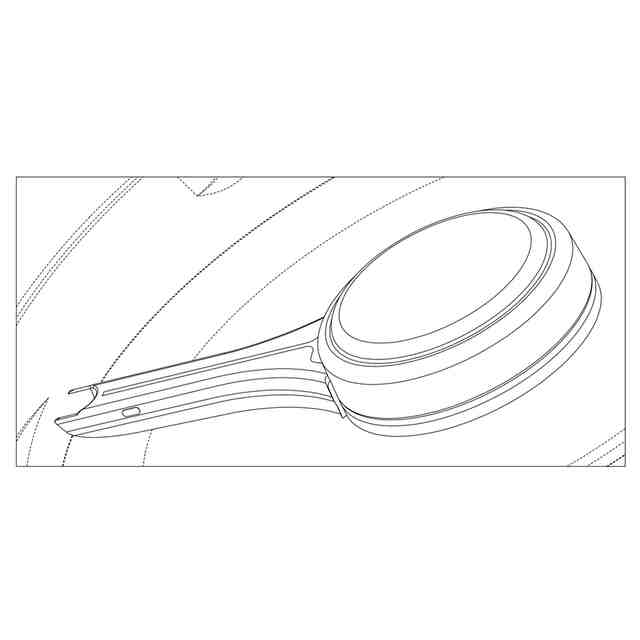

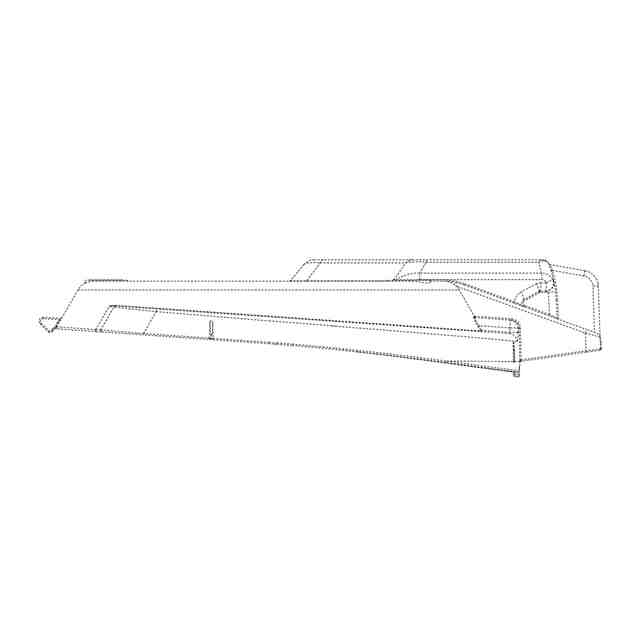

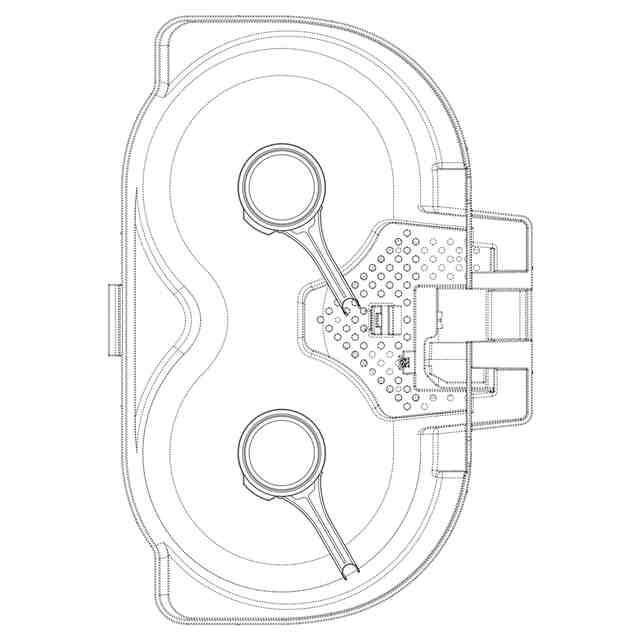

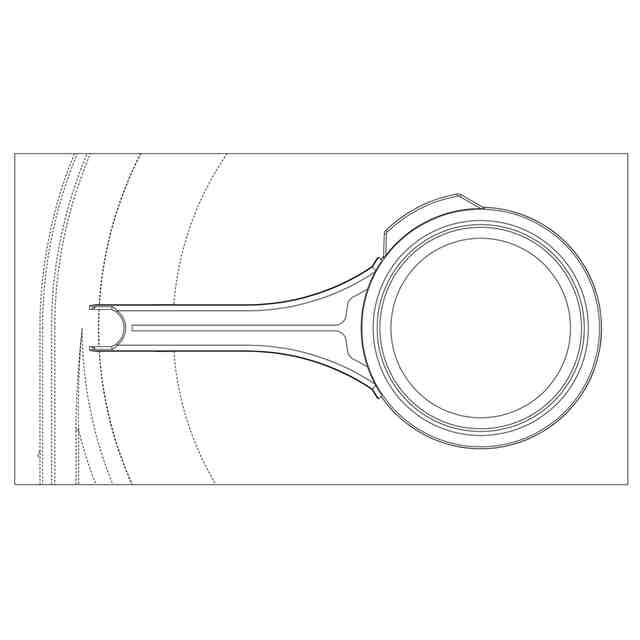

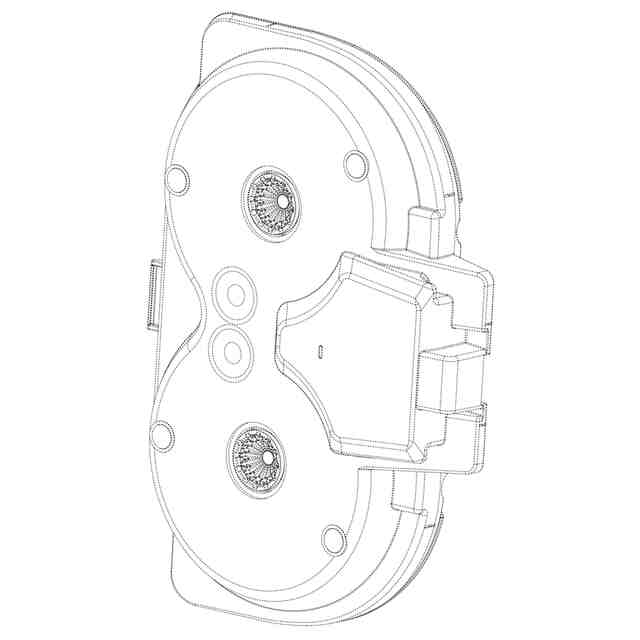

発行日2025-07-08 公報種別意匠公報(S) 登録番号1803192 登録日2025-06-30 意匠に係る物品Self-cleaning part of docking station for cleaning appliance 意匠分類C3-4190(清掃用具、洗濯用具等) 出願番号2024502907,2024301572248 出願日 意匠権者Beijing Roborock Technology Co., Ltd. 代理人 意匠に係る物品の説明 意匠の説明1.1 to 1.14 show a first self-cleaning part of docking station for cleaning appliance, in which 1.2 is an enlarged view of part A in 1.1; 1.9 is an enlarged view of part B in 1.8; 1.12 and 1.13 each shows a different variation state that the cleaning brush of the first self-cleaning part is rotated to a different position; 1.14 is a reference view showing an assembled and usage state of the first self-cleaning part in a docking station; The broken lines in 1.1 to 1.13 depict portions that form no part of the claimed design; the reference view 1.14 is provided for illustrative purpose and form no part of the claimed design. 1.1)Front; 1.2)Enlarged; 1.3)Back; 1.4)Left; 1.5)Right; 1.6)Top; 1.7)Bottom; 1.8)Perspective; 1.9)Enlarged; 1.10)Perspective; 1.11)Perspective; 1.12)Front; 1.13)Front; 1.14)reference view この意匠をJ-PlatPat（特許庁公式サイト）で参照する
