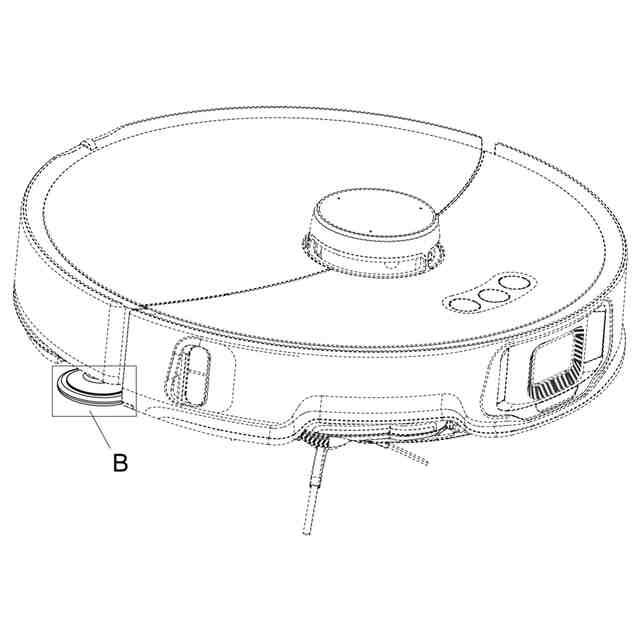

発行日2025-02-12 公報種別意匠公報(S) 登録番号1791026 登録日2025-02-03 意匠に係る物品Cleaning robot with rotary mop 意匠分類C3-4100(清掃用具、洗濯用具等) 出願番号2024501436,202430008482X 出願日 意匠権者Beijing Roborock Technology Co., Ltd. 代理人 意匠に係る物品の説明 意匠の説明Reproduction 1.1 is a front view of a cleaning robot with rotary mop, reproduction 1.2 is a back view thereof, reproduction 1.3 is a left view thereof, reproduction 1.4 is a right view thereof, reproduction 1.6 is a top view thereof, reproduction 1.7 is a bottom view thereof, reproductions 1.8 and 1.10 are two perspective views thereof, and reproductions 1.5, 1.9 and 1.11 are enlarged views of parts A, B and C circled and marked in reproductions 1.4, 1.8 and 1.11, respectively; the broken lines in the reproductions depict the portions of cleaning robot that form no part of the claimed design, while only the rotary mop of the cleaning robot is claimed. 1.1)Front; 1.2)Back; 1.3)Left; 1.4)Right; 1.5)Enlarged; 1.6)Top; 1.7)Bottom; 1.8)Perspective; 1.9)Enlarged; 1.10)Perspective; 1.11)Enlarged この意匠をJ-PlatPatで参照する
